Ergotron 24-191-057 Neo-Flex Mobile Media Center VHD Very Heavy Duty 24191057

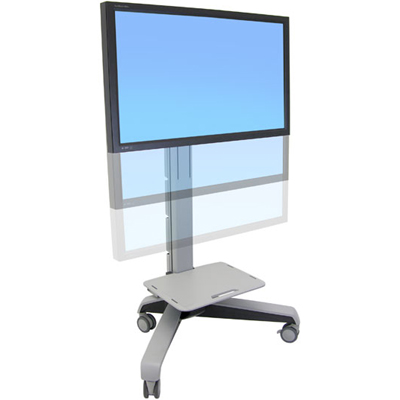

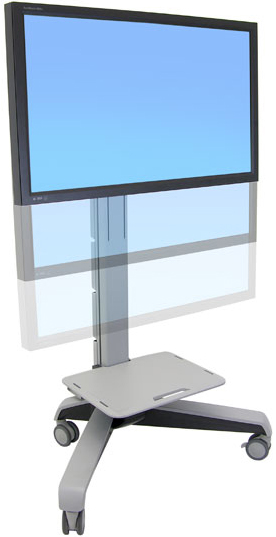

Ergotron 24-191-057 Neo Flex Mobile Media Center:

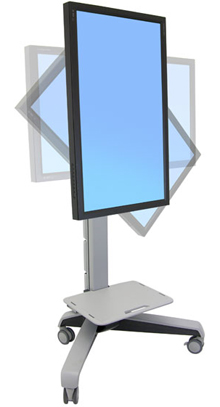

This cart stretches your investment by serving a variety of projection needs. Features include portrait-to-landscape rotation, 20" (51 cm) effortless height adjustment and 20° independent display tilt.
Get optimal positioning for both seated and standing audiences, in any application, in any part of your facility. Adjusts with just a touch - no knobs or levers
Dimensional Diagram for24-191-057 Neo-Flex Mobile Media Center VHD Grey

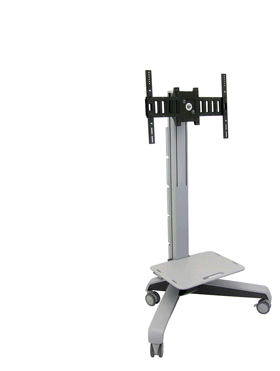

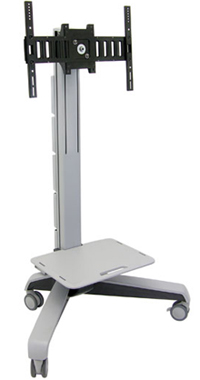

Below is the hole pattern image on the main mount of vertical column that the larger mount bracket attaches to
Technical Specifications:
LCD Size
Wt. Capacity
Lift
Tilt
Pan
Rotation
VESA
37" - 55"
50 - 90 lbs
23 - 41 kg
20"
51 cm
20°
-
90° P/L
MIS-F
Product Information:
Part Number:
24-191-057
Description:
Neo-Flex Mobile MediaCenter VHD, Very Heavy Duty (Grey)
Includes:
Cart, display and pan assembly, lower main shelf, 4-inch (100 mm) casters (two locking), rear cable shelf, cable channel kit
Others Information:
Add the MMC Video-Conferencing Kit to place adjustable camera shelf above the display (ordered separately)
Modular cable channel system is adaptable for various wiring configurations
Rugged plastic-composite shelf conveniently attaches to cart at any height
Complies with UL Tip Standards 1667 and 1678
CPU:
CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)
Weight Capacity:
Main shelf = 30 lbs (13.6 kg), cable shelf = 5 lbs (2.2 kg), if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 3 lbs (1.4 kg), if 800 mm Accessory Kit is added, display weight capacity is diminished by 5 lbs (2.3 kg)
Mounting Hole Patterns
(Width x Height in mm):
200 x 200, 200 x 400, 400 x 200, 400 x 400, 600 x 200 and 600 x 400. Optional patterns: 800 x 200 and 800 x 400 with 800 mm Accessory Kit, ordered separately
Note:
Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology)
Shipping Dimensions:
66"L x 20"H x 14"D (1680 x 503 x 335 mm)
Shipping Weight:
122 lbs (55 kg)
Warranty:
Three (3) years
Benefits:
Move digital signage and images to where you need them.
Rotate your display to portrait or landscape orientation - no need to reinstall display
Optional camera shelf accessory converts any space into a videoconference center
Easily roll cart through standard-size doorways and over thresholds
Narrow footprint allows presenter to move closer to the display, easily tucks into corners or nests with other carts for space-saving storage
Force CF technology enables smooth, effortless portrait-to-landscape rotation, tilt and height adjustment. Adjusts with just a touch - no knobs or levers
Modular cable management channels conceal and organize cables
Maximize your technology investment by sharing a large display over multiple rooms
Second-generation design and 47 separate quality tests ensure reliability and optimum performance
Speedy assembly and installation
