The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Innovative 9199 Long Reach (45.8") 3-Link Monitor Arm

There is a 20 day lead time for 9199 long reach arm.

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15755
Highlights
  • Long reach 3-link single monitor arm
  • Ideal for dental offices, patient rooms and operating rooms
  • Vertical range:  28.28" (+/-14.14" from horizontal)
  • Horizontal range: 44.4"
  • Weight capacity: 4-18 lbs
  • VESA compatibility: 75mm and 100mm
Options
Our Price: Call for price
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

Related Products

Part Number

Description

9199-1000-NM

Vertical Range 28", Horizontal Range 45.8", Weight range 4 - 15 lbs, No Mount

9199-1500-NM

Vertical Range 28", Horizontal Range 45.8", Weight range 5 - 18 lbs, No Mount



Description

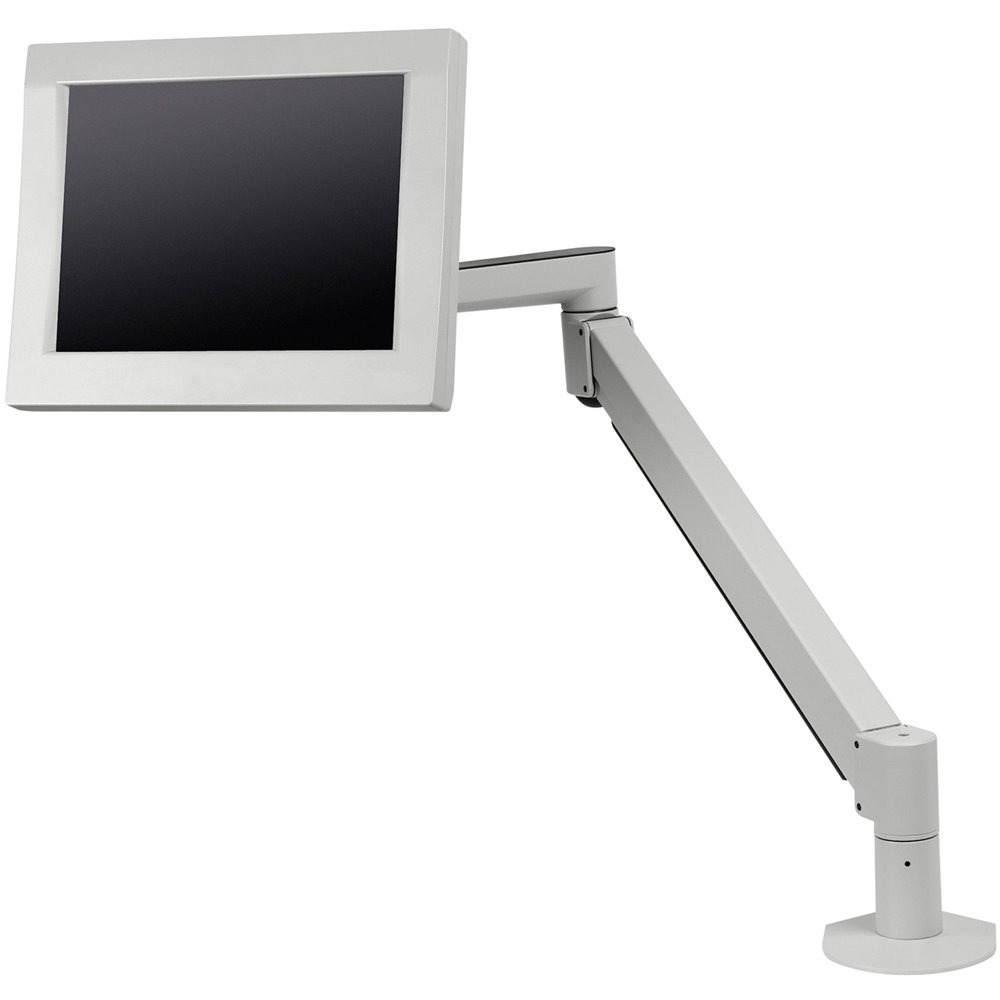

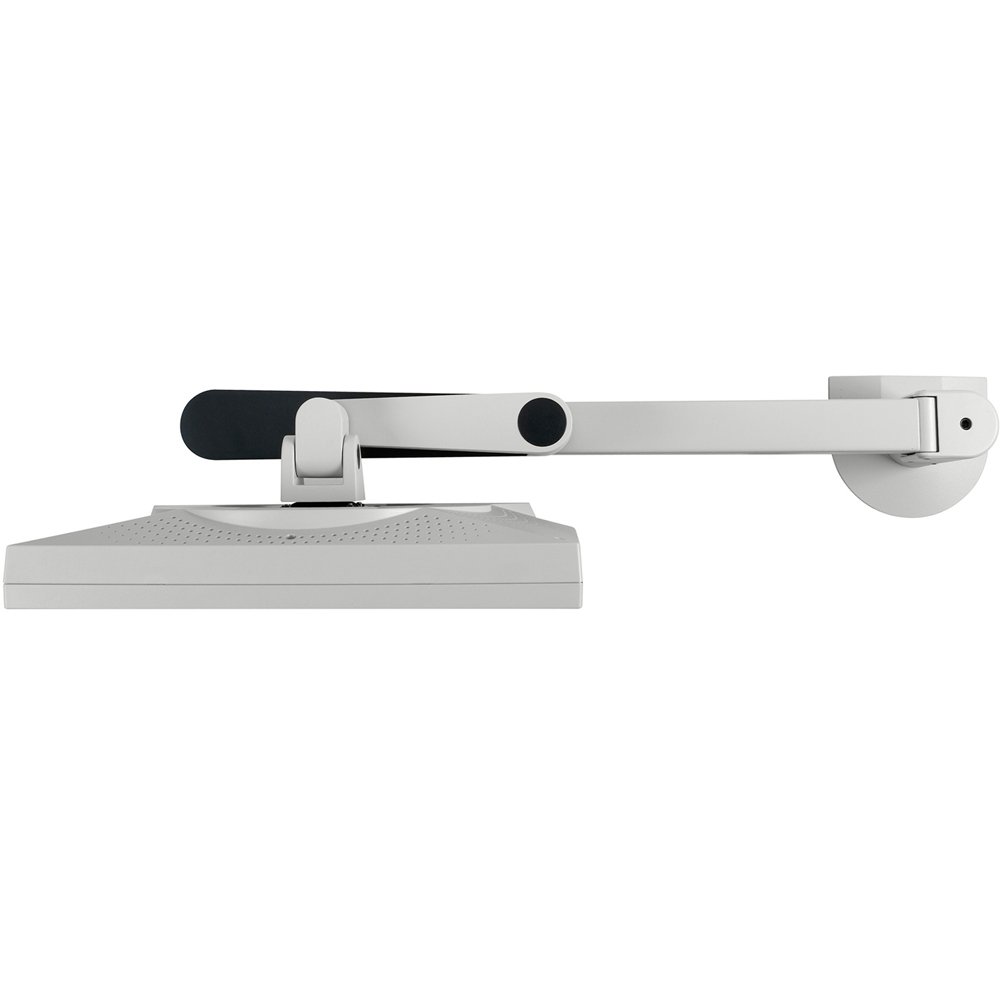

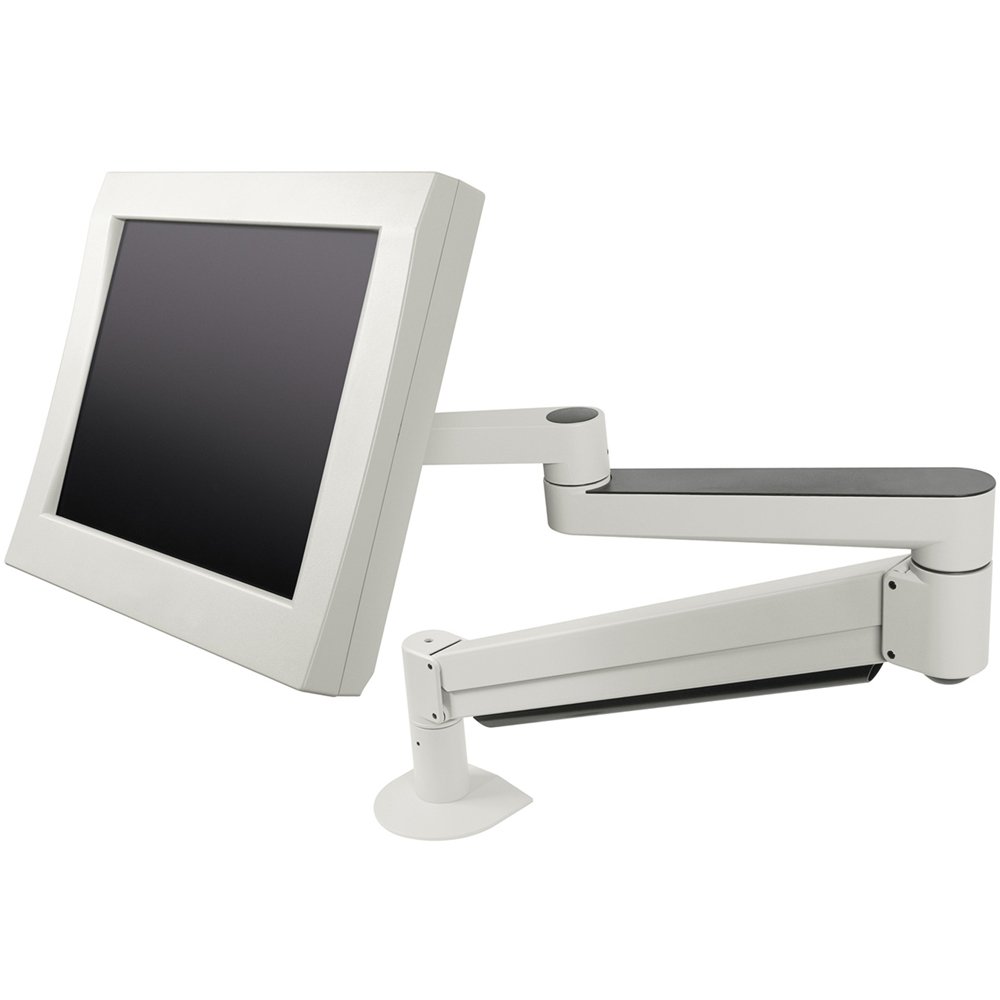

Innovative 9199 massive arm suspends a monitor weightlessly, while offering over 3-1/2 feet of extension. The arm's 3 links provide full articulation, allowing you to position the monitor anywhere within the arm's sphere of movement.

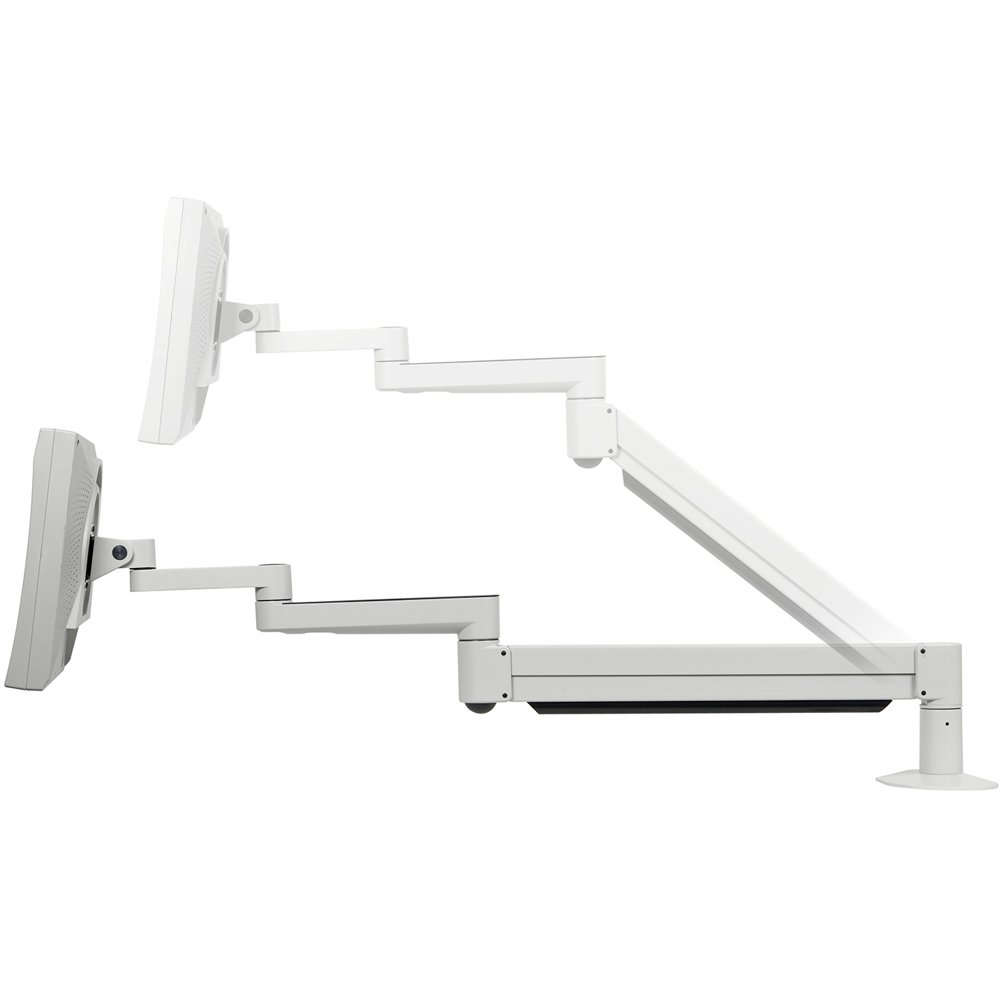

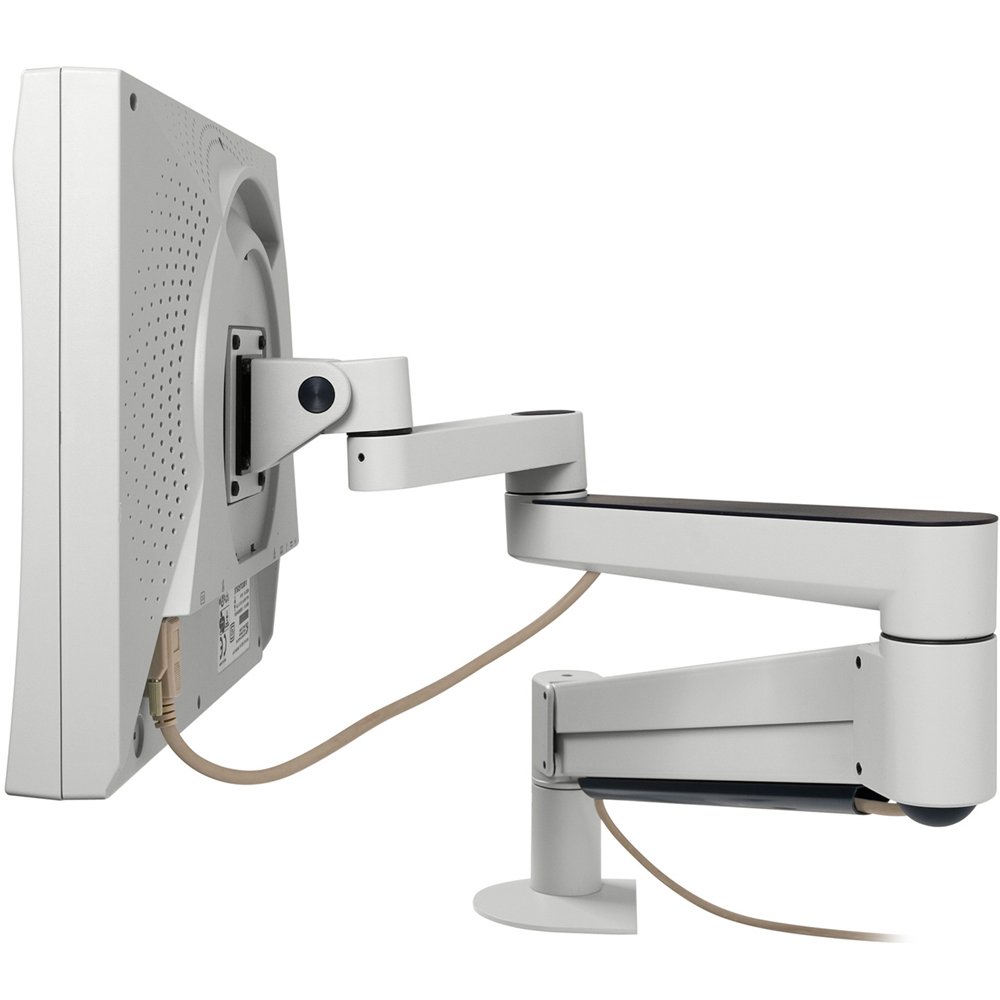

The arm can be mounted behind the user, still allowing the monitor to swing around in front to face the user. A vertical range of 28" allows this arm to be used while sitting or standing. The arm is a good choice for dental operatories, patient rooms, operating rooms... anywhere space is at a premium yet monitor placement flexibility is required. Model 9199 includes well-thought out cable management, allowing you to keep cords out of view by routing them within the arm structure.



Technical Drawing

Technical drawing for Innovative 9199 Long Reach (45.8") 3-Link LCD Monitor Arm

Drawing for Innovative FLEXmount and Wall Mount



Technical Specifications

Vertical Range

28.28" (+/-14.14" from horizontal)

Horizontal Range

45.81" of horizontal range

Rotation

360 degrees at four joints

Monitor Tilt

200 degrees

Monitor Pivot

Landscape to portrait

Monitor Compatibility

VESA 75mm and 100mm

Cable Management

Cables are concealed in arm

Mounting Options

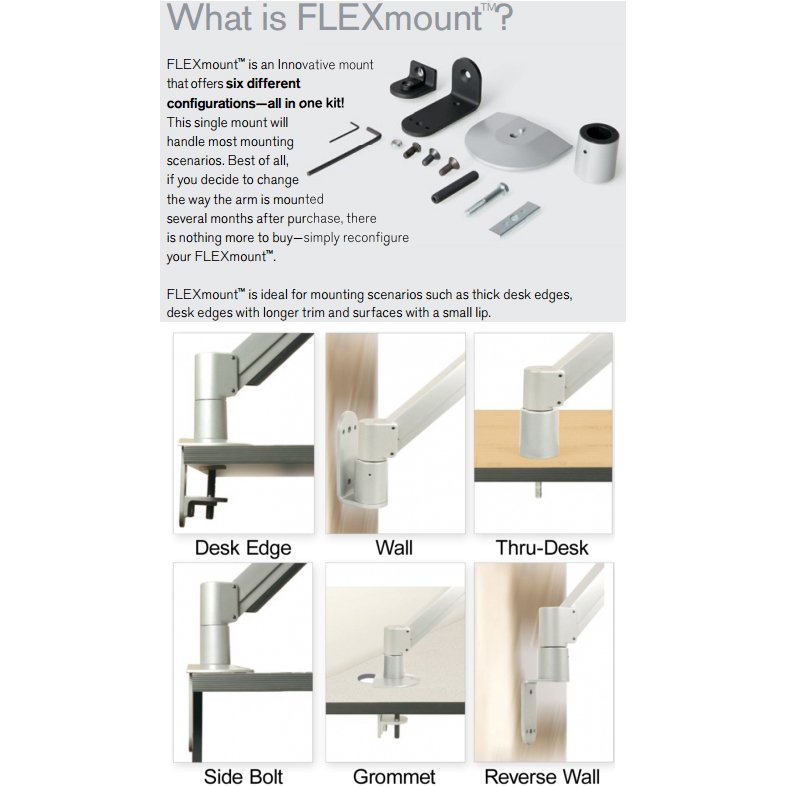

FLEXmount (six mounting options in one kit),

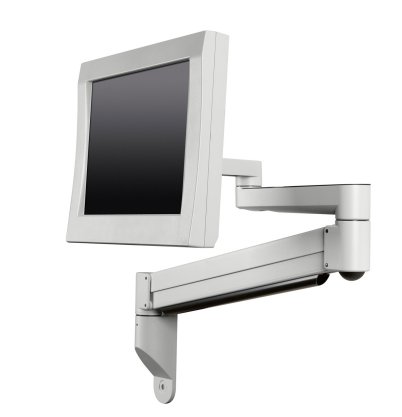

Wall Mount

Monitor Weight/Model Number

4 - 15 lbs / 9199-1000
5 - 18 lbs / 9199-1500



Innovative FLEXmount



Features

  • Intuitive movement - no buttons or levers, simply move monitor to desired position.
  • 45.8" of horizontal range
  • 28" of vertical range (+/-14" from horizontal)
  • Monitor tilter mechanism can tilt over 200 degrees
  • Cable management reduces workplace clutter.
  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.



Parts List

Item

Description/Part Number

Quantity

A Monitor Tilter -  8336

Monitor Tilter / 8336

1

B 75mm VESA Adapter Plate - 7VESA75

75mm VESA Adapter Plate / 7VESA75

1

C 100mm VESA Adapter Plate - 7VESA100

100mm VESA Adapter Plate / 7VESA100

1

D 10-32 x 3/8" (9.525mm) Phillips Flat Head Screw - 702281

10-32 x 3/8" (9.525mm) Phillips Flat Head Screw / 702281

1 (4-pack)

EM4-12 Phillips Pan Head Screw - 702096

M4-12 Phillips Pan Head Screw / 702096

4

F Dog Washer - 105189

Dog Washer / 105189

1

G 10-32 x 3/8" (9.525mm) FPhMS with Lock Patch - 705198

10-32 x 3/8" (9.525mm) FPhMS with Lock Patch / 705198

1

H 7/32" (5.563mm) Allen Wrench - 701127

7/32" (5.563mm) Allen Wrench / 701127

1

I 3/32" (2.388mm) Allen Wrench - 700146

3/32" (2.388mm) Allen Wrench / 700146

1

J Straight Arm Cap - 105305

Straight Arm Cap / 105305

1

K 6-32 x 1" Phillips Pan Head - 705764

6-32 x 1" Phillips Pan Head / 705764

2

L Endcap Bumper - 702829

Endcap Bumper / 702829

1

M Cable Cap - 102043-19.75-A

Cable Cap / 102043-19.75-A

1



Model 9199-1000-NM or 9199-1500-NM
Manufacturer Innovative LCD Arms
Part Number 9199-1000-NM or 9199-1500-NM
Weight 27.00 lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Pole
Monitor Arm Types 1 Monitor
Color Vista Black, Silver and Linen White
Vertical Range 28.28" (+/-14.14" from horizontal)
Horizontal Range 45.81" of horizontal range
Rotation At four joints 360 degree
Tilt 200 degree
Mounting Pattern VESA 75mm and 100mm
Number of Monitors 1 Monitor
