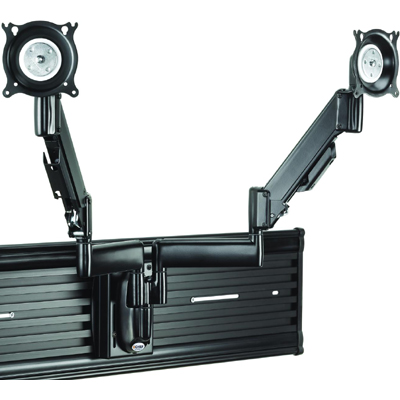

Chief KSY220B Height-Adjustable Dual Monitor Arm Slat Wall Mount
|
|
|
||
|
||
Features of Chief KSY 220: |
||
1. Allows independent movement and height adjustment of each monitor for maximum ergonomic flexibility.
|
||
2. Centris Technology provides smooth, fingertip tilt in any direction.
|
||
3. Ships with Chief’s OFBU, universal slat wall interface bracket to accommodate over 95% of installations.
|
||
4. Teardrop hole pattern makes mounting the screen quick and easy.
|
||
5. Maximum range of motion from low profile to full extension.
|
||
6. Sleek, attractive design hides all hardware.
|
||
7. Independently adjustable tension at pivot points for customized control. |
||
8. Tension can be optimized for touch screen use.
|
||
9. Quick, easy cable management.
|
||
10. VESA 75 x 75 mm and 100 x 100 mm compatible (Custom interfaces also available) |
||
|
||
Technical Drawing for Chief KSY-220 Slat Wall Mount Universal Height Adjustable Dual Monitor LCD Arm
|
||
|
||
Description of Chief KSY-220B: Chief’s KSY220 provides a broad range of motion for viewing multiple monitors and TVs that need to be installed on slat wall or tool tile.
|
||
|
||
|
||
Depth (closed): |
2.19" (56 mm) |
|
Maximum Extension: |
20" (508 mm) |
|
Height Adjustment: |
13.25" (337 mm) |
|
Tilt: |
+/-15º |
|
Pivot (Desk/Display/Arm): |
360º/180º/360º |
|
Weight Capacity: |
40 lbs (18.2 kg), 20 lbs (9.1 kg) per mounting arm |
|
Color: |
Black |
|
VESA Compatibility: |
75 x 75 mm and 100 x 100 mm (without extra interface bracket) |
|
|
Product Options/Accessories








Model | KSY220B |
Manufacturer | Chief Mounts |
Part Number | KSY220B |
UPC | 841872106571 |
Weight | 26.00 lb(s) |
Mounting Options | Slatwall |
Monitor Arm Types | 2 Monitors |
Color | Black |
Dynamic Height Adjustment | 13.25" |
Maximum Extension | 21.1" (535.9mm) |
Minimum Depth | 3.29" (83.6mm) |
Mounting Pattern | 75 x 75mm, 100 x 100mm |
Overall Dimensions | 12.0" x 10.0" x 4.2" (305 x 254 x 107mm) |
Shipping Weight | 19.40 lbs |
Tilt | + 15 degree, - 15 degree |
Screen Size | 10 - 30 in |
Weight Capacity | 5 - 20 lbs (2.3 - 9.1kg) |
