Ergotron 45-219-216 StyleView HD Extender White 45219216
General Information
Buy from an Authorized Dealer
Description of Ergotron 45-219-216 HD Extender:
Add an extender to your SV HD Combo Arm and increase its reach by 18" (46 cm).

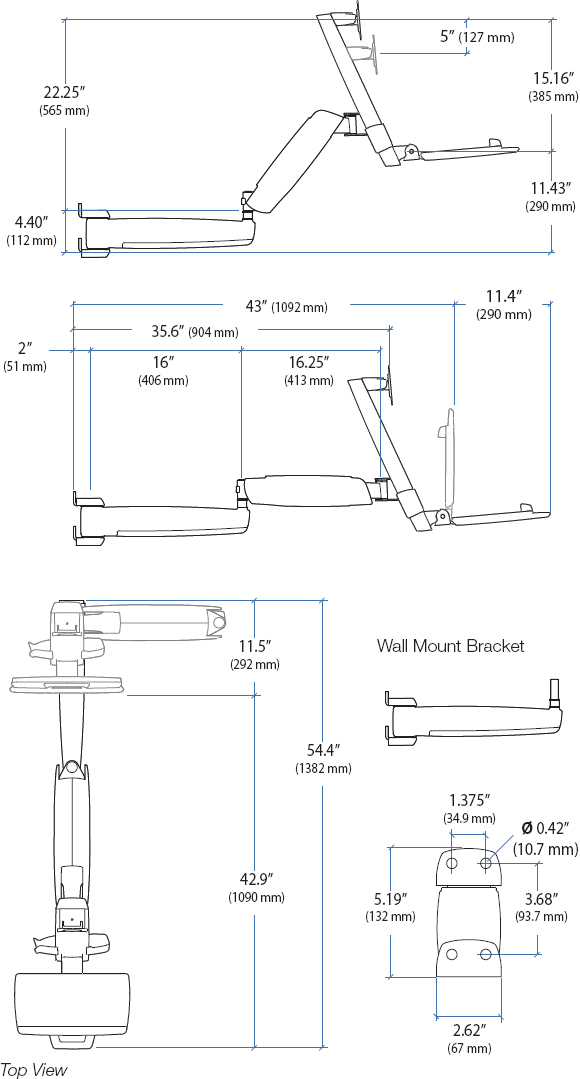

Technical Drawing for Ergotron 45-219-216 StyleView HD Extender White
Techncal Specifications:
LCD Size
Capacity
Lift
Tilt
Pan
Rotation
VESA
-
Product Information:
Part Number:
45-219-216
Description:
SV HD Extender (white)
Included:
SV HD Arm Extender
Wall track mounting brackets
Replaces:
Vertical Mount Base when installed
Not compatible:
With HD Arms manufactured in 2008 or earlier
Cable Management:
Cable management channel snap-fits under arm
Exterior:
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel.
Additional:
Adds additional 18" (46 cm) extension from the wall.
Shipping Dimensions:
8"H x 22.5"W x 5.25"D (203 x 572 x 133 mm)
Shipping Weight:
7.5 lbs (3.4 kg)
Warranty:
Five (5) years
Benefits of Ergotron 45-219-216:
1. Increases the reach of SV HD Combo Arms.
2. Adds a third pivot-point for more adjustment flexibility.
3. Clean and integrated cable management conceals cables.
4. Easy-to-clean design provides infection control.

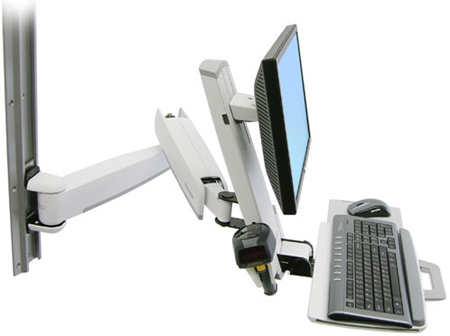

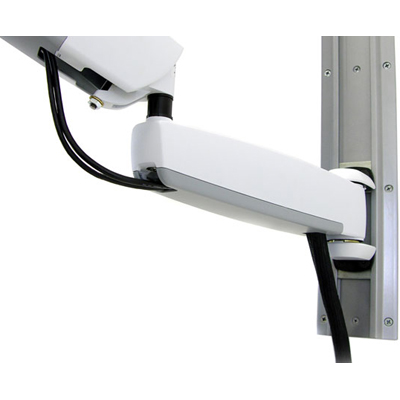

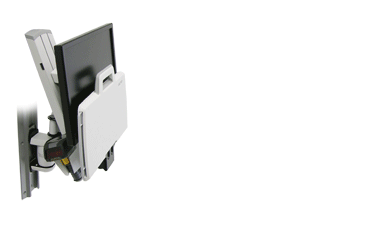

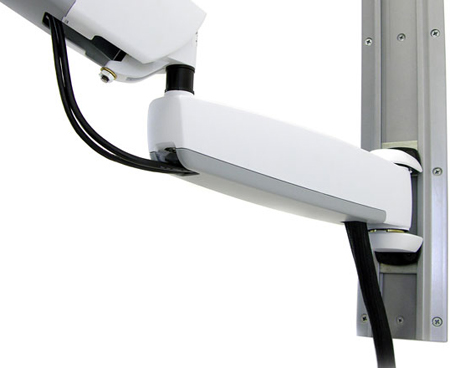

More Images:
Literature (Please open the following documents for more technical information)
Description
File Type
Ergotron 45-219-216 StyleView HD Extender - Dimensional Illustrations
- pdf
Ergotron 45-219-216 HD StyleView Extender - Installation Manual
