The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Peerless LCT-A1B1C or LCT-A1B1H Desktop Two Link Articulating Arm Mount 10-22" LCD

Be the first to review this product
Product ID: 15822
Recommended Accessories
Our Price: $227.78
Shipping: $28.24 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:

Part Number

Description

LCT-A1B1H

Silver Universal Desktop Two Link Articulating Arm Mount Bolt-Thru Hole

LCT-A1B1C

Silver Universal Desktop Two Link Articulating Arm Mount Clamp Style





Accessories for Peerless LCT-A1B1 Desk Mount

Peerless ACC918 Security Fasteners

 Peerless ACC918 Security Fasteners

Peerless ACC328 Laptop Tray for use with LCT-A1B1C/H and LCT-A1B4C/H Desktop Mounts

Peerless ACC328 Laptop Tray





General Information



Image of Warranty and Returns





Nationwide Delivery Image

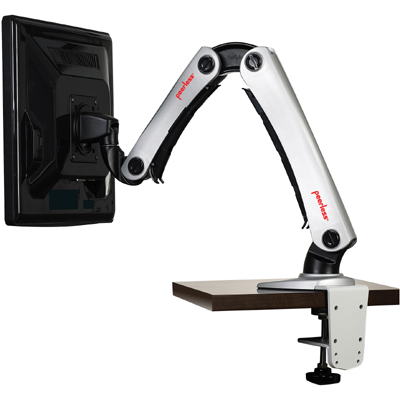

Peerless LCT-A1B1C or LCT-A1B1H Desktop Two Link Articulating Arm Mount

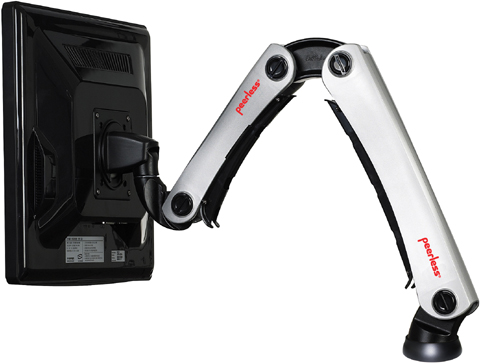

Peerless LCT-A1B1H Desktop Two Link Articulating Arm Mount Bolt Hole









Features of Peerless LCT A1B1C or LCT A1B1H:

    1.  Tilts and pivots: To provide virtually limitless viewing angles.



    2.  Position the screen at the perfect height: With one smooth motion.



    3.  Cable management: Delivers a clean clutter-free look to any installation. It controls

         connecting cables with movement of arm.



    4.  Mounting options for all surfaces: Desk clamp and desk bolt available.



    5.  Two-link arm extends up to 30" (770 mm) from the base and provides internal cable

         management.



    6.  Quick and easy to install.



    7.  Compatible with VESA 75/100 mounting hole patterns.



    8.  One-touch tilt adjustment allows screen to be tilted up to 20° or back to 30° without the use of

         tools.



    9.  Screen can be turned left or right up to 90° in either direction for the best possible viewing

         angle.



   10. Silver finish.

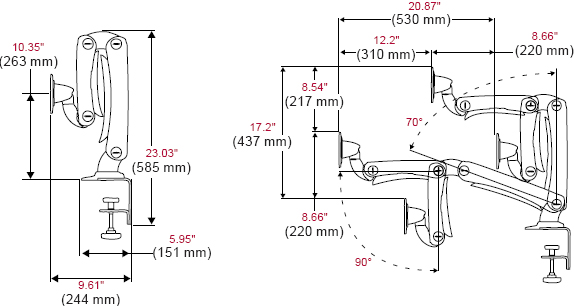

Technical Drawing for Peerless LCT A1B1 Desktop Two Link Articulating Mount



Technical drawing for Peerless LCT-A1B1C Desktop Two Link Articulating Arm Mount









Description of Peerless LCTA1B1C or LCTA1B1H:

It is quick and simple to position the monitor to the users ideal viewing point and maximize work area when it is mounted on this desktop mount. This model is ergonomically designed and features smooth motion, spring-loaded architecture for the easiest height, depth and tilt adjustment of the monitor, assisting with reduced eye and neck strain.







Specifications:

Dimensions (W x H x D):

LCT-A1B1H: 9.61 - 30.3" x 6.34" x 17.2" (244 - 769 x 161 x 437 mm)

LCT-A1B1C: 9.61 - 30.3" x 6.34" x 22.4" (244 - 769 x 161 x 571 mm)

Product Weight:

LCT-A1B1H: 7.7 lb (3.5 Kg)

LCT-A1B1C: 11 lb (5 Kg)

Load Capacity:

17.5 lb (8 Kg)

Minimum Screen Size:

15"

Maximum Screen Size:

24"

Finish:

Aluminum

Available Color:

Silver

Package Size (L x W x H):

LCT-A1B1H: 26.77" x 11.41" x 6.5" (680 x 290 x 165 mm)

LCT-A1B1C: 26.77" x 11.41" x 6.5" (680 x 290 x 165 mm)

Package Ship Weight:

LCT-A1B1H: 10.6 lb (4.8 Kg)

LCT-A1B1C: 13.9 lb (6.3 Kg)

Package UPC Code:

LCT-A1B1H: 735029262183

LCT-A1B1C:735029262176

Package Contents:

  • Mount

  • VESA 75/100 mm adapter plate

  • All necessary mounting and screen attachment hardware

Units in Package:

1

Warranty:

Limited 5 years

Accessories:

AC918: Security Fasteners

ACC328: Laptop Tray






Literature (Please open the following documents for more technical information)

Description

File Type

Peerless LCTA1B1 Desktop Articulating Arm Mount - Installation Assembly

- pdf

Peerless LCT-A1B1C or LCT-A1B1H Two Link Articulating Arm - Product Sheet

- pdf
