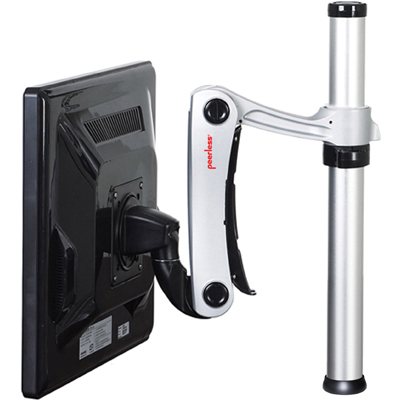

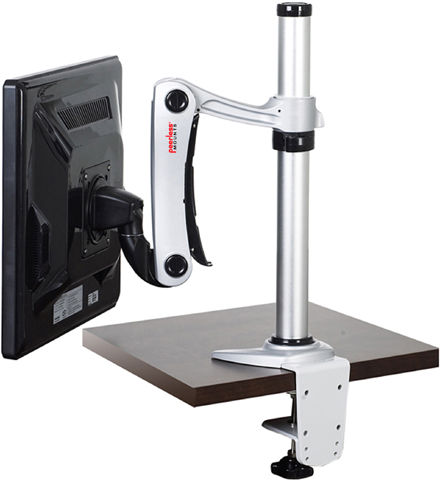

Peerless LCT-A1B3C or LCT-A1B3H Universal Desktop Arm

Two Link Articulating Pole Mount



Peerless LCT-A1B3C Universal Desktop Two Link Articulating Mount









Features of Peerless LCT A1B3C or LCT A1B3H:

    1.  Tilts and Pivots: To provide virtually limitless viewing angles.



    2.  Cable Management: Integrated cable management system controls connecting cables with

      movement of arm.



    3.  Mounting Options for all surfaces: Desk clamp and desk bolt available.



    4.  Pole mount with two-link arm extends up to 22" (559 mm), enables 14.4" (366 mm) of height

      adjustment and provides internal cable management.



    5.  Quick and easy to install.



    6.  Height adjustable up to 14.4".



    7.  Compatible with VESA 75/100 mounting hole patterns.



    8.  One-touch tilt adjustment allows screen to be tilted up to 20° or back to 30° without the use of

         tools.



    9.  Screen can be turned left or right up to 360° in either direction for the best possible viewing

         angle.



  10.  Silver finish.









Technical Drawing for Peerless LCT A1B3 Universal Desktop

Two Link Articulating Pole Mount Arm











Description of Peerless LCTA1B3C or LCTA1B3H:

It is quick and simple to position the monitor to the users ideal viewing point and maximize work area when it is mounted on this desktop mount. This model is ergonomically designed and features smooth motion, spring-loaded architecture for the easiest height, depth and tilt adjustment of the monitor, assisting with reduced eye and neck strain.







Specifications:

Dimensions (W x H x D):

LCT-A1B3H: 13.35 - 22.01" x 6.34" x 18.86" (339 - 559 x 161 x 479 mm)

LCT-A1B3C: 13.35 - 22.01" x 6.34" x 24.14" (339 - 559 x 161 x 613 mm

Product Weight:

LCT-A1B3H: 5.7 lb (2.6 Kg)

LCT-A1B3C: 9 lb (4.1 kg)

Load Capacity:

17.5 lb (8 Kg)

Minimum Screen Size:

15"

Maximum Screen Size:

24"

Finish:

Aluminum

Available Color:

Silver

Package Size (L x W x H):

LCT-A1B3H: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm)

LCT-A1B3C: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm)

Package Ship Weight:

LCT-A1B3H: 10.1 lb (4.6 Kg)

LCT-A1B3C: 13.2 lb (6 Kg)

Package UPC Code:

LCT-A1B3H: 735029262220

LCT-A1B3C: 735029262213

Package Contents:

  • Mount

  • VESA 75/100 mm adapter plate

  • All necessary mounting and screen attachment hardware

Units in Package:

1

Warranty:

Limited 5 years

Accessories:

AC918: Security Fasteners






Literature (Please open the following documents for more technical information)

Description

File Type

Peerless LCTA1B3 Articulating Desktop Arm Pole Mount - Installation Assembly

- pdf

Peerless LCT-A1B3 Two Link Articulating Pole Arm Desktop Mount - Product Sheet

- pdf
