Chief KWS220B or KWS220S Single Arm Wall Mount, Dual Monitor

Chief KWS220B or KWS220S Single Arm Wall Mount, Dual Monitor

This product has been discontinued.





Related Products:

Part Number

Description

KWS220B

Black Flat Panel Wall Mount Dual Monitor Swing LCD Arm

KWS220S

Silver Flat Panel Dual Horizontal Monitor Arm Wall Mount

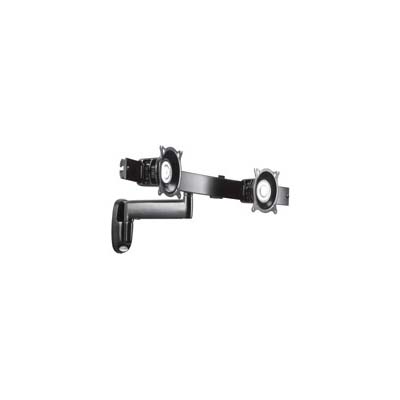

Chief KWS 220B or KWS 220S Wall Mount Dual Monitor Swing LCD Arm



Chief KWS220B Wall Mount Dual Monitor Swing LCD Arm





Features of Chief KWS 220:

1.  Provides smooth fingertip tilt in all directions using the screen's center of gravity.



  2.  Smooth tilt adjustment and portrait/landscape rotation.



    3.  Maximum range of motion from low profile to full extension.



    4.  Independently adjustable tension at pivot points for customized control.



    5.  Tension can be optimized for touch screen use.



    6.  Side-to-side pivot adjustment up to 180 degree depending on installation.



    7.  Easy installation and ships assembled.



    8.  Custom OFB office furniture interface brackets available for most office systems.



    9.  Built-in cable management.



  10.  VESA 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-

         VESA compliant monitors)





Technical Drawing for Chief KWS-220 Wall Mount Dual Monitor Swing LCD Arm



Technical Drawing for Chief KWS220 Wall Mount Dual Monitor Swing LCD Arm





Description of Chief KWS-220B or KWS-220S:

Chief's KWS220 offers the ability to mount multiple screens and lock them in the same plane for viewing convenience.





Specifications:

Maximum Extension:

13.21" (336 mm)

Maximum Width of Monitor:

23" (584 mm)

Dimensions (H x W x D):

9.1" x 27.4" x 5.95" (231 x 695 x 151 mm)

Weight Capacity

(per monitor):

16.5 lbs (7.5 kg)

Color:

Silver or Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm


Product Options/Accessories
AnchorPad 31177 Laptop Security Mount with Large Standard Wings and Slide

31177 Desk/Wall Anti-Theft Lockdown Stand

$149.99
Chief KSA1005B Security Hardware Kit

KSA1005 Security Hardware Kit (non Height-Adjustable)

$77.00 $30.80
Height-Adjustable Keyboard & Mouse Tray Wall Mount - Chief KWK110B

KWK110B Keyboard Wall Mount

$614.00 $491.20
Chief KSA1022B Wall Track Accessory

Chief KSA1022B Wall Track Accessory

$274.00 $219.20
Chief KSA1013B Laptop Tray Adapter

KSA1013 Laptop Tray

$232.00 $92.80
Chief Keyboard Tray Accessory KSA1021B or KSA1021S

KSA1021 Keyboard Tray

$318.00 $127.20
Chief KSA1002B Desk Clamp Accessory

KSA1002 Desk Clamp Accessory

$240.00 $96.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model KWS220B or KWS220S
  • Manufacturer Chief Mounts
  • Part Number KWS220B or KWS220S
  • UPC 841872044521
  • Weight 8 lb(s)
  • Mounting Options Wall
  • Monitor Arm Types 2 Monitors
  • Color Black and Silver
  • Maximum Extension 14.7" (373.4mm)
  • Minimum Depth 6.4" (162.6mm)
  • Mounting Pattern 75 x 75mm, 100 x 100mm
  • Overall Dimensions 14.5" x 27.3" x 6.4" (368 x 694 x 163mm)
  • Shipping Weight 8.00 lbs
  • Tilt + 15 degree, - 15 degree
  • TV Width Range 10 - 22.7" (254 - 577mm)
  • Screen Size 10 - 24 in
  • Weight Capacity 17 lbs (7.5kg) per monitor
