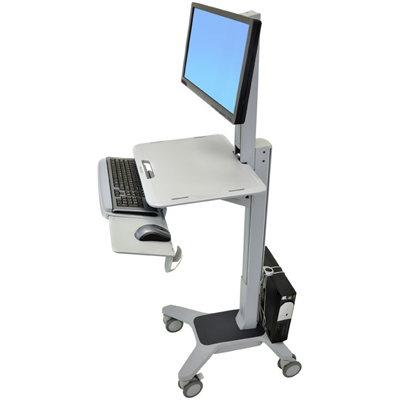

Ergotron 24-197-055 WorkFit Large LCD Monitor Single HD Sit-Stand Computer
C-Mod Workstation and Cart 24197055 (Heavy Duty)
|

|
|
|
Description of Ergotron 24-197-055 Large LCD Cart:
|

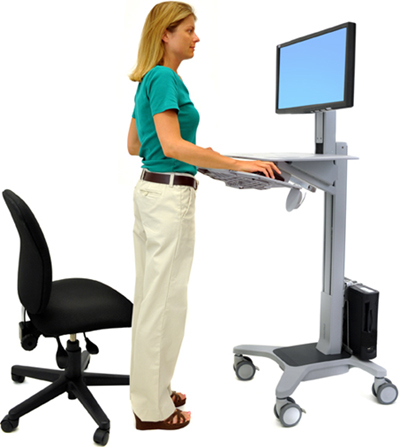

Stay energized and productive while you compute - move from a sitting to a standing position whenever you want. This workstation’s large work surface and height-adjustable keyboard tray and display make computing comfortable for prolonged periods.
Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work. Additional features include 25" (63 cm) total height adjustment, a small footprint and advanced cable management.
|
|
|
|
Technical Drawing for Ergotron 24-197-055 WorkFit C-Mod
Mid-Sized LCD Display Single HD Sit Stand Workstation 24197055

|
|
|
|
Technical Specifications:
|

|

|

|

|

|

|

|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
up to 30"
|
16 - 30 lbs
7.3 - 13.6 kg
|
25"
63 cm |
30° |
- |
360° P/L
|
MIS-D/E/F
|
|
|
|
Product Information:
|
Part Number:
|
24-197-055
|
Description:
|
WorkFit C-Mod for Single Mid-Sized Monitor, HD (two-tone grey)
|
Included:
|
|
Weight Capacity:
|
Maximum load on height-adjustment assembly = 37 lbs (16.8 kg). Includes weight of displays in addition to contents on Work surface and in Cable Storage Box.
LCD pivot capacity = 16 - 30 lbs (7.3 - 13.6 kg)
|
Lift Range:
|
LCDs/worksurface/keyboard adjust 20" (51 cm) in tandem, LCDs adjust 5" (13 cm) independently
Maximum LCD height adjustment = 25" (63 cm
|
Mounting Standards:
|
VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm),
VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm),
VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm).
For displays that use a 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately
|
CPU:
|
CPUs attach safely to rear of cart with CPU Holder.
Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
|
CPU Holder Capacity:
|
40 lbs (18 kg)
|
Keyboard Tray:
|
Ergonomic negative-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity. Includes concealed mouse tray that slides out on left or right
|
Exterior:
|
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel
|
Casters:
|
Four dual casters - lockable front casters
|
Work surface Dimensions:
|
22"W x 17"D (56 x 43 cm)
|
Wheel-to-Wheel Base Dimensions:
|
17"W x 20.5"D (43 x 52 cm)
|
Shipping Dimensions:
|
45.5"H x 19.75"W x 24"D (116 x 50 x 61 cm)
|
Shipping Weight:
|
94 lbs (42.5 kg)
|
Warranty:
|
Five (5) years
|
A Washington State Analysis:
|
A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
|
Others:
|
|
|
|
|
|
Benefits of Ergotron 24-197-055 Workfit C-Mod Single Heavy Duty Midsize monitor:
|
For Computer Users:
|
1. On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day.
|
2. Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation.
|
3. Easily and simultaneously lift keyboard, laptop and monitor screen to proper height for unsurpassed ergonomic comfort.
|
4. Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
|
5. Mobile configuration brings flexibility into the workspace. Easily moves through small doorways and over thresholds for collaborative meetings.
|
6. Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night.
|
For IT and Facilities Staff:
|
1. IT deployment friendly - set aside several fully equipped WorkFit C-Mods for temporary workers, unassigned workstations (aka hoteling or hot desking) or telecommuter work pods, roll to the place of need (easily stored and ready to roll)
|
2. Modify existing office spaces or cubes by simply removing a section of worksurface and rolling in the sit to stand Workfit, without the cost of expensive professional installers.
|
3. Safe and neat routing of cables through the expansive cable management storage area.
|
4. Flexible, open-architecture design is scalable for future computer equipment.
|
5. Takes less time to retrofit existing stations or repurpose for changing workforce, reduces facility spend.
|
For HR/Risk Management and Company Cost Savings:
|
1. Manage the cost of healthcare premiums by promoting wellness in the daily work routine.
|
2. Provide standing work platforms for employees without having to buy expensive height- adjustable chairs.
|
3. Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
|
4. WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE medicine journal.
|
5. Studies in office ergonomics show productivity increases 12% - 18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.
|
6. Biz4You Program - Complimentary units available to 1000+ seat companies to prove WorkFit’s value. Contact an Ergotron representative for details.
|
|
|
