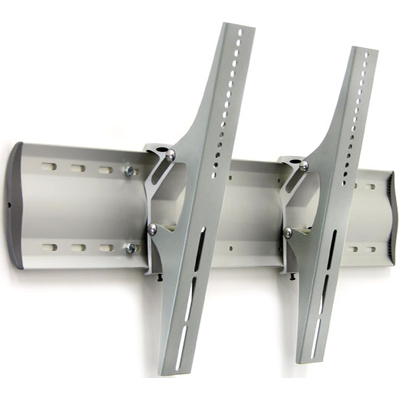

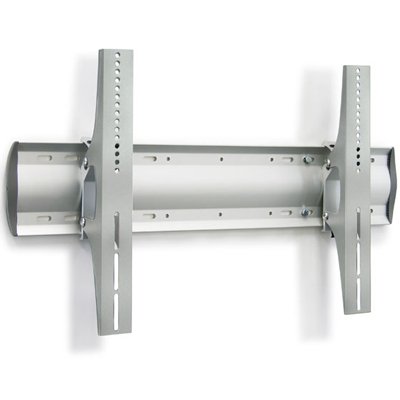

Ergotron 60-601-003 TM Tilting Wall Mount, XL
Description

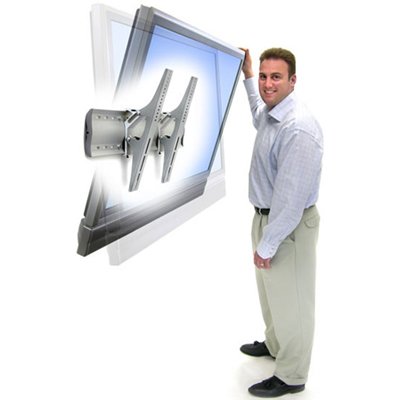

Attaching your valuable (and heavy) flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable large display and TV wall mount. With its integrated CF motion technology, anyone can effortlessly adjust the tilt of the screen.
This “XL” version provides extra width to handle larger displays that use mounting-hole patterns up to 800 mm wide. Note: For very thin or very light-weight displays, Ergotron recommends our Neo-Flex Tilting Wall Mounts.
Technical Drawing
Technical Specifications
|
|
|
|
|
|
|
|
|
LCD Size |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
| 42"-65" |
Up to 175 lbs
79 kg |
- | 20° | - | - | MIS-D/E/F |
Product Information
|
Part Number: |
60-601-003 (replacement for 60-572-003) |
|
Description: |
TM Tilting Wall Mount, XL (silver) |
|
Includes: |
|
|
Universal Monitor Attachment: |

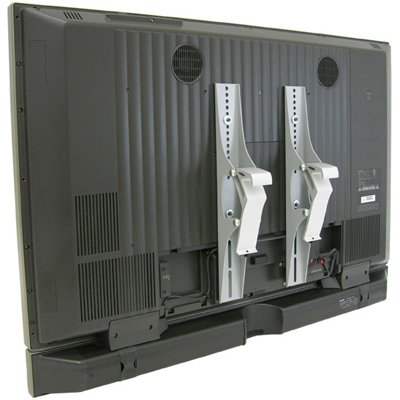

Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 800 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.) |
|
Premium Construction: |
Composed of extruded aluminum and steel. |
|
Mounting Options: |
Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" or 24" centered studs) or concrete walls. |
|

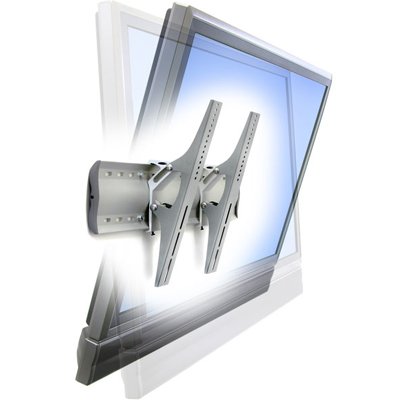

Display Tilt: |
Smooth continuous display tilt range from 15° forward to 5° back. Tilt functionality may be impaired if used with very thin or very light-weight displays. |
|
Profile off the Wall: |
3.5" (89 mm) |
|
UL Certified and Listed: |
to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use). |
|
Shipping Dimensions: |
39.5"W x 12.9"H x 4.3"D (100 x 33 x 11 cm) |
|
Shipping Weight: |
16 lbs (7.3 kg) |
|
Warranty: |
Five (5) years |
Benefits

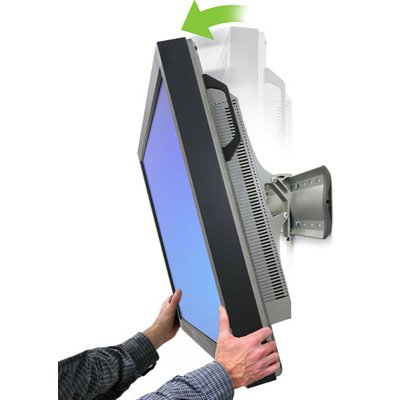

- Benefits Tilt your screen with just your fingertips - no knobs or levers.
- Easy to install.
- Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display.
- View in comfort: Cut glare while improving sight lines.
- Fits most ≥ 42" displays up to 175 lbs (79 kg).
- Includes fasteners for mounting to wood studs or concrete walls.
Product Options/Accessories
28-513-100 Neo-Flex Keyboard Wall Mount
Discontinued
$429.00
80-063-200 Small Vertical CPU Holder
$105.00
$80.85
97-468-202 Universal CPU Holder
$125.00
$92.21
45-246-026 LX Wall Mount Keyboard Arm
$690.00
$319.00
97-563-057 Cable Management Kit
$55.00
$43.99
80-105-064 Universal CPU Holder
$85.00
$60.54
97-711 Six Outlet Power Strip
$135.00
$104.18
| Model | 60-601-003 |
| Manufacturer | Ergotron |
| Part Number | 60-601-003 |
| UPC | 698833011630 |
| Weight | 16.00 lb(s) |
| Color | Silver |
| Monitor Size | 42"–65" |
| Weight Capacity | Up to 175 lbs (79 kg). Tilt functionality may be impaired if used with very thin or very light-weight displays. |
| Tilt | Smooth continuous display tilt range from forward 15 degree to back 5 degree |
| Mounting Pattern | Universal Monitor Attachment: Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 800 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.) |
| Mounting Options | Tilting Wall |
| Profile off the Wall | 3.5" (89 mm) |
| Shipping Dimensions | 39.5"W x 12.9"H x 4.3"D (100 x 33 x 11 cm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Warranty | Five (5) years |
| Screen Size | 31-45" in |
| Screen Size | 46-60" in |
| Screen Size | 61" and larger in |
