Chief MTMU Medium FUSION Micro-Adjustable Tilt Wall Mount

Chief MTMU FUSION Micro Adjustable Tilt Video Wall Mount (26"-47" Display)

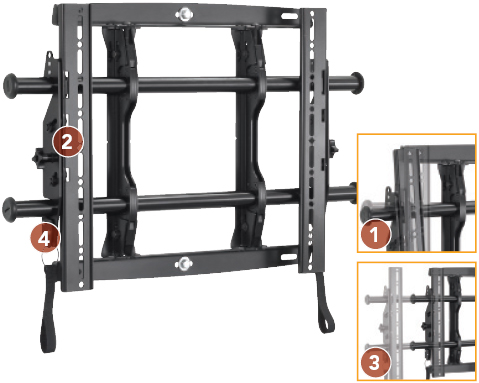

Features of Chief MTMU:

    1.  ControlZone Leveling: Industry first feature allows post-installation fine tuning of height and

         leveling, up to 0.5" (13 mm) adjustment up or down.

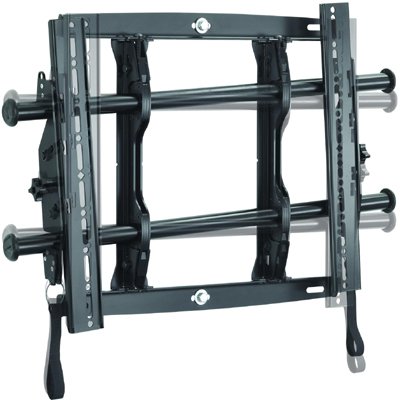

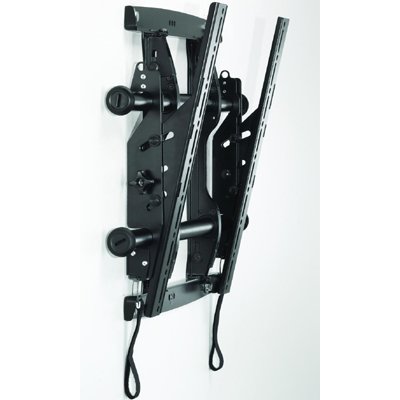

    2.  Centris Low Profile Tilt: Centris fingertip tilt technology uses the center of gravity to balance

         the screen while maintaining a low profile under 2" deep. Screen angle stays set in place until

         adjusted.

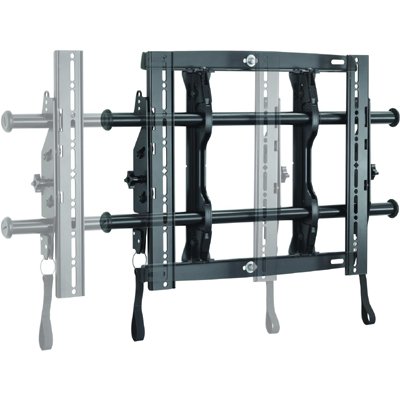

    3.  CenterLess Shift: Provides up to 14.5" of post installation lateral shift - 7.25" left/right of

         upgrades - for limitless centering capabilities.

    4.  ClickConnet: Hear an audible click when the screen safely engages with the mount. A built-in

         cable stand provides easy access under the screen.

    5.  Built-in cable stand provides easy access under the screen.

    6.  A full line of accessories can be installed with the mount and entire unit can be adjusted

         together.

    7.  Provides integrated security, just add a padlock.

    8.  Ships with a custom hardware kit.

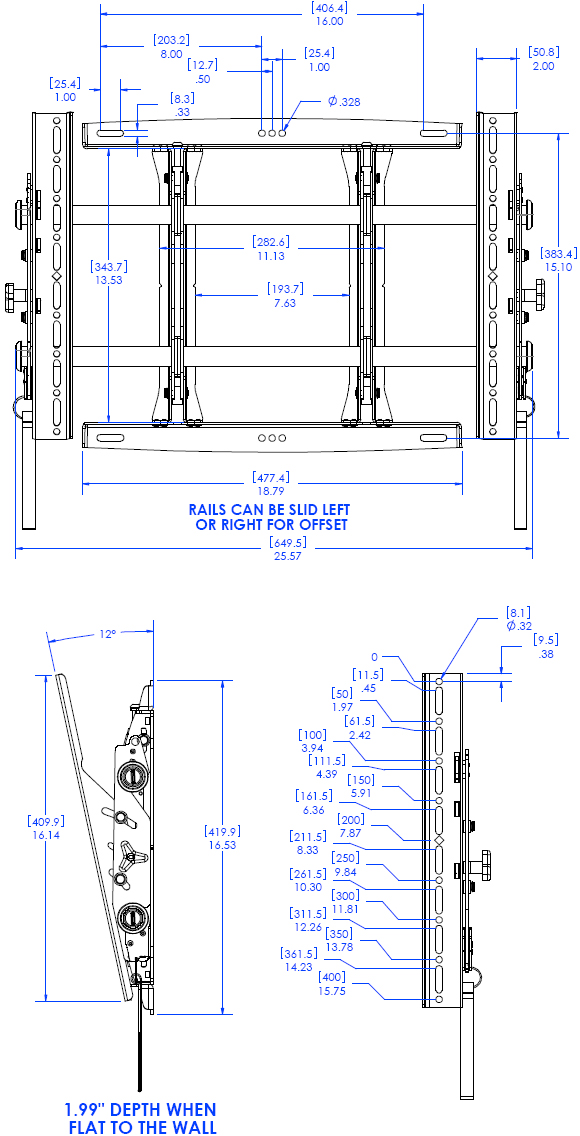

Technical Drawing for Chief MTMU FUSION Adjustable Tilt Video Wall Mount

Description of Chief MTMU:

Specifications:

Tilt:

- 12 degree

Max Lateral Shift:

14.5" (368 mm)

Height adjustment:

+/-0.5"

Mounts on Studs:

Single stud or 16" centers

Dimensions (H x W x D):

16.53" x 25.44" x 1.99" (420 x 646 x 51 mm)

Max Mounting Pattern:

Height - 15.74" (400 mm), Width - 26.25" (667 mm)

Weight Capacity:

single stud - 75 lbs (34 kg), dual stud - 125 lbs (56.7 kg)

Color:

Black
