Chief TPPU Large Tilt Truss Pitch Adjustable Mount (42-71")

Truss Pitch Adjustable Tilt Mount up to 63" Displays. Clamps for different size poles and truss are required and must be ordered separately.
Product ID 16535
  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
Write your review
Chief TPPU Large Tilt Truss Pitch Adjustable Mount (42-71")
Chief TPPU Large Tilt Truss Pitch Adjustable Mount (42-71")
Shipping:
$12.98

More shipping >

Our Price:
Qty:

Select an attribute...

  • Pole Clamp
  • Truss Clamp
  • Adapter
  • Adapter Plate
  • Shelf
  • Pole Clamp
    Click to select - $0.00
  • Truss Clamp
    Click to select - $0.00
  • Adapter
    Click to select - $0.00
  • Adapter Plate
    Click to select - $0.00
  • Shelf
    Click to select - $0.00

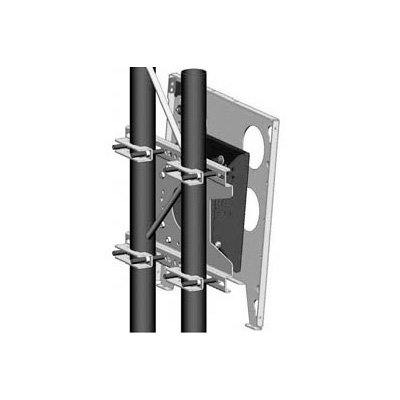

Chief TPPU Tilt Truss Pitch Adjustable Mount up to 63" Flat Panel Displays



Chief TPPU Tilt Truss Pitch Adjustable Mount up to 63" Flat Panel Displays









Features of Chief TPPU:

  • 3 Mount Options TPS: Truss/Pole Fixed Mount ; TPM: Pole Tilt-Adjustable Mount ; and TPP: Truss Pitch-Adjustable Mount.

  • 3 Pitch Adjustment Options on TPM and TPP.

  • Install on vertical or horizontal truss.

  • Attach displays in portrait or landscape orientation.

  • TPS/TPP span most truss systems up to 14" (OD)..

  • Truss/Pole clamps fit a wide variety of truss and pole dimensions.

  • Finishing Cover accessories enhance aesthetics and cover hardware for added security.

  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch.

  • Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen).

  • Integrated security allows display to be locked to mount by adding a padlock.

  • Compatible with TPK clamp accessories. See Accessory list above.







Technical Drawing for Chief TPPU Flat Panel Tilt Truss Mount up to 63" Displays



Technical Drawing for Chief TPPU Flat Panel Tilt Truss Mount up to 63" Displays









Description of Chief TPPU:
Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.
  • Clamps for different size poles and truss work are required and must be ordered separately.







Specifications of Chief TPPU:



Overall Dimensions (H x W x D):

16 3/16" x 16 11/16" x 4 1/16" | 411.2 mm x 423.8 mm x 103.2 mm | Depth does not include screen interface (typically 1 inch or less)

Tilt Adjustment:

+/- 15°

Color:

Black

Weight Capacity:

150 lbs. (68.03 kg) Mount capacity only.

Be sure pole or truss structure is capable of supporting the weight.









Frequently Asked Questions:


Q: Do the pole/truss clamps come with the mount?
A: No. The appropriate size clamp will need to be ordered separately. Chief offers a variety of clamps for different size poles and truss work.

Q: Do I need to order a separate interface bracket?
A: No, the TPS/TPM/TPP Mount ships as a complete assembly that includes the interface bracket. Determine which model will accommodate your display by looking up the manufacturer and model number on the cross-reference chart.

Q: Can I mount a Small Flat Panel to a pole or truss?
A: Yes, if you have a round pole 1 1/2"-2" (OD), refer to the FSP Pole Mount. If you have a larger (OD) pole, square pole or truss system, see the TPA Small Flat Panel in the Recommended Accessories.





Literature (Please open the following documents for more technical information)




Chief TPPU Flat Panel Tilt Truss Mount up to 63" Display - Installation Assembly

- pdf
Chief TPPU Tilt Truss Pitch Adjustable Mount up to 63" Display - Technical Drawing

- pdf
Chief PSBU Interface Bracket - Technical Drawing

- pdf
Chief PSBU or MSBU Universal Interface Bracket - Installation

- pdf









Chief Logo



Hyperlink of all Chief products



Product Options/Accessories

Chief PAC400 P-Series 90 degree Rotation Adapter for Large Mount
PAC400 P-Series Rotation Adapter $300.80
Chief PACCC1 Center Channel Speaker Adapter (30-50")
PACCC1 Center Channel Speaker Adapter $144.00
Chief PACLR1 Left or Right Speaker Adapter (30-50")
PACLR1 Left/Right Speaker Adapter $202.40
Chief PACPC1 Flat Panel Power Filter Kit
PACPC1 Power Filter Kit $199.20
Chief PAC715 Video Conferencing 9" Camera Shelf
PAC715 Video Conferencing Camera Shelf $144.00
Chief PAC716 Video Conferencing 14" Camera Shelf
PAC716 Video Conferencing Camera Shelf $168.00
Chief PACCS1 Large Shelf Accessory
PACCS1 Large Shelf Accessory $138.40
Chief TPK1 Pole Clamp Kit for 1 to 2" OD round or square Poles
TPK1 Pole Clamp Kit $47.20
Chief TPK2 Pole Clamp Kit for 2 to 3" OD round or square Poles
TPK2 Pole Clamp Kit $47.20
Chief TPK3 Truss Clamp Kit for 0 to 1" OD round or square Truss
TPK3 Truss Clamp Kit $72.80
Chief TPK4 Truss Clamp Kit for 1 to 2" OD round or square Truss
TPK4 Truss Clamp Kit $75.20
Chief TPK5 Truss Clamp Kit for 2 to 3" OD round or square Truss
TPK5 Truss Clamp Kit $84.80

Frequently Asked Questions

q Do I need to order a separate interface bracket?
a

No, the TPS/TPM/TPP Mount ships as a complete assembly that includes the interface bracket. Determine which model will accommodate your display by looking up the manufacturer and model number on the cross-reference chart.

Model TPPU
Manufacturer Chief Mounts
Part Number TPPU
UPC 841872058115
Color Black
Minimum Depth 4.13" (104.9mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 16.2" x 17.1" x 4.1" (412 x 433 x 105mm)
Shipping Weight 30.00 lbs
Monitor Size 42 - 71"
Weight Capacity 150 lbs (68.kg)
