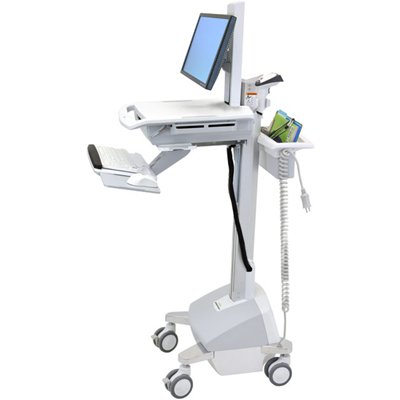

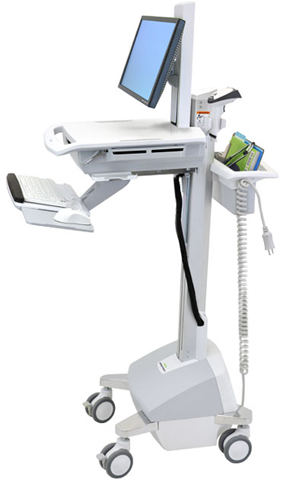

Ergotron SV42-42301 StyleView EMR Computer Cart with LCD Monitor Pivot, LiFe Powered

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 31 lbs

14.1 kg

25"

63 cm

25°

24°

90° P/L

MIS-D

Part Number:

SV42-42301

Description:

StyleView EMR LCD Cart, LiFe Powered, Pivot (white, grey and polished aluminum)

Includes:

• LCD Pivot

• Worksurface

• Secure CPU compartment

• Ethernet ready-on function and four-port USB hub

• Scanner holder bracket

• Mouse holder

• Wrist rest

• Back-tilt keyboard tray

• Left/right mouse tray

• Rear handle

• Storage basket

• Cable storage

• Two casters (two locking)

• Single-battery 40 Ah LiFe power system

• 10-foot (3 m) coiled cord

• Two hospital-grade AC outlets

• Power system user interface

• StyleLink software

Total maximum load on height-adjustment assembly:

31 lbs (14.1 kg).

This is the sum of the following components: LCD pivot = 5–11 lbs (2.3–5 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 12 lbs (5.5 kg)

Note:

• Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers - contact Ergotron for details

• If the combined LCD and CPU weight is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface:

Adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

Portrait Screen Orientation:

Portrait screen orientation may be incompatible with widescreen displays > 19"

True Ergonomics:

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position

• LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts

• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

• Actual cart weight is 97 lbs (44.1 kg), making system relocation easy

Safe:

• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

• For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A

• Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved clean ability

• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

• One-piece worksurface with no seams; easy-to-clean design promotes infection control

• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

• Front-locking casters

• Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

• Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN

• Covered by Global Service Program - 24/7 coverage

All the Details Covered:

• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

• Button for LED lights and Ethernet ready-on is located conveniently on worksurface

• Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

• Pre-routed cables provide quicker integration with equipment

• TAA (Trade Agreements Act) compliant

• Universal mounting slot for accessories and equipment

• A unique cable management system conceals and organizes cords, making cleaning easy

• Ships fully assembled and is easily accessible from container

• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions:

• Open-architecture design accommodates most laptops - even widescreen - and allows for future hardware upgrades

• Storage compartment for closed notebook, thin client or CPU: 15.75"W x 14.75"D x 3.75"H (40 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

• Worksurface Dimensions: 19.75"W x 19.6"D (502 x 498 mm)

• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

• VAC = 120V/60Hz

• Grounded Plug & Outlet = NEMA 5-15P Hospital Grade

• 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions:

24"W x 32"D x 56"H (61 x 81 x 142 cm)

Shipping Weight:

131 lbs (59.5 kg); actual cart weight = 97 lbs (44.1 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components and battery
