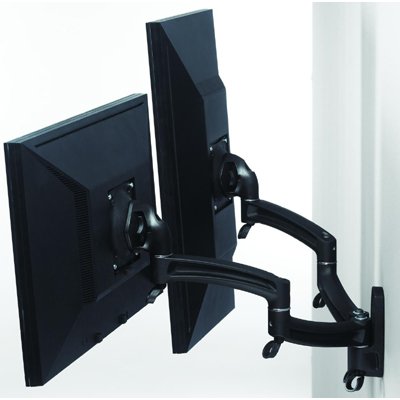

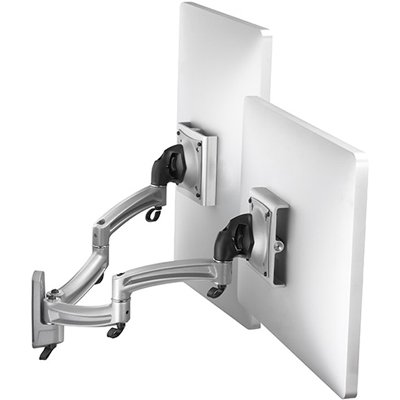

Chief K2W200 Kontour Dual Arm Wall Mount, Dual Monitor

Part Number

Description

K2W200B

Black KONTOUR Dual Arm Wall Mount Monitor Arm for Dual Monitors

K2W200S

Silver KONTOUR Dual Arm Wall Mount Monitor Arm for Dual Monitors

Features of Chief K2W200 Series:

• Allows independent movement of each monitor for maximum ergonomic flexibility.

• Sleek, solidly-constructed forged aluminum arms.

• Tool-free cable management clips for a clean, professional look.

• Patented Centris Turn-Tite Tilt. Tilts -15/+15 for a flexible ergonomic solution.

• Teardrop hole pattern makes mounting the screens quick and easy.

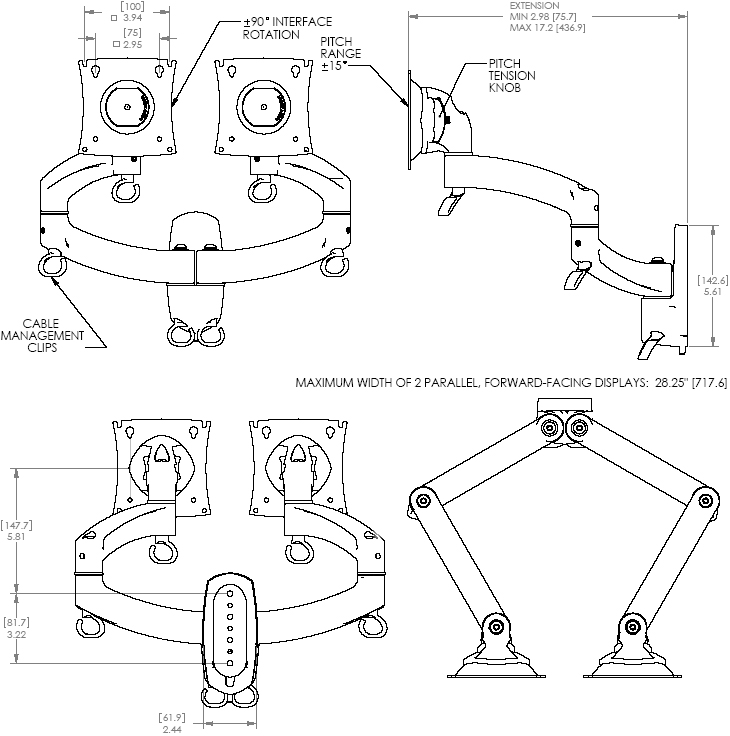

Technical Drawing of Chief K2W200S or K2W200B KONTOUR Dual Arm Wall Mount for Dual Monitors

Description of Chief K2W-200:

Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.

Specifications of Chief K2W 200:

Compatible with OFB Furniture Brackets:

Yes

Maximum Extension:

17.2" (436.9mm)

Minimum Depth:

2.98" (75.7mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75mm ,100 x 100mm

Notes:

Weight capacity is per monitor

Number of Monitors:

2

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

13.0" x 14.8" x 3.0" (330 x 376 x 76mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15° , - 15°

TV Width Range:

10 - 28.25" (254 - 718mm)

Typical Screen Sizes:

10 - 30"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

5 - 25 lbs (2.3 - 11.3kg)
