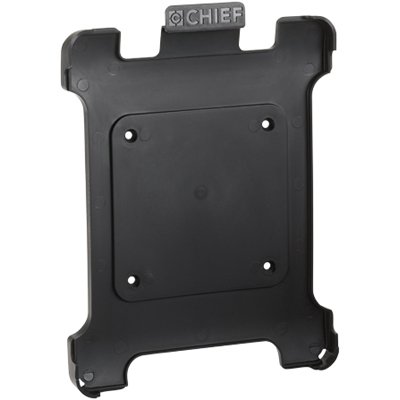

Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm)

Features of Chief FSBIB:

• Allows an iPad to be mounted to any Chief F or K-Series wall, desk or pole mounts (except dynamic height adjustable arms).

• Attaches to any VESA 100 x 100mm compatible mount

• Securely holds first generation iPads while in use; easy tooless removal when on the go.

• Custom molded materials, minimalist design, durable functionality.

• Compatible with FSR4100, FTR4100, KCD110, KWD110, K2C100, K2W100, KPD100, K2P100 and other Chief F and K-Series products (except dynamic height adjustable arms).

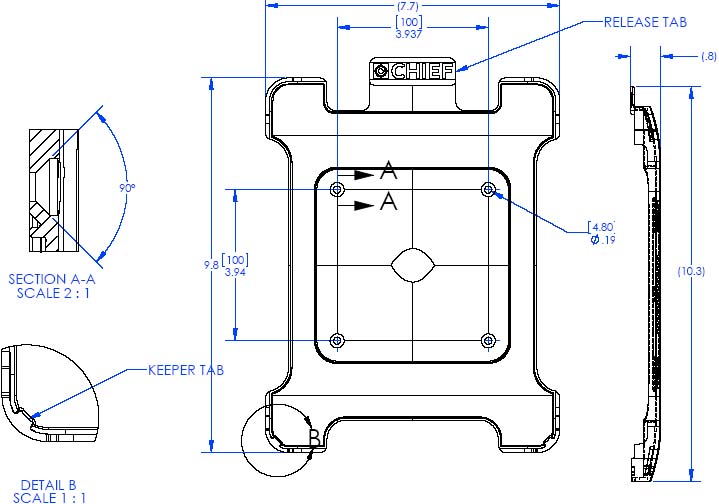

Technical Drawing of Chief FSBIB iPad Interface Bracket

Description of Chief FSBIB:

An ergonomic solution to attach an iPad 1 to Chief's wall, desk, and pole mounts; providing hands-free support of the iPad for the utmost in comfort.

The Portable iPad Interface Bracket allows for fast & easy snap-in/out of the iPad when on the go.

Note: Only compatible with the first-generation iPad. See FSBI2B for compatibility with iPad 2 and 3rd-gen iPad products.

Specifications of Chief FSBIB:

Mounting Pattern Compatibility (Universal Versions):

100 x 100mm

Notes:

Interface has a VESA 100 x 100mm pattern to attach an original iPad to standard mounts

Overall Dimensions (H x W x D):

9.8" x 7.7" x 0.8" (249 x 196 x 20mm)

Solution Type:

Universal

Weight Capacity:

2 lbs (0.9 kg)
