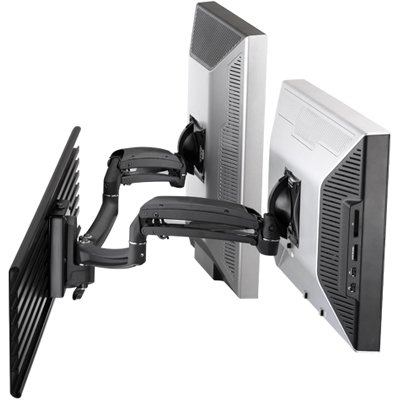

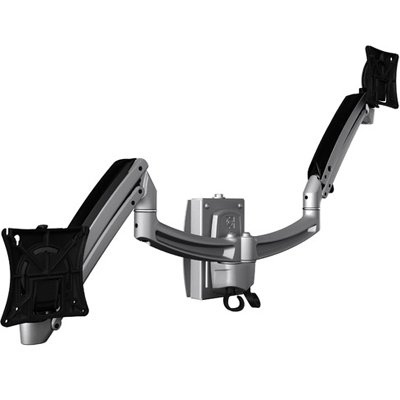

Chief K1S200 KONTOUR Dynamic Slat Wall Mount, Dual Monitor

Part Number

Description

K1S200B

Black KONTOUR Dynamic Height Adjustment Slat Wall Mount for Dual Monitors

K1S200S

Silver KONTOUR Dynamic Height Adjustment Slat Wall Mount for Dual Monitors

Features of Chief K1S200 Series:

• Includes a universal slat wall / tool-tile interface to adapt to any office furniture system.

• Allows independent movement and height adjustment of each monitor for maximum ergonomic flexibility.

• VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays).

• Sleek, solidly-constructed forged aluminum arms.

• Dynamic height adjustment using gas-spring technology.

• Simple 3-step installation and integrated quick-connect interface for easy mounting and maintenance.

• Tool-free cable management covers for a clean, professional look.

• Patented Centris Extreme Tilt. Tilts -75/+10 for an ultimate ergonomic solution.

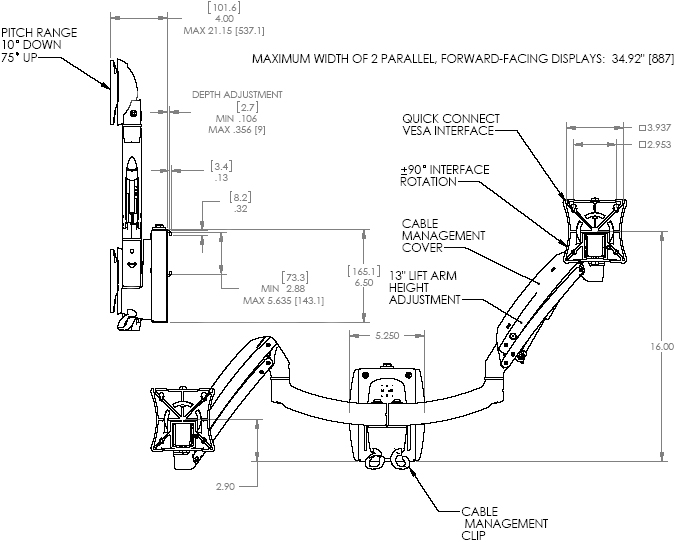

Technical Drawing of Chief K1S200S or K1S200B KONTOUR Dynamic Slat Wall Mount for Dual Monitors

Description of Chief K1S-200:

Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.

Specifications of Chief K1S 200:

Compatible with OFB Furniture Brackets:

Yes

Dynamic Height Adjustment:

13"

Maximum Extension:

16.48" (418.6mm)

Minimum Depth:

2.98" (75.7mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75mm ,100 x 100mm

Notes:

Weight capacity is per monitor, ships with OFBU

Number of Monitors:

2

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

13.0" x 17.0" x 3.2" (330 x 432 x 81mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15° , - 15°

TV Width Range:

10 - 34" (254 - 864mm)

Typical Screen Sizes:

10 - 30"

Wall Stud Compatibility (inches):

Slat Wall

Weight Capacity:

5 - 25 lbs (2.3 - 11.3kg)
