Ergotron 60-610-060 StyleView Sit-Stand Enclosure (black)

Be the first to review this product
Product ID: 16680
Recommended Accessories
List Price: $1,855.00
Our Price: $1,040.44
Shipping: $95.00 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

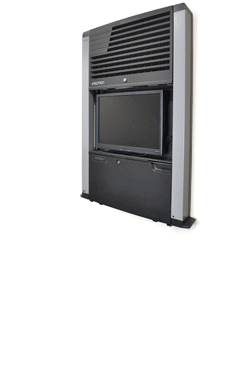

Animation of Ergotron 60-610-060 StyleView Sit-Stand Enclosure (black)

Description

Ergotron 60-610-060 is perfect for space-constrained patient rooms, this very low-profile vertical lift provides 20" (51 cm) of smooth height adjustment and folds into a slim, compact unit when not in use.

Move from a sitting to a standing position whenever you want. Its keyless locking mechanism protects patient data for compliance with privacy requirements. A unique cable management system conceals and organizes cords, making cleaning a snap.

Technical Drawing

Technical Drawing for Ergotron 60-610-060 StyleView Sit-Stand Enclosure (black)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 22"

12-24 lbs

5.4-10.9 kg

20"

50.8 cm

- - - MIS-D

Product Information

Part Number 60-610-060
Description StyleView Sit-Stand Enclosure (black)
Includes
  • Enclosure

  • Cable management wrap

  • Installation template

  • Mounting hardware

Easy 4-step Installation 1. Install mounting screws using template; 2. Hang enclosure; 3. Install computer equipment; 4. Set keyless security code
Weight Capacity 12-24 lbs (5.4-10.9 kg). Listed weight capacity represents total load. This includes: thin client = 3-10 lbs (1.4-4.5 kg); monitor = 7-12.5 lbs (3.2-5.7 kg); keyboard and worksurface = 0.5-1.5 lbs (.2-.7 kg)
Maxi Monitor Physical Dimensions 20.5"W x 13.5"H x 2.5"D (52.1 x 34.3 x 6.4 cm). Monitor depth greater than 2.5" (6.4 cm) is allowable, however screen will protrude beyond profile of unit in such cases
Maxi Thin Client Physical Dimensions 11"W x 11"H x 2.6"D (28 x 28 x 6.6 cm)
Maxi Keyboard Physical Dimensions 17.8"W x 1.25"H x 7"D (45.2 x 3.2 x 17.8 cm)
Mounting Standards VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CF Technology Patented Constant Force motion technology
Plastic/Polycarbonate Components Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Cable Wrap Cable wrap included for better cable management
Worksurface and Wrist Rest Worksurface and wrist rest are antimicrobial
Note Designed for thin clients. Product is not intended for CPU’s and hard drives
Product Dimensions 38.8" x 29" x 3.8" (closed) or 19.25" (open) (99 x 74 x 10 or 49 cm)
Shipping Dimensions 45" x 33" x 9" (114 x 84 x 23 cm)
Shipping Weight 62 lbs (28 kg)
Warranty Five (5) years for mechanical components; one (1) year for electrical components

Benefits

Secure Equipment and Patient Data

  • Keyless locking mechanism protects patient data and aids in the compliance with privacy requirements like HIPAA; keyed lock also included

  • Worksurface and wrist rest are treated with Agion Antimicrobial for product protection

  • Separate locking storage for thin client

  • Front-vented door for enhanced heat dissipation ensures long-life performance for your hardware; removes for easy cleaning


Premium Ergonomics

  • 20 inches (51 cm) of smooth height adjustment; move from a sitting to a standing position whenever you want

  • Very low profile (only 3.8" / 9.7 cm deep) and small footprint on wall (38.2" / 97 cm high by 26.6" / 67.5 cm wide) make it perfect for space-constrained areas

  • Easy to use: Quick, simple 4-step installation and effortless operation

  • Advanced open-architecture design supports future hardware upgrades

  • Cable management system conceals and organizes wires and cords

  • Extremely easy to clean; promotes infection control

  • Attractive design; hides clutter associated with computer equipment

Model 60-610-060
Manufacturer Ergotron
Part Number 60-610-060
UPC 698833015591
Color Charcoal black
Weight Capacity 12–24 lbs (5.4–10.9 kg)
Lift (51 cm) 20 in
Mounting Pattern VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Monitor Size Up to 22". Maximum monitor physical dimensions: 20.5"W x 13.5"H x 2.5"D (52.1 x 34.3 x 6.4 cm). Monitor depth greater than 2.5" (6.4 cm) is allowable, however screen will protrude beyond profile of unit in such cases.
Shipping Weight 62 lbs (28 kg)
Shipping Dimensions 45" x 33" x 9" (1143 x 838 x 229 mm)
Warranty Five (5) years
Keyboard Dimensions Maximum keyboard physical dimensions: 17.8"W x 1.25"H x 7"D (45.2 x 3.2 x 17.8 cm)
Dimensions Maximum thin client physical dimensions: 11"W x 11"H x 2.6"D (28 x 28 x 6.6 cm)
