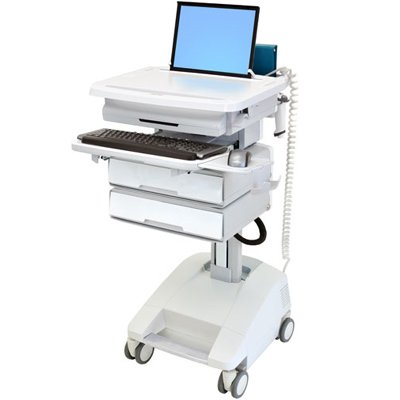

Ergotron SV32-6122-1 StyleView PHD Healthcare Laptop Cart with 2 Drawers, LiFe Powered

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17"

10.4 kg

51 cm

Part Number:

SV32-6122-1

Description:

StyleView PHD Laptop Cart, 2 Drawers, Life Powered (white/grey)

Includes:

• Auto-locking drawer system (ADS)
• Two large drawers
• Two cassette inserts with six compartments
• Single-battery 40 Ah power system
• 10-foot (3-m) coiled cord
• Hospital-grade AC outlets
• Power system user interface
• StyleLink software
• Worksurface
• Secure laptop compartment
• Four-port USB hub
• Scanner holder bracket
• Mouse holder
• Wrist rest
• Back-tilt keyboard tray
• Left/right mouse tray
• Front and rear handles
• Storage basket
• Cable storage
• Four casters (two locking)

Laptop Holder internal Dimensions:

17"W x 12.5"H x 3.75"D (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm)

Weight Capacity:

Total maximum load of height-adjustment assembly = 23 lbs (10.4 kg). This is the sum of the following components: Capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg).

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem

True Ergonomics:

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment and keyboard placement require just a touch.
• Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

• Auto-locking drawer system (ADS): Each drawer is individually controlled with 5-digit master or user PIN; manual key-lock option included; drawer auto-locks after 4 seconds; programmable alarm sounds after 20 seconds; securely stores PINs for up to 100 users.
• StyleLink Software enables drawer access PINs to be programmed remotely or directly; two points of possible console access for PIN updates/adds include Unit Clerk or IT; full cart open/close event log and reporting capabilities.
• For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.

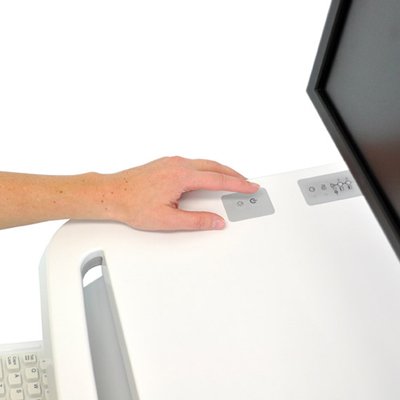

• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator).
• Surfaces are treated with antimicrobial for product protection; worksurface and handles are smooth and continuous for improved clean ability.
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
• One-piece worksurface with no seams; easy-to-clean design promotes infection control.
• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.
• Front-locking casters.
• Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

• Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems and drawers from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country, or the world.
• Covered by Global Service Program - 24/7 coverage.

• Four amber LEDs provide light over keyboard tray or drawers and includes 15 minute auto shut-off.
• Button for LED lights is now located conveniently on worksurface.
• Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.
• Laptop screen holders: Prevents the laptop screen from vibrating for less damage to hinges over time.
• Pre-routed cables provide quicker integration with equipment.
• TAA (Trade Agreements Act) compliant.
• Universal mounting slot for accessories and equipment.
• A unique cable management system conceals and organizes cords, making cleaning easy.
• Ships fully assembled and is easily accessible from container.
• One-piece worksurface, no seams, easy to clean design promotes infection control.
• Four-port USB hub.
• Rear basket keeps task-related items where they can be quickly accessed.

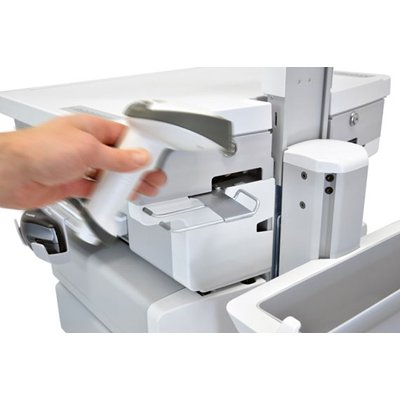

• Barcode scanner holder provides easy access to hand-held scanner.

Compatibility and Dimensions:

• Open-architecture design accommodates most notebook computers and future hardware upgrades.
• Laptop holder internal dimensions: 17"W x 12.5"H x 3.75"D (43 x 32 x 9.5 cm); screen-slot opening in worksurface = 16.1"W (40.9 cm)

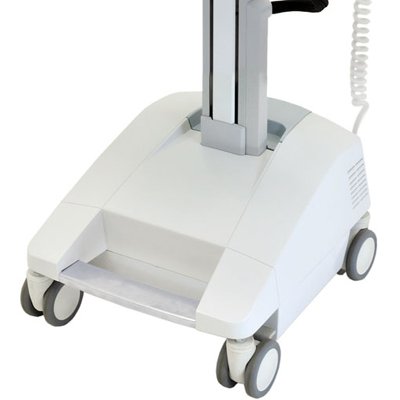

• Compact wheel-to-wheel base dimensions: 15.5" x 18.7" (39 x 48 cm)
• Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)
• VAC: 120V/60 Hz
• Grounded Plug & Outlet = NEMA 5-15P Hospital Grade (4 outlets)
• 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery.

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

164 lbs (74.5 kg); actual cart weight = 131 lbs (59.4 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components; five (5) years on LiFe battery, including two-year capacity guarantee.
