Innovative 7500-8374 Secure Long Monitor Arm, 7Flex Mount
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Rotate at Mount, Pivot LCD and Cable Management ) to the left side of the image below to see the arm movements
Description

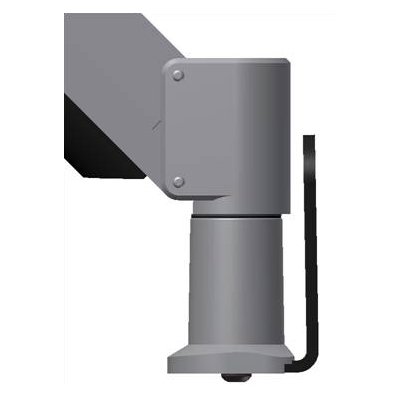

Any Innovative 7500-NM long LCD Arm can use with this 8374 7Flex Style FlexMount to make it secure. Must use Washer 701151 (automatically comes with 8374) in between Arm and Mount Cup.

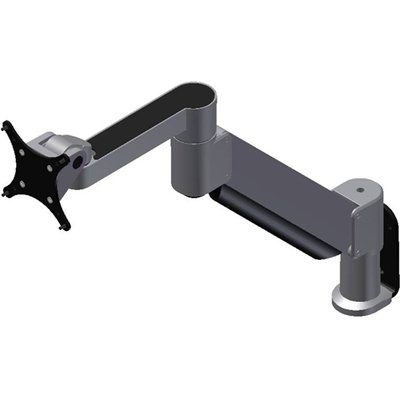

The award-winning 7500 Radial Arm is a remarkable work tool. Effortlessly position your monitor exactly where you want it, and add flexibility to your work style. Suspend your flat panel above the desk surface and reclaim your valuable space. Innovative cable management routes cables inside the arm, in order to keep your desk organized. You’ll never work the old and cluttered way again.
Technical Drawing
Technical Specifications
|
Horizontal Range |
27" |
|
Vertical Range |
18" (+/- 9" from horizontal) |
|
Rotation |
360° at three joints |
|
Monitor Tilt |
200° |
|
Monitor Pivot |
Landscape to portrait |
|
Monitor Compatibility |
VESA 75 mm and 100 mm |
|
Cable Management |
Cables are concealed in arm |
|
Mounting Options |
FLEXmount, Slatwall, Wall, Thru-Desk |
Features
- Folds up to occupy just 3'' of space
- Monitor tilter mechanism can tilt over 200 degrees
- Monitors are rendered weightless by the arm
- Select from numerous mounting options
- Cable management keeps cables tucked beneath arm
- VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options
- Approved to AFRDI Standard 126:2001, Level 3
- Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details
- Optional 6" extender tube available to raise monitor
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 7500-8374
- Manufacturer HAT Design Works (Innovative)
- Part Number 7500-8374
- Mounting Options Slatwall
- Mounting Options Wall
- Mounting Options Desk
- Monitor Arm Types 1 Monitor
- Number of Monitors 1 Monitor
