WorkRite Sierra HX Crank Offset Corner Keyboard Cutout 3 Legs Height Adjustable Workcenter

Description

Open up your workspace to grater possibilities. Workrite Sierra HX Crank is the natural choice for seated height adjustment with maximum clearance. Its hidden crossbar frame mounts directly to the worksurface. So no matter your height, you will always have plenty of room to stretch out and position your worktools wherever they need to go.

Sierra HX Crank opens up a world of possibilities. The Sierra HX is available in over 100 shapes and sizes with crank adjustment including bi-level and keyboard cutout.

Sierra HX features our beautiful Silhouette Collection of worksurfaces. These sleek tops are whisper thin at just 1⁄2", use GREENGUARD certified material, and are available in a variety of edge treatments. All Sierra HX Crank workcenters with standard laminate contain a minimum of 32% LEED Recycled content.

Specifications

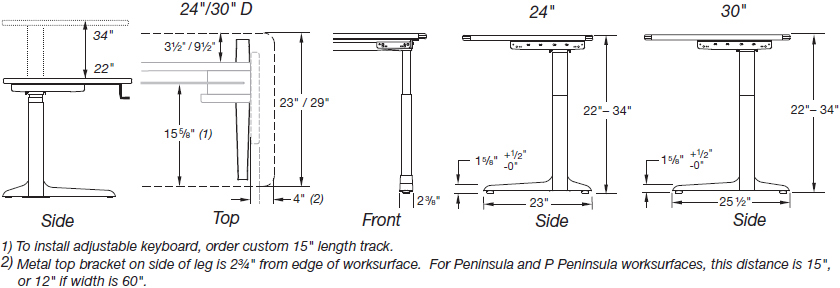

Height Range, Base and Leg Dimensions

Features

• Hidden crossbar for greater knee clearance and under-desk storage
• Adjusts 22"- 34" at 6.6 turns / inch
• Crank handle can be installed on right or left
• Both two leg and three leg workcenter with 150 lbs load capacity on worksurface
• Available in Sierra silver or charcoal finish
• Base only or full workcenter
• Compatible with full line of tool bar and rail system accessories

Environmental Considerations

• LEED Credit Eligibility
• Material & Resources Credit 4.1–4.2 (1-2 points)
• LEED Base Only: 28-29%
• LEED with laminate: 32-38%
• LEED with Silhouette: 13–19%
• Innovation in Design Credit 1.1-1.4 (1-4 points)
• GREENGUARD Silhouette top material
• VOC free powdercoat

Option 1 and 2: Choose your Desk Top Position and Surface Dimensions

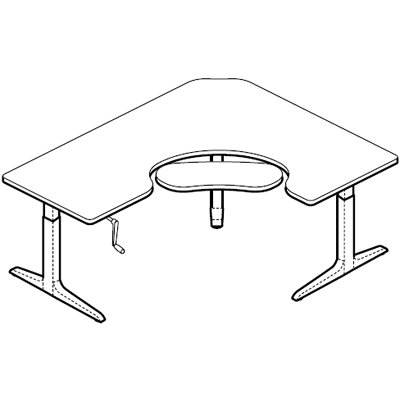

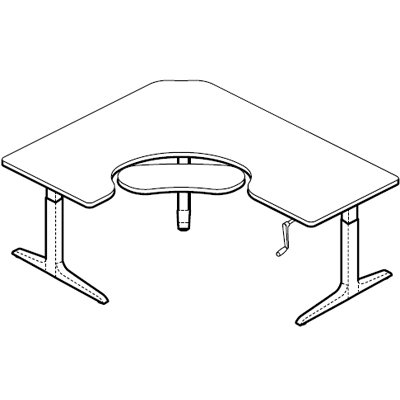

Left (Long side at left, short side at right)	Right (Long side at right, short side at left)
Model SCFHX724824A: 72" x 48" x 24" Surface Dimensions	Model SCFHX487224A: 48" x 72" x 24" Surface Dimensions
Model SCFHX726024A: 72" x 60" x 24" Surface Dimensions	Model SCFHX607224A: 60" x 72" x 24" Surface Dimensions
Model SCFHX844824A: 84" x 48" x 24" Surface Dimensions	Model SCFHX488424A: 48" x 84" x 24" Surface Dimensions
Model SCFHX724830A: 72" x 48" x 30" Surface Dimensions	Model SCFHX487230A: 48" x 72" x 30" Surface Dimensions
Model SCFHX726030A: 72" x 60" x 30" Surface Dimensions	Model SCFHX607230A: 60" x 72" x 30" Surface Dimensions
Model SCFHX844830A: 84" x 48" x 30" Surface Dimensions	Model SCFHX488430A: 48" x 84" x 30" Surface Dimensions

Option 3: Crank Handle

Option 4: Choose your Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Choose your Laminate Top Colors

Classic Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Designer Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Silhouette Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Choose your Edge Treatments

Edge Treatments for Laminated Surfaces

Standard Colors 01 - 05	Wedge Black only - 06	Ripple Black only - 07

Standard Edge Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Edge Treatments for Silhouette Surfaces

Option 7: Choose your Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Option 8: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Workcenter Ordering Information

Classic Collection Laminates - 10 working days for quantity 20 or less

Silhouette Collection Laminates - 10 working days for quantity 10 or less

Designer Collection Laminates - 20 working days for quantity 10 or less

Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment. Table surfaces are predrilled with mounting location for bases. Silhouette surfaces include screws to mount accessory items under the worksurface. Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only. Sierra HXL Electric legs rated at 175 lbs maximum force per leg. Control box powered by 120V / 60Hz. May draw 2.9 amps maximum under full load. Standby power is 0.1W. 10' power cord with IEC type connection at control box provided.

Cable management spool provided to manage excess control cables; optional cable mount accessories are available.
