The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.
Workrite LIN Lincoln Under Cabinet LED Light
Related Products |
|
Part Number |
Description |
LIN-S-N-10 |
Standalone with 10" Length, No Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-N-15 |
Standalone with 15" Length, No Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-N-19 |
Standalone with 19" Length, No Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-N-37 |
Standalone with 37" Length, No Occupancy Sensor, 24W (12V, 2A) Class 2 Transformer, Weight 4 lbs |
LIN-S-O-12 |
Standalone with 12" Length, Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-O-17 |
Standalone with 17" Length, Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-O-21 |
Standalone with 21" Length, Occupancy Sensor, 12W (12V, 1A) Class 2 Transformer, Weight 2 lbs |
LIN-S-O-39 |
Standalone with 39" Length, Occupancy Sensor, 21W (12V, 2A) Class 2 Transformer, Weight 4 lbs |
LIN-P-N-10 |
Parent of Daisy Chain with 10" Length, No Occupancy Sensor, 24W (12V, 2A) Class 2 Transformer, Weight 2 lbs |
LIN-P-N-15 |
Parent of Daisy Chain with 15" Length, No Occupancy Sensor, 24W (12V, 2A) Class 2 Transformer, Weight 2 lbs |
LIN-P-N-19 |
Parent of Daisy Chain with 19" Length, No Occupancy Sensor, 48W (12V, 4A) Class 2 Transformer, Weight 3 lbs |
LIN-P-N-37 |
Parent of Daisy Chain with 37" Length, No Occupancy Sensor, 48W (12V, 4A) Class 2 Transformer, Weight 4 lbs |
LIN-P-O-12 |
Parent of Daisy Chain with 12" Length, Occupancy Sensor, 24W (12V, 2A) Class 2 Transformer, Weight 2 lbs |
LIN-P-O-17 |
Parent of Daisy Chain with 17" Length, Occupancy Sensor, 24W (12V, 2A) Class 2 Transformer, Weight 2 lbs |
LIN-P-O-21 |
Parent of Daisy Chain with 21" Length, Occupancy Sensor, 48W (12V, 4A) Class 2 Transformer, Weight 3 lbs |
LIN-P-O-39 | Parent of Daisy Chain with 39" Length, Occupancy Sensor, 48W (12V, 4A) Class 2 Transformer, Weight 4 lbs |
Note:

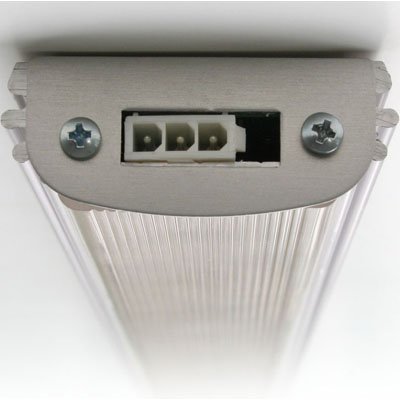

- 12W transformer: 12V, 1A, Class 2 transformer: two prong plug attached to 2"W × 2½"H × 1¼"D transformer with 10’ cord terminating in a three prong connector
- 24W transformer: 12V, 2A,Class 2 transformer: two prong plug attached to 2"W × 3¼"H × 1½"D transformer with 10’ cord terminating in a three prong connector
- 48W transformer: 12V, 4A, Class 2 transformer: two prong plug on a 36" cord connects to 45⁄8"W × 2½"H × 1½"D transformer and 96" cord with a three prong connector plug to fixture.
Description

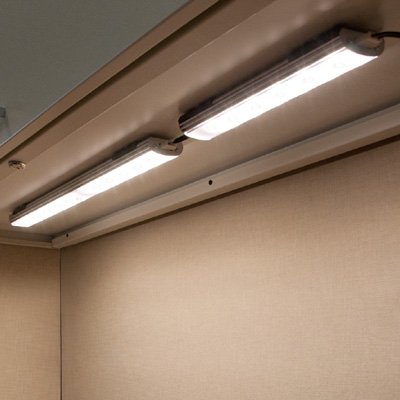

Raising the Bar on Under-Cabinet LED Lighting. Designed and assembled in the USA, Workrite Lincoln LED under-cabinet light is the clear front-runner with superior durability and performance and a pleasing light output that will keep your team on task for decades to come.

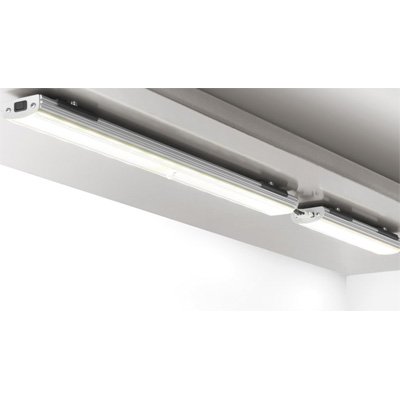

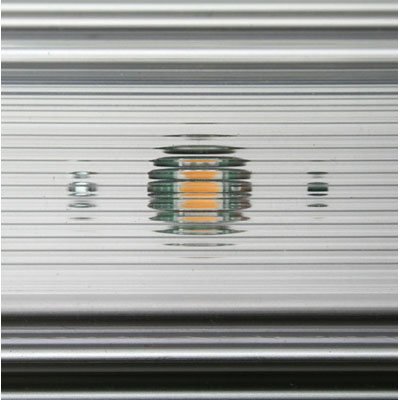

The Lincoln light’s profile is engineered for optimal thermal management, yielding a TM-21 rated useful life of more than 100,000 hours. Nichia LEDs with high CRI and warm color temperature provide light output that promotes visual comfort. To further conserve energy, the Lincoln LED Light is available with an integral occupancy sensor. Four fixture lengths can be daisy chained in numerous configurations to adapt to virtually any installation requirement.
Lincoln - the right light for our time.

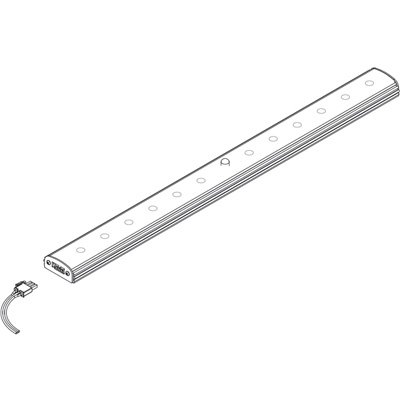

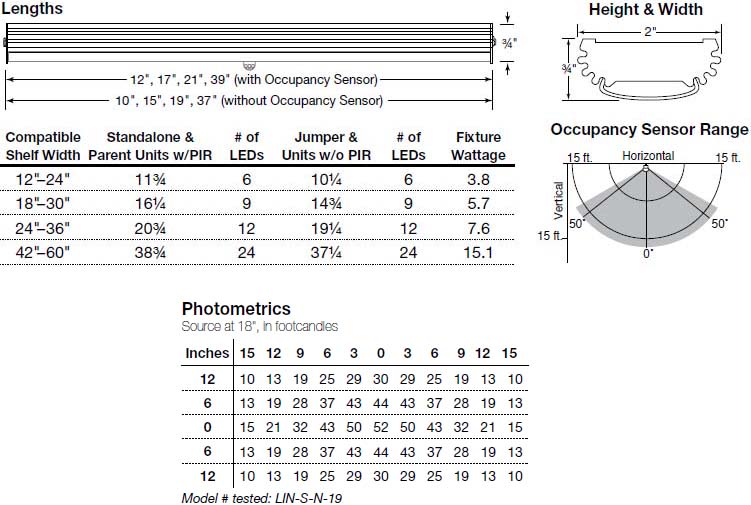

Technical Drawing
Features
- Four lengths. With occupancy sensor: 12", 17", 21" and 39" (fixture without occupancy sensor is 2" shorter)

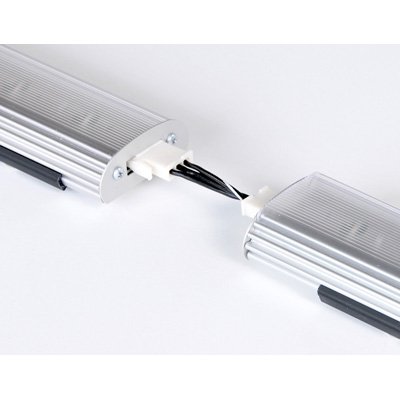

- For daisy chain, occupancy sensor in parent unit controls all fixtures in chain. Jumper units do not have separate sensor
- Fluted fixture housing provides superior thermal management for maximum fixture lifetime
- Ultra-slim 2" × ¾" profile
- Available in silver

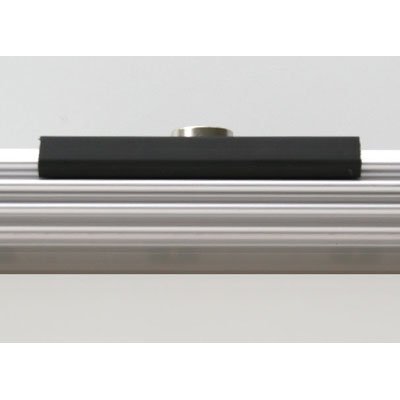

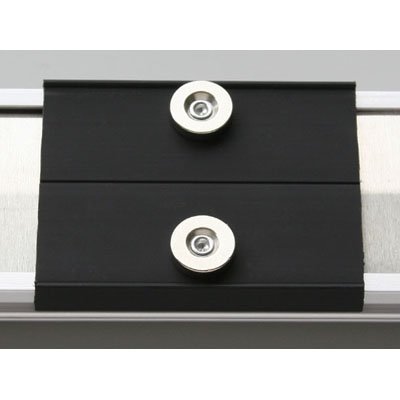

- Both magnetic & wood mounts included for rapid install
- Color temperature: 3000K, CRI: 85
- 120 degree beam angle
- TM-21 rated for over 100,000 hours useful life (brightness at least 70%)
- UL listed, cUL listed
- 10 year warranty
- US assembled, TAA compliant, BAA compliant
- Available through GSA Contract GSA-28F-0030S SIN #711-2 (Schedule 71)
Environmental Considerations
- CA Title 24 compliant with Occupancy Sensor
- Post-consumer recycled packaging, bulk packaging optional
- Aluminum housing composed of 65% recycled material and is fully recyclable
- LEED credit eligibility (1-10 points)
- Materials & Resources, MR Credit 4.1
- Recycled content: 10% (post-consumer + ½ pre-consumer) (1 point)
- Materials & Resources, MR Credit 4.2
- Recycled content: 20% (post-consumer + ½ pre-consumer) (1 point)
- Energy and atmosphere, credit 1.1 (1-3 points)
- Optimize energy performance: lighting power
- Energy and atmosphere, credit 1.2 (1 point)
- Lighting controls
- Innovation in design, credit 1.1-1.4 (1-4 points)
- Implementation of comprehensive ergonomic program
Writing and Electrical
- LED Wattage: With OCC: 12" - 3W; 17" - 4.5W, 21" - 6W, 39" -12W. Without OCC: 10" - 3W, 15" - 4.5W, 19" - 6W, 37" - 12W
- Higher watt transformer used for daisy chain parent units
- 24 watt transformer can power up to 32 LEDs among combined fixtures, 48 watt transformer can power up to 64 LEDs

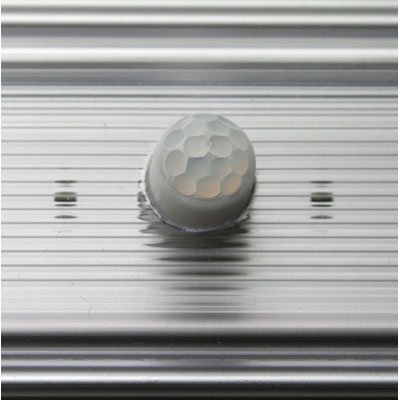

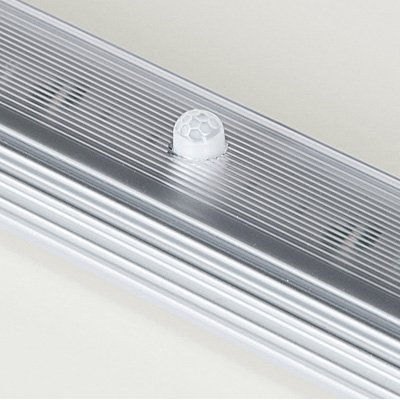

- Passive infrared (PIR) Occupancy Sensor with up to 15' effective range located in center of fixture
- Specify 3", 6", 10" or 20" jumper cord for daisy chain units
- Consult factory for installations with input voltage other than 120 volt

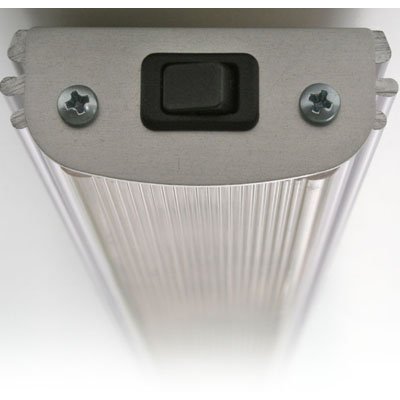

- Rocker switch on parent and stand alone units provides on/off control for single fixture and for all units within a daisy chain
Literature (Please open the following documents for more technical information)
|
|
|
|
|
|
|
Model | LIN-S-N-10, LIN-S-N-15,LIN-S-N-19, LIN-S-N-37, LIN-S-O-12, LIN-S-O-17, LIN-S-O-21, LIN-S-O-39, LIN-P-N-10, LIN-P-N-15, LIN-P-N-19, LIN-P-N-37, LIN-P-O-12, LIN-P-O-17, LIN-P-O-21, LIN-P-O-39 |
Manufacturer | Workrite Ergonomics |
Part Number | LIN-S-N-10, LIN-S-N-15,LIN-S-N-19, LIN-S-N-37, LIN-S-O-12, LIN-S-O-17, LIN-S-O-21, LIN-S-O-39, LIN-P-N-10, LIN-P-N-15, LIN-P-N-19, LIN-P-N-37, LIN-P-O-12, LIN-P-O-17, LIN-P-O-21, LIN-P-O-39 |
Color | Silver |
Length | Four lengths. With occupancy sensor: 12”, 17”, 21” and 39”, fixture without occupancy sensor is shorter 2 |
Dimensions | 2" × ¾" |
Color Temperature | 3000K, CRI: 85 |
Warranty | 10 years |
LED Wattage | With OCC: 12" - 3W; 17" - 4.5W, 21" - 6W, 39" -12W. Without OCC: 10" - 3W, 15" - 4.5W, 19" - 6W, 37" - 12W |
