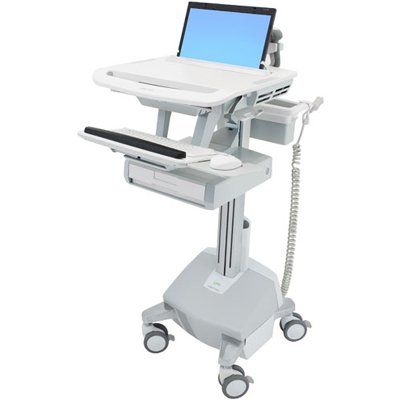

Ergotron SV42-3112-1 StyleView Laptop Cart, LiFe Powered, 1 Drawer

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

9.1 kg

51 cm

Part Number

• North America = SV42-3112-1
• Europe = SV42-3112-2
• United Kingdom/Ireland = SV42-3112-3
• Hong Kong/Malaysia = SV42-3112-3
• Australia/New Zealand = SV42-3112-4
• China = SV42-3112-5

Description

StyleView Laptop Cart, LiFe Powered, 1 Drawer (white, grey and polished aluminum)

Includes

• Auto-locking drawer system (ADS)
• Primary single drawer
• Drawer dividers
• Worksurface
• Secure laptop compartment
• Four-port USB hub

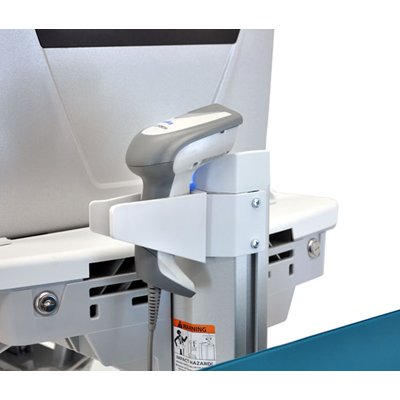

• Scanner holder bracket
• Mouse holder
• Wrist rest

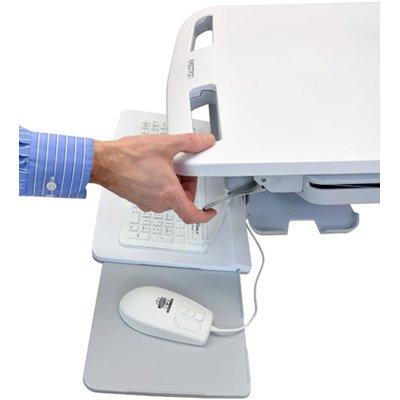

• Back-tilt keyboard tray
• Keyboard lights
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (lockable)
• Single-battery 40 Ah LiFe power system
• 10-foot (3 m) coiled cord
• Three AC outlets
• Power system user interface
• StyleLink software

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 20 lbs (9.1 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)

Laptop and Worksurface

Adjust 20" (51 cm) in tandem

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

Safe

• For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
• Locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
• Covered by Global Service Program - 24/7 coverage

• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• Universal mounting slot for accessories and equipment
• A unique cable management system conceals and organizes cords, making cleaning easy
• Ships fully assembled and is easily accessible from container

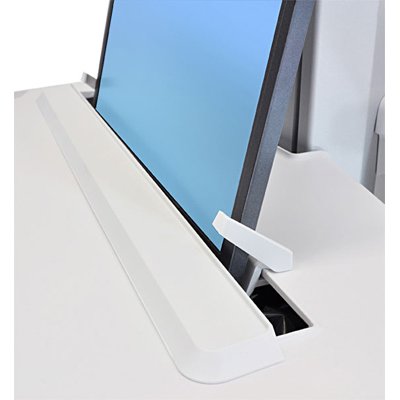

• Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
• Four-port USB hub
• TAA (Trade Agreements Act) compliant
• Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
• Pre-routed cables provide quicker integration with equipment
• Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)
• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability
• Laptop screen slot cover: Protection from

• Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
• Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
• Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)
• VAC: SV42-3112-1 = 120V/60Hz; SV42-3112-2, SV42-3112-3, SV42-3112-4 = 230V/50Hz; SV42-3112-5 = 220V/50Hz
• Grounded Plug: SV42-3112-1 = NEMA 5-15P Hospital Grade; SV42-3112-2 = European CEE 7; SV42-3112-3 = UK BS 1363; SV42-3112-4 = AS/NZS 3112; SV42-3112-5 = GB2009-1, GB1002-1. Note: In Switzerland, a customer-supplied adaptor is required
• 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

148 lbs (67.1 kg); actual cart weight = 113 lbs (51.3 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module; five (5) years on LiFe battery, including two-year capacity guarantee
