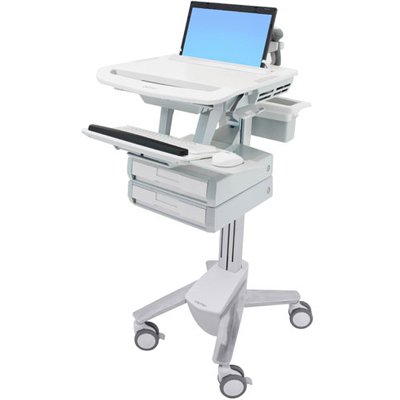

Ergotron SV41-3120-0 StyleView Laptop Cart, 2 Drawers

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

10 kg

51 cm

Part Number

Description

StyleView Laptop Cart, non-powered, 2 Drawers (white, grey and polished aluminum)

Includes

• Worksurface
• Secure laptop compartment
• Primary single drawer
• Supplemental single drawer

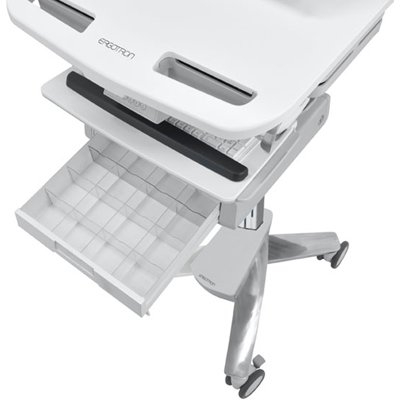

• Drawer dividers
• Four-port USB hub

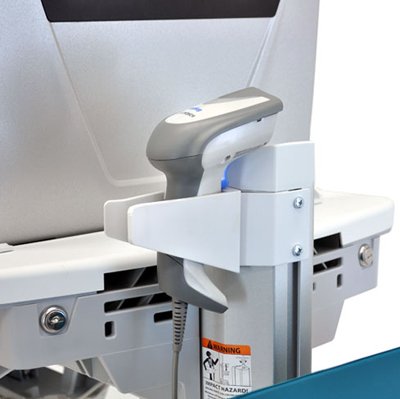

• Scanner holder bracket
• Mouse holder
• Wrist rest

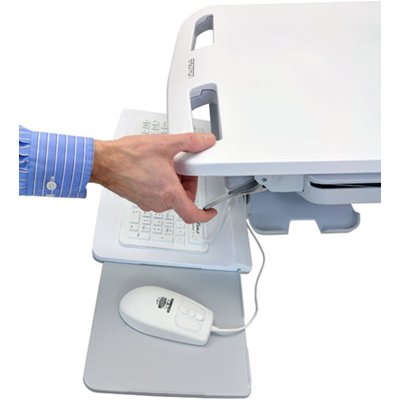

• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 22 lbs (10 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)

Laptop and Worksurface

Adjust 20" (51 cm) in tandem

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
• Actual cart weight is just 81 lbs (36.7 kg), making system relocation easy

Safe

• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• One-piece worksurface with no seams; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
• Front-locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Covered by Global Service Program - 24/7 coverage

• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface

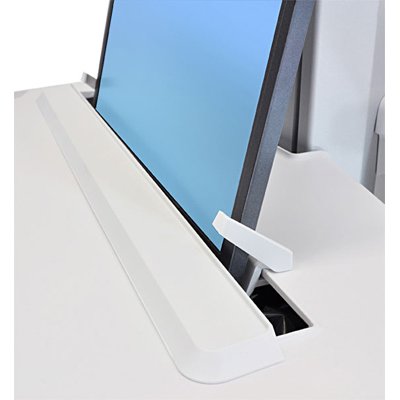

• Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Universal mounting slot for accessories and equipment
• A unique cable management system conceals and organizes cords, making cleaning easy
• Ships fully assembled and is easily accessible from container
• TAA (Trade Agreements Act) compliant
• Four-port USB hub
• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
• Laptop screen slot cover: Protection from large spills on the worksurface while retaining easy access to the laptop’s power button

• Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
• Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
• Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
• Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

107 lbs (48.3 kg); actual cart weight = 81 lbs (36.7 kg)

Warranty

Five (5) years
