Workrite Sierra HXL Crank Rectangular Bi-Level Workcenter

Description

Taking your crank table to the next level. Workrite Sierra HXL Crank combines the elegant styling of our popular Sierra series with an improved height range and higher load capacity. Now available with an additional 5-1⁄2" of height adjustment, the Sierra HXL Crank is the solution for companies seeking limited sit to stand adjustability. For full 5th - 95th percentile sit to stand adjustability, select a bi-level HXL crank or add a Pinnacle 2 AD keyboard arm to any single surface HXL crank.

The HXL Crank features a hidden crossbar frame that mounts directly to the worksurface, providing excellent stability and plenty of below desk space. Available in over 130 shapes and sizes including bi-level and keyboard cutout Sierra HXL Crank opens up a world of possibilities.

Specifications

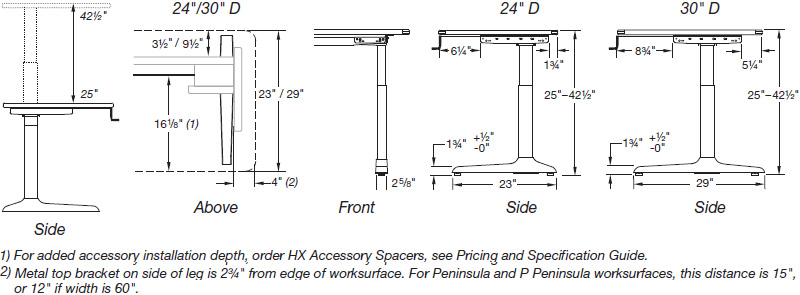

Height Range, Base and Leg Dimensions

Features

• Hidden crossbar for greater knee clearance and under-desk storage

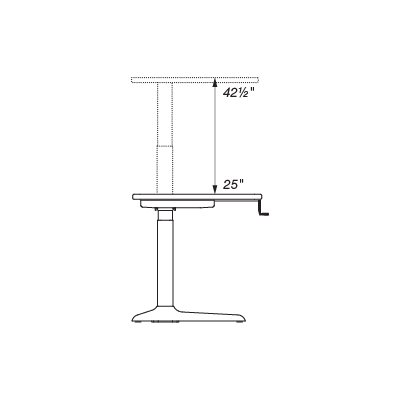

• Adjusts 25"- 42½" at 5.2 turns/inch
• Crank handle can be installed on right or left
• 225 lbs. load capacity on worksurface for 2 leg units, 300 lbs load capacity on worksurface for 3 leg units
• Available in Sierra silver or charcoal finish
• Base only or full workcenter
• Compatible with full line of tool bar and rail system accessories

Environmental Considerations

• LEED credit eligibility
• Material & Resources Credit 4.1-4.2 (1-2 points)
• LEED Base Only: 28-29%
• LEED with laminate: 32-38%
• LEED with Silhouette: 13-19%
• Innovation in Design Credit 1.1-1.4 (1-4 points)
• GREENGUARD Silhouette top material
• VOC free powdercoat

Option 1: Surface Dimensions

Option 2: Crank Handle

On Top Right Side

Option 3: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 4: Laminate Top Colors

Classic Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Designer Collection Laminates

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Edge Treatments

Edge Treatments for Laminated Surfaces

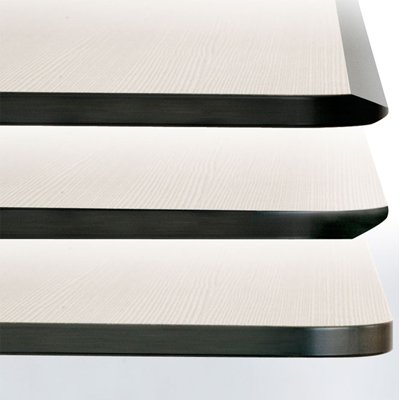

Standard Colors 01 - 05	Wedge Black only - 06	Ripple Black only - 07

Standard Edge Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Option 7: Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 72" × 72" × 24" large corner table has an actual dimension of 70" × 70" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Option 8: Keyboard Arm

This arm/track combo is needed if you want to use a Keyboard tray with a Crank desk. Crank desks can only use a 15" track. Please note your keyboard tray will not fully retract on a Crank desk. Order Keyboard tray separately.

Workcenter Ordering Information

Classic Collection Laminates - 10 working days for quantity 20 or less

Designer Collection Laminates - 20 working days for quantity 10 or less

Silhouette Collection Laminates - 10 working days for quantity 10 or less

Dual Surface Specifications: Front surface laminate and trim matches main worksurface.

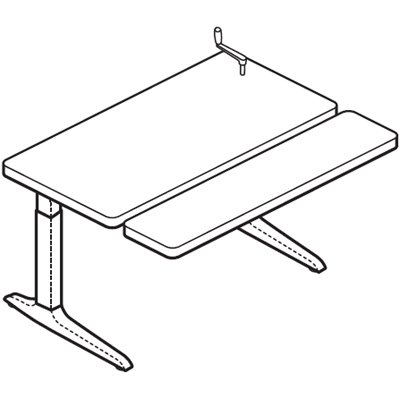

Bi-level Specifications: Front surface adjusted +57⁄8” to -61⁄8” with ATK-50 arm; tilt adjusts +/- 15°.

Keyboard Cutout: Front surface adjusted using fixed mount Pinnacle 2 Arm with 0" to -6" height range and -15° to +10° tilt range.

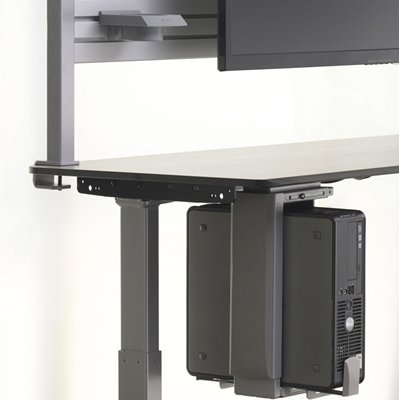

Application Tips: Mobile pedestals taller than 21" will limit lower height range. All tables have adjustable glides providing ½" adjustment. Moving work surfaces can collide with other components. Installation of overhead storage or wall mounted accessories in worksurface’s path not recommended. Workrite has tool bars which move with the worksurface and can accept a variety of desk accessories.

Additional Information: Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.

Worksurfaces are pre-drilled with mounting location for bases. Joining kit provided for all two piece tops. Silhouette surfaces include screws to mount accessory items under the worksurface. Special drill bit required, can be ordered separately. All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.
