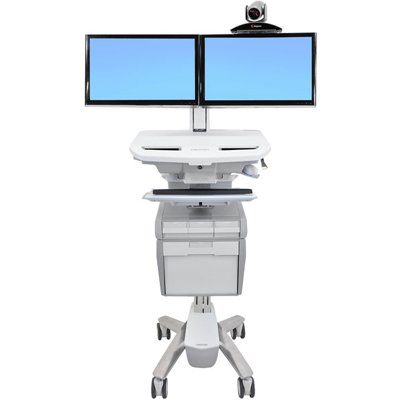

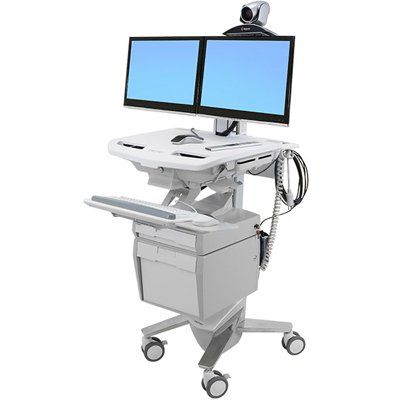

Ergotron SV41-56E0-1 StyleView Telepresence Cart, Dual Monitor

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

20 kg

30 cm

Part Number

SV41-56E0-1

Description

StyleView Telepresence Cart, Dual Monitor, non-powered (white, grey and polished aluminum)

Includes

• Dual display bow
• Primary top drawer
• Drawer dividers
• Large lower drawer
• Worksurface
• Camera shelf

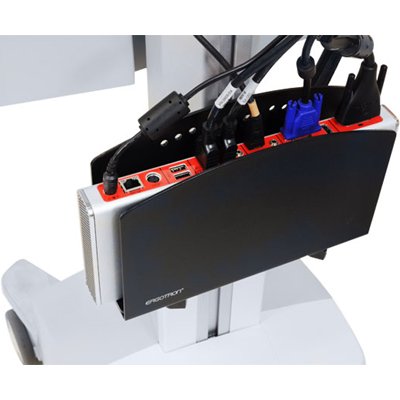

• Codec/CPU holder

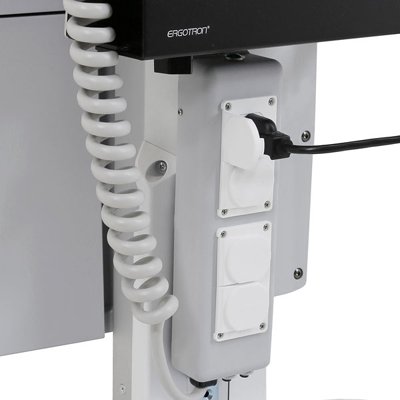

• Medical-grade power strip
• CPU lock
• Secure CPU compartment
• Four-port USB hub
• Scanner holder bracket
• Mouse holder
• Wrist rest

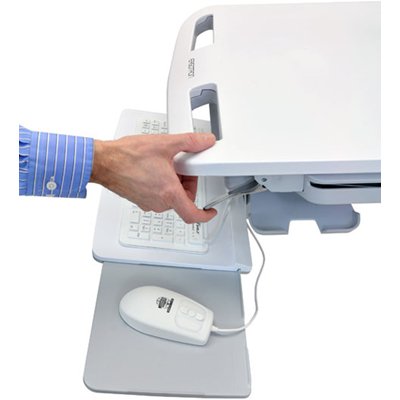

• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)

Not Included

Video camera, monitors, codec, and telepresence and computing equipment

Weight Capacity

Total maximum load on height-adjustment assembly = 44 lbs (20 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

When calculating load on dual LCD bow, also include weight of camera. Combined weight of LCDs and camera should not exceed 18 lbs (8.2 kg). Combined weight of LCDs, camera and CPU should not exceed 27 lbs (12.3 kg)

Pan

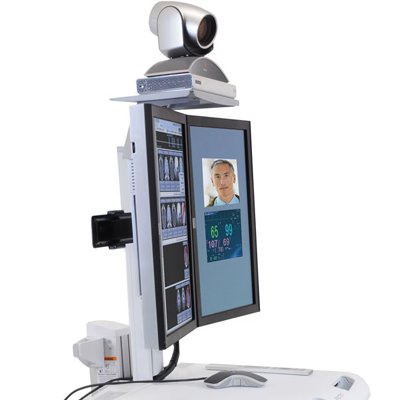

180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)

Hazard

To avoid tip hazard, cart should not be relocated when monitor is panned. Always keep monitors aligned side by side when moving the cart

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

• UL certification of the full cart is pending; FCC Part 15 Class A specifications for enhanced patient safety
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Front-locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

Covered by Global Service Program - 24/7 coverage

All the Details Covered

• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• A unique cable management system conceals and organizes cords, making cleaning easy
• Ships fully assembled and is easily accessible from container
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Optional security cable in compartment deters CPU theft
• Four-port USB hub
• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); computers can also attach to rear of cart in the codec/CPU holder
• Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
• Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

141 lbs (64 kg); actual cart weight = 106 lbs (48 kg)

Warranty

Five (5) years
