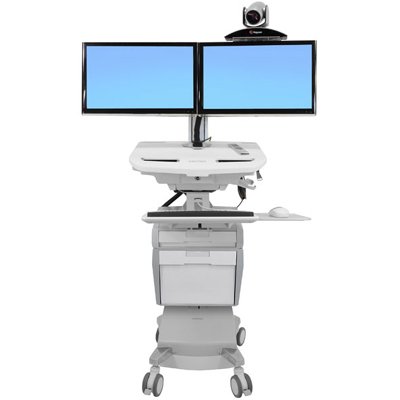

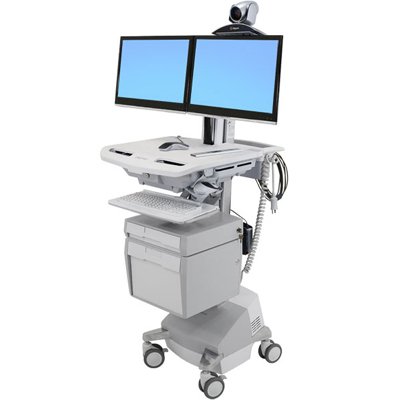

Ergotron SV42-56E1-1 SV Telepresence Cart, Dual Monitor, Powered

This product has been discontinued.

Description

Ergotron SV42-56E1-1 expands healthcare access through telepresence with this easy and affordable mobile solution, which combines the power of videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.

Technical Drawing

Technical Drawing for Ergotron SV42-56E1-1 SV Telepresence Cart, Dual Monitor, Powered

Technical Specifications


LCD Size	Capacity	Lift	Tilt	Pan	Rotation	VESA
Up to 24"	Up to 45 lbs 20.4 kg	12" 30 cm	-	180°	360°	MIS-D

Product Information

Part Number	SV42-56E1-1
Description	StyleView Telepresence Cart, Dual Monitor, SLA Powered (white, grey and polished aluminum)
Includes	Dual display bow Auto-locking drawer system (ADS) Primary top drawer Drawer dividers Large lower drawer Worksurface Camera shelf Codec/CPU holder Medical-grade power strip CPU lock Secure CPU compartment Four-port USB hub Scanner holder bracket Mouse holder Wrist rest Back-tilt keyboard tray Left/right mouse tray Rear handle Storage basket Cable storage Four casters (two locking) Two-battery 66 Ah power system 10-foot (3 m) coiled cord Three AC outlets Power system user interface StyleLink software
Not Included	Video camera, monitors, codec, and telepresence and computing equipment
Weight Capacity	Total maximum load on height-adjustment assembly = 45 lbs (20.4 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)
Note	When calculating load on dual LCD bow, also include weight of camera. Combined weight of LCDs and camera should not exceed 18 lbs (8.2 kg). Combined weight of LCDs, camera and CPU should not exceed 27 lbs (12.3 kg)
Pan	180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)
Portrait Screen Orientation	May be incompatible with widescreen displays > 19"
True Ergonomics	Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
Safe	For patient and caregiver safety the entire power system and the FULL cart are in process of being certified to UL and CAN/CSA-C22.2 No. 60601-1:08. Complies with EMI limits of FCC Part 15 Class A Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator) Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control Large, smooth worksurface; easy-to-clean design promotes infection control Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty Locking casters CPU lock provided inside the storage compartment for additional security Designed to meet guidelines established by the American National Standards Institute for computer use
Service	Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN Covered by Global Service Program - 24/7 coverage

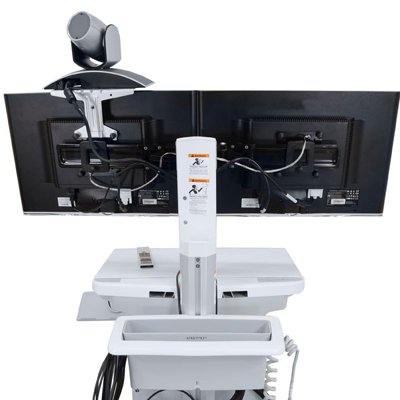

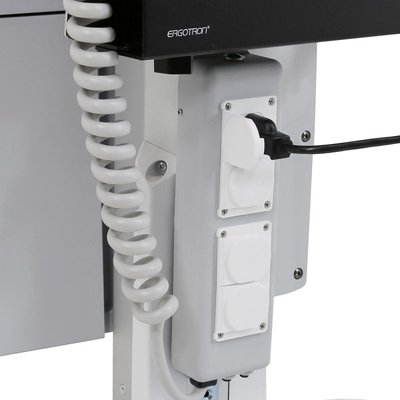

All the Details Covered	Drawer dividers are included, allowing compartments to be customized to match your workflow requirements Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off Button for LED lights is located conveniently on worksurface Rear basket keeps task-related items where they can be quickly accessed A unique cable management system conceals and organizes cords, making cleaning easy Ships fully assembled and is easily accessible from container Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft Four-port USB hub TAA (Trade Agreements Act) compliant Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time Pre-routed cables provide quicker integration with equipment Three-receptacle power strip located in the CPU storage compartment Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

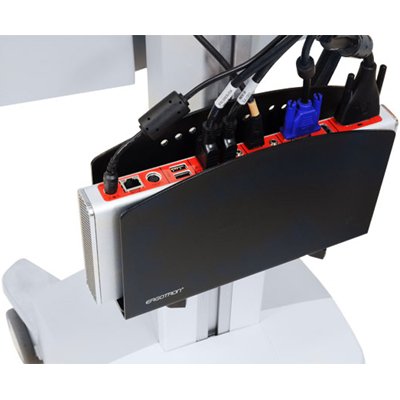

Compatibility and Dimensions	Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); computers can also attach to rear of cart in the codec/CPU holder Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm) Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm) Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) VAC: 120V/60Hz Grounded Plug: NEMA 5-15P Hospital Grade 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
Shipping Dimensions	24.5" x 34" x 56" (62 x 87 x 142 cm)
Shipping Weight	217 lbs (98.4 kg); actual cart weight = 182 lbs (82.6 kg)
Warranty	Five (5) years for cart’s mechanical components, two (2) years on power module

Benefits

Enables remote delivery of specialized care and timely diagnostics

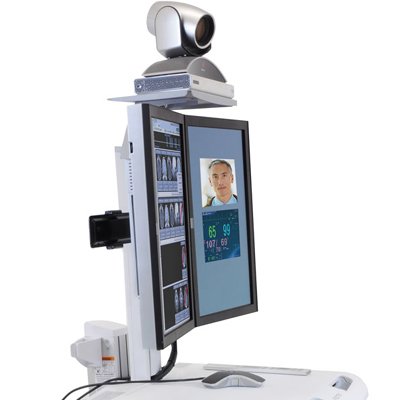

Dual monitor configuration provides convenient side-to-side pivoting of one display for shared viewing of screen; expanded screen area of two displays increases productivity

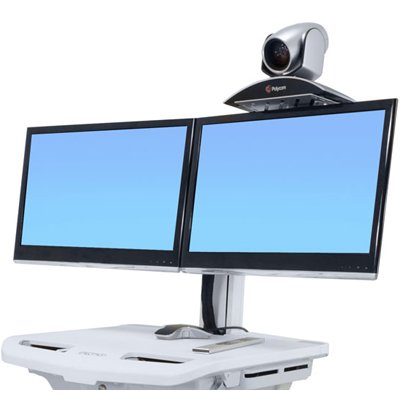

Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
Configured to accommodate all your telepresence equipment; large lower drawer is perfect for storage of critical diagnostic appliances
Open architecture allows for the integration of most standard computer and mobile communications equipment
Low configuration cost; ships fully assembled
Auto-locking drawers: Security system stores PINs for up to 100 users to allow electronically controlled access
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

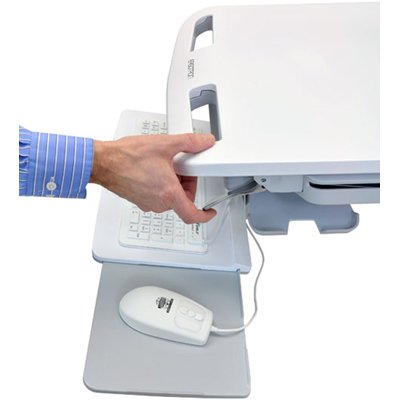

Keyboard pans fully side-to-side for closer access while interacting with clients
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the entire power system and the FULL cart are being certified to UL 60601-1
Low operating cost - autonomous rechargeable AC electrical source delivers safe, inexpensive and dependable power

Product Options/Accessories

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information

Model SV42-56E1-1
Manufacturer Ergotron
Part Number SV42-56E1-1

Color White, grey and polished aluminum
Monitor Size Up to 24"
Weight Capacity Up to 45 lbs (20.4 kg)
Lift (30 cm) 12 in
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Dimensions Internal: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm)—includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 217 lbs (98.4 kg); actual cart weight = 182 lbs (82.6 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module
VAC 120V/60Hz
Grounded Plug NEMA 5-15P Hospital Grade
Product Type Dual Monitors
Product Type Tablet
