Ergotron DM12-1005-1 Tablet Charging Wall Mount, 12 Devices
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description
Power up! This slim storage cabinet is perfect for charging and securing up to 12 tablets and Chromebooks as used in today’s modern classroom. It’s designed to be compatible with a wide variety of manufacturers like Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer and many others.
Ergotron DM12-1005-1 has features that include a space-saving cabinet profile and easy device access with Show & Stow technology.
Technical Specifications
|
|
|
|
|
|
|
|
|
Screen |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
Up to 11.6" |
Up to 3 lbs
1.4 kg |
- | - | - | - | - |
Product Information
|
Part Number |
|
|
Description |
Tablet Charging Wall Mount Storage Cabinet (black/silver) |
| Includes |
|
|
Total Capacity |
12 devices |
|
Individual Device Maximum Dimensions |
11.4"W x 10.1"H x 1.0"D (29 x 25.7 x 2.5 cm) including case and cord |
|
Individual Device Maximum Weight |
3 lbs (1.4 kg). Total rated weight capacity = 44.4 lbs (20.1 kg) |
|
AC Adapter |
Country-specific 12-receptacle outlet strip is designed to work with oversized wall adapters and mini-sized bricks. AC adapter maximum dimensions = 4.1"H x 2.0"W x 4.0"D (10.4 x 5.0 x 10.1 cm) |
|
Uses |
The AC adapters that come with each device. AC adapters are not included |
|
Environmentally Clean |
RoHS, REACH, WEEE and EU (94/620EC) packaging compliant |
|
Temperature Range |
Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F) |
|
Relative Humidity (maximum) |
Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) |
|
Cooling/Ventilation |
One 12V DC continuous operation fan |
|
Product Dimensions |
26.4"W x 35.6"H x 5.9"D (67 x 91 x 15 cm) |
|
Product Weight |
64.5 lbs (29.3 kg) |
|
Shipping Dimensions |
40.9" x 28.9" x 8.4" (104 x 74 x 21 cm) |
|
Shipping Weight |
77 lbs (34.9 kg) |
|
Warranty |
Five (5) years; two (2) years for power module; one (1) year for other electrical components |
Benefits
- Open-architecture design works with most tablets (including Android, Windows, and iPad) and Chromebooks with up to 11.6" displays
- Designed to be compatible with a wide variety of manufacturers such as Microsoft, Samsung, Apple, Lenovo, HP, Dell, Amazon, Asus, Acer and many others

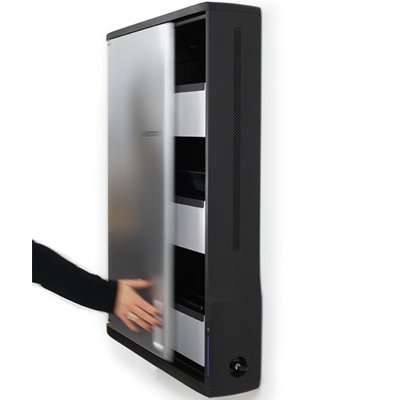

- Smooth sliding door provides easy access to devices and stays within the sleek profile

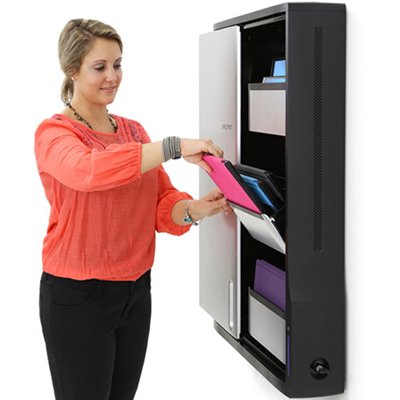

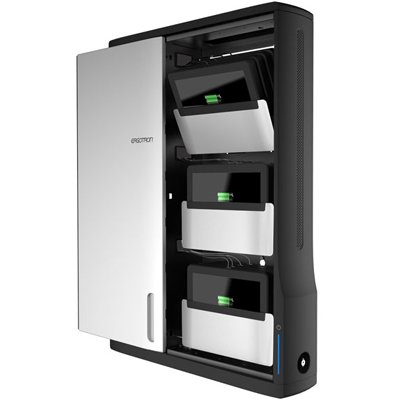

- Show & Stow technology tilting tablet trays make loading and unloading devices simple. Pull trays out to load or unload and they will automatically retract
- Low-profile design protrudes less than 6" (15.2 cm) from the wall saving space within the classroom
- Quick, simple installation includes mounting template, mounting bracket, and hardware. Mount the bracket on the wall, hang the cabinet and secure with two heavy-duty screws

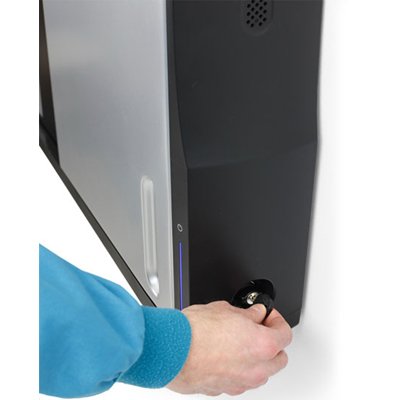

- Six-point locking bracket keeps devices safe and secure
- Snap-in tablet tray cable clips make setup simple and keep the device cables perfectly positioned for easy insertion

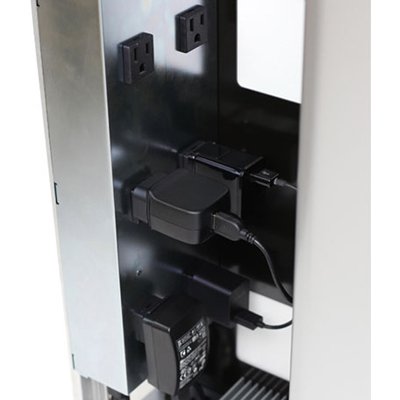

- Separate AC adapter storage area for easy one-time setup and clean cable storage. Custom country-specific outlet strip includes plenty of space to work with oversized wall adapters and mini-bricks
- For user and equipment safety, the entire cabinet is tested and certified to UL 60950
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model DM12-1005-1
- Manufacturer Ergotron
- Part Number DM12-1005-1
- UPC 698833041118
- Color Black/silver
- Screen Size Up to 11.6 in
- Weight Capacity Up to 3 lbs (1.4 kg). Total rated capacity = 44.4 lbs (20.1 kg)
- Dimensions Individual device maximum dimensions = 11.4"W x 10.1"H x 1.0"D (29 x 25.7 x 2.5 cm) including case and cord. AC adapter maximum dimensions = 4.1"H x 2.0"W x 4.0"D (10.4 x 5.0 x 10.1 cm)
- Temperature Operating = 0° to 30°C (32° to 86°F); storage = -40°C to -60°C (-40° to 140°F)
- Humidity (Maximum): operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
- Dimensions 26.4"W x 35.6"H x 5.9"D (67 x 91 x 15 cm)
- Weight 64.5 lbs (29.3 kg)
- Shipping Dimensions 40.9" x 28.9" x 8.4" (104 x 74 x 21 cm)
- Shipping Weight 77 lbs (34.9 kg)
- Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
