Ergotron DM10-1007-1 Tablet Management Wall Mount, 10 Devices
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description

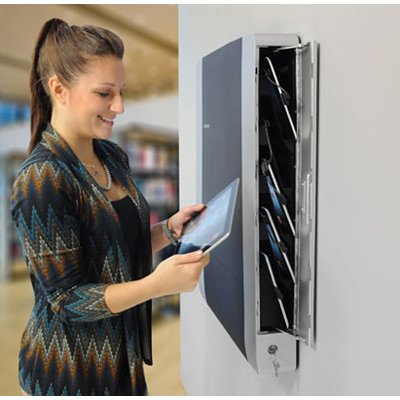

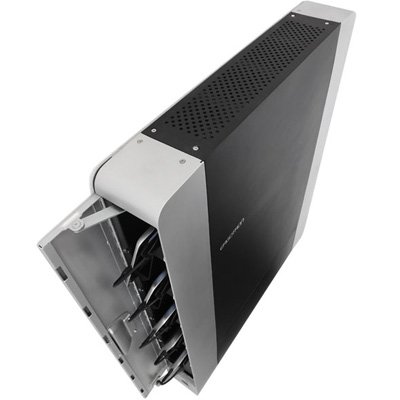

Ergotron DM10-1007-1 has sleek, low-profile cabinet design that accommodates the Apple iPad and iPad mini. Sync, charge and store up to 10 devices. Includes pre-installed Lightning cables. Durable steel doors with robust six-point lock and key assembly provide strong theft deterrence. Features full 2.4A charging capability. Tested and certified to UL 60950-1 standard.
Technical Specifications
|
|
|
|
|
|
|
|
|
Screen |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
Up to 10.1" |
Up to 2.4 lbs
1.1 kg |
- | - | - | - | - |
Product Information
|
Part Number |
|
|
Description |
Tablet Management Wall Mount, 10 device capacity, pre-installed Lightning cables (black) |
| Includes |
|
|
Maximum Dimensions of Tablet (including cover) |
10.2" x 7.9" x 0.9" (25.9 x 20.1 x 2.3 cm) |
|
Weight Capacity |
Individual tablets up to 2.4 lbs (1.1 kg) |
|
Easy Installation |

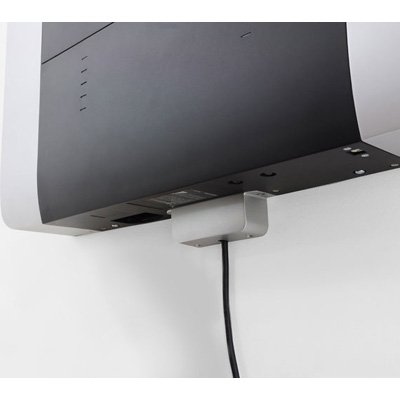

1. Mount two brackets on the wall using installation template 2. Hang wall mount unit 3. Secure to wall with security screws 4. Install power cord cover 5. Plug iPad devices into unit 6. Plug Tablet Management Wall Mount into the wall outlet |
|
Certification |
|
|
Compatible Devices |
|
|
Tablet Case Compatibility |
The following cases have been tested and confirmed to work with
the Tablet Management Wall Mount 10 product. This is not a
comprehensive list. If your cover fits within the maximum
dimensions of 10.2"H x 7.9"W x 0.9"D (25.9 x 20.1 x 2.3 cm) with
the cable plugged in, it should also fit ...
|
|
Cooling/Ventilation |
One 12V DC continuous operation fan |
|
Power System |
Input: 100-240V~, 2.0A, 50/60 Hz |
|
Temperature Range |
Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F) |
|
Relative Humidity (maximum) |
Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) |
|
Altitude (maximum) |
2000 m (6,562 ft) |
|
Environmentally Clean |
RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant |
|
Product Cord |
6' (1.8 m) long |
|
Product Dimensions |
23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm) |
|
Product Weight |
34.5 lbs (15.7 kg) |
|
Shipping Dimensions |
36.5" x 26.4" x 7.0" (92.6 x 67 x 17.7 cm) |
|
Shipping Weight |
39.5 lbs (17.9 kg) |
|
Warranty |
Five (5) years; two (2) years for power module; one (1) year for other electrical components |
Benefits
Safe and Secure
- Tested and certified to UL 60950-1 standard, FCC requirements and all applicable country-specific regulations

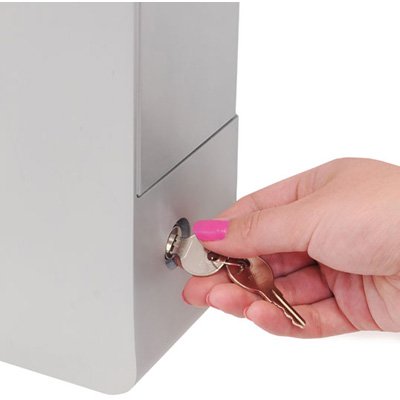

- Six-point lock assembly provides strong theft deterrence; includes security screws to attach product to the wall
- Fan and ventilation system maintains safe operating temperatures
- Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting
Top-Rated Sync & Charge
- Improved charging system provides a full 2.4A charging current per device - charging an iPad Air up to 30% faster than 2.1A systems

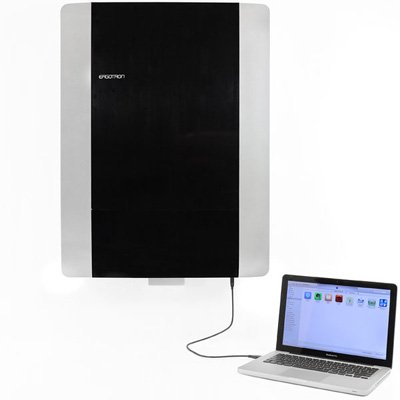

- Built-in syncing capability; simultaneously sync up to 10 devices by connecting your laptop via the cabinet’s USB port
- Certified "Made for iPad"
Slim and Open Design

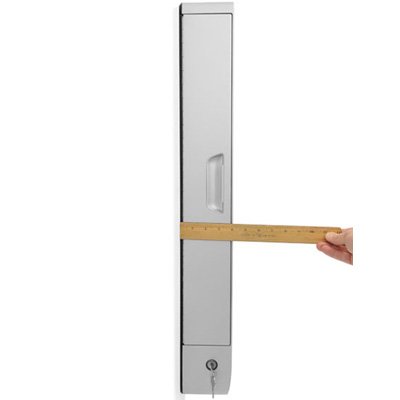

- Fits most anywhere: very low profile - only 4 inches (10 cm) deep, even with access doors open
- Accommodates most iPad cases, including the popular Otterbox Defender and Griffin Survivor
Easy Set-Up and Operation

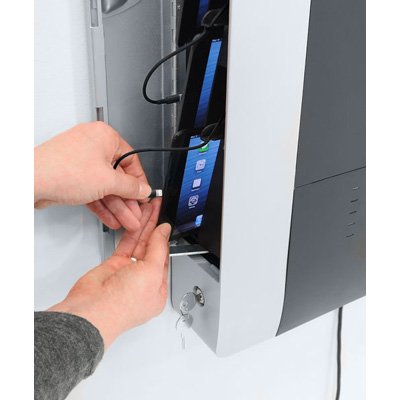

- Pre-installed Lightning cables
- Quick, simple installation includes mounting template
- Patent-pending Show & Stow technology: extends iPad devices to the user when the door is opened for easy storage and removal
- Easy to clean; sleek and smart design hides device and cord clutter

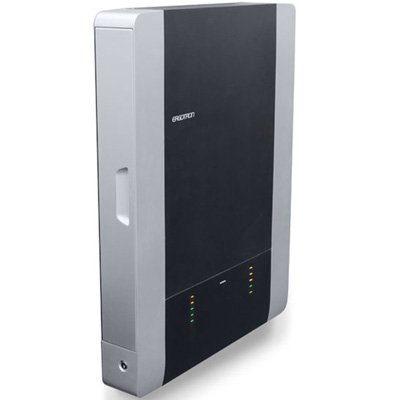

- ISI (Individual Status Indicator) LEDs provide power and charging status of each individual device at a glance
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model DM10-1007-1
- Manufacturer Ergotron
- Part Number DM10-1007-1
- UPC 698833041880
- Color Black
- Screen Size Up to 10.1 in
- Weight Capacity Individual tablets up to 2.4 lbs (1.1 kg)
- Dimensions Maximum dimensions of tablet (including cover) = 10.2" x 7.9" x 0.9" (25.9 x 20.1 x 2.3 cm)
- Compatible iPad Air, iPad mini with Retina Display, iPad mini and iPad (4th generation)
- Power 100-240V~, 2.0A, 50/60 Hz
- Temperature Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F)
- Humidity (Maximum): Operating 10%-90% (non-condensing); Storage 5%-95% (non-condensing)
- Altitude (Maximum): 2000 m (6,562 ft)
- Power Cord 6' (1.8 m) long
- Dimensions 23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm)
- Shipping Dimensions 36.5" x 26.4" x 7.0" (92.6 x 67 x 17.7 cm)
- Shipping Weight 39.5 lbs (17.9 kg)
- Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
