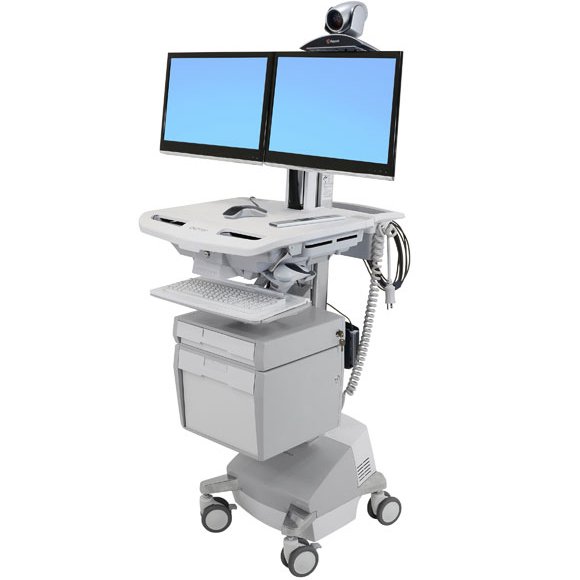

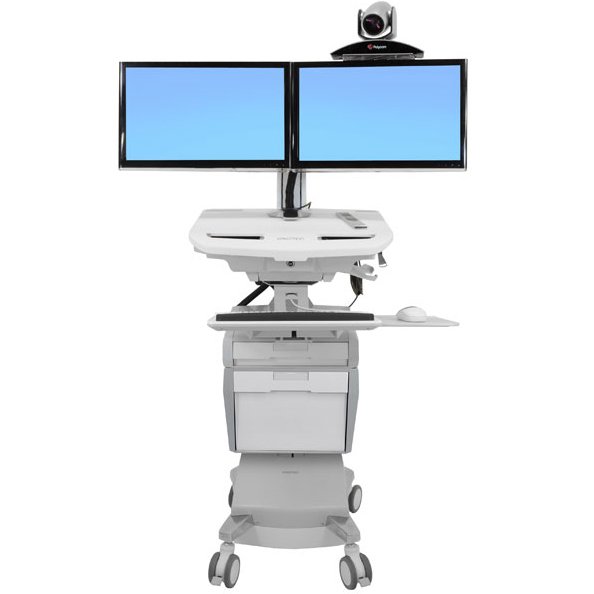

Ergotron SV44-56T1-1 SV Telemedicine Cart, Dual Monitor, Powered

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

20.4 kg

30 cm

Part Numbers

• North America = SV44-56T1-1
• Europe = SV44-56T1-2
• United Kingdom/Ireland = SV44-56T1-3
• Hong Kong/Malaysia/Singapore = SV44-56T1-3
• Australia/New Zealand = SV44-56T1-4
• China = SV44-56T1-5
• Japan = SV44-56T1-6
• Saudi Arabia (UK standard) = SV44-56T1-7
• Saudi Arabia (EU standard) = SV44-56T1-8
• India = SV44-56T1-B

Description

StyleView Telemedicine Cart, Dual Monitor, SLA Powered (white, grey and polished aluminum)

Includes

• Dual display bow
• Auto-locking drawer system (ADS)
• Primary top drawer with dividers

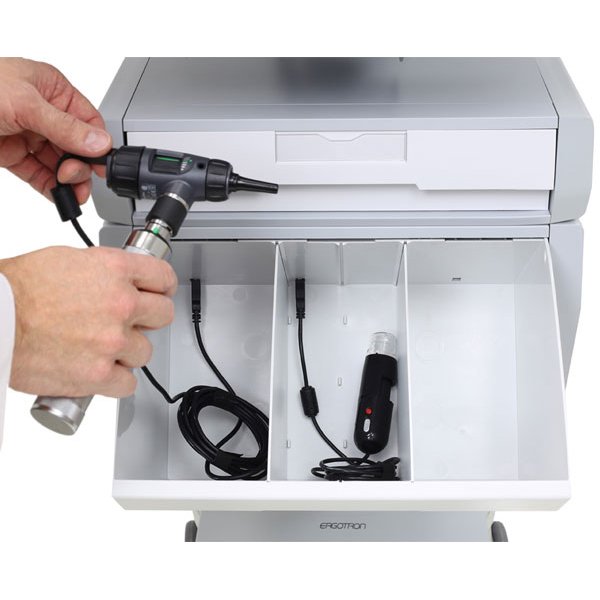

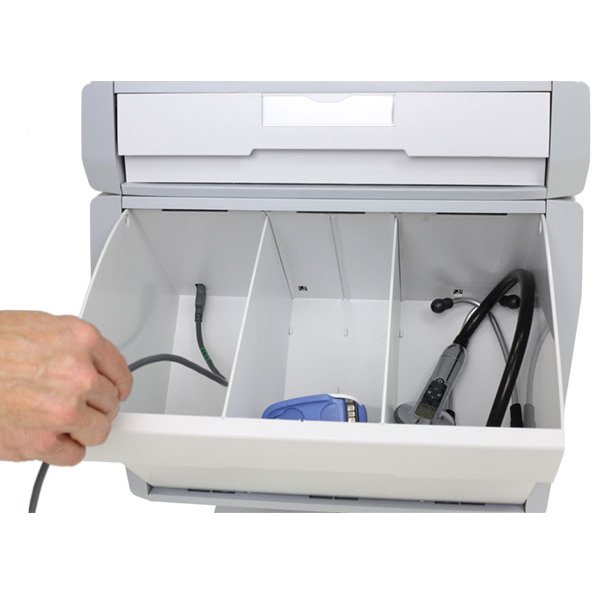

• Telemedicine bin with dividers
• Ethernet side panel
• Worksurface
• Camera shelf

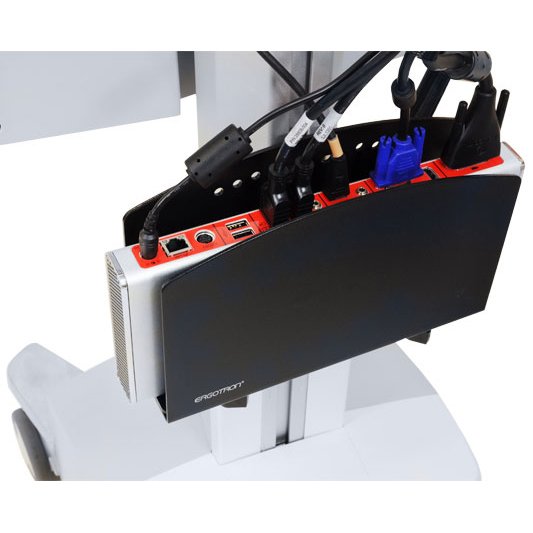

• Codec holder
• Medical-grade power strip
• CPU lock
• Secure CPU compartment
• Four-port USB hub
• Scanner holder bracket
• Mouse holder
• Wrist rest

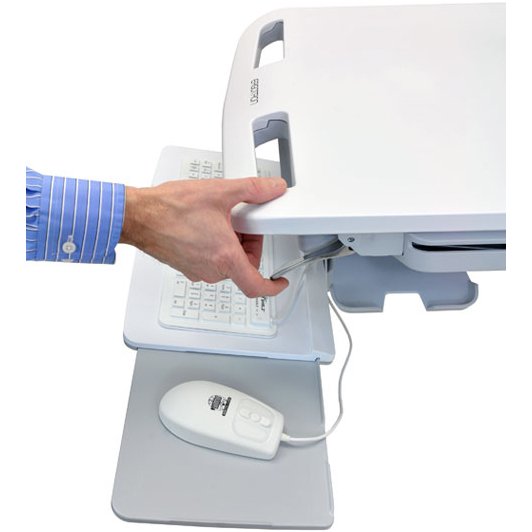

• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)
• Two-battery 66 Ah power system
• 10-foot (3 m) coiled cord
• Three AC outlets
• Power system user interface
• StyleLink software

Not Included

Video camera, monitors, codec, diagnostic appliances and computing equipment not included

Total Maximum Load on Height-Adjustment Assembly

45 lbs (20.4 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

Pan

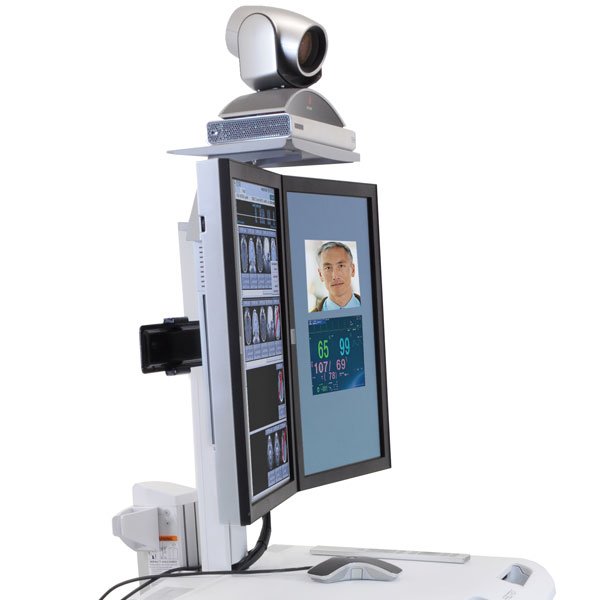

180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

PINs

Managed by StyleLink software are limited to 5-digit length and 100 per cart

True Ergonomics

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

• For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
• Covered by Global Service Program - 24/7 coverage

All the Details Covered

• Tip-out bin provides storage and USB connectivity for up to three devices
• Two external USB ports allow use of additional devices on the fly

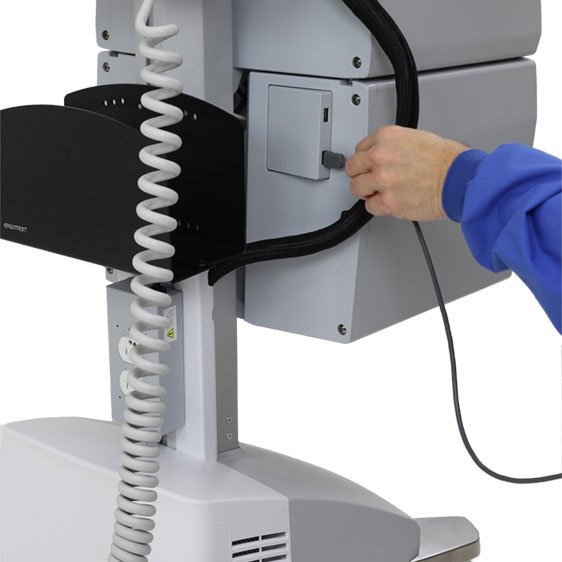

• External Ethernet port allows cart to be connected to network when wireless signal is not present
• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• Ships fully assembled
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
• Four-port USB hub
• TAA (Trade Agreements Act) compliant
• Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
• Pre-routed cables provide quicker integration with equipment
• Onboard internal power strip supports computing equipment and devices while external outlet strip on back of cart supports teleconference equipment
• Four ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm) - includes dividers to configure up to 3 compartments; codec holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
• Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• VAC:
  SV44-56T1-1 = 120V/60Hz;
  SV44-56T1-2, SV44-56T1-3, SV44-56T1-4 = 230V/50Hz;
  SV44-56T1-5 = 220V/50Hz;
  SV44-56T1-6 = 100V/50Hz;
  SV44-56T1-7, SV44-56T1-8 = 220V/60Hz;
  SV44-56T1-B = 230V/50Hz/60Hz
• Grounded Plug:
  SV44-56T1-1 = NEMA 5-15P Hospital Grade;
  SV44-56T1-2, SV44-56T1-8 = European CEE 7;
  SV44-56T1-3, SV44-56T1-7 = UK BS 1363;
  SV44-56T1-4 = AS/NZS 3112;
  SV44-56T1-5 = GB2009-1, GB1002-1;
  SV44-56T1-6 = JIS 8303;
  SV44-56T1-B = BS 546
  Note: In Switzerland, a customer-supplied adaptor is required
• 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
• It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. Change batteries when instructed by StyleLink battery management software. If StyleLink is not used, it is strongly recommended a monthly discharge test be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed

Shipping Dimensions

24.5"W x 34"D x 56"H (62 x 87 x 142 cm)

Shipping Weight

217 lbs (98.4 kg); actual cart weight = 182 lbs (82.6 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module. See complete warranty for details
