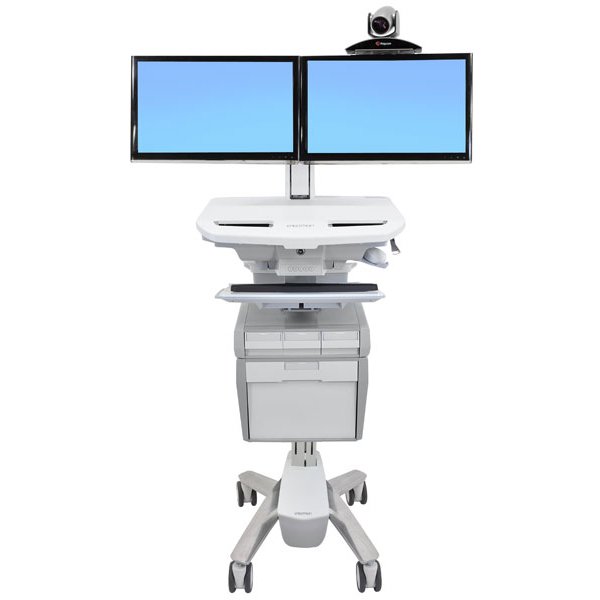

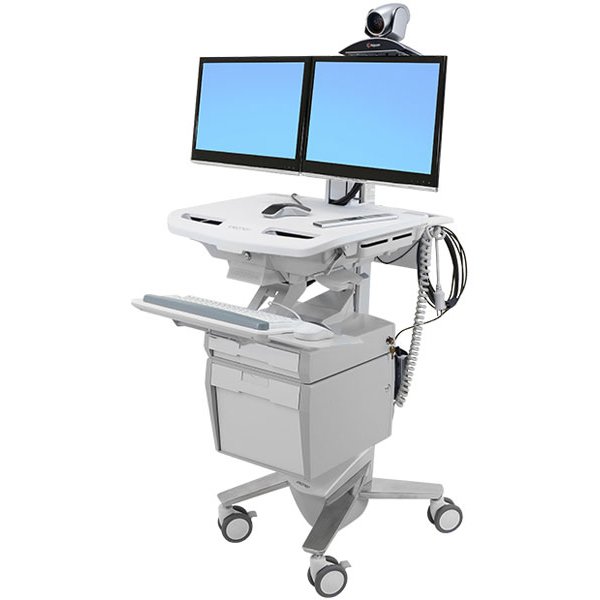

Ergotron SV43-56E0-1 StyleView Telepresence Cart, Dual Monitor

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

20 kg

30 cm

Part Numbers

SV43-56E0-1

Description

StyleView Telepresence Cart, Dual Monitor, non-powered (white, grey and polished aluminum)

Includes

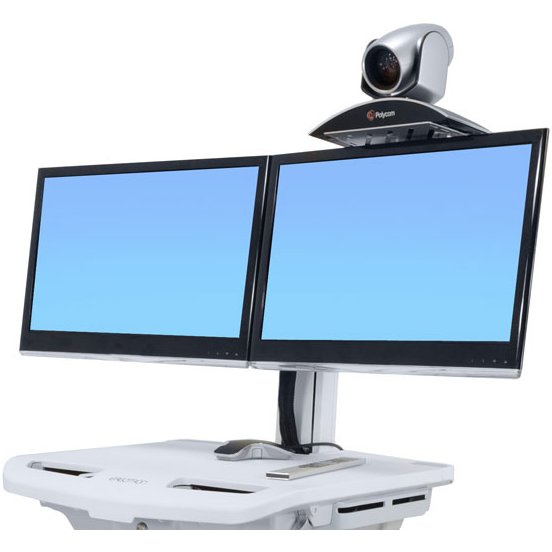

• Dual display bow
• Primary top drawer
• Drawer dividers
• Large lower drawer
• Worksurface
• Camera shelf

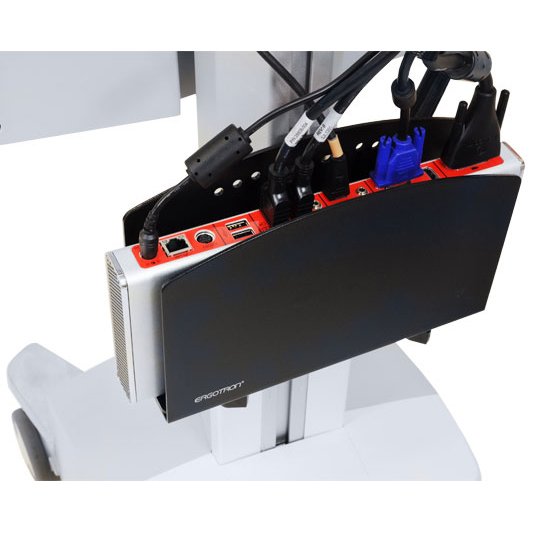

• Codec/CPU holder
• Medical-grade power strip
• CPU lock
• Secure CPU compartment
• Four-port USB hub
• Scanner holder bracket
• Mouse holder
• Wrist rest
• Back-tilt keyboard tray
• Left/right mouse tray
• Rear handle
• Storage basket
• Cable storage
• Four casters (two locking)

Not Included

Video camera, monitors, codec, and telepresence and computing equipment not included

Total Maximum Load on Height-Adjustment Assembly

44 lbs (20 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

Pan

• 180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)
• To avoid tip hazard, cart should not be relocated when monitor is panned. Always keep monitors aligned side by side when moving the cart

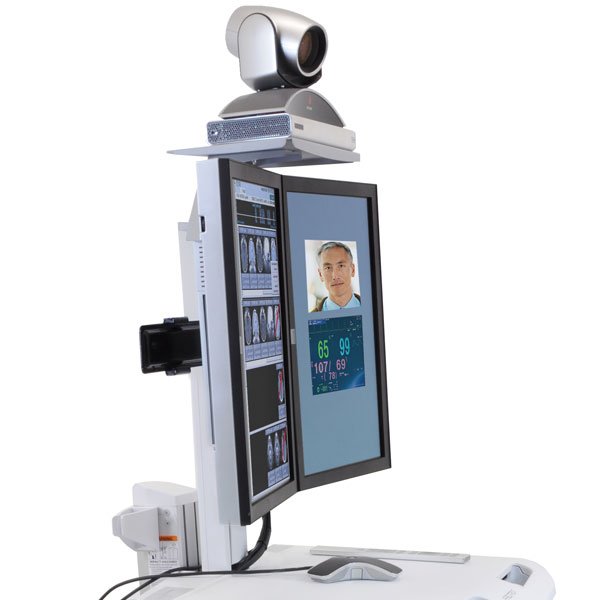

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

PINs

Managed by StyleLink software are limited to 5-digit length and 100 per cart

True Ergonomics

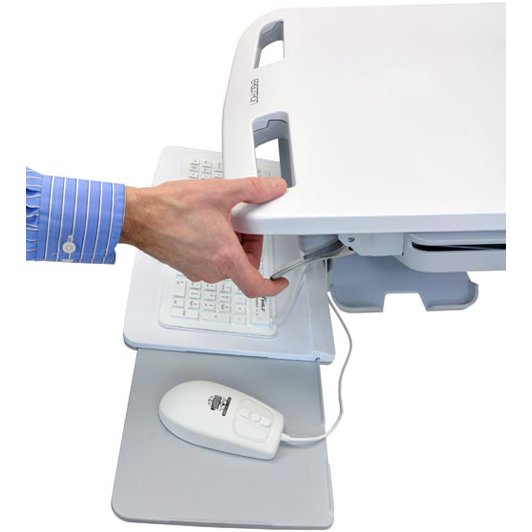

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

• Tested to UL standards and FCC Part 15 Class A specifications for enhanced patient safety
• Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
• Large, smooth worksurface; easy-to-clean design promotes infection control
• Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
• Front-locking casters
• CPU lock provided inside the storage compartment for additional security
• Designed to meet guidelines established by the American National Standards Institute for computer use

Service

• Covered by Global Service Program - 24/7 coverage

All the Details Covered

• Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
• Button for LED lights is located conveniently on worksurface
• Rear basket keeps task-related items where they can be quickly accessed
• Ships fully assembled
• Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Optional security cable in compartment deters CPU theft
• Four-port USB hub

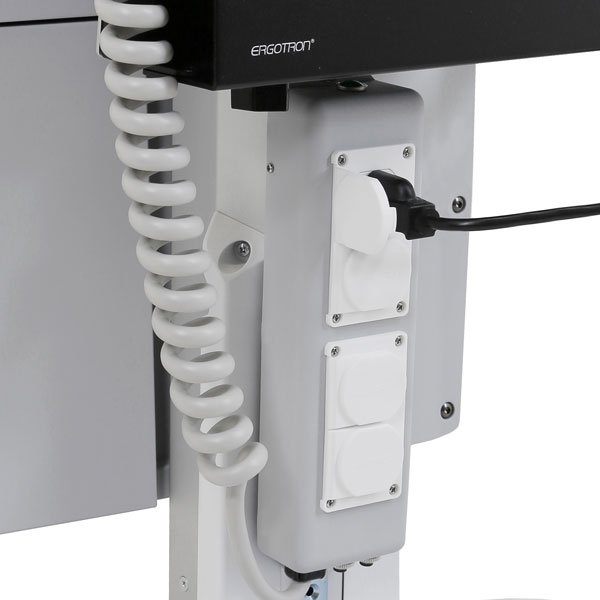

• External four-outlet power strip located on back of cart
• Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
• Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

• Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
• Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
• Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
• Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
• Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions

53"D x 34"W x 36"H (135 x 89 x 91 cm)

Shipping Weight

141 lbs (64 kg); actual cart weight = 106 lbs (48 kg)

Warranty

Five (5) years
