Ergotron YESCABGMPW Anthro YES20 Charging Cabinet for Tablets

Be the first to review this product
Product ID: 18439
Recommended Accessories
List Price: $1,300.00
Our Price: $694.94
Shipping: $89.95 *
Usually ships in 4 weeks
* applies to Contiguous United States

Description

Wouldn't you love to store and charge your tablets while sacrificing zero floor space? You can with the wall-mountable YES Cabinet for Tablets. Its shelves shift up & down; its bay dividers move side to side. You’ll be able to use tablets of all shapes & sizes in this innovative cabinet. You get to decide how it’s organized!

Ergotron YESCABGMPW is made in the USA and built with Anthro‑DNA, this cart is fully TAA compliant.

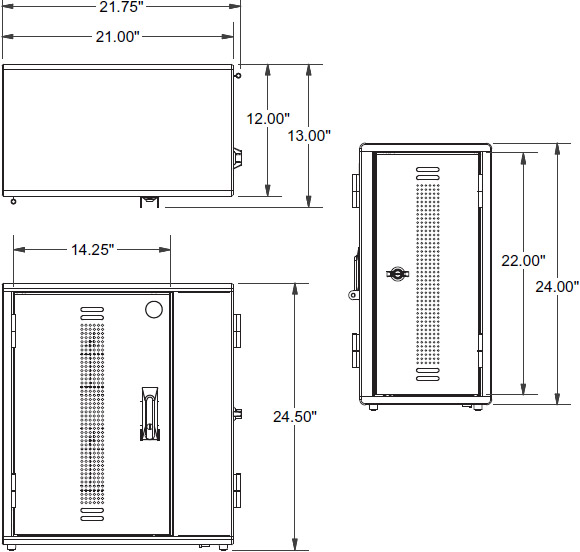

Technical Drawing

Technical Drawing for Ergotron YESCABGMPW Anthro YES20 Charging Cabinet for Tablets

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 10"

Up to 2.3 lbs

1.0 kg

- - - - -

Product Information

Part Numbers YESCABGMPW
Description YES12 Charging Cabinet for Tablets (white/grey)
TAA (Trade Agreements Act) compliant
Includes
  • Top and bottom wood panels

  • Side panel, back panel

  • Two shelves with adjustable height

  • 20 bay dividers with adjustable bay width

  • 2 cable combs at rear to route cables to side IT area

  • Power panel with 21 receptacles

  • On/off switch

  • 8-ft power cord

  • Cable ties

  • Front door with keyed lock and padlock bracket

  • Side door with keyed lock

Total Capacity Up to 20 devices with .87"-wide (2 cm) bays; up to 16 devices with 1.25"-wide (3 cm) bays. Adjustable bay dividers install at any width in 1/3" (.8 cm) increments along each shelf’s installation track, supporting devices of any thickness
Maximum Device Width/Height 10.5" x 8.5" (27 x 22 cm)
Weight Capacity 45 lbs (20.5 kg) total for cabinet. Per device maximum weight of 2.3 lbs (1 kg) assumes 20 devices housed in unit
Ships Ships fully assembled

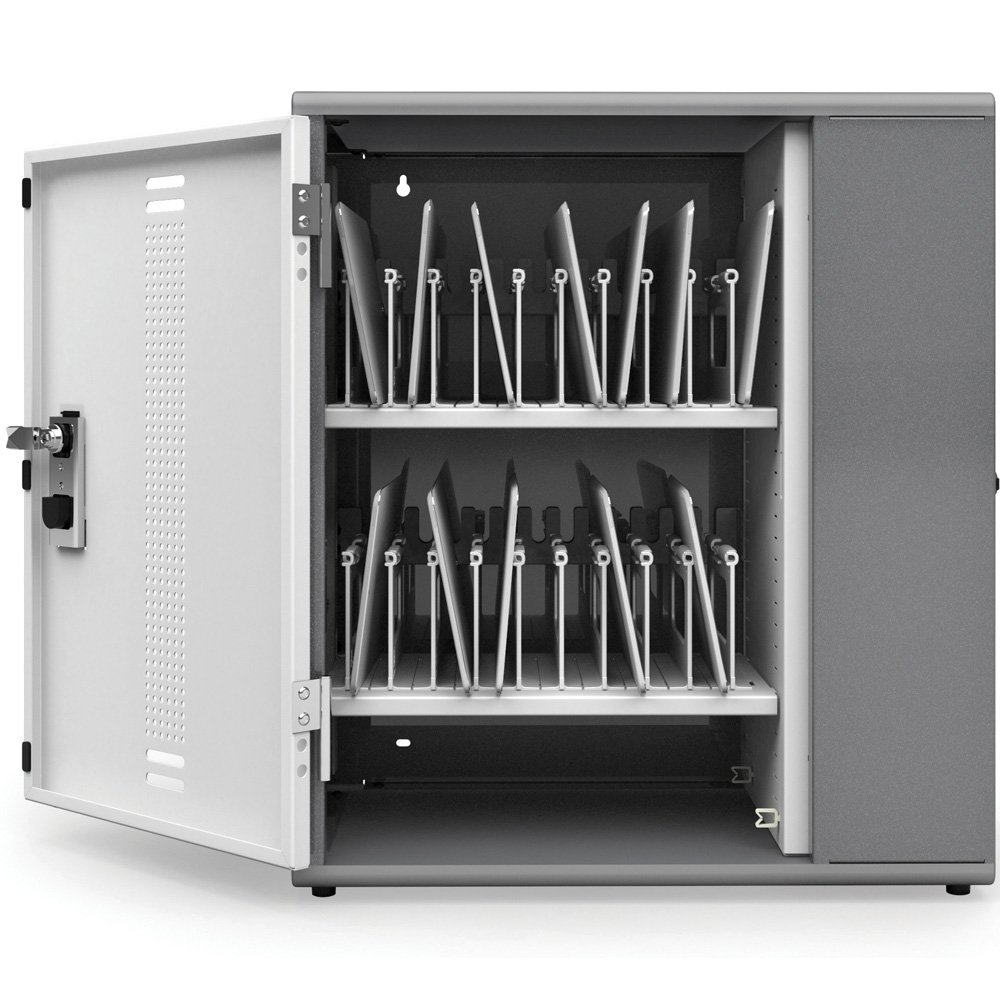

Two Adjustable Shelves Two adjustable shelves install at any height in 2/3" increments along the 21" high installation track. Store devices on their long side, in landscape orientation, or on their short side, in portrait orientation, as dictated by device size and the position of the power inlet and on/off button. Cabinet ships with shelves arranged for landscape storage

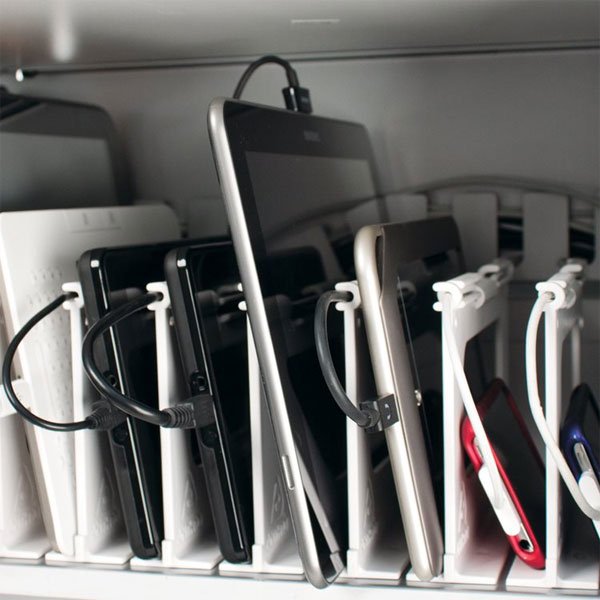

Adjustable Bay Dividers Adjustable bay dividers install at any width in 1/3" increments along the shelf’s 12"-long installation track. Supports devices of any thickness, with and without cases
Numbered Bays Numbered bays organize devices. Open the door and see at a glance which devices are checked out
Separate Locking IT Area Separate locking IT area on the side provides 15 power outlets and two roomy bins to hold power adapters, cords, and outlets away from users
Power Cord Power cord, 8-foot long, stores in the IT area. Feed it out of the IT area through a notch in the base of the unit to plug into a wall outlet, or through a pass-through in the back panel to hard wire into your electrical

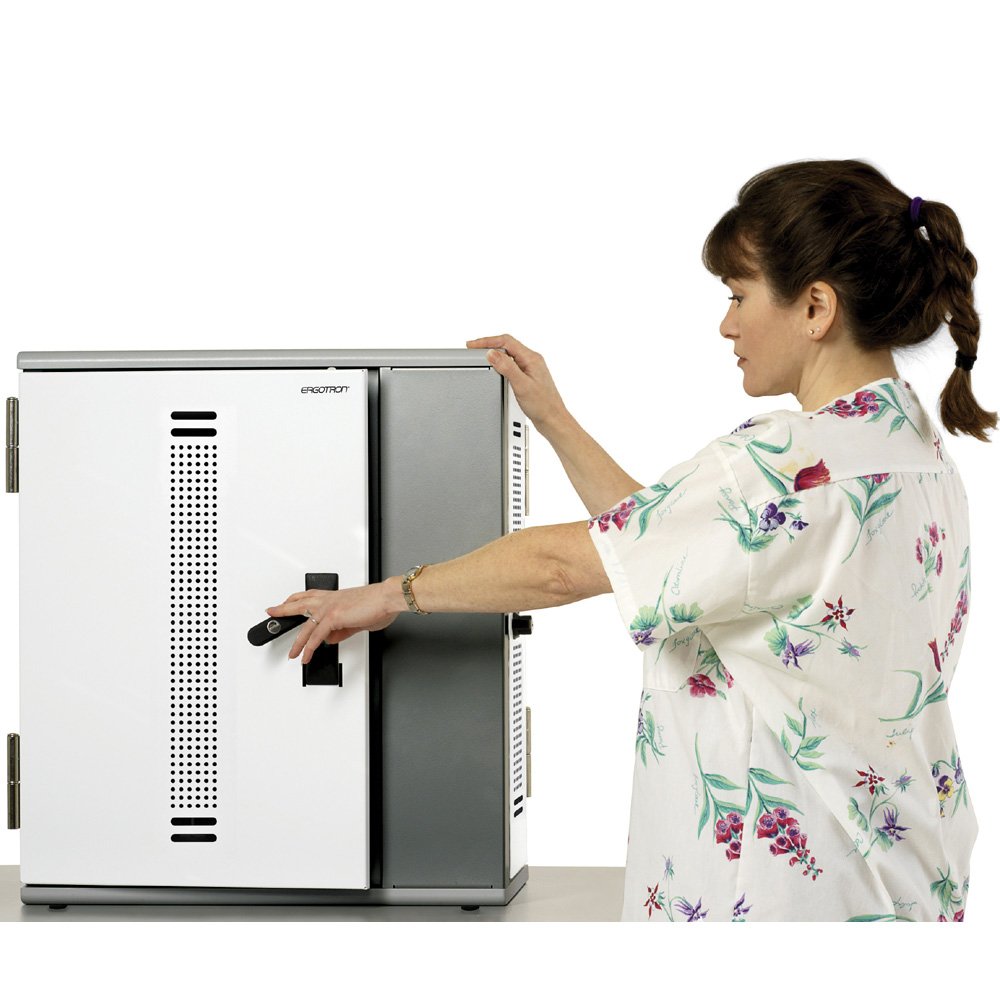

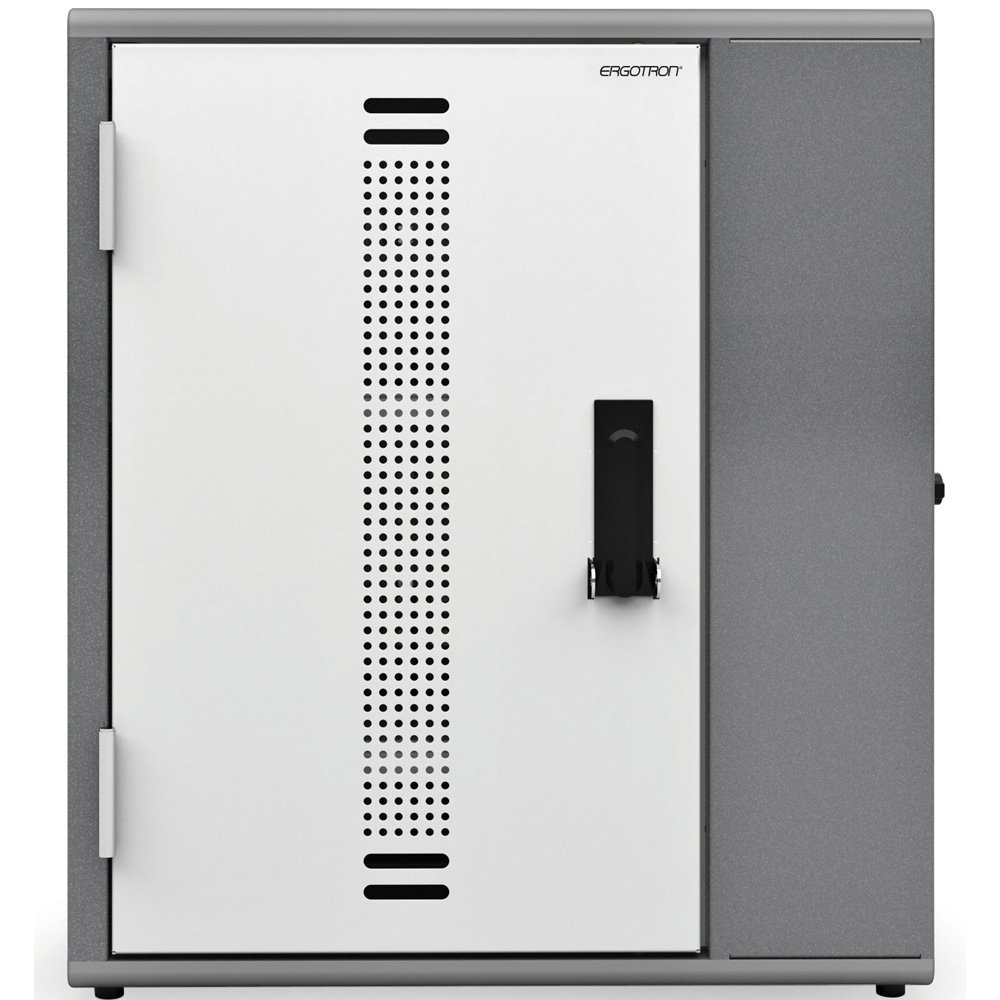

Keyed Locks Keyed locks on front and side doors for security. Low-profile handles are easy to grip. Padlock bracket on the front door positions your padlock to block access to the handle
Top Surface Top surface is made of contoured wood with strong vinyl thermoplastic laminate for smooth corners and soft edges
Made With 14- and 16-guage steel with durable baked-on powder coat finish
Certified and Listed To UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950
Product Dimensions 22" x 12.75" x 24" (56 x 32 x 61 cm)
Shipping Dimensions 27" x 18" x 29" (69 x 46 x 74 cm)
Shipping Weight 70 lbs (31.8 kg)
Warranty Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables

Benefits

Built with Anthro-DNA

  • The 30-year legacy of Anthro Corporation lives on in its world-class factory, award-winning designs and market-leading personal customer service

  • This cabinet is Built with Anthro‑DNA, signifying quality American-made manufacturing and technology leadership


One Size Fits All

  • The YES Cabinet for Tablets fits tablet devices of ALL shapes and sizes, with or without cases

  • Mix and match all devices: regular-sized tablets, mini-sized tablets, maybe even a smartphone or e-Reader! It's completely up to you


Installation Flexibility

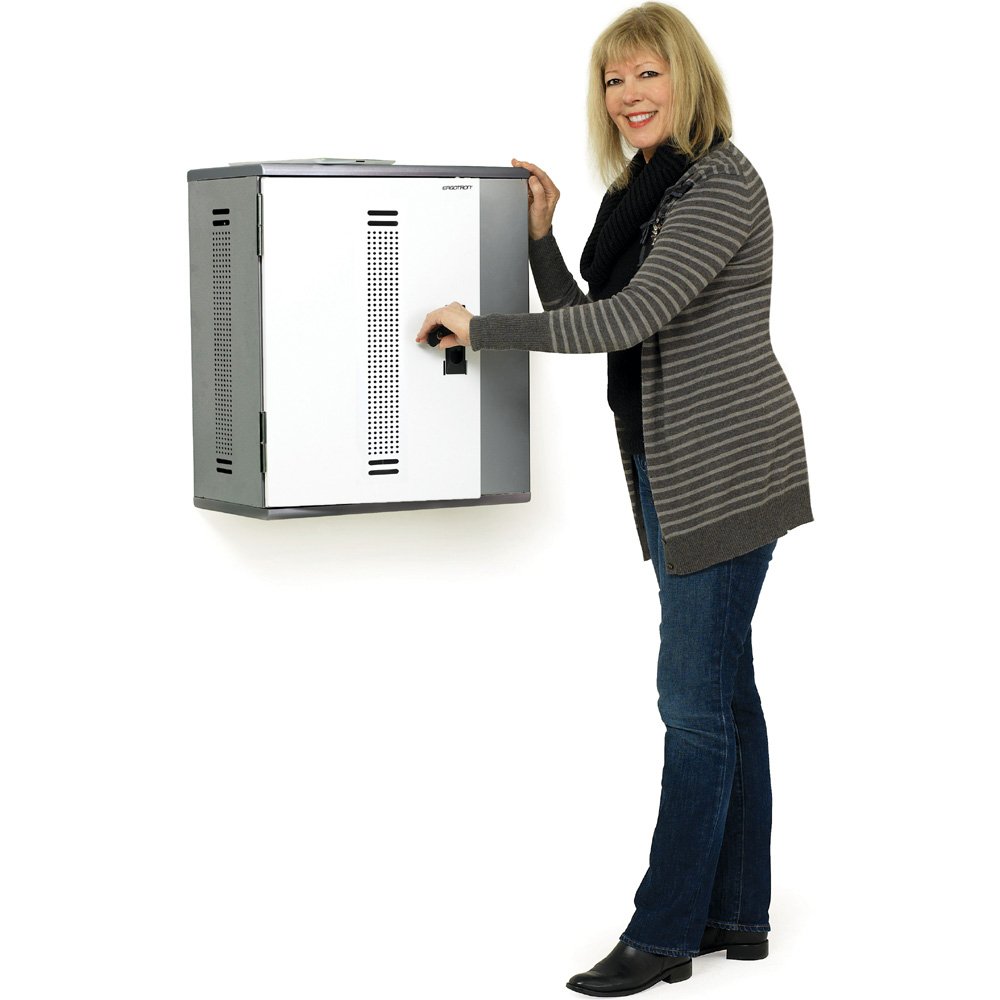

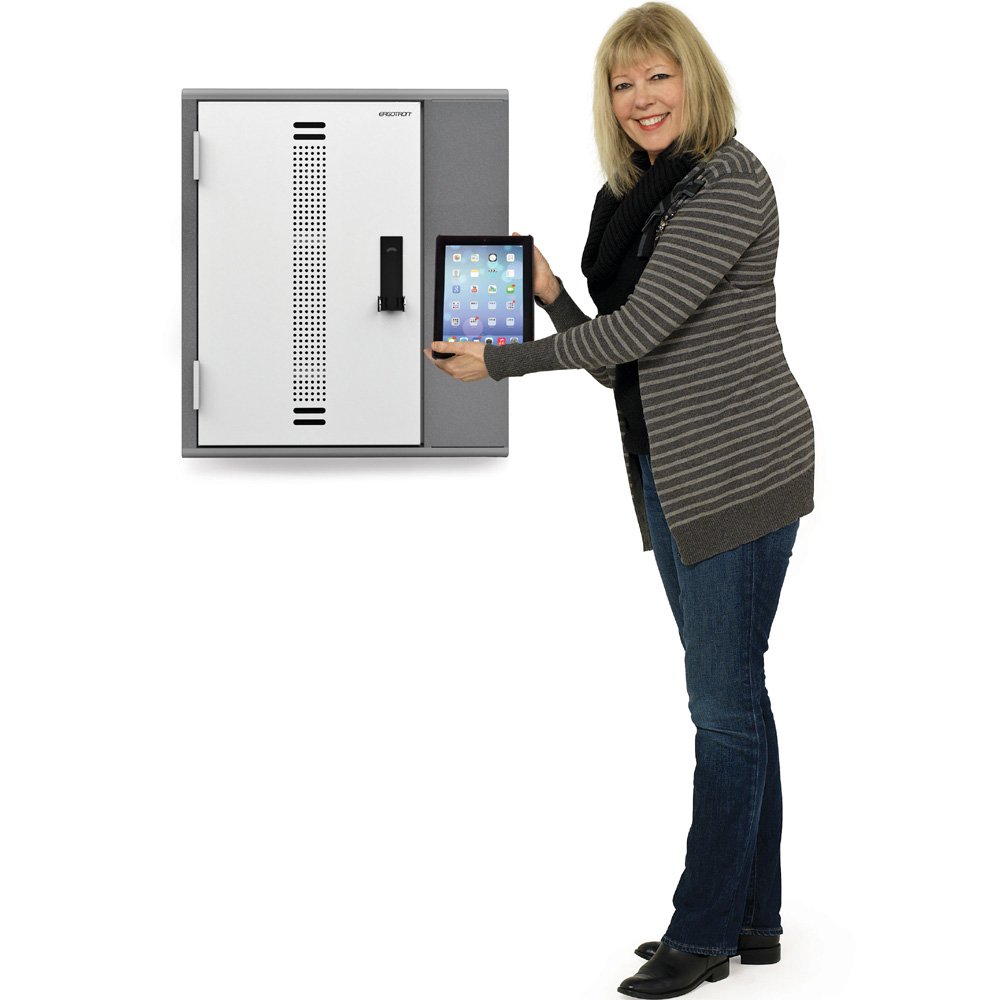

  • This wall-mountable cabinet is also suitable for placement on counter tops, tables or desks

  • With such a small footprint (22"w x 12.75"d x 24"h), the cabinet fits almost anywhere


Stretch Your Budget

  • This innovative cabinet is budget-friendly, especially when you factor in its compatibility

  • You can use it for years and years, even if you switch devices and the fact that it comes with a Lifetime Warranty


Lift-N-Set Shelves

  • Adjusting the YES Cabinet’s shelves is simple and intuitive

  • Position them at any height in 2/3" increments, and store your devices in landscape or portrait orientation, depending on size and the position of the power inlet and on/off button


Pop-N-Go Bays

  • Bays are so easy to adjust; simply pop them out of place and position them at any width in 1/3" increments

  • The cart ships configured for 20 units with .87" wide bays


IT Friendly

  • A separate locking IT area on the side keeps cables and power adapters protected and secure

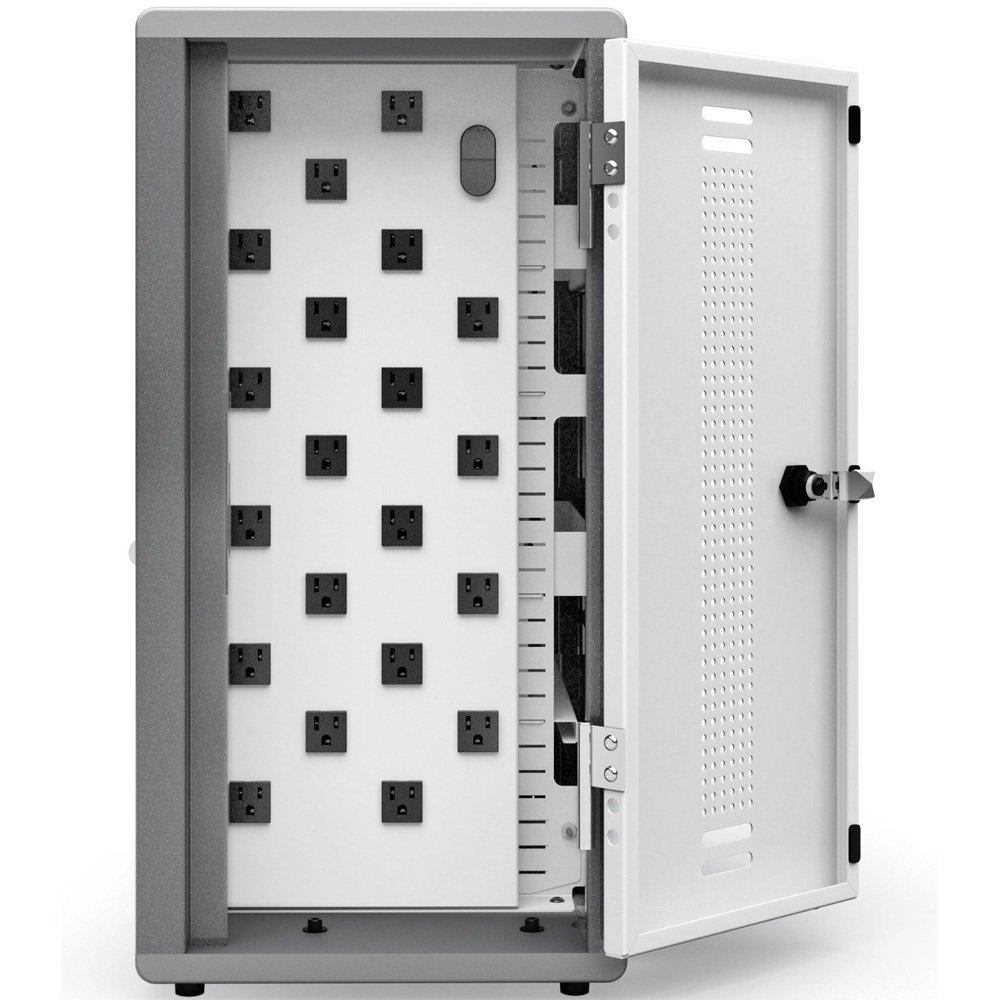

  • The 21 power outlets are easy to reach, and two roomy bins store power adapters and cable bundles so they’re tidy and accessible


Safe and Secure

  • The front user area and side IT area have keyed locks for security

  • For extra peace of mind, you have the option of positioning a padlock to block access to the handle. Mounting holes in the base make it easy to bolt into place


Easy Cable Routing

  • The YES Cabinet is so easy to wire, you could try it blindfolded

  • Bay dividers are designed with cable channels along the top, so it's simple to route cables right to the front of the bay

Model YESCABGMPW
Manufacturer Ergotron
Part Number YESCABGMPW
UPC 766212223995
Color White/grey
Footprint 22" W x 12.75" D x 24" H
Screen Size Up to 10 in
Weight Capacity 45 lbs (20.5 kg) total for cabinet. Per device maximum weight of 2.3 lbs (1 kg) assumes 20 devices housed in unit
Maximum Device Size Width/Height: 10.5" x 8.5" (27 x 22 cm)
Dimensions 22" x 12.75" x 24" (56 x 32 x 61 cm)
Shipping Dimensions 27" x 18" x 29" (69 x 46 x 74 cm)
Shipping Weight 70 lbs (31.8 kg)
Warranty Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables
Display Type Tablet

Be the first to review this product

Ergotron YESCABGMPW Anthro YES20 Charging Cabinet for Tablets

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
