The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron EPM3616SM Anthro eNook Pro, Wall Mount Desk Workstation

Be the first to review this product
Product ID: 18579
Options
List Price: $2,000.00
Our Price: $1,223.65
Shipping: $108.95 * Shipping cost subject to change based on delivery method
* applies to Contiguous United States

Description

Designed for flat panels, Ergotron EPM3616SM eNook Pro is an innovative wall desk that is a real space-saver. Its door flips down to become a spacious worksurface with lots of room for a keyboard and mouse. A universal VESA mount bracket is enclosed in the unit’s main cabinet, placing your monitor where you want it. Close the door and your equipment stays secure with a programmable electronic lock.

Made in the USA and Built with Anthro‑DNA, this product is fully TAA compliant.

Technical Drawing

Technical Drawing for Ergotron EPM3616SM Anthro eNook Pro, Wall Mount Desk Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 75 lbs

34.0 kg

 10° - - MIS-D

Product Information

Part Number Maple = EPM3616SM/MS; dark cherry = EPM3616SM/DC; walnut = EPM3616SM/WL
Description eNook Pro, Wall Desk Workstation (maple or dark cherry or walnut laminate)
TAA (Trade Agreements Act) compliant
Includes

  • Steel frame

  • Metal back panel

  • Enclosure unit (brushed aluminum end caps, 2 doors, electronic lock, cross tray, keyboard pocket)

  • Monitor rail

  • Monitor bracket

  • 6 cable-management clips

  • Mounting hardware (wood screws, toggle bolts)
Power Strip For healthcare applications, an accessory medical-grade power strip can be ordered separately
CPU Holder Order an accessory CPU holder to mount your computer near the eNook. A cable access opening is located on the underside of the eNook to pass-through cables
Metal Back Panel Metal back panel has openings for installing power and network connections directly behind the unit
Weight Capacity 75 lbs (34.1 kg); worksurface = 50 lbs (22.7 kg); monitor bracket = 20 lbs (9.1 kg)
Tilt Tilt range will vary depending on outside height of monitor
Outside Cabinet Dimensions 36" x 25.5" x 7.25"–8.25" (91 x 65 x 18–21 cm)
Interior Cabinet Dimensions (upper cabinet area): 30" x 15.25" x 6"–7" (76 x 39 x 15–18 cm)
Worksurface Dimensions 30" x 14.5" (76 x 38 cm)
Electronic Lock Programmable electronic lock protects contents and records up to three combinations for multiple users
Wood Surfaces Wood surfaces are medium-density fiberboard wrapped in highly durable thermoplastic laminate that resists cracking and chipping and stands up to a wide range of chemicals. Steel surfaces have a baked-on powder coat silver finish
Hardware and Instructions Do-it-yourself hardware and instructions are included for installation to wood studs and drywall. When mounting to surfaces other than wood studs or drywall (e.g. concrete or brick), work should be done by a qualified contractor
Shipping Dimensions 39" x 31" x 13" (99 x 79 x 33 cm)
Shipping Weight 77 lbs (35 kg)
Warranty Five (5) years

Benefits

  • Built with Anthro-DNA - The 30-year legacy of Anthro Corporation lives on in its world-class factory, award-winning designs and market-leading personal customer service.
    This product is Built with Anthro‑DNA, signifying quality American-made manufacturing and technology leadership.

  • Slim Profile - Save valuable floor space with the wall-mounted eNook.
    The Pro’s back panel is adjustable so overall depth of the unit can vary from just 7.25" to 8.25" (18–21 cm) with doors in the closed position.

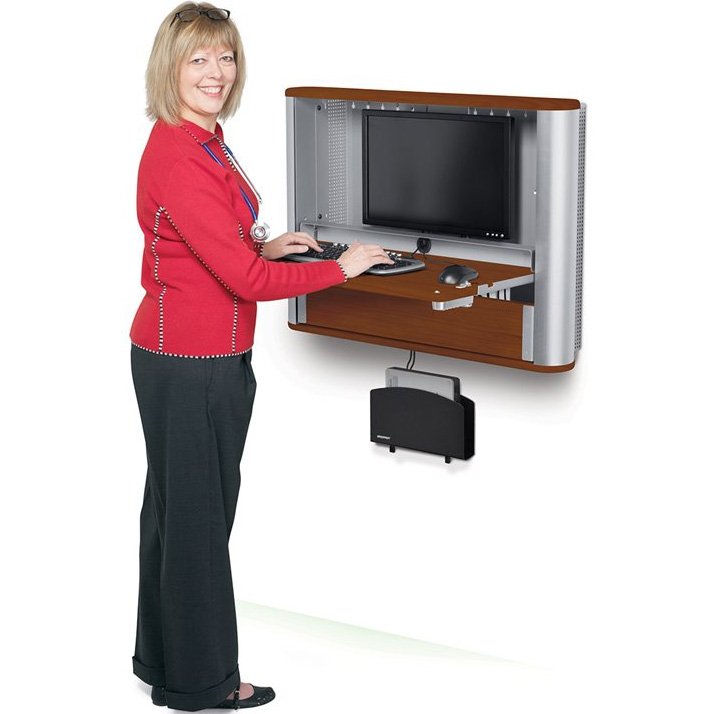

  • A Sitting or Standing Desk - You can install eNook at a sitting height or higher up the wall for a standing desk.
    Match eNook with an accessory counter-height stool to create a healthy sit-stand workstation.

  • Monitor Mount Rail - eNook Pro positions your screen where its needed while using minimal space.
    The Monitor Mount Rail System can be installed left, right or center; an integrated tilting pivot adjusts the screen to reduce glare and accommodate different user-heights.

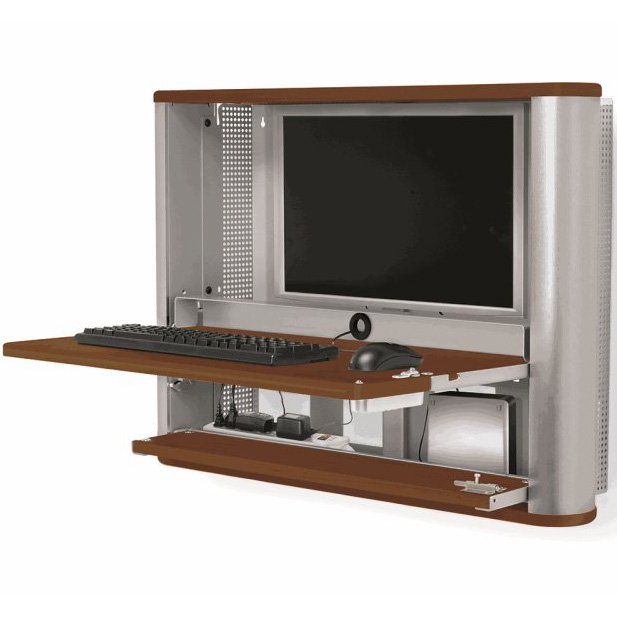

  • Cable Management - A separate compartment houses a surge protector (included) or your own power strip with plenty of space for cords and adapters. Openings between the cable and work areas pass cords to devices.
    The compartment’s door makes cable access easy yet otherwise keeps them out of sight.

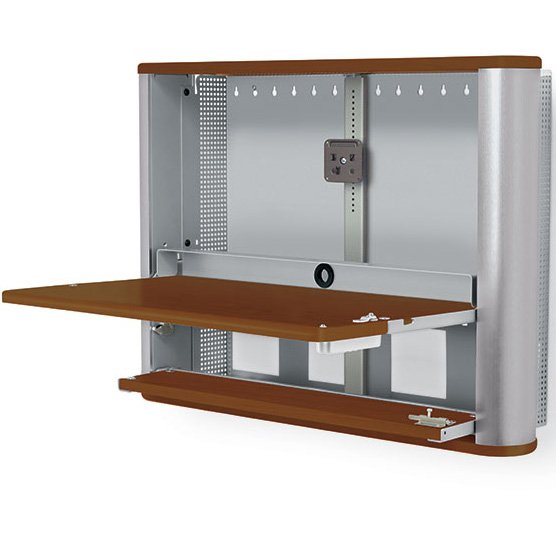

  • Spacious Work Area - With the press of the push-to-open latch, a damper-assisted mechanism eases the desk shelf down to reveal a roomy worksurface.
    At 30" x 14.5" (76 x 37 cm), there’s plenty of space for a large keyboard and mousing area.

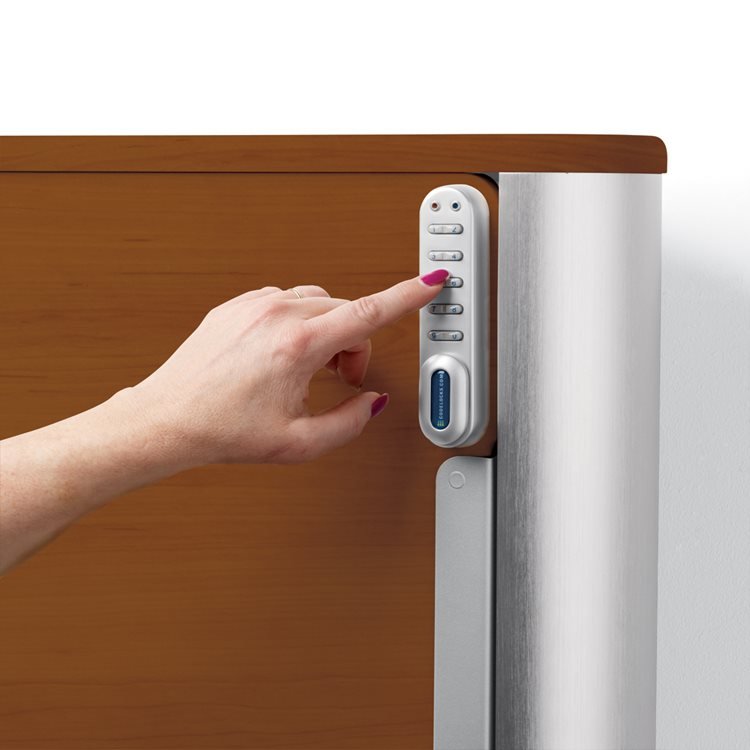

  • Secure Storage, Programmable Lock -Contents stay secure with the electronic lock, which is easily accessed from the front-facing keypad.
    The ultimate in security, this lock has three security settings - master, submaster and default user - allowing you to track access.

  • Heavy Duty - Though small in size, this desk is strong. A sturdy steel frame, aluminum end caps and MDF wood surfaces wrapped in tough thermoplastic laminate give eNook durability that ensures years of use.
    Rated to hold a hefty 75 lbs (34.1 kg) overall.

  • Keyboard Keeper - A pocket at the foot of the worksurface keeps the keyboard and mouse from sliding around when the unit is closed.
    The keyboard stays in place, conveniently stored and ready for the next user.

  • Air Flow - The side and top panels are ventilated to keep air moving so your equipment stays cool.

Model EPM3616SM/MP, EPM3616SM/DC, EPM3616SM/WL
Manufacturer Ergotron
Part Number EPM3616SM/MP, EPM3616SM/DC, EPM3616SM/WL
UPC 766212219233
Color EPM3616SM/MP = Maple, EPM3616SM/DC = Dark cherry, EPM3616SM/WL = Walnut
Monitor Size Up to 27"
Weight Capacity 75 lbs (34.1 kg); worksurface = 50 lbs (22.7 kg); monitor bracket = 20 lbs (9.1 kg)
Tilt 10 degree
Mounting Pattern MIS-D
Outside Dimensions Cabinet = 36" x 25.5" x 7.25"–8.25" (91 x 65 x 18–21 cm)
Interior Dimensions Cabinet (upper cabinet area) = 30" x 15.25" x 6"–7" (76 x 39 x 15–18 cm)
Worksurface Dimensions 30" x 14.5" (76 x 38 cm)
Shipping Dimensions 39" x 31" x 13" (99 x 79 x 33 cm)
Shipping Weight 77 lbs (35 kg)
Warranty Five (5) years

Be the first to review this product

Ergotron EPM3616SM Anthro eNook Pro, Wall Mount Desk Workstation

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:

  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:

  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
