Ergotron 45-541-216 LX Desk Mount Monitor Arm, No Clamp
This product has been discontinued.
Description
Durable steel and aluminum construction. Tested to perform 10 times
the expected life-cycle of other competitive brands at roughly half the
price. For additional flexibility, Ergotron 45-541-216 allows you to
choose the clamp that best fits your work space: two-piece clamp, under
mount c-clamp, top mount c-clamp or grommet mount (sold separately).
Sleek and streamlined, the LX frees up space and allows positioning of
your display for greater productivity. Reposition your LCD with just a
touch. Up. Down. Forward. Back. The LX provides unparalleled range of
motion.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 32" |
7 - 25 lbs 3.2 - 11.3 kg |
13" 33.0 cm |
75° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-541-216 (white) |
| Description | LX Desk Monitor Arm, No Clamp |
| Includes |
|
| Mounting Options | Mounting clamp not included. Choose the mounting option that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately) |
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Construction | Steel and aluminum construction offers greater durability and enhanced aesthetics |
| Snap-Fit Cap | Secures interface of arms to extensions for greater stability |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Weight Capacity | 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Tilt Range | 70° backward, 5° forward |
| Product Weight | 6.7 lbs (3 kg) |
| Shipping Dimensions | 18.1" x 10.8" x 7.2" (45.9 x 27.4 x 18.3 cm) |
| Shipping Weight | 7.7 lbs (3.5 kg) |
| Warranty | Ten (10) years |
Benefits
Allows you to choose the clamp that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately)
Increase viewing comfort - help reduce eye, back and neck strain
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use display adjustment

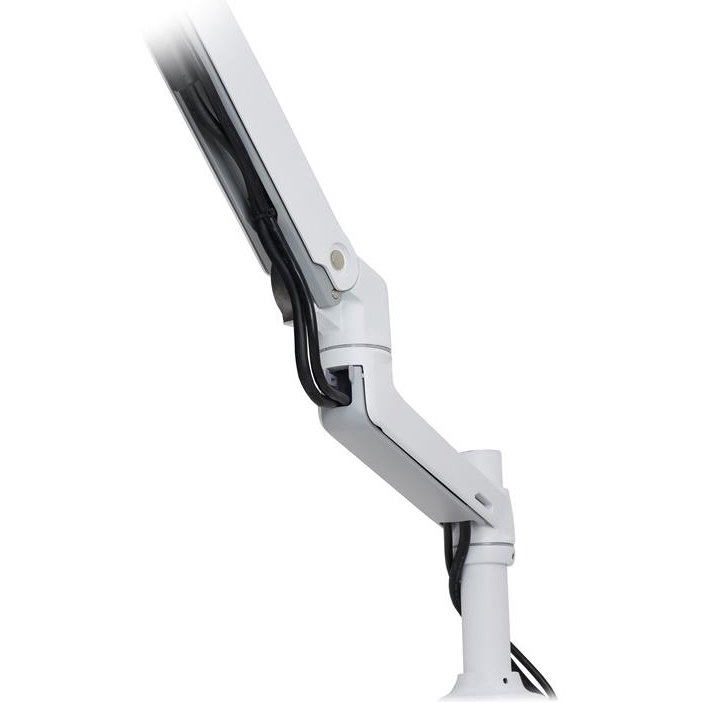

Cable management feature routes cables under the arm, out of the way
Extends LCD up to 25" (64 cm); push your display out of the way when not in use
13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 45-541-216
- Manufacturer Ergotron
- Part Number 45-541-216
- Color White
- Monitor Size Up to 32"
- Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg)
- Lift (33.0 cm) 13 in
- Tilt 75 degree
- Pan 360 degree
- Rotation 360 degree
- Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Weight 6.7 lbs (3 kg)
- Shipping Dimensions 18.1" x 10.8" x 7.2" (45.9 x 27.4 x 18.3 cm)
- Shipping Weight 7.7 lbs (3.5 kg)
- Warranty Ten (10) years
