Ergotron 45-545-216 MXV Desk Mount LCD Monitor Arm, No Clamp
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Looking for a replacement? Answer a few questions in our Monitor Arm Finder and a specialist will recommend the best match.
Similar Products
Description

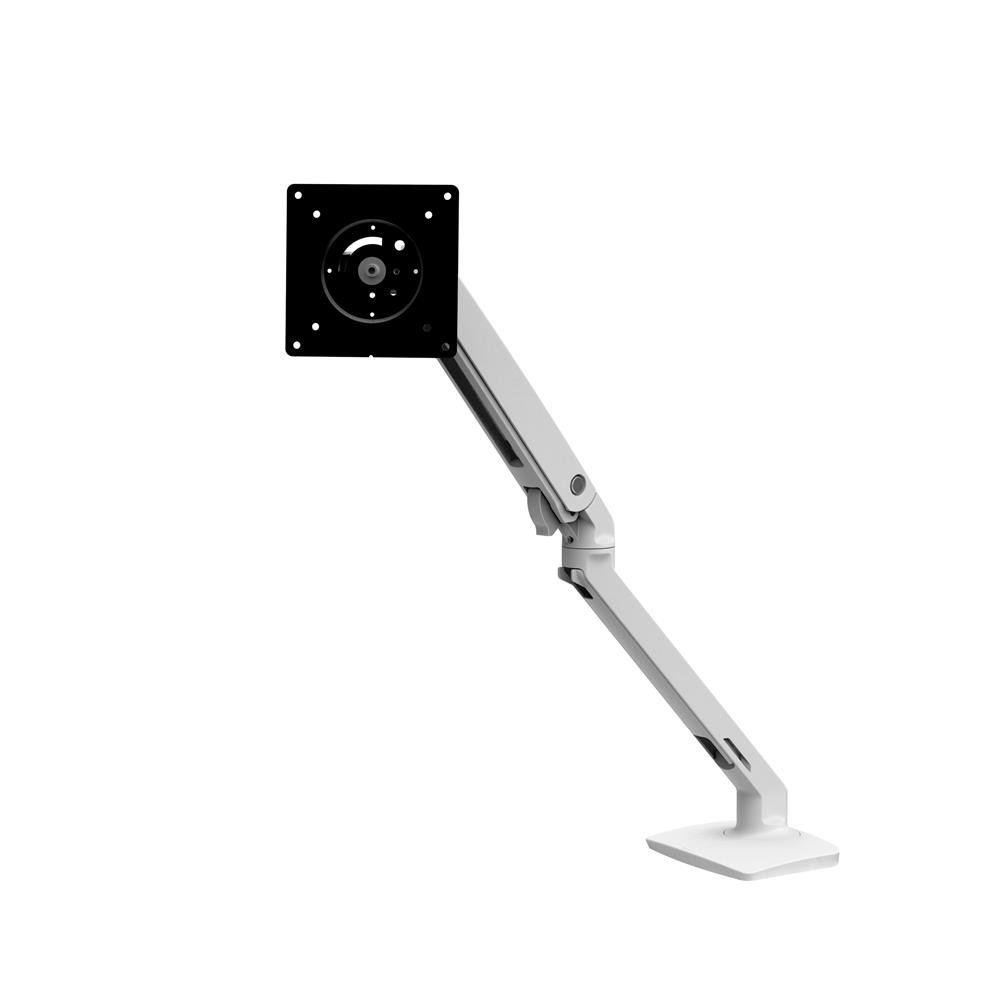

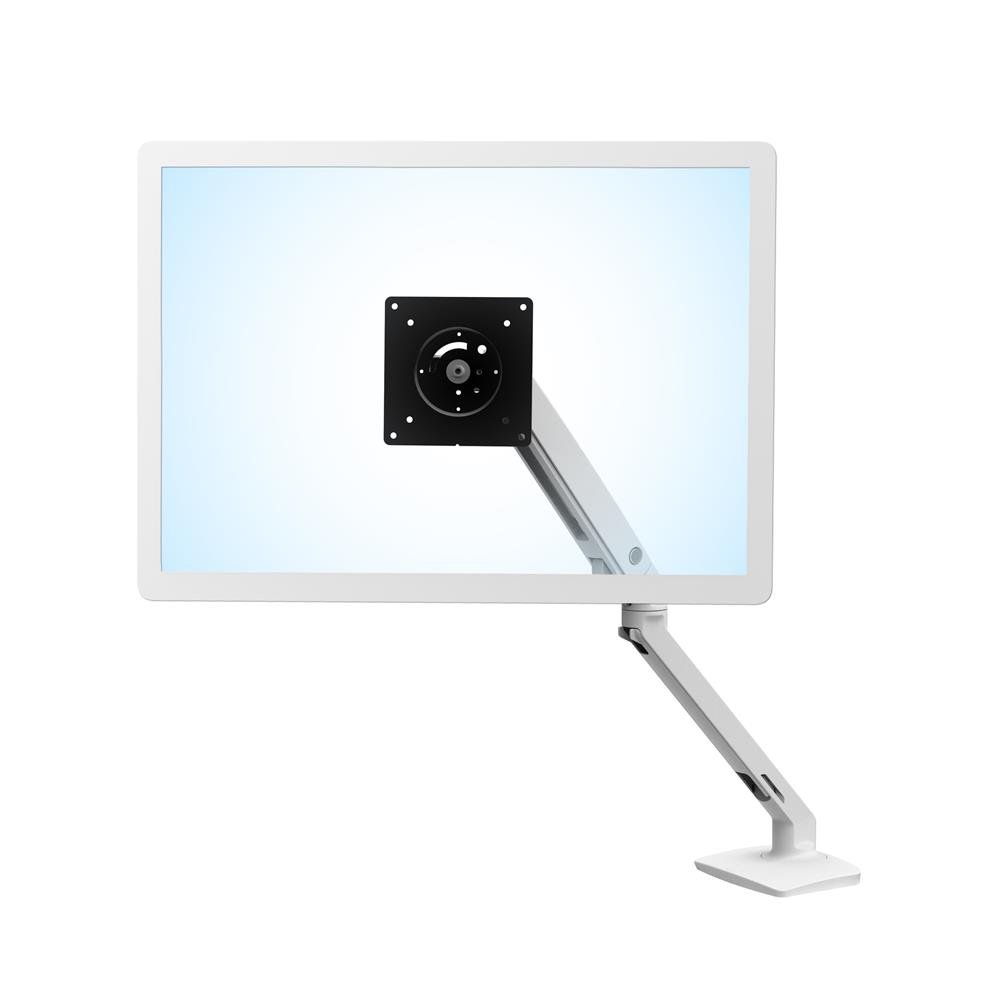

Add style to your desk without sacrificing functionality. Ergotron
45-545-216 sleek and lightweight MXV incorporates a modern V-shaped
design with proven engineering to create a stable yet flexible platform
for your screen. For additional flexibility, this model allows you to
choose the clamp that best fits your work space: two-piece clamp, under
mount c-clamp, top mount c-clamp or grommet mount (sold separately).
With a slim profile, MXV offers 13" (33 cm) of height adjustment,
integrated tilt and more - all on a convenient swivel base. The arm’s
adjustability helps increase viewing comfort, while its upscale finish
leaves a stylish impression.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 34" |
7 - 20 lbs 3.2 - 9.1 kg |
13" 33.0 cm |
180° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-545-216 (white) |
| Description | MXV Desk Mount LCD Monitor Arm, No Clamp |
| Includes |
|
| Mounting Options | Mounting clamp not included. Choose the mounting option that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately) |
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200) |
| Quality Tested | 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment |
| Arm | Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Tilt Range | 90° backward, 90° forward |
| Pan Range | 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to a full 360° |
| Extension Range | 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate |
| Product Weight | 5.6 lbs (2.5 kg) |
| Shipping Dimensions | 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm) |
| Shipping Weight | 7.0 lbs (3.2 kg) |
| Warranty | Ten (10) years |
Benefits
Allows you to choose the clamp that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately)
Easily adjust your display with a light touch thanks to patented Constant Force technology
Creates additional flexibility with a friction pivot that offers a 180-degree tilt
Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
Monitor can extend out up to 22.2" (56 cm)
Sits securely on your workstation with a low-profile desk clamp base that can fit in tight places
Keeps your monitors within your desk space with a solid rotation-stop, perfect for call centers and back-to-back desks
Prevents your arm from making contact with the wall with the base’s rotation-stop, which limits its range to 180 degrees
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Arrives fully assembled for you to easily attach to your desk, add your monitor and adjust the tension
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 45-545-216
- Manufacturer Ergotron
- Part Number 45-545-216
- UPC 698833065558
- Color White
- Monitor Size Up to 34"
- Weight Capacity 7–20 lbs (3.2–9.1 kg)
- Lift (33.0 cm) 13 in
- Tilt 180 degree
- Pan 360 degree
- Rotation 360 degree
- Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Extension 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
- Weight 5.6 lbs (2.5 kg)
- Shipping Dimensions 34.4" x 9.3" x 7.3" (87.5 x 23.5 x 18.5 cm)
- Shipping Weight 7.0 lbs (3.2 kg)
- Warranty Ten (10) years
