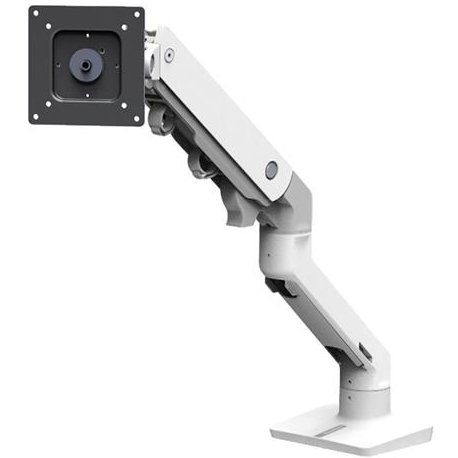

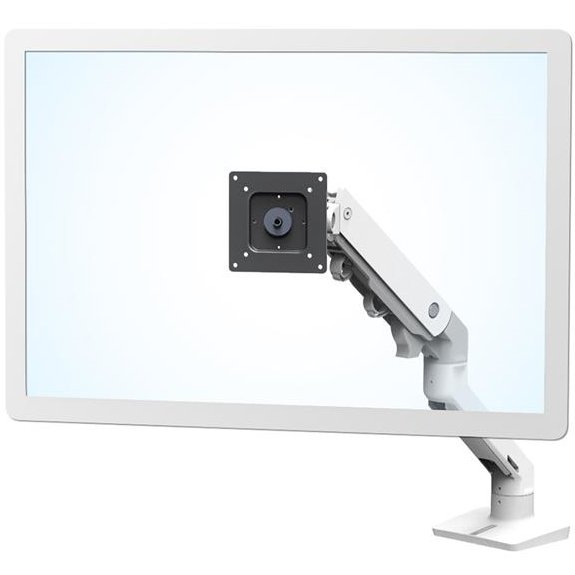

Ergotron 45-547-216 HX Desk Mount Monitor Arm, No Clamp
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description
The HX Monitor Arm is the perfect accessory to add flexibility and
superior ergonomics to your monitor or TV. Ergotron 45-547-216 HX
features a new post design, frees up space and allows positioning of
your display for greater productivity. For additional flexibility, this
model allows you to choose the clamp that best fits your work space:
two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount
(sold separately).
Sleek and streamlined, it accommodates large monitors weighing up to 42
lbs (19 kg). Extension/retraction motion and height adjustment
capability promote user comfort.

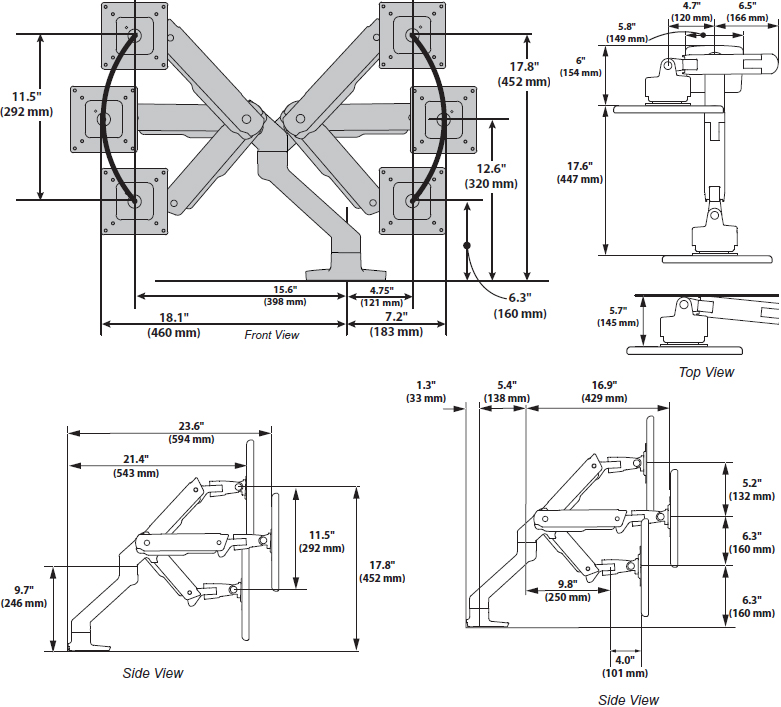

Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 42" |
20 - 42 lbs 9.1 - 19.1 kg |
11.5" 29.2 cm |
75° | 180° | 360° | MIS-D/E/F |
Product Information
| Part Number | 45-547-216 (white) |
| Description | HX Desk Monitor Arm, No Clamp |
| Includes |
|
| Mounting Options | Mounting clamp not included. Choose the mounting option that best fits your workspace: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately) |
| Arm | Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |
| Portrait/Landscape Rotation | Portrait/landscape rotation with lockout |
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Rotation | Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base |
| Mounting Standards | VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Maximum Screen Size | Determined by the monitor weight |
| Weight Capacity | 20–42 lbs (9.1–19.1 kg) |
| Product Weight | 14 lbs (6.4 kg) |
| Tilt Range | 70° backward, 5° forward |
| Shipping Dimensions | 19.2" x 12" x 7" (49 x 31 x 18 cm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Warranty | Ten (10) years |
Benefits
For additional flexibility, this model allows you to choose the clamp that best fits your work space: two-piece clamp, under mount c-clamp, top mount c-clamp or grommet mount (sold separately)
Increases viewing comfort: Helps reduce eye, back and neck strain
Sleek new post design
Patented CF motion technology provides premium ease-of-use display adjustment
Cable management feature routes cables tightly under the arm and through the extension, out of the way
Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
Folding arm frees up space in constrained areas
Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 45-547-216
- Manufacturer Ergotron
- Part Number 45-547-216
- Color White
- Monitor Size Up to 42"
- Weight Capacity 20–42 lbs (9.1–19.1 kg)
- Lift (29.2 cm) 11.5 in
- Tilt 75 degree
- Pan 180 degree
- Rotation 360 degree
- Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY).
- Weight 14 lbs (6.4 kg)
- Shipping Dimensions 19.2" x 12" x 7" (49 x 31 x 18 cm)
- Shipping Weight 16 lbs (7.3 kg)
- Warranty Ten (10) years
