ErgoDirect LCFS-IPM-100S iPad Floor Stand

NOTE: 1. iPad IPM-100 is attached to the stand LCFS-100S using 4 Philips screws, so it is not theft proof. 2. You can purchase 4 security screws from http://www.tamperproof.com to make it more secure. 3. We will ship with two boxes from two warehouses within 3 to 5 business days.
Be the first to review this product
Product ID: 16651
Options
Our Price: $283.62
Shipping: $33.44 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart





NOTES:

1. iPad IPM-100 is attached to the stand LCFS-100S using 4 Phillips screws, so it not theft proof.

2. You can purchase 4 security screws from http://www.tamperproof.com to make it more secure.

3. We will ship with two boxes from two warehouses within 3 to 5 business days.

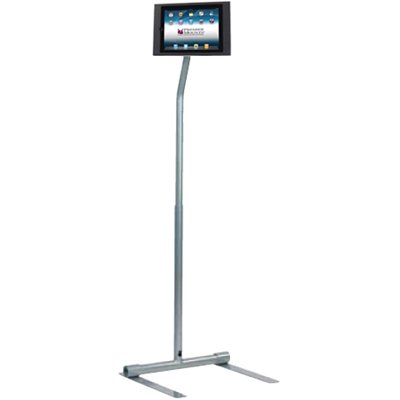

ErgoDirect LCFS-IPM-100 iPad Floor Stand

(Combination of Peerless LCFS-100 Pedestal Stand and Premier IPM-100 iPad VESA (100x100 mm) Mounting Frame)



General Information



Image of Warranty and Returns

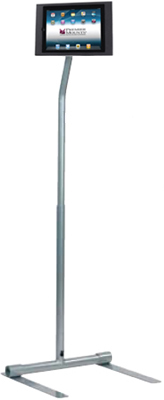

LCFS-IPM-100 iPad Floor Stand



LCFS-IPM-100 iPad Floor Stand









Description of Peerless LCFS-100:

The LCD Pedestal Stand offers a great mounting solution for 10" to 30" LCD screens in auditoriums, gymnasiums, broadcast studios, retail settings, or anywhere an LCD screen needs to be mounted on a pedestal. This versatile unit features height adjustment, swivel and internal cord management. The LCD Pedestal Stand can be free-standing or bolted down to the floor.



Description of Premier IPM-100:

The IPM-100 mounting frames securely holds the iPad in place. The stylish look complements any setting while the bracket easily fastens to any wall or table mount or stand with a compatible VESA 100 mounting pattern.

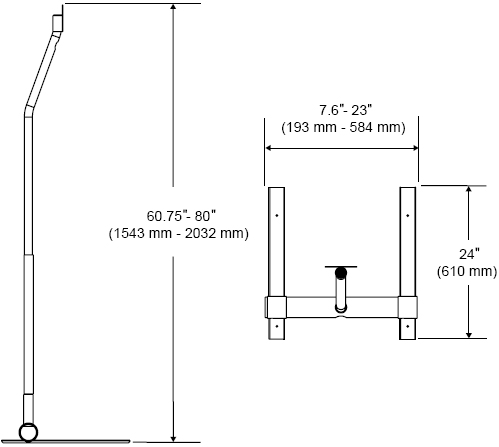

Technical Drawing for Peerless LCFS-100 Pedestal Floor Stand



Technical Drawing for Peerless LCFS-100 Pedestal Floor Stand









Features of Peerless LCFS100:

  • Supports 10" to 30" screens with VESA 75/100 mounting patterns.

  • Easy to install.

  • Adjustable height from 60 3/4" (154.3 cm.) to 80" (203.2 cm.).

  • Swivel: 180° of swivel at the head (up to 90° on each side).

  • Comes with hardware to bolt to a wood surface or concrete.

  • Can be used free standing (with screens up to 25 lbs.) or bolted down to surface (for screens 25 lbs to 40 lbs).

  • Feet can move inwards along the tubular structure if the application.

  • requires (stand must be bolted down if feet are not in full outward position).



Features of Premier Mounts IPM100:

  • Securely frames the iPad to prevent unauthorized access to power and volume controls.

  • Perfect for the hospitability, corporate and education.

  • Opening allows for docking cable.

  • Cushioning inside the frame supports and protects the iPad.

  • Lock-it security hardware included.

  • The mounting frame does not limit Wi-Fi reception.







Specifications of Peerless LCFS 100:



Color: Black and Silver

VESA Patterns:

75 mm and 100 mm

Height Adjustment:

60.75" - 80" (1543 - 2032 mm)

Swivel:

±90°

Max Load:

Freestanding: 25 lbs (11 kg)

Bolted down: 40 lbs (18 kg)

Product Dimensions

(W x H x D):

7.6"-23" x 60.75"-80" x 24" (193-584 x 1543-2032 x 610 mm)

Mounting Surfaces:

All floor surfaces

Ship Weight:

26 lbs (11.8 kg)





Specifications of Premier IPM 100:



Color: Black

Weight:

2.25 lbs

Mounting Pattern:

100x100 mm

Mounting Pattern Type:

Fixed

Display Range:

9.70 - 9.70 in





Literature (Please open the following documents for more technical information)




Peerless LCFS-100 Pedestal Floor Stand - Catalog Page

- pdf

Premier LCFS 100 Pedestal Floor Stand - Technical Data Sheet

- pdf

Premier LCFS100 Pedestal Floor Stand - Installation Sheet

- pdf

Premier IPM-100 Protected Secure VESA Mounting Frame for iPad - Installation Manual

- pdf

Model LCFS-IPM-100
Manufacturer Peerless Mounts
Part Number LCFS-IPM-100
Mounting Options Floor Stand
Device Apple
