WorkRite 179ACD Adjustable Corner Diagonal - Black

Be the first to review this product
Product ID: 386
List Price: $71.00
Our Price: $42.60
You Save: $28.40
Shipping: $9.95 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States
Add to Cart

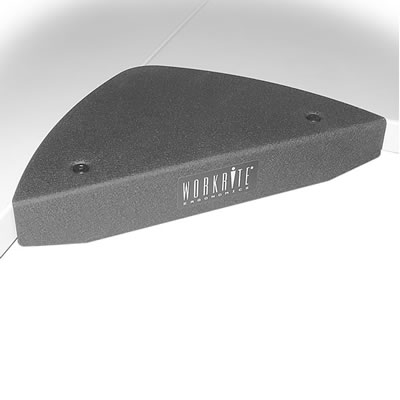

WorkRite 179ACD Adjustable Corner Diagonal



Features

  • Creates Usable Work Area - Allows use of adjustable arm and keyboard platform where the natural corner of the work surface does not permit it
  • Adjustable & Versatile - Adjusts to fit 1" - 2¼" thick work surfaces
  • Easy to Install - Clamping design eliminates spacers, saving installation time
  • Works with the following Workrite platforms: 2180S, 2181SN, 2100FT, 317RL, 2110D, 2110RL, 180
  • Works with the Pinnacle 2 and Pinnacle AD arms
  • Dimensions: 12" W x 1¾" H
  • Available in black



Technical Drawing



WorkRite 179ACD Adjustable Corner Diagonal- Black

Bracket adjusts to fit worksurfaces from 1

Attaches to a 90° corner as shown





Installation

The Corner Sleeve and rectangle is built with a lip that allows it to slide onto a surface and allows the sleeve to secure it underneath with the wood screws provided. There are two pre-drilled holes in the lip that align with the Workrite keyboard Arm, and with the screws and lock-bolts provided you attach the arm to the corner sleeve (rectangle). After sliding the corner sleeve onto the desk, you can attached the keyboard arm to the surface underneath using the wood screws provided in both the keyboard arm box or from the package that the corner sleeve (rectangle) comes in. Once the arm is secured to the underside of the desk, you can also attach the corner sleeve to the desk using the wood screws in the package.

Model 179ACD-B
Manufacturer Workrite Ergonomics
Part Number 179ACD-B
UPC 029274400200
Color Black
Dimensions 12" W x 1¾" H
