Ergotron 45-007-099 - 400 Series Wall Mount Monitor Arm (grey)

Be the first to review this product
Product ID: 14437
Recommended Accessories
List Price: $550.00
Our Price: $299.00
Shipping: $22.80 *
Usually ships in 7 to 10 business days
* applies to Contiguous United States

Description

Ergotron 45-007-099 carries an LCD through a vertical range of 24 inches (61 cm), which allows viewing while sitting, standing or anywhere in between. Its rugged construction makes it perfect for industrial applications.

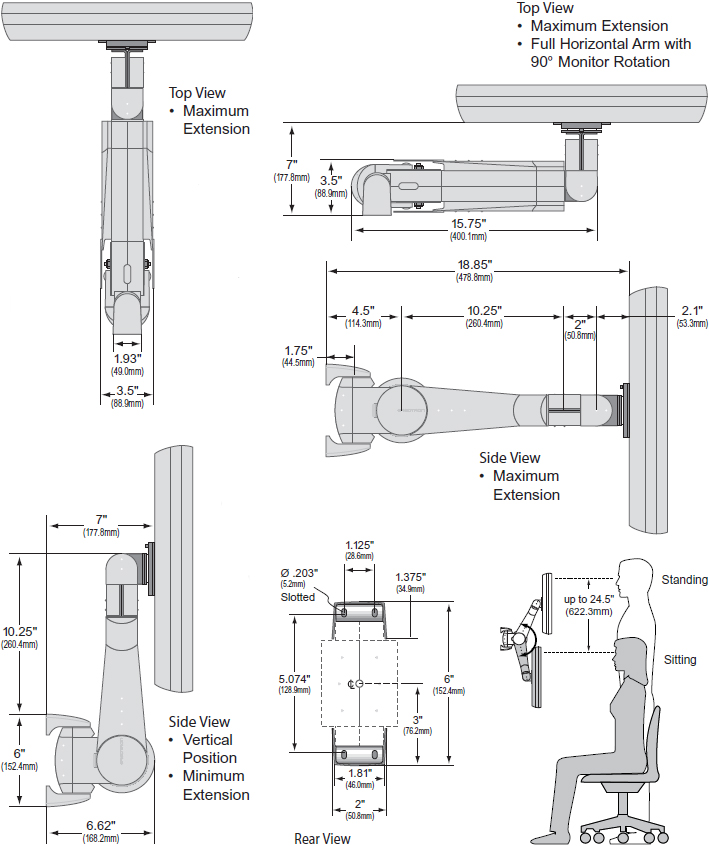

Technical Drawing

Technical Drawing for Ergotron 45-007-099 - 400 Series Wall Mount Monitor Arm (grey)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 23 lbs

10.4 kg

24"

61.0 cm

180° 360° 360° MIS-D

Product Information

Part Number 45-007-099
Description 400 Series Vertical Mount LCD Arm (grey)
Mounting Options Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. To increase support, a Wall Plate or Wall Track accessory is recommended (ordered separately)
Screen Size Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Cable Management Internal cable management
Notebook Tray If mounting a laptop, also order the Notebook Tray (50-193-200)
Shipping Dimensions 22.75" x 11" x 6.125" (578 x 279 x 156 mm)
Shipping Weight 13 lbs (5.9 kg)
Warranty Five (5) years

Benefits

  • Maximum ergonomic adjustment

  • Incredible 24 inches (61 cm) of vertical motion for true sit-to-stand height positioning - the most for any wall mounted arm

  • Easy to clean; suitable for clean room operations

  • Rotate screen for portrait viewing of pages - eliminate scrolling

  • Simple to use - easily change placement of screen

  • Cable management conceals as it routes cables

  • Pre-assembled arm offers display theft deterrence

Model 45-007-099
Manufacturer Ergotron
Part Number 45-007-099
UPC 698833000931
Color Grey
Weight Capacity 23 lbs (10.4 kg)
Monitor Size Up to 27"
Lift (61 cm) 24 in
Tilt 180 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight 13 lbs (5.9 kg)
Shipping Dimensions 22.75" x 11" x 6.125" (578 x 279 x 156 mm)
Warranty Five (5) years
Mounting Options Wall
Pan 360 degree
Rotation 360 degree
Monitor Arm Types 1 Monitor
