Peerless PJF2-UNV Universal PJF2 Ceiling Projector Mount PJF2-UNV-S

Important Note: All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless projector mount

Product ID 14518
Peerless PJF2-UNV Universal PJF2 Ceiling Projector Mount PJF2-UNV-S
Peerless PJF2-UNV Universal PJF2 Ceiling Projector Mount PJF2-UNV-S






Peerless PJF2-UNV Projector Ceiling Mount PJF2 UNV


Peerless PJF2-UNV Projector Ceiling Mount PJF2 UNV

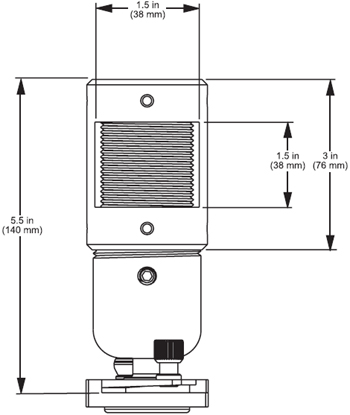

Dimensional Diagram for  Peerless PJF2-UNV Projector Ceiling Mount


Dimensional Diagram for Peerless PJF2-UNV Projector Ceiling Mount




PJF2-UNV Projector Mount Description:


The PJF2 provides a clean look with its NEW cable management capabilities. The included extension column connector incorporates internal cord management paths that keep unsightly cords concealed from view. The mount also features a ceiling plate, ball and socket design, multidirectional positioning (roll, pitch, and swivel) for proper image alignment and complete Armor Lock security at every connection point. This projector mount is perfect for use in classrooms, boardrooms, hotels, bars and restaurants or anywhere a projector needs to be mounted. The PJF2 can be flush mounted, mounted using 1-1/2" diameter extension column, mounted using 1/2" thread rod or wall mounted. Both universal and model specific PJF2 mounts include pre-assembled adapter plates to shorten installation time.















Product Information:


Model Numbers

PJF2-UNV, PJF2-UNV-S -- Security Fasteners (includes theft resistant hardware for attaching projector to mount) with Universal Spider Adapter Plate

Projector Adapter

Includes Universal Adapter Plate to accommodate projector mounting holes from 7.1" to 16.55"

Product Specifications

Dimensions (W x H x L)

With extension column connector: 1.5" x 5.5" x 1.5" (3.8 x 13.97 x 3.8 cm)

With ceiling plate: 1.5" x 3" x 1.5" (3.8 x 7.6 x 3.8 cm)

Load Capacity

50 lb (22.68 kg)


30° (+/-15°)


30° (+/-15°)



Product Weight

2.4 lb (1.09 kg)


Scratch Resistant Fused Epoxy

Available Colors

Black: PJF2-UNV

Silver: PJF2-UNV-S


ACC, CMJ Models: Ceiling Plates

ADJ, EXT Models: Extension Columns

PWA-14(S)(W): Projector Wall Arm

EX Models: Ceiling/Wall Extension Kits

Package Specifications

Package Contents

Mount, Ceiling Plate, Cable Management Extension

Column Connector, Mounting Hardware

Units in Package


Package Size (W x H x L)

9.5" x 2.5" x 12.75" (24.13 x 6.35 x 32.39 cm)

Package Ship Weight

1.5-3.5 lb (.68-1.6 kg)

Package UPC Code


PJF2-UNV: 735029235545

PJF2-UNV-S: 735029235552


Limited 5-year




Additional Images:

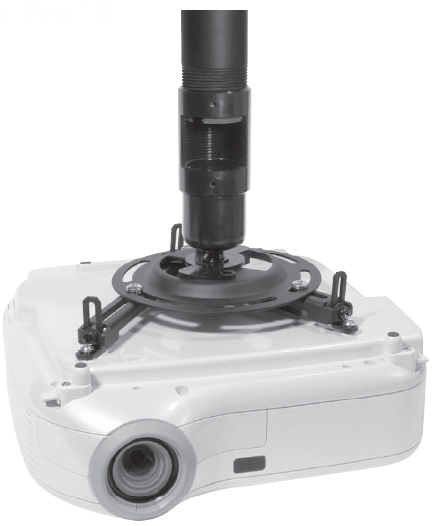

Peerless Ceiling Projector Mount PJF2-UNV








Literature (Please open the following documents for more technical information)


File Type

Peerless PJF2-UNV Product profile

reader-14.jpg - pdf

Peerless PJF2-UNV Catalog Page

reader-14.jpg - pdf

Peerless PJF2-UNV Technical Data

reader-14.jpg - pdf

Peerless PJF2-UNV Installation and Assembly Sheet

reader-14.jpg - pdf

Peerless PAP-UNV Spider Adapter Plate Installation Sheet

reader-14.jpg - pdf

Guide Sheet for PAP, PRS, RTR and PJF2 Series

reader-14.jpg - pdf















Model PJF2-UNV
Manufacturer Peerless Mounts
Part Number PJF2-UNV
UPC 735029235545
Weight lb(s)
Mounting Options Ceiling
