Flat Panel Multi-Monitor Circular Ceiling Mounts
The Multi-Display Systems provide ideal merchandising tools for high impact visual displays. They are pipe structures suspended from the ceiling, in either a straight line, a curved line, or in a circle, for the display of three to five television sets. The components are ordered individually to create the specific display needed. All mounts and TV sets on a display must be the same size.
|
|
Features:
-
Multi-screen display for 3 to 4 plasma or LCD screens
-

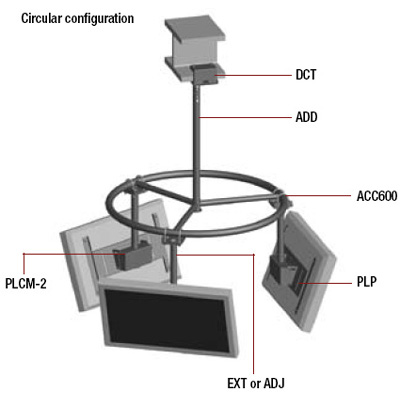

Three different configurations: in-line, curvilinear, and circular
-
Choose desired ceiling drop length and drop length of equipment from pipe
-
0° to 20° adjustable tilt
-
360° swivel for each screen
|
|
MDJ 760 Information:
|
|
MDJ Model
|
MDJ760
|
MDJ760
|
MDJ760
|
MDJ760
|
MDJ760
|
|
Screen Size
|
32"-37"
|
40"-42"
|
50"
|
32"-37"
|
40"-42"
|
|
Number of Screens
|
3
|
3
|
3
|
4
|
4
|
|
DCT ceiling decoupler
|
1
|
1
|
1
|
1
|
1
|
|
ADD support extension column
|
1
|
1
|
1
|
1
|
1
|
|
ACC600 interface bracket to MDJ mount
|
3
|
3
|
3
|
4
|
4
|
|
EXT or ADJ extension column (connects PLCM-2 to ACC600)
|
3
|
3
|
3
|
4
|
4
|
|
PLCM-2 screen mount
|
3
|
3
|
3
|
4
|
4
|
|
PLP screen adapter plate
|
3
|
3
|
3
|
4
|
4
|
|
|
|
|
MDJ760 Multi-Display System Components:
|
|
Model
|
length
|
Ring Diameter
|
Pipe Diameter
|
Load Capacity
|
Ship Weight
|
|
MDJ760
|
N/A
|
48" (122 cm)
|
1.9" OD
|
600 lb (272.16 kg)
|
45 lb ((20.4 kg)
|
|
|
|
|
Description of Components:
|
|
|
|
Ceiling Decouplers
|
|
|
|
DCS400- Multi-display structural ceiling Stress Decoupler
Features of DCS400:
|
|
|
|
DCT300- Multi-Display Truss Ceiling Stress Decoupler
Features of DCT300:
-
Includes truss ceiling plate with integral high density rubber decoupler assembly to prevent vibrations
-
Attaches to round, square, rectangular or I-beam trusses up to 3" wide x 3 1/2" high
-
Stub fitting accepts adjustable or fixed length ADD model extension columns
-
Color: Black
|
|
|
|
Multi-Display I-Beam Clamps DCT500, DCT600, DCT700, DCT800, DCT900
Features:
-
For use only with Peerless Multi-Display Systems in combination with adjustable length Extension Columns (ADD models)
-
Includes structural ceiling plate with integral high density rubber decoupler assembly to prevent vibrations
-
Color: Black
DCT500: for 7" - 12" wide, 0.25" - 1" thick I-Beams
DCT600: for 15" - 19.5" wide, 1.5" - 2" thick I-Beams
DCT700: for 15" - 19.5" wide, 2.5" - 3" thick I-Beams
DCT800: for 7" - 12" wide, 2.5" - 3" thick I-Beams
DCT900: for 4" - 7" wide, 2.5" - 3" thick I-Beams
|
Model
|
Ceiling type
|
Load Capacity
|
Ship Weight
|
|
DCS400
|
For structural or finished ceiling
|
1200 lb (544.3 kg)
|
7.8 lb (3.5 kg)
|
|
DCT300
|
For truss ceiling
|
1200 lb (544.3 kg)
|
4.6 lb (2.1 kg)
|
|
DCT500
|
For I-Beams
|
600 lb (272.16 kg)
|
9.4 lb (4.3 kg)
|
|
DCT600
|
For I-Beams
|
600 lb (272.16 kg)
|
13.1 lb (6 kg)
|
|
DCT700
|
For I-Beams
|
600 lb (272.16 kg)
|
13.6 lb (6.2 kg)
|
|
DCT800
|
For I-Beams
|
600 lb (272.16 kg)
|
14 lb (6.4 kg)
|
|
DCT900
|
For I-Beams
|
600 lb (272.16 kg)
|
9 lb (4.1 kg)
|
|
|
|
|
|
|
|
|
ADD Models - Multi-Display Fixed and Adjustable Extension Columns
|
|
Fixed and Adjustable column
|
Adjustable column
|
|
Features:
-
Multi-Display Extension Column: ADD Models (Fixed and Adjustable Extension Columns for Ceiling Decouplers).
-
Drop length of final display assembly will vary according to selected decoupler unit.
-
Fixed length columns provide 1 inch to10 inch drop lengths.
-
Adjustable length columns provide 1 inch to 12 inch drop lengths.
-
Maximum Load: 1200 lb (544.3 kg)
-
Color: Black
ADD Adjustable Models:
|
ADD Fixed Models:
|
|
|
|
|
|
|
ACC600 - Multi-Display Interface Bracket
Features:
-
Suspends flat panel mount from extension column to in-line, curvilinear and circular MDJ multidisplay configurations
-
For use with EXT or ADJ model extension columns
-
For other applications that require mounting from pipe larger than 2" in dia., use ACC557
-
Interfaces between flat panel mount to MDJ mount, and MDJ mount to ceiling support structure.
-
Maximum Load: 1200 lb (544.3 kg)
-
Ship Weight: 3.8 lb (1.7 kg)
-
Color: Black
|
|
|
|
|
|
Adjustable/Fixed Length Columns
|
|
|
|
ADJ Models - Adjustable Extension Columns
|
|
|
|
|
Model
|
Drop
|
Ship Weight
|
|
ADJ006009
|
6"–9" (15–23 cm) adjustable
|
2.8 lb (1.3 kg)
|
|
ADJ012018
|
12"–18" (30–46 cm) adjustable
|
4.8 lb (2.2 kg)
|
|
ADJ018024
|
18"–24" (46–61 cm) adjustable
|
7 lb (3.2 kg)
|
|
ADJ0203
|
2–3' (.6–.9 m) adjustable
|
9.1 lb (4.1 kg)
|
|
ADJ0305
|
3'–5' (.9–1.2 m) adjustable
|
14 lb (6.4 kg)
|
|
ADJ0406
|
4'–6' (1.2–1.5 m) adjustable
|
16.6 lb (7.5 kg)
|
|
ADJ0507
|
5–7' (1.5–2.1 m) adjustable
|
22 lb (10 kg)
|
|
ADJ0608
|
6'–8' (1.8–2.4 m) adjustable
|
23 lb (10.4 kg)
|
|
ADJ0709
|
7'-9' (2.1-2.7 m) adjustable
|
25 lb (11.3 kg)
|
|
ADJ0810
|
8'-10' (2.4-3.1 m) adjustable
|
27.6 lb(12.5 kg)
|
|
ADJ0911
|
9'-11' (2.7-3.4 m) adjustable
|
31.2 lb (14.2 kg)
|
|
ADJ1012
|
10'-12' (3.1-3.7 m) adjustable
|
34 lb(15.4 kg)
|
|
|
|
Features:
-
1-1/2"-11.5 NPT schedule 40 pipe threaded on both ends. Notched for use with screw to provide safety and security
-
Height adjustment at 1" increments
-
Extension column lengths measure 3.5” longer then stated drop to provide finished drop length for various mounts (i.e. ADJ012018 measures 21.5”)
-
Fixed length columns provide 8 inch to 12 feet drop lengths.
-
Adjustable length columns provide 6inch to 12 feet drop lengths
-
Maximum Load: 900 lb (408.2 kg)
-
Color: Black
|
|
|
|
EXT Models - Fixed Extension Columns
|
|
|
|
Model
|
Drop
|
Ship Weight
|
|
EXT006(S)
|
6" (15 cm) fixed
|
2.3 lb (1 kg)
|
|
EXT018(S)
|
18" (46 cm) fixed
|
4 lb (1.8 kg)
|
|
EXT101(S)
|
1' (.3 m) fixed
|
3.7 lb (1.7 kg)
|
|
EXT102(S)
|
2' (.6 m) fixed
|
6 lb (2.7 kg)
|
|
EXT103(S)
|
3' (.9 m) fixed
|
9 lb (4.1 kg)
|
|
EXT104(S)
|
4' (1.2 m) fixed
|
10 lb (4.5 kg)
|
|
EXT105(S)
|
5' (1.5 m) fixed
|
15 lb (6.8 kg)
|
|
EXT106(S)
|
6' (1.8 m) fixed
|
16 lb (7.3 kg)
|
|
EXT107(S)
|
7' (2.1 m) fixed
|
18 lb (8.2 kg)
|
|
EXT108(S)
|
8' (2.4 m) fixed
|
20 lb (9.1 kg)
|
|
EXT109(S)
|
9' (2.7 m) fixed
|
26 lb (11.8 kg)
|
|
EXT110(S)
|
10' (3.1 m) fixed
|
29 lb (13.2 kg)
|
|
|
Features:
-
1-1/2"-11.5 NPT schedule 40 pipe threaded on both ends. Notched for use with screw to provide safety and security
-
Extension column lengths measure 3.5” longer then stated drop to provide finished drop length for various mounts (i.e. EXT 101 measures 15.5”)
-
Drop length applies to Jumbo 2000 mount installations
-
Max Load: 1200 lb (544.3 kg)
-
Color: Black or Silver
|
|
|
|
|
|
|
|
PLCM-2 - Screen Mounts
Features:
-
Base mount only for up to 71" screens.
-
Requires appropriate extension column, screen-specific adapter and ceiling plate for various ceilings, all sold separately.
-
Maximum Load: 225 lb (102 kg)
-
Ship Weight: 7.50 lb (3.4 kg)
-
Color: Black
|
|
|
|
|
|
|
|
PLP Flat Panel Adapter Plates - PLP-V Models
Features:
-
Large Flat Panel adapter plates (PLP models) are either universally compatible with most large flat panels, or uniquely compatible with one screen make or model.
-
Peerless adapter plates for flat panels allow users to choose between Peerless’ wide array of applications and accessories to mount a flat panel virtually anywhere.
-
Most models feature security fasteners for theft resistance.
-
Color: Black
Details Information for PLP Models:
|
|
|
