Peerless MDJ700 Flat Panel In-Line 120 inch Ceiling Mount
General Information

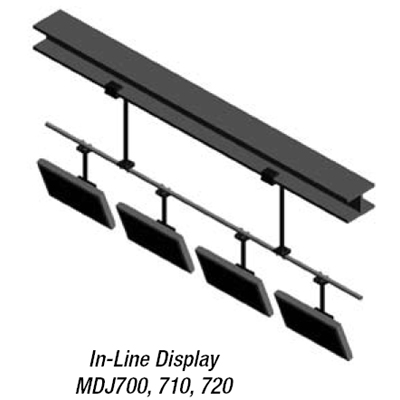

Peerless MDJ 700 Flat Panel Multi Monitors In-Line Ceiling Mount MDJ-700
Flat Panel Multi-Display Ceiling Mounts:
The Multi-Display Systems provide ideal merchandising tools for high impact visual displays. They are pipe structures suspended from the ceiling, in either a straight line, a curved line, or in a circle, for the display of three to five television sets. The components are ordered individually to create the specific display needed. All mounts and TV sets on a display must be the same size.
Features:
Multi-screen display for 3 to 4 plasma or LCD screens
Three different configurations: in-line, curvilinear, and circular
Choose desired ceiling drop length and drop length of equipment from pipe
0° to 20° adjustable tilt
360° swivel for each screen
Product Information:
MDJ Model
MDJ700
MDJ700
MDJ710
MDJ700
MDJ710
MDJ720
Screen Size
32"-37"
40"-42"
50"
32"-37"
40"-42"
50"
No. of Screens
3
3
3
4
4
4
DCT ceiling decoupler
2
2
2
2
2
2
ADD support extension column
2
2
2
2
2
2
ACC600 interface bracket to MDJ mount
5
5
5
6
6
6
EXT or ADJ extension column (connects PLCM-2 to ACC600)
Suspends flat panel mount from extension column to in-line, curvilinear and circular MDJ multidisplay configurations
For use with EXT or ADJ model extension columns
For other applications that require mounting from pipe larger than 2" in dia., use ACC557
Interfaces between flat panel mount to MDJ mount, and MDJ mount to ceiling support structure.
Maximum Load: 1200 lb (544.3 kg)
Ship Weight: 3.8 lb (1.7 kg)
Color: Black
Adjustable/Fixed Length Columns
ADJ Models - Adjustable Extension Columns
Model
Drop
Ship Weight
ADJ006009
6"–9" (15–23 cm) adjustable
2.8 lb (1.3 kg)
ADJ012018
12"–18" (30–46 cm) adjustable
4.8 lb (2.2 kg)
ADJ018024
18"–24" (46–61 cm) adjustable
7 lb (3.2 kg)
ADJ0203
2–3' (.6–.9 m) adjustable
9.1 lb (4.1 kg)
ADJ0305
3'–5' (.9–1.2 m) adjustable
14 lb (6.4 kg)
ADJ0406
4'–6' (1.2–1.5 m) adjustable
16.6 lb (7.5 kg)
ADJ0507
5–7' (1.5–2.1 m) adjustable
22 lb (10 kg)
ADJ0608
6'–8' (1.8–2.4 m) adjustable
23 lb (10.4 kg)
ADJ0709
7'-9' (2.1-2.7 m) adjustable
25 lb (11.3 kg)
ADJ0810
8'-10' (2.4-3.1 m) adjustable
27.6 lb(12.5 kg)
ADJ0911
9'-11' (2.7-3.4 m) adjustable
31.2 lb (14.2 kg)
ADJ1012
10'-12' (3.1-3.7 m) adjustable
34 lb(15.4 kg)
Features:
1-1/2"-11.5 NPT schedule 40 pipe threaded on both ends. Notched for use with screw to provide safety and security
Height adjustment at 1" increments
Extension column lengths measure 3.5” longer then stated drop to provide finished drop length for various mounts (i.e. ADJ012018 measures 21.5”)
Fixed length columns provide 8 inch to 12 feet drop lengths.
Adjustable length columns provide 6inch to 12 feet drop lengths
Maximum Load: 900 lb (408.2 kg)
Color: Black
EXT Models - Fixed Extension Columns
Model
Drop
Ship Weight
EXT006(S)
6" (15 cm) fixed
2.3 lb (1 kg)
EXT018(S)
18" (46 cm) fixed
4 lb (1.8 kg)
EXT101(S)
1' (.3 m) fixed
3.7 lb (1.7 kg)
EXT102(S)
2' (.6 m) fixed
6 lb (2.7 kg)
EXT103(S)
3' (.9 m) fixed
9 lb (4.1 kg)
EXT104(S)
4' (1.2 m) fixed
10 lb (4.5 kg)
EXT105(S)
5' (1.5 m) fixed
15 lb (6.8 kg)
EXT106(S)
6' (1.8 m) fixed
16 lb (7.3 kg)
EXT107(S)
7' (2.1 m) fixed
18 lb (8.2 kg)
EXT108(S)
8' (2.4 m) fixed
20 lb (9.1 kg)
EXT109(S)
9' (2.7 m) fixed
26 lb (11.8 kg)
EXT110(S)
10' (3.1 m) fixed
29 lb (13.2 kg)
Features:
1-1/2"-11.5 NPT schedule 40 pipe threaded on both ends. Notched for use with screw to provide safety and security
Extension column lengths measure 3.5” longer then stated drop to provide finished drop length for various mounts (i.e. EXT 101 measures 15.5”)
Drop length applies to Jumbo 2000 mount installations
Max Load: 1200 lb (544.3 kg)
Color: Black or Silver
PLCM-2 -ScreenMounts
Features:
Base mount only for up to 71" screens.
Requires appropriate extension column, screen-specific adapter and ceiling plate for various ceilings, all sold separately.
Maximum Load: 225 lb (102 kg)
Ship Weight: 7.50 lb (3.4 kg)
Color: Black
PLP Flat Panel Adapter Plates - PLP-V Models
Features:
Large Flat Panel adapter plates (PLP models) are either universally compatible with most large flat panels, or uniquely compatible with one screen make or model.
Peerless adapter plates for flat panels allow users to choose between Peerless’ wide array of applications and accessories to mount a flat panel virtually anywhere.
Most models feature security fasteners for theft resistance.
Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of
Peerless-AV products that Peerless-AV products will be free from defects in
material and workmanship, under normal use, for the periods listed below, from
the date of purchase by the original end-user. At its option, Peerless-AV will
repair or replace with new or refurbished products or parts, or refund the
purchase price of, any Peerless-AV product which fails to conform with this
warranty.
In no event shall the duration of any implied warranty of merchantability or
fitness for a particular purpose be longer than the period of the applicable
express warranty set forth above. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the
customer or a person who is not authorized for such service or repairs by
Peerless-AV, (b) the failure to utilize proper packing when returning the
product, (c) incorrect installation or the failure to follow Peerless-AV’s
instructions or warnings when installing, using or storing the product, or (d)
misuse or accident, in transit or otherwise, including in cases of third-party
actions and force majeure. This warranty also does not cover corrosion or rust
resulting from damaged, scratched or chipped paint or other surfaces.
In no event shall Peerless-AV be liable for incidental or consequential damages
or damages arising from the theft of any product, whether or not secured by a
security device which may be included with the Peerless-AV product. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, express or implied, and is the
sole remedy with respect to product defects. No dealer, distributor, installer
or other person is authorized to modify or extend this Limited Warranty or
impose any obligation on Peerless-AV in connection with the sale of any
Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights
which vary from state to state.
