$759.00

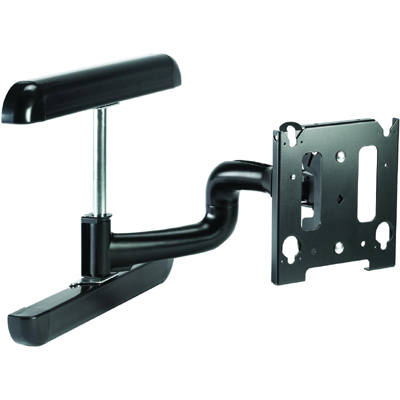

Chief MWRUB Medium Swing Arm Wall Mount - 25" Extension

The difference between MWR and MWH is that MWR provides 16” center stud mounting but MWH is single stud mounting only.

Product ID 15305
Chief MWRUB Medium Swing Arm Wall Mount - 25" Extension
Chief MWRUB Medium Swing Arm Wall Mount - 25" Extension
Chief MWRUB Medium Swing Arm Wall Mount - 25" Extension
Chief MWRUB Medium Swing Arm Wall Mount - 25" Extension

Related Products

Part Number

Description

MWRUB

Black Adjustable Flat Panel Swing Arm Wall Mount

MWRVB

Black VESA Flat Panel Swing Arm Wall Mount



Description

Chief MWR provides extended viewing angles for flat panel displays. Standard display mounts are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.

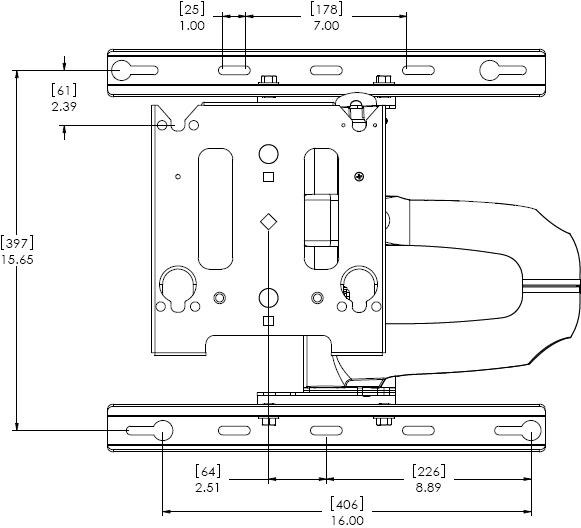

Technical Drawing

Technical Drawing for Chief MWRUB Wall Mount Flat Panel Swing Arm



Specifications

Color

Black

Lateral Shift

12" (304.8mm)

Maximum Extension

24.88" (632.mm), does not include interface bracket (adds 0.5 - 1.5")

Minimum Depth

3.38" (85.9mm), does not include interface bracket (adds 0.5 - 1.5")

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 709 x 431mm

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

18.0" x 23.6" x 3.4" (457 x 600 x 86mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

MWRUB: 45.00 lbs, MWRVB: 42.00 lbs

Solution Type

Universal

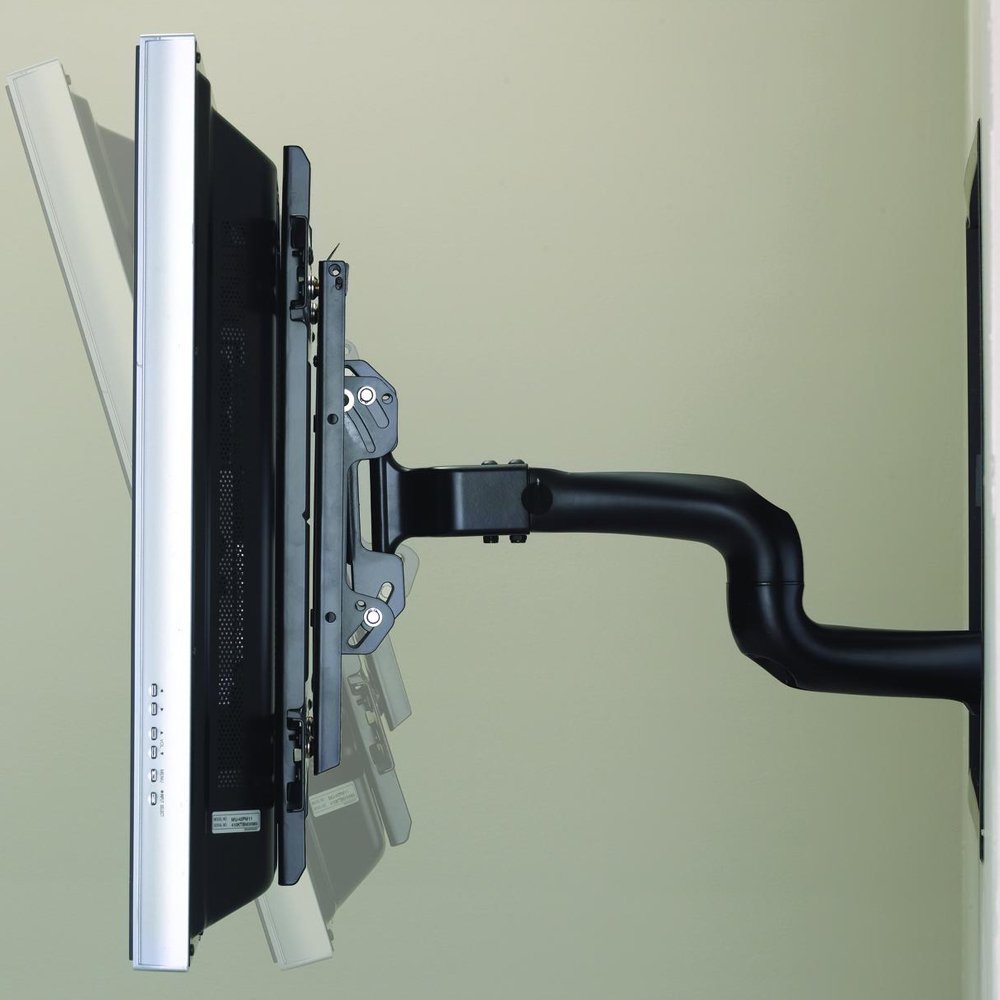

Tilt

+ 5°, - 15°

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

125 lbs (56.7kg)



Features

  • Provides full extension while remaining low profile in the home position
  • Centris Technolgoy provides fingertip tilt adjustments
  • CableTrac System provides a fast and effective way to route cables
  • Swivel up to 90° left or right (depending upon screen size)
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Mounting guides provided for a hassle-free installation
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)

Frequently Asked Questions

q What is the difference between the MWR and MWH?
a

The MWR provides 16" center stud mounting. The MWH is single stud mounting only.

q Is the MWR available as a universal and custom solution?
a

Yes. Simply order the MWRV and get a VESA universal solution that encompasses 100 x 100, 200 x 100, 200 x 200, 300 x 200 and 400 x 200 mm patterns. See ordering steps to order a custom solution.

Model MWRUB
Manufacturer Chief Mounts
Part Number MWRUB or MWRVB
UPC 841872101637
Weight lb(s)
Mounting Options Wall
Color Black
Lateral Shift 12" (304.8mm)
Maximum Extension 24.88" (632.mm)
Minimum Depth 3.38" (85.9mm)
Mounting Pattern 100 x 100mm - 709 x 431mm
Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
Shipping Weight MWRUB: 45.00 lbs, MWRVB: 42.00 lbs
Tilt + 5, - 15 degree
Monitor Size 30 - 55"
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
