$1,220.00

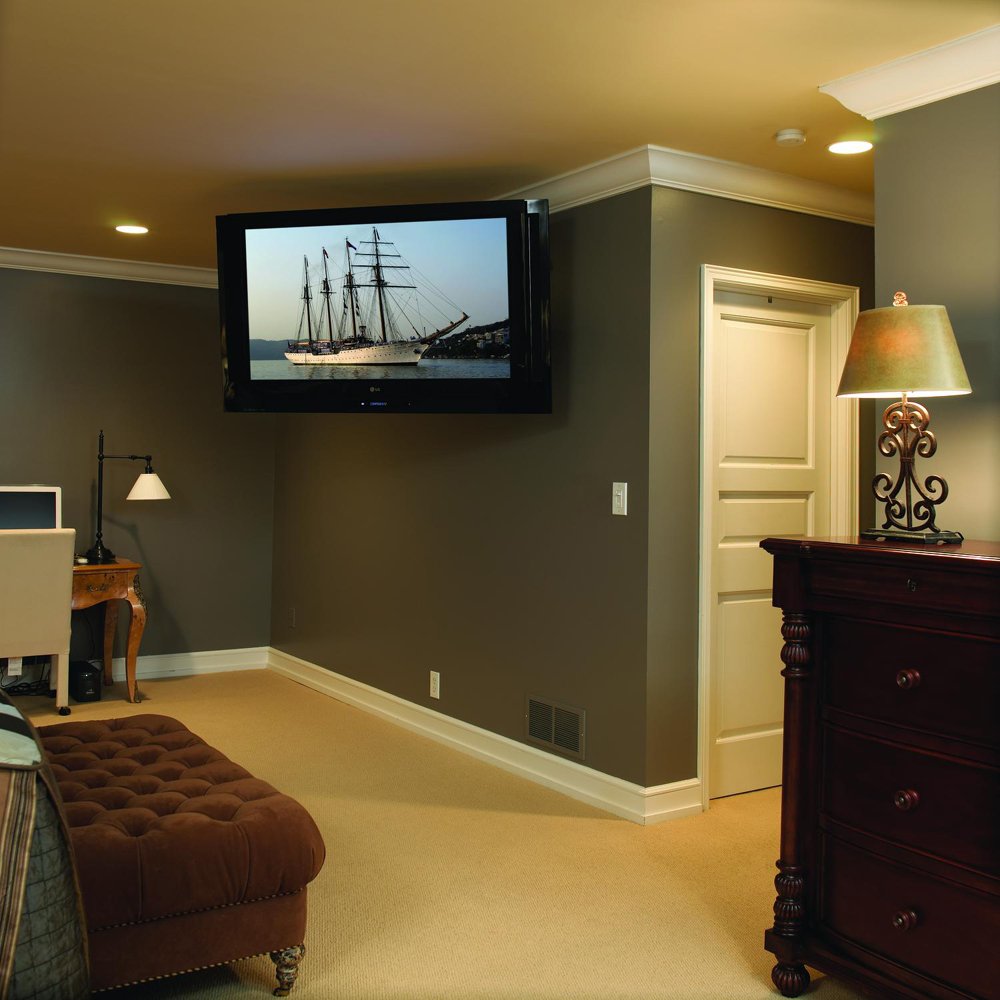

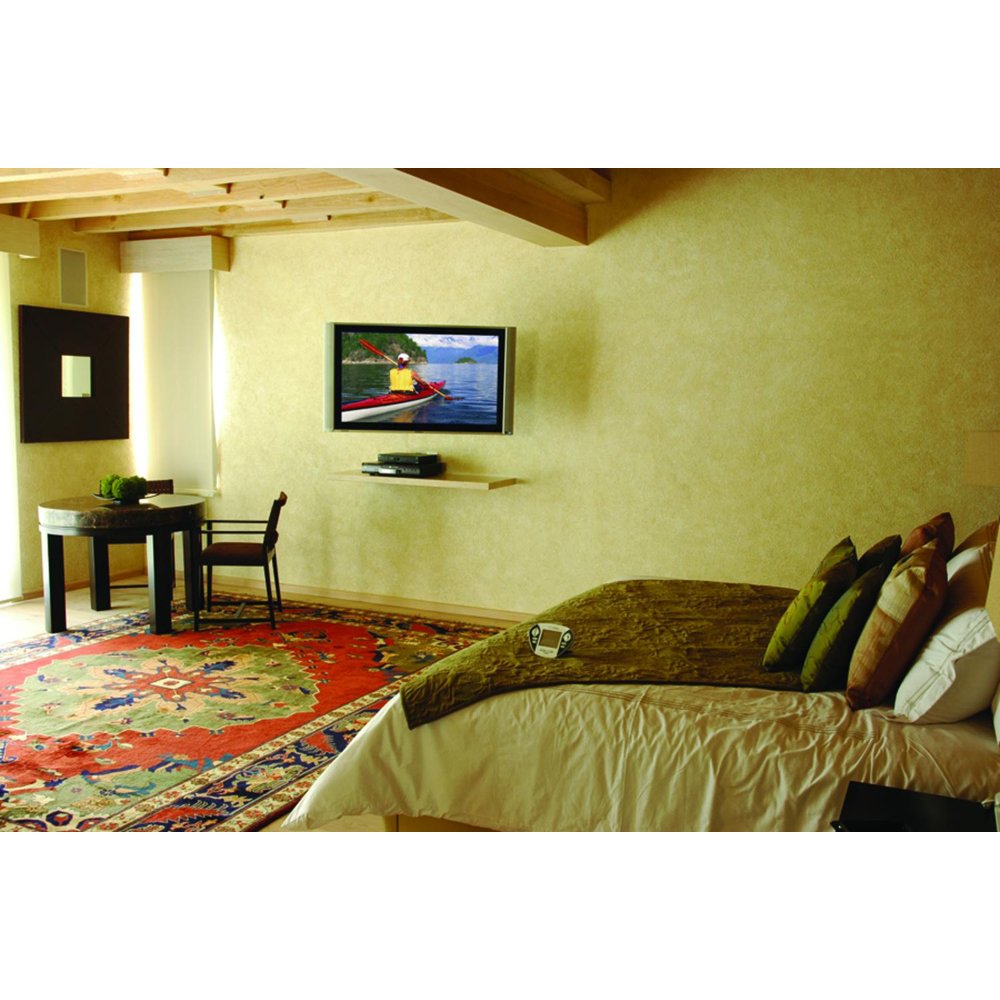

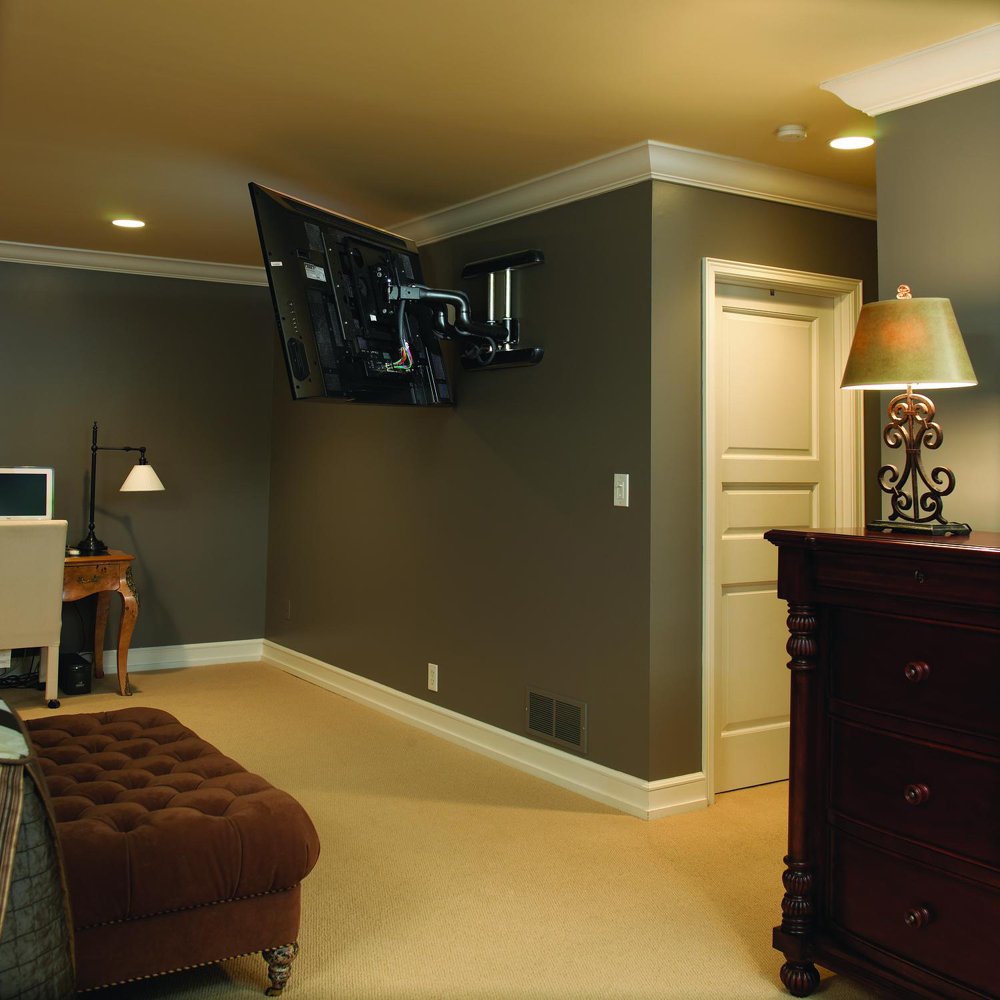

Chief PDRUB or PDRUS Large Swing Arm TV Wall Mount - 37" Extension

Product ID 15306
Chief PDRUB or PDRUS Large Swing Arm TV Wall Mount - 37" Extension
Silver
Inused image
Inused image
Inused image
Chief PDRUB or PDRUS Large Swing Arm TV Wall Mount - 37" Extension
Silver
Inused image
Inused image
Inused image

Related Products

Part Number

Description

PDRUB

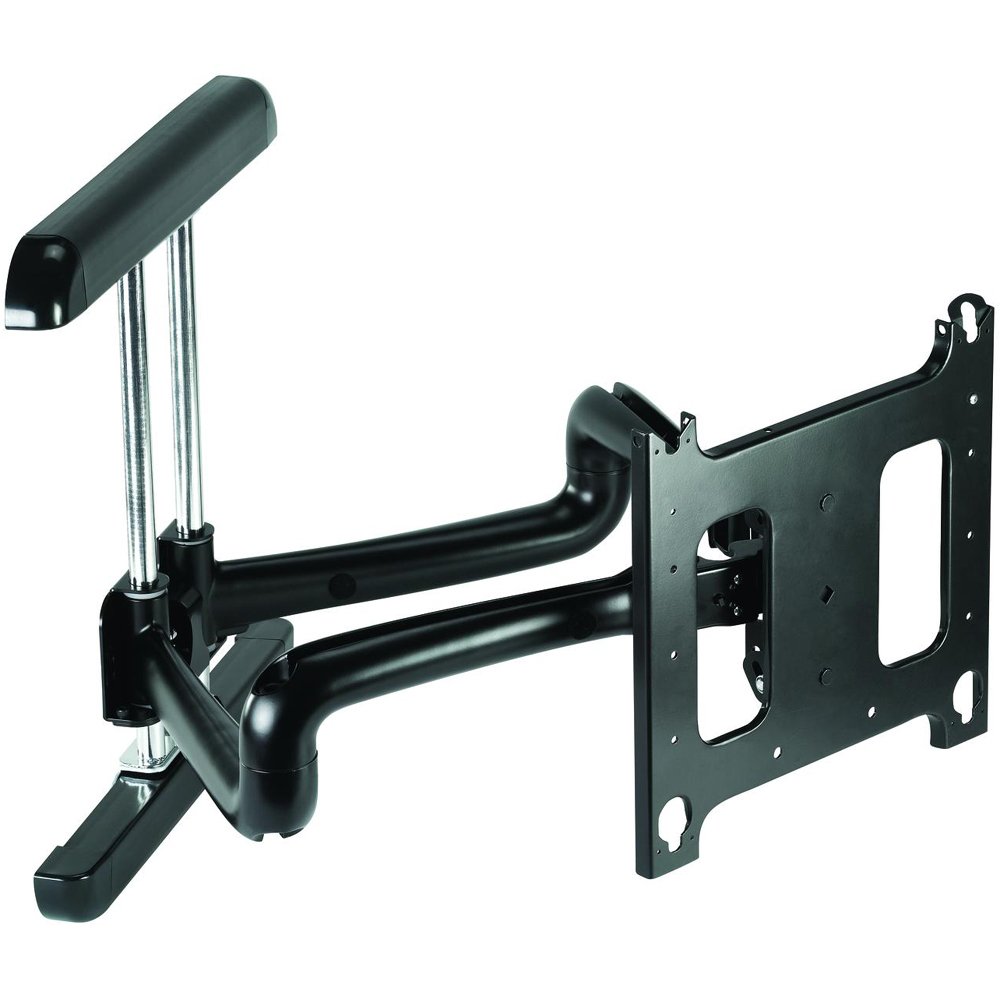

Black Universal Flat Panel Dual Swing Arm TV Wall Mount

PDRUS

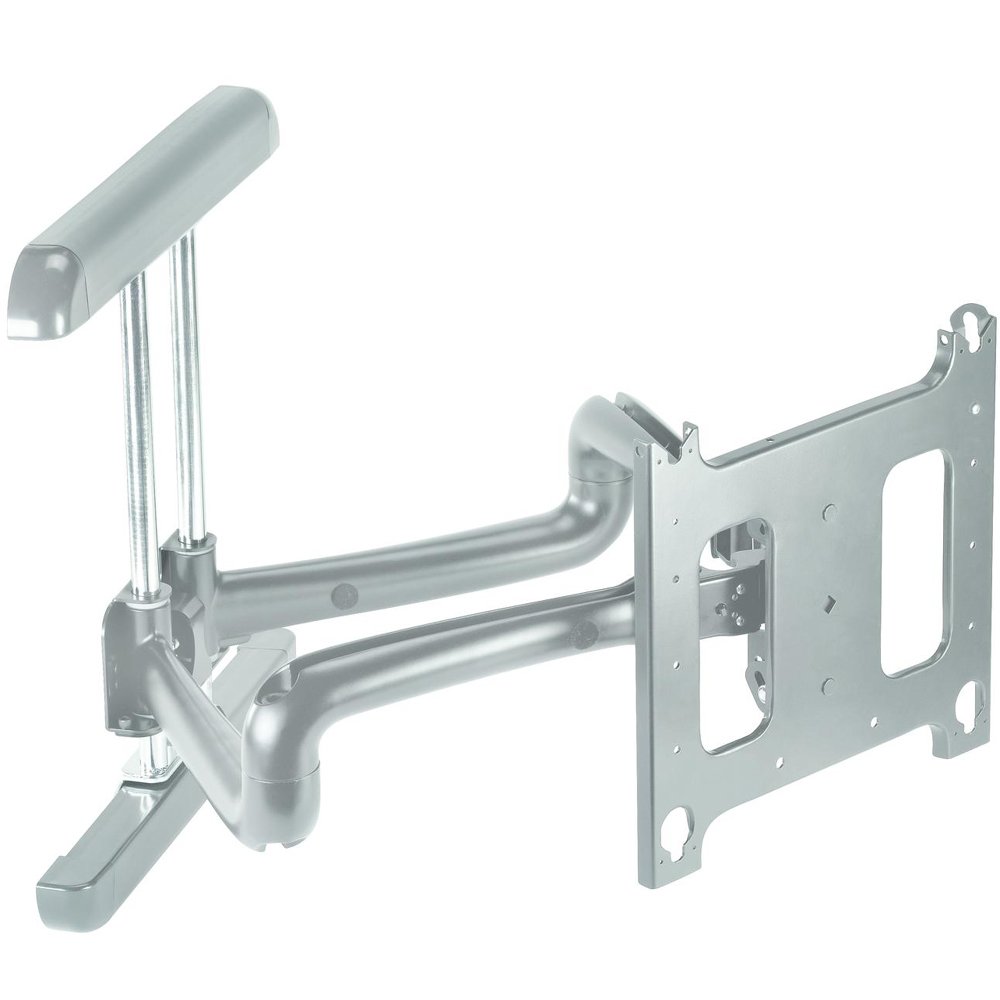

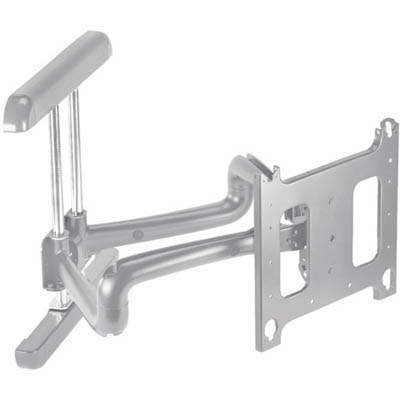

Silver Universal Flat Panel Dual Swing Arm TV Wall Mount



Description

Chief PDRUB swing arm mount allows for perfect flat panel display placement and ensures ideal viewing from any angle.

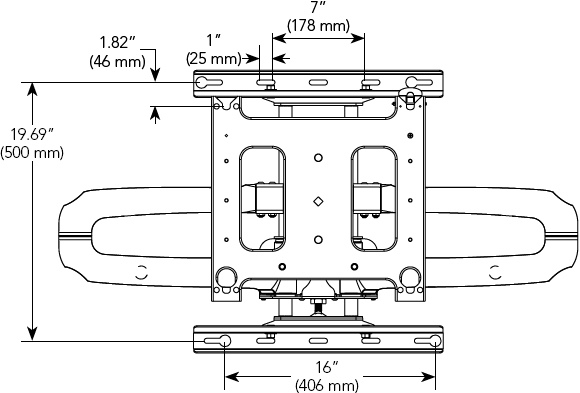

Technical Drawing

Technical Drawing for Chief PDRU Wall Mount Universal Flat Panel Dual Swing Arm



Specifications

Certifications

UL Listed

Color

Black, Silver

Lateral Shift

9" (229 mm)

Manual Height Adjustment

1"

Maximum Extension

37" (939.8mm)

Minimum Depth

3.4" (86.4mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

79.70 lbs

Solution Type

Universal

Tilt

+ 5° , - 16°

Typical Screen Sizes

42 - 71"

Wall Stud Compatibility (inches)

16"

Weight Capacity

200 lbs (90.7kg)



Features

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Frequently Asked Questions

q What is the difference between PNR and PDR?
a

The PNR extends up to 24.88", while the PDR extends almost 37" from the wall.

q How do I know if my screen is too small to use with PDR?
a

The PDR is designed for 42" screens and larger, but to ensure the mount will be completely hidden your screen width should be greater than 40" and screen height should be greater than 25".

q Is the PDR available as a universal solution?
a

Yes. Simply order a PDRU to receive a universal interface bracket with the unit. The PDR can also be ordered as a custom mount. See ordering steps.

Model PDRUB or PDRUS
Manufacturer Chief Mounts
Part Number PDRUB or PDRUS
UPC 841872051659
Weight lb(s)
Mounting Options Wall
Color Black, Silver
Lateral Shift 9" (229 mm)
Manual Height Adjustment 1"
Maximum Extension 37" (939.8mm)
Minimum Depth 3.4" (86.4mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)
Shipping Weight 79.70 lbs
Tilt + 5, - 16 degree
Monitor Size 42 - 71"
Wall Stud 16"
Weight Capacity 200 lbs (90.7kg)
