$1,542.00

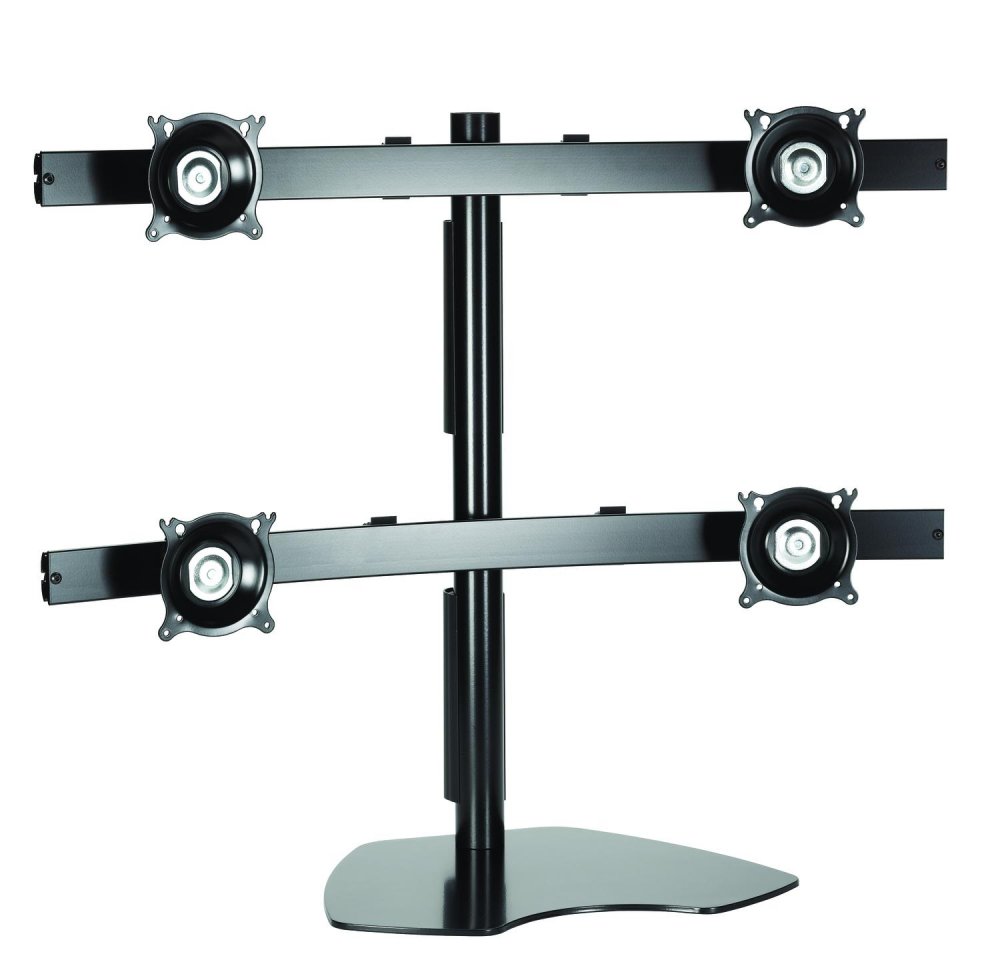

Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S

Product ID 15778
Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S
Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S
Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S
Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S

Description

Chief KTP445 provides a rock solid, free-standing solution for graphic designers, broadcasters and other users who work with multiple small flat panel monitors.

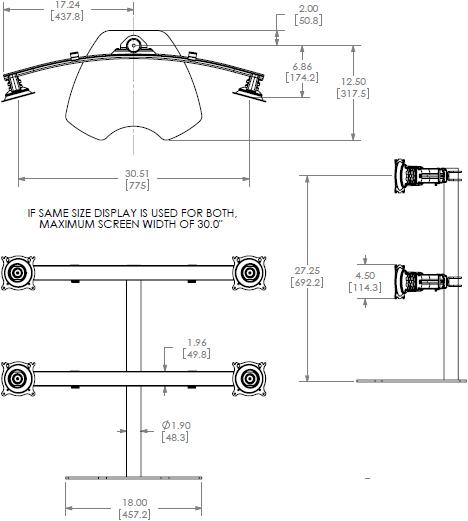

Technical Drawing

Technical Drawing for Chief Widescreen Quad Monitor Table Stand KTP445B or KTP445S

Specifications

Color Black, Silver
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 4
Overall Dimensions (H x W x D) 28.5" x 34.5" x 14.5" (724 x 876 x 368mm)
Pole Length 28"
Post-Installation Leveling Roll Yes
Shipping Weight 47 lbs (21.32 kg)
Solution Type Universal
Tilt + 15° , - 15°
TV Height Range 10 - 18" (254 - 457mm)
TV Width Range 10 - 30" (254 - 762mm)
Typical Screen Sizes 10 - 30"
Weight Capacity 20 lbs (9.1 kg)
Orientation Landscape, Portrait

Features

  • Independent adjustment of each screen for proper ergonomic alignment

  • Centris Technology provides smooth, fingertip tilt in all directions

  • Teardrop hole pattern makes mounting the screens quick and easy

  • Heavy-duty, solid steel base and oversize pole for unmatched stability

  • Integrated cable management

  • VESA 75 x 75 mm and 100 x 100 mm compatible

Model KTP445B, KTP445S
Manufacturer Chief Mounts
Part Number KTP445B, KTP445S
UPC 841872106434
Weight lb(s)
Mounting Options Desk Stand
Color Black and Silver
Mounting Pattern 75 x 75mm, 100 x 100mm
Overall Dimensions 28.5" x 34.5" x 14.5" (724 x 876 x 368mm)
Pole Length 28"
Shipping Weight 47 lbs (21.32 kg)
Tilt + 15 degree, - 15 degree
TV Height Range 10 - 18" (254 - 457mm)
TV Width Range 10 - 30" (254 - 762mm)
Screen Size 10 - 30 in
Weight Capacity 20 lbs (9.1 kg) per monitor
Orientation Landscape, Portrait
