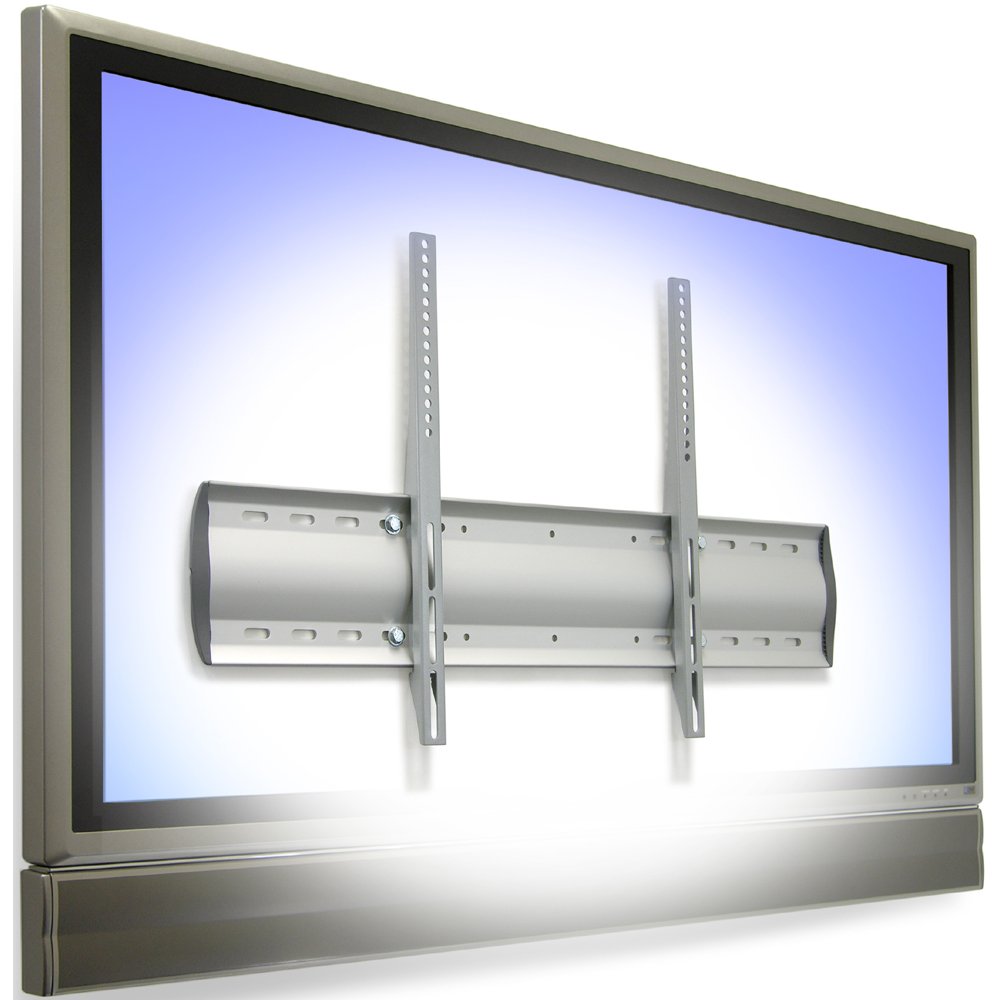

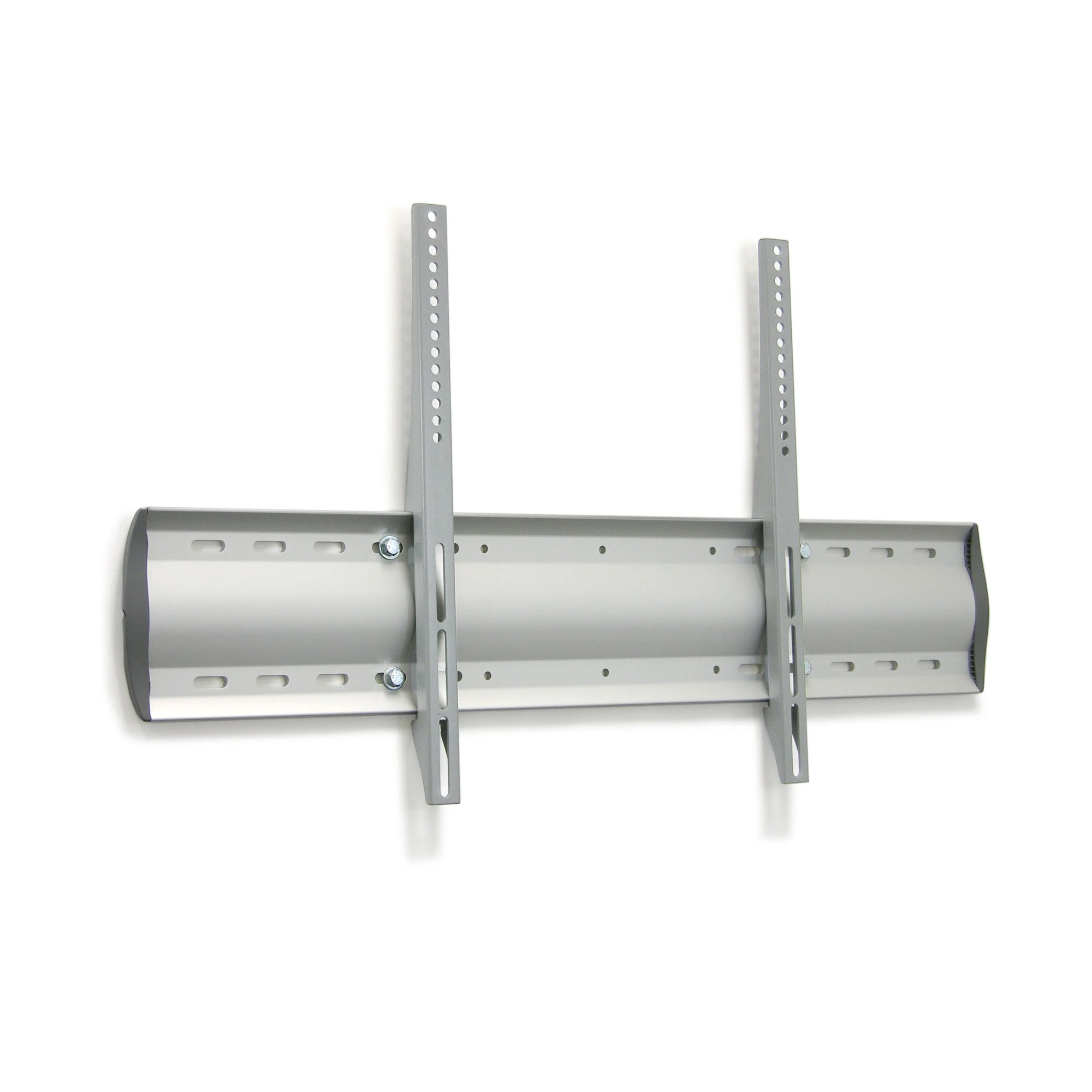

Ergotron 60-602-003 WM Low Profile Wall Mount, XL

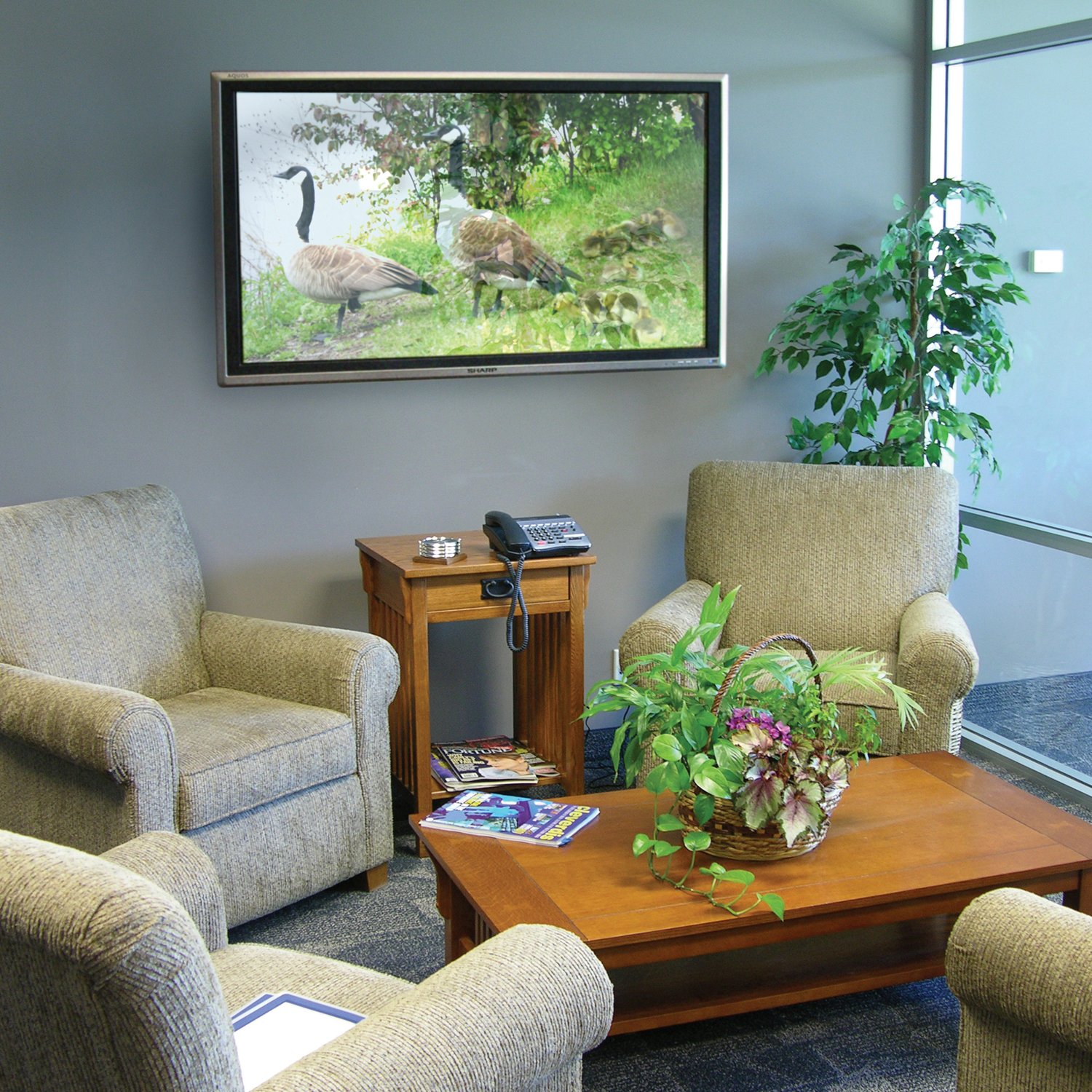

The WM’s wall-hugging design hangs your large flat panel display just
over an inch from the wall for an extremely slim profile. Yet this TV
wall mount costs about half that of competing models. Engineered to
install in three easy steps, the WM is sturdy and stable.
This “XL” version provides the extra width to handle larger displays that use mounting-hole patterns up to 800 mm wide.
|42" and larger||
Up to 175 lbs
|Part Number||60-602-003 (replacement for 60-578-003)|
|Description||WM Low Profile Wall Mount, XL (silver)|

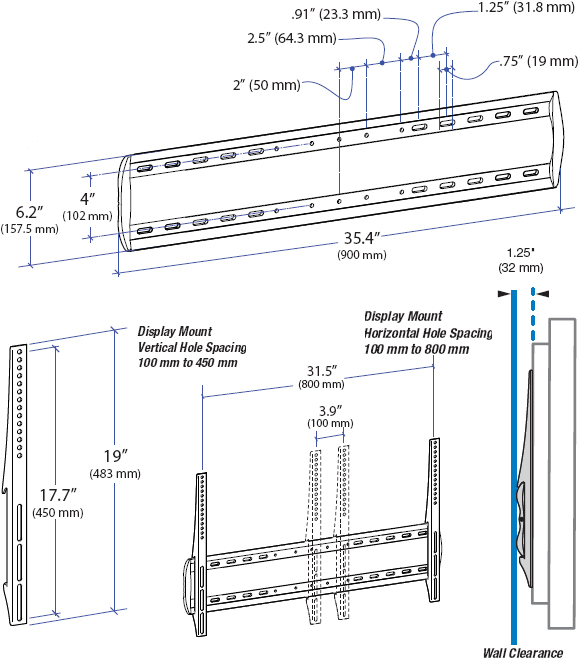

|Mounting Holes||Mounting holes must fit within spacing range below: horizontal = 100 mm (min.) to 800 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)|
|Mounting Options||Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" or 24" centered studs) or concrete walls|

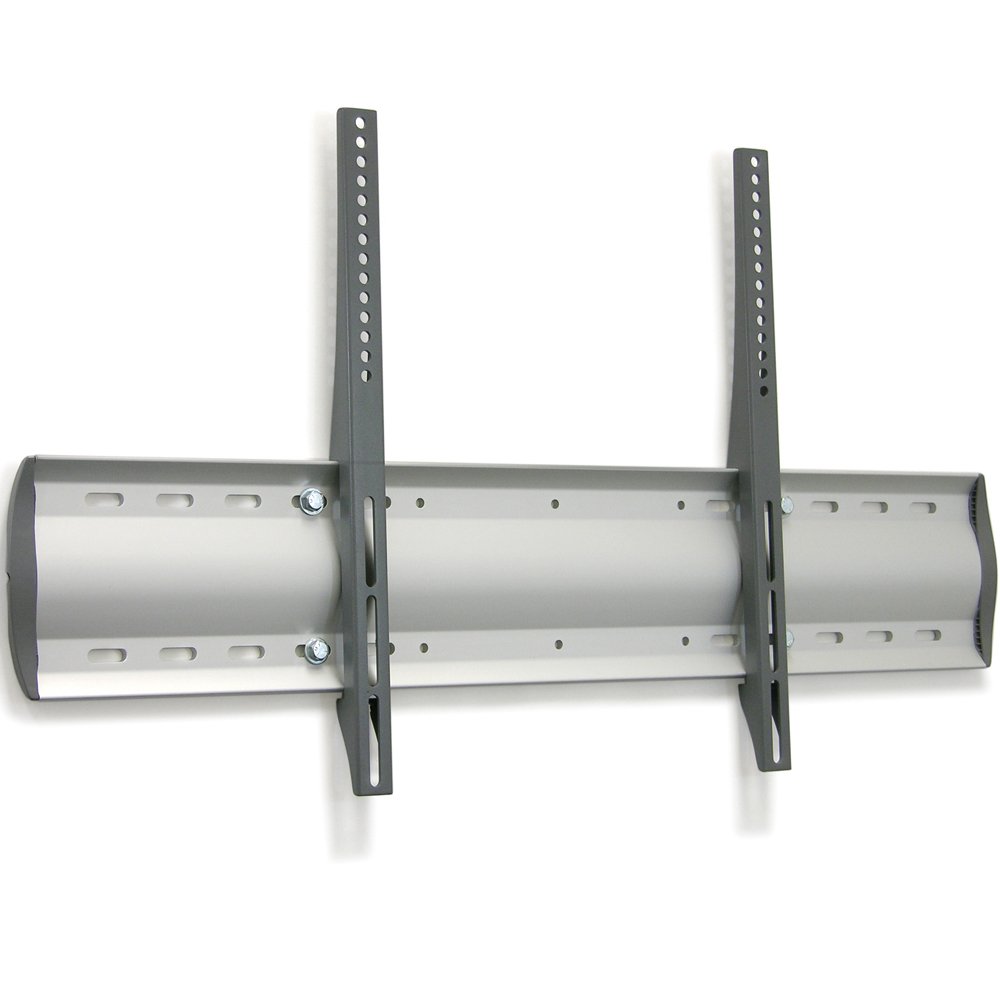

|Premium Construction||Composed of extruded aluminum and steel|

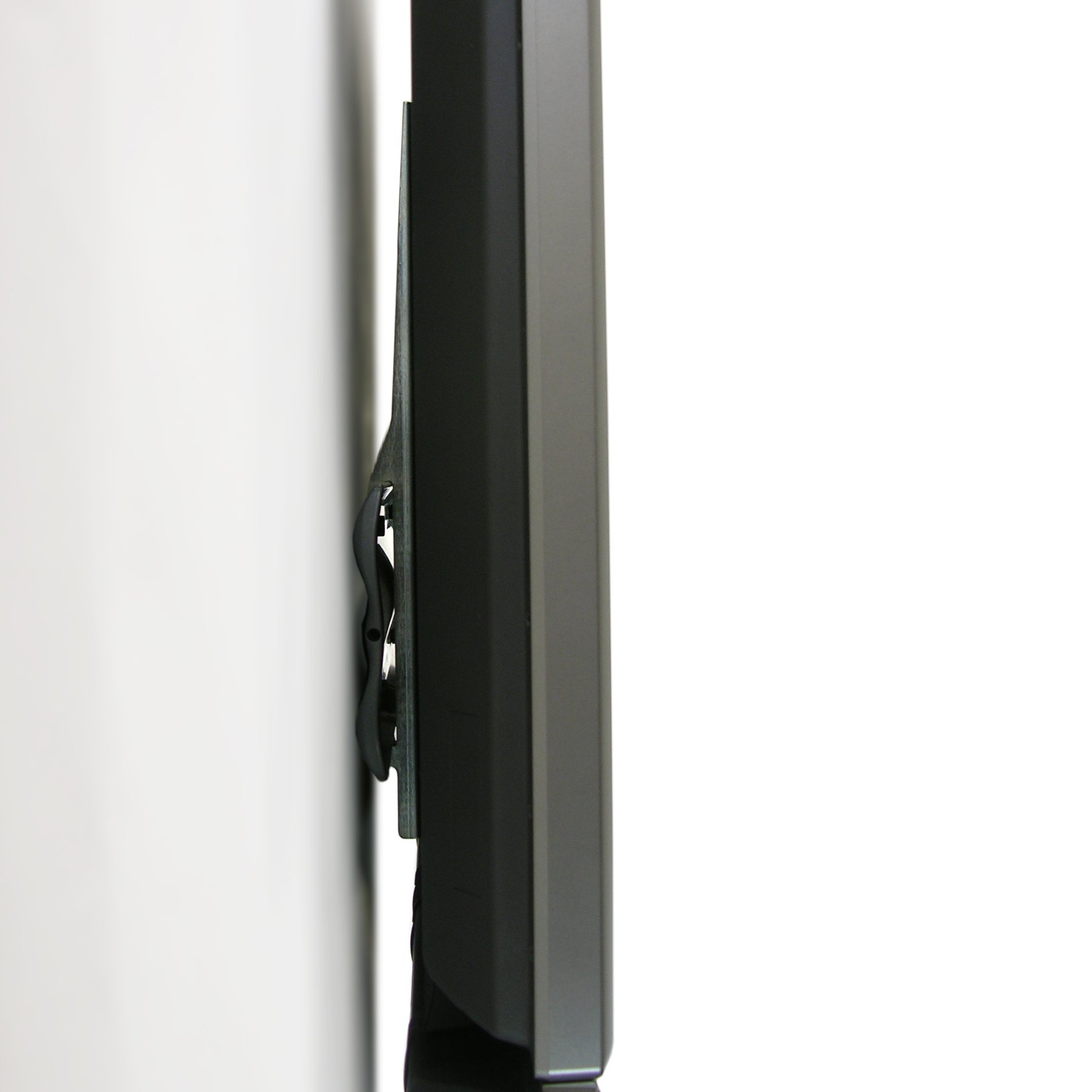

|Profile off the Wall||1.25" (32 mm)|
|UL Certified and Listed||UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)|
|Shipping Dimensions||39.8" W x 10.4" H x 2.2" D (101 x 26 x 5.5 cm)|
|Shipping Weight||12 lbs (5.5 kg)|
|Warranty||Five (5) years|

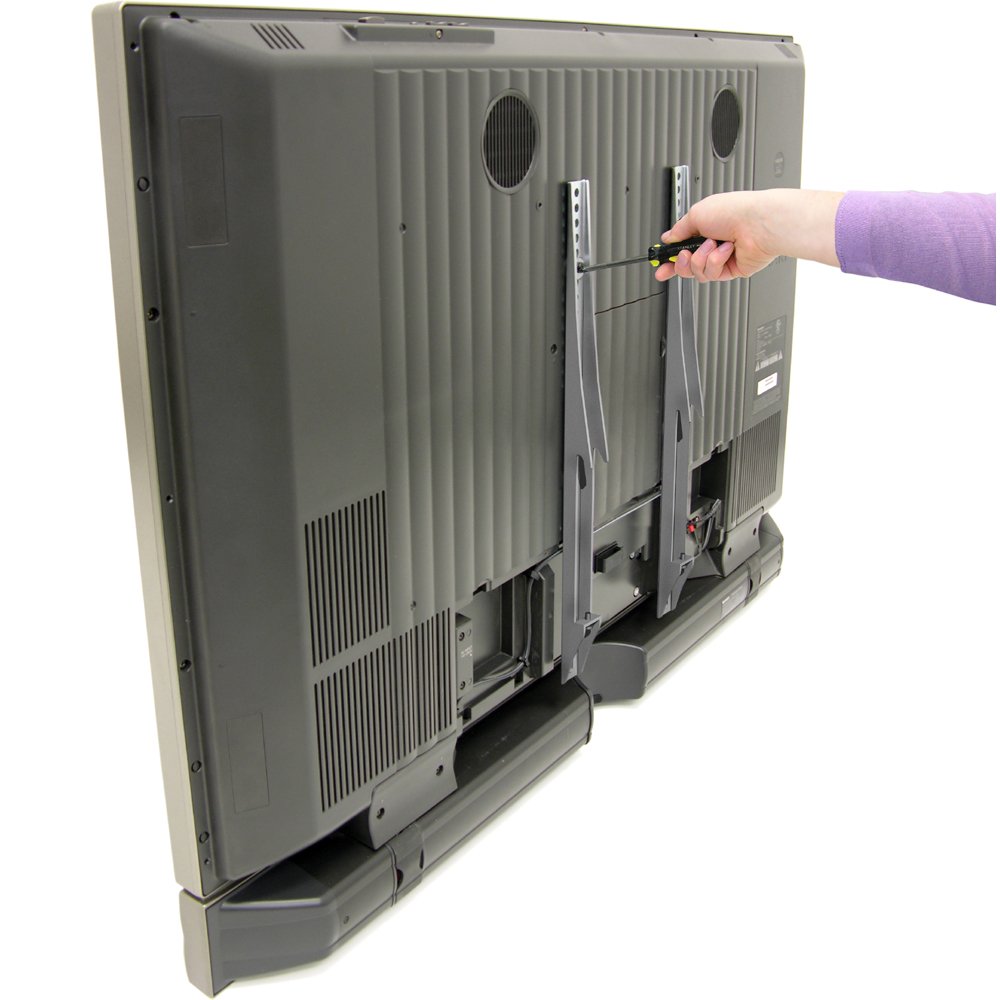

Installs in three simple steps

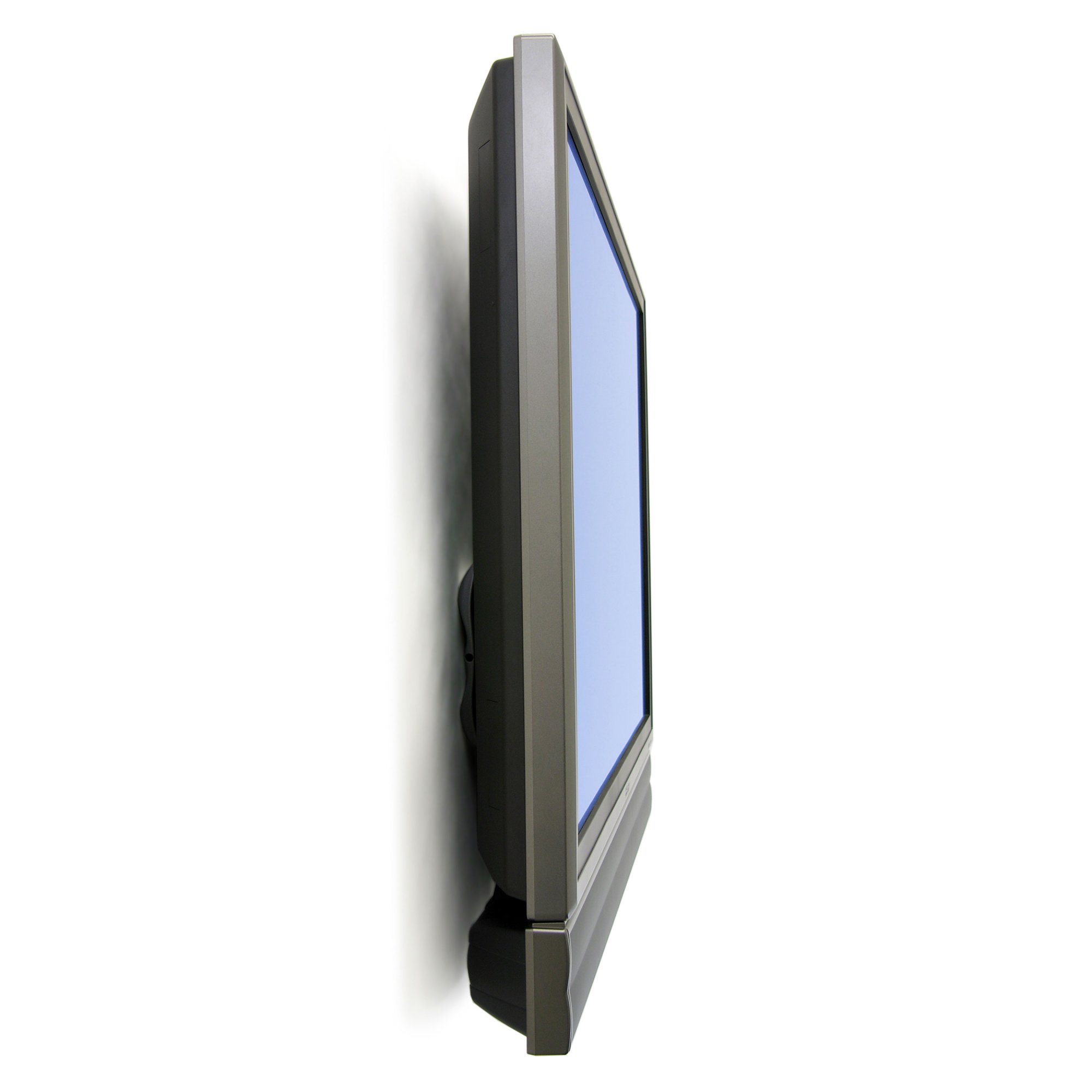

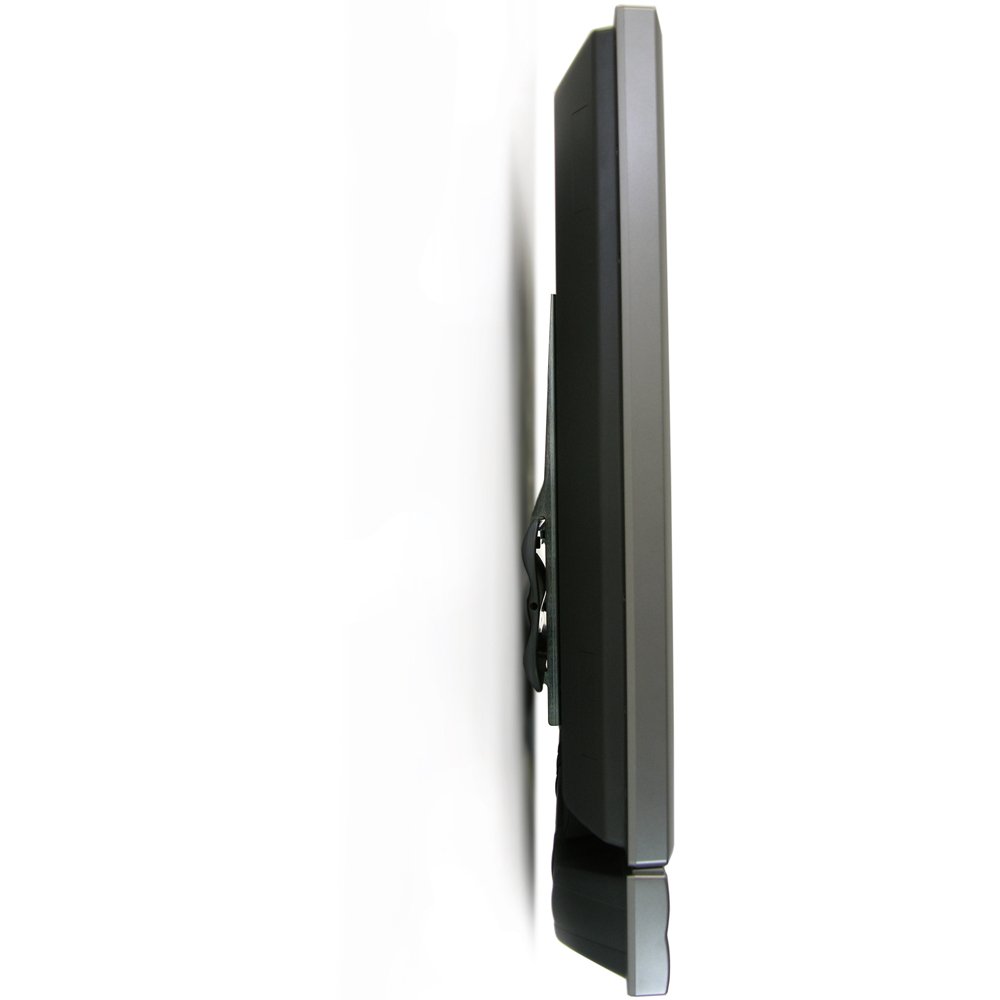

Extremely slim profile - just over an inch from the wall
Fits most screens greater than 42" up to 175 lbs (79 kg)

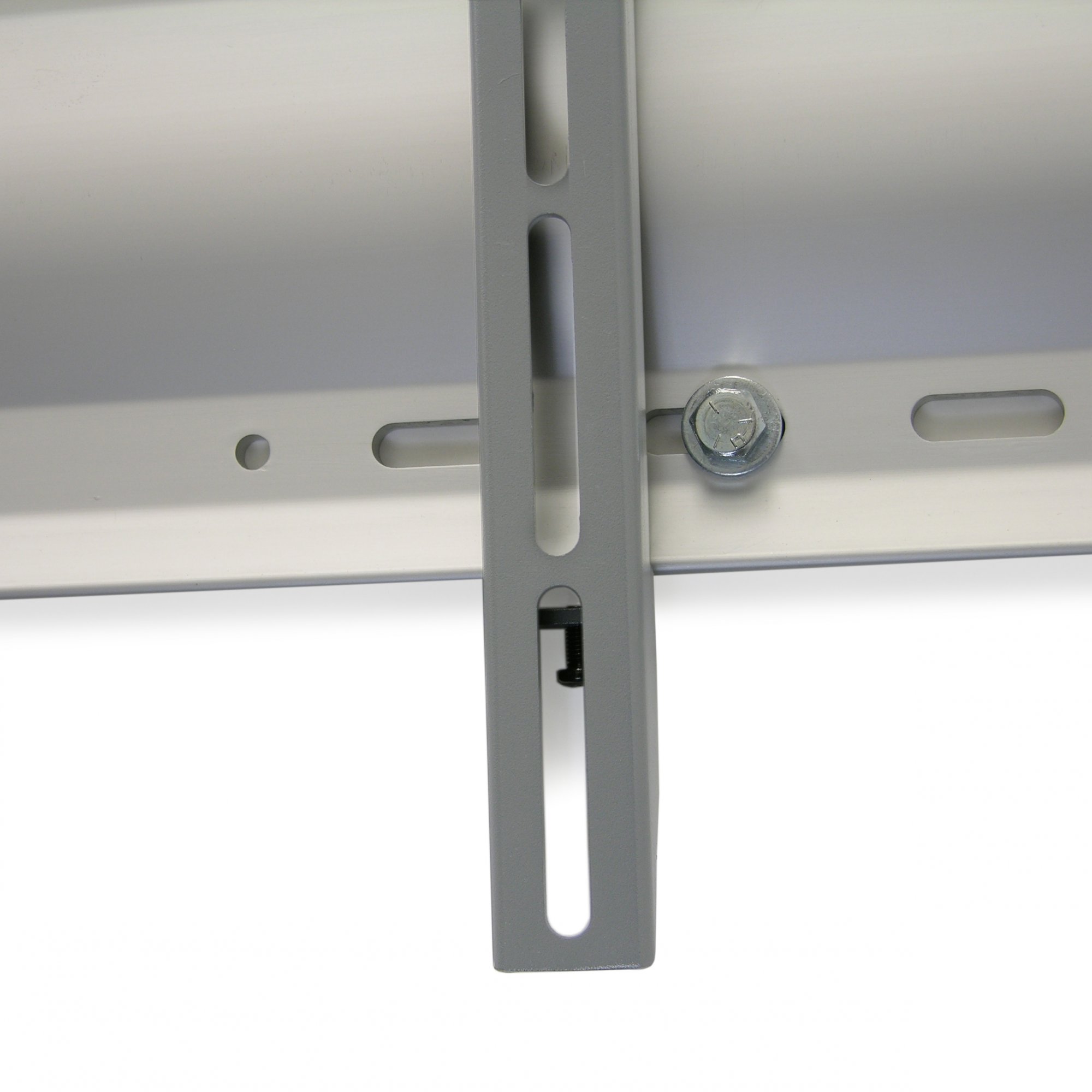

Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display
Includes fasteners for mounting to wood studs or concrete
|Monitor Size||42" and above|
|Weight Capacity||Up to 175 lbs (79.4 kg)|

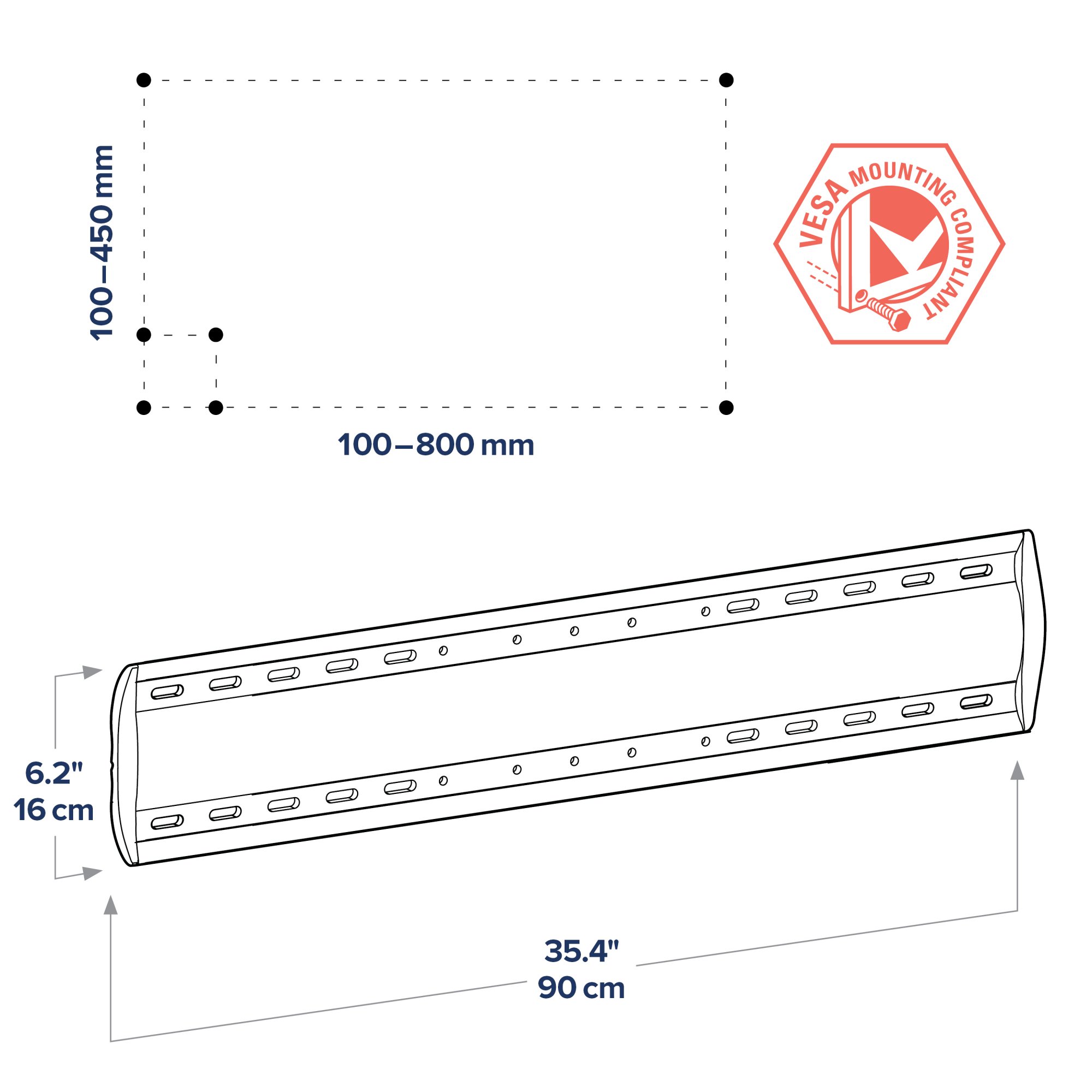

|Mounting Pattern||Universal Display Attachment: Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 800 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.)|
|Profile off the Wall||1.25" (32 mm)|
|Mounting Options||Fixed Wall|
|Shipping Dimensions||39.8"W x 10.4"H x 2.2"D (101 x 26 x 5.5 cm)|
|Shipping Weight||12 lbs (5.5 kg)|
|Warranty||Five (5) years|
