$1,137.00

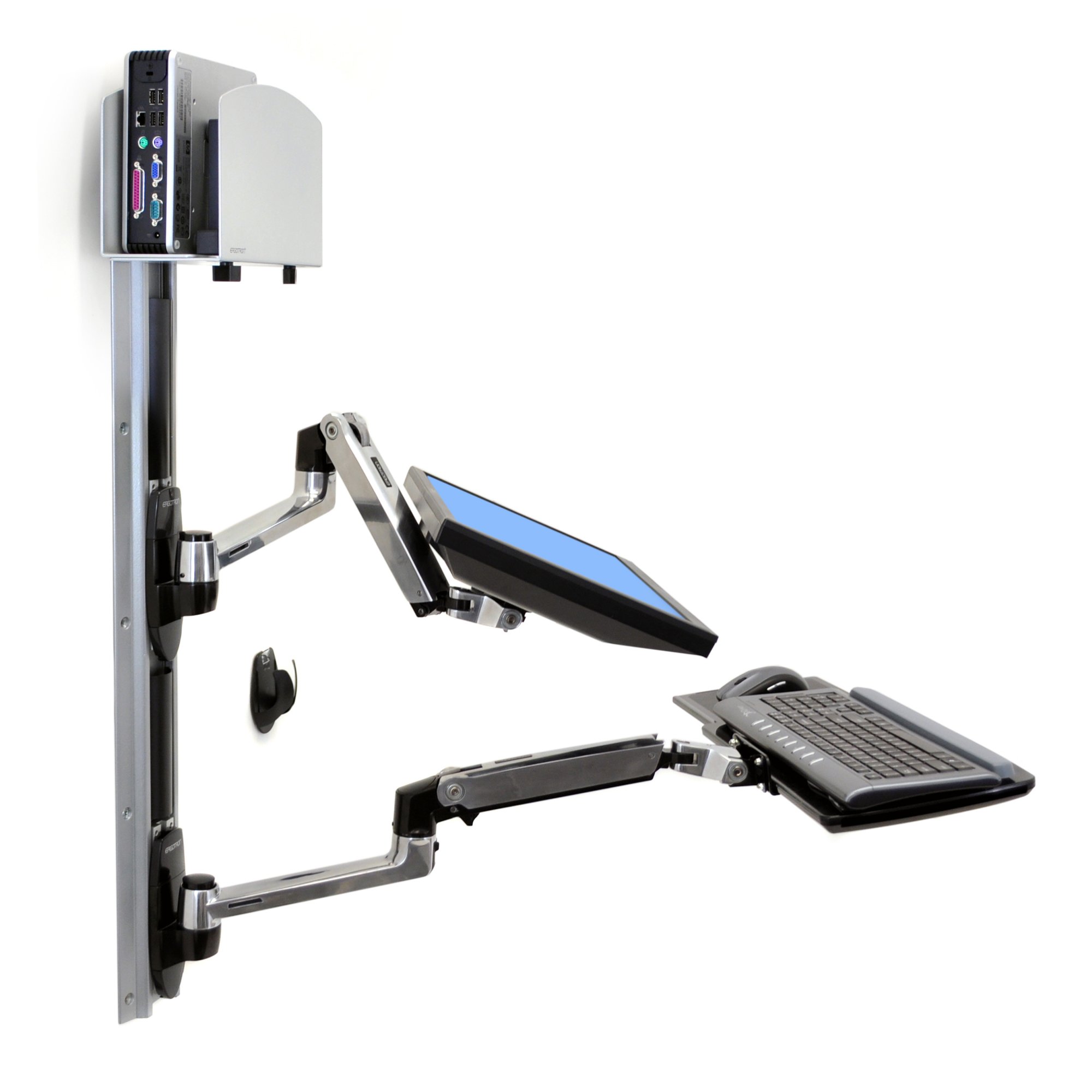

Ergotron 45-247-026 LX Wall Mount System

Product ID 16144
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System

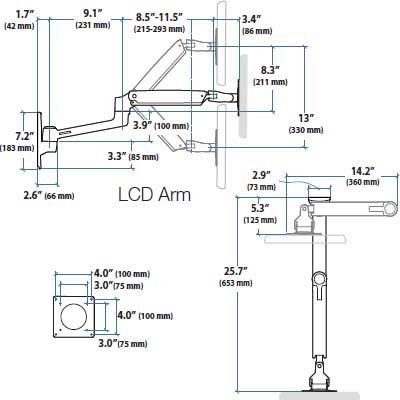

Drawing - LCD Arm

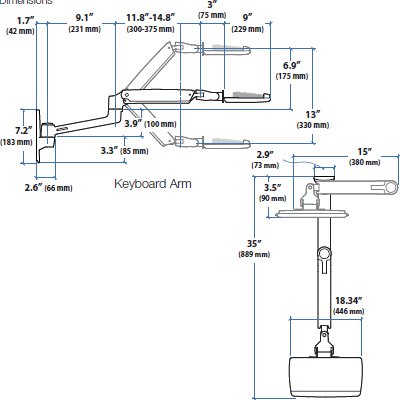

Drawing - Keyboard Arm

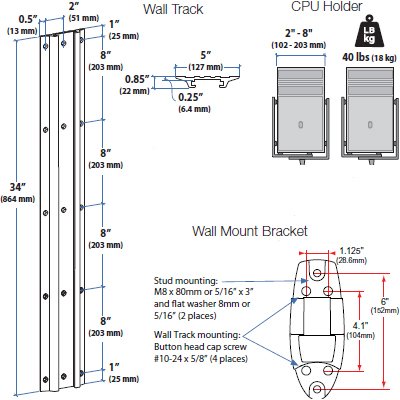

Drawing - Wall Track and CPU Holder
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Drawing - LCD Arm
Drawing - Keyboard Arm
Drawing - Wall Track and CPU Holder
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System
Ergotron 45-247-026 LX Wall Mount System

Animation of Ergotron 45-247-026 LX Wall Mount System

Description

Ergotron 45-247-026 comes with medium silver CPU holder. It is made with durable polished aluminum construction. It is a complete solution that accommodates an LCD, keyboard and CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

Technical Drawing

Technical Drawing for Ergotron 45-247-026 LX Wall Mount System

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 32"

5-25 lbs

2.3-11.3 kg

13"

33.0 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-247-026
Description LX Wall Mount System (polished aluminum)
Includes
  • 10" and 34" Wall Tracks with (2) black track covers

  • LX Wall Mount LCD Arm

  • LX Keyboard Arm, wrist rest

  • Mouse holder

  • Medium CPU Holder

  • CPU spacer

  • CPU and Arm track mount bracket kits

  • Two (2) 10" Cable Channels

  • Mounting kits for hollow-wall and wall-stud installation

Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics

  • Snap-fit cap secures interface of arms to extensions for greater stability

Weight Capacity Display = 5–25 lbs (2.3–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Size Range 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder Includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width
Base Includes theft deterrent anchor holes for cable locks
Product Weight 30.7 lbs (14 kg)
Shipping Dimensions 37" x 22 " x 7.5" (94 x 56 x 19 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Ten (10) years

Benefits

  • Articulating arms feature full tilt/pan capability and 13" (33 cm) height adjustment, providing premium ergonomic adjustment

  • Extends LCD up to 25" (64 cm); keyboard tray extends up to 35" (89 cm); push your display and keyboard out of the way when not in use

  • Ideal for space-constrained rooms - keyboard folds to within 3.5" (9 cm) of wall in storage position. LCD arm folds back to a depth of 5.3" (13 cm)

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Creates a complete and compact workstation

  • Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient

  • Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • Patented Constant Force lift-and-pivot motion technology

Frequently Asked Questions

q Please describe lift mechanism of this product. Do you have to loosen/tighten a bolt, or does it just "float " up and down with minimal lift/pressure?
a

Both the monitor and keyboard tray of Ergotron 45-247-026 move independent of each other with minimal lift/pressure. If you see the installation instruction PDF file, on page 14 (step 13), there is an "adjustment step." This is suggested if movements are too easy or too difficult or if the product does not stay in desired positions. But other than those times when you feel the need to adjust, you would not need to loosen or tighten a bolt to move the product up and down on a daily basis.

Model 45-247-026
Manufacturer Ergotron
Part Number 45-247-026
UPC 698833012057
Weight lb(s)
Color Polished aluminum
Monitor Size Up to 32"
Weight Capacity 5–25 lbs (2.3–11.3 kg)
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder.
Shipping Dimensions 37" x 22 " x 7.5" (94 x 56 x 19 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Ten (10) years
Mounting Options Wall
Monitor Arm Types Monitor/Keyboard
Weight 30.7 lbs (14 kg)
