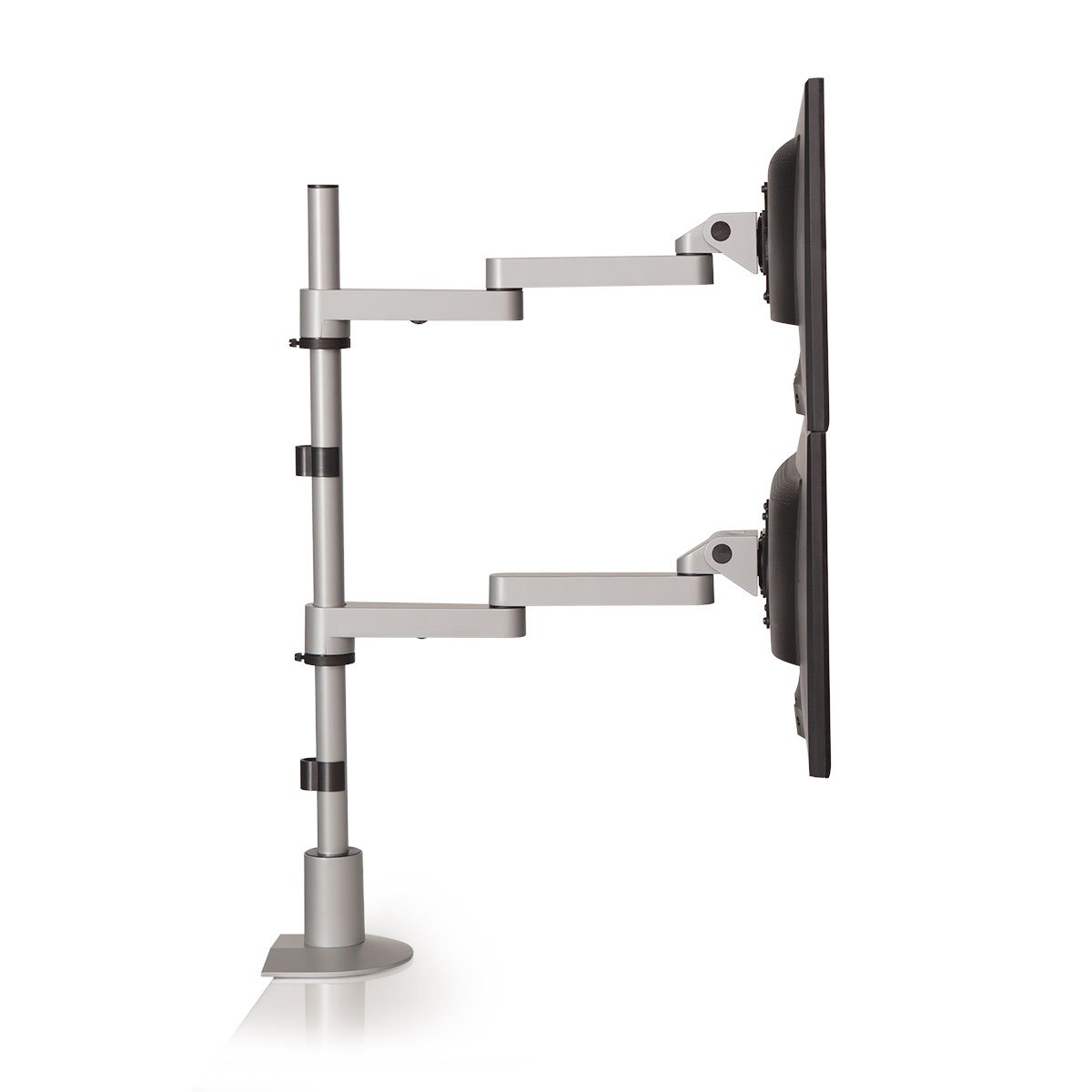

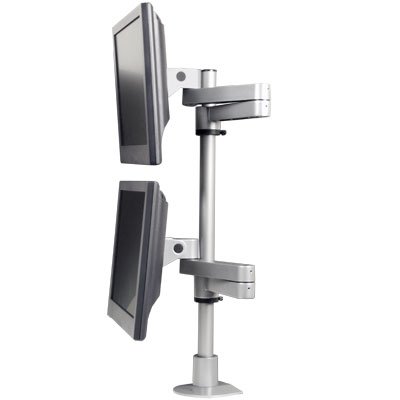

Innovative 9130-D-28 Long Reach Dual Monitor Mount - 28" Pole

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Product ID 16511

Innovative FLEXmount

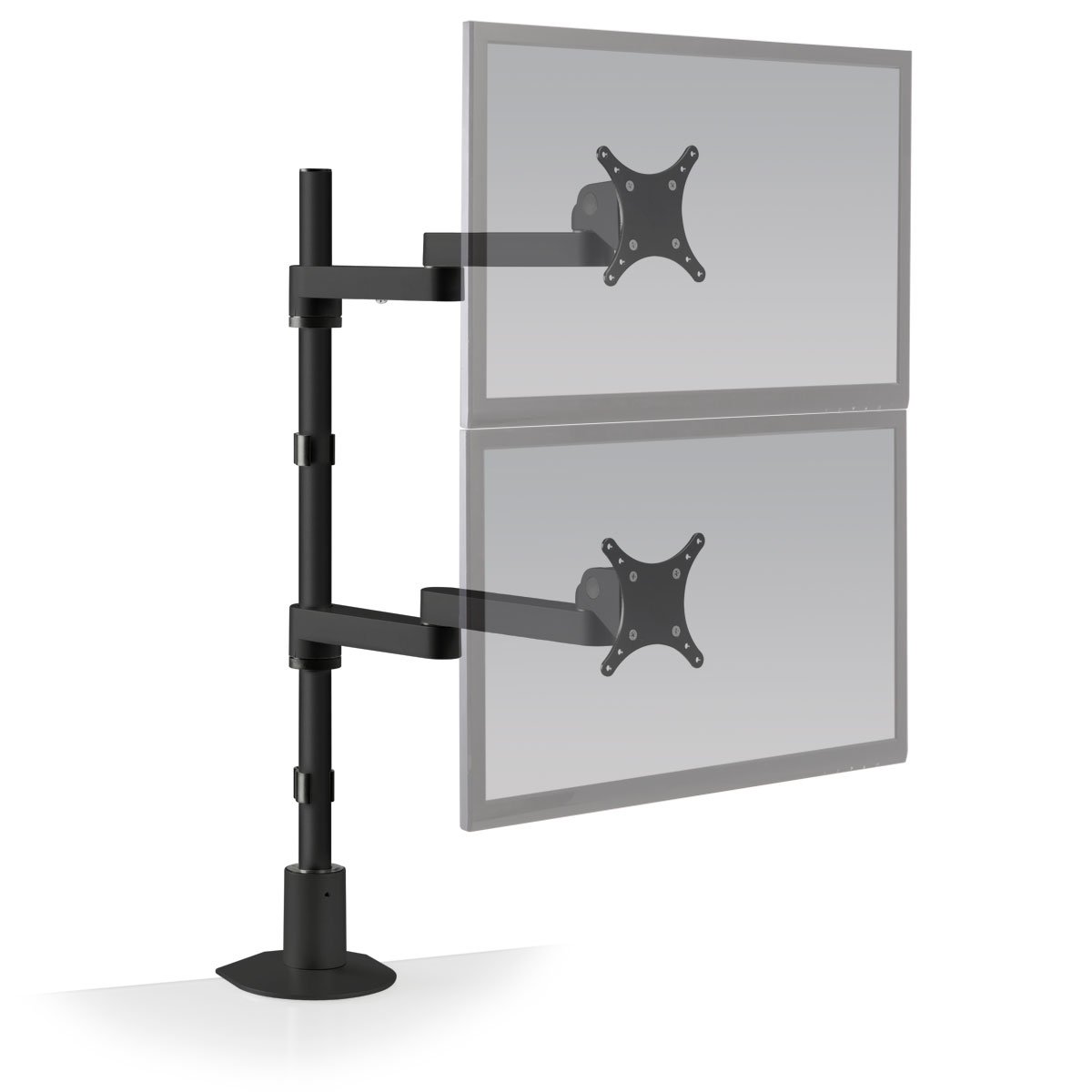

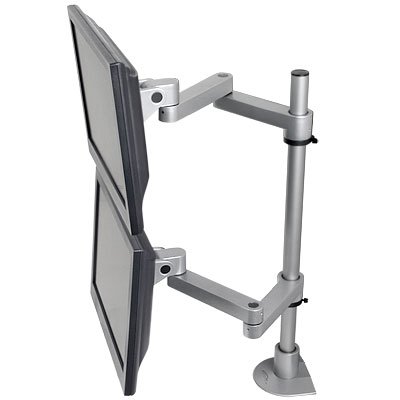

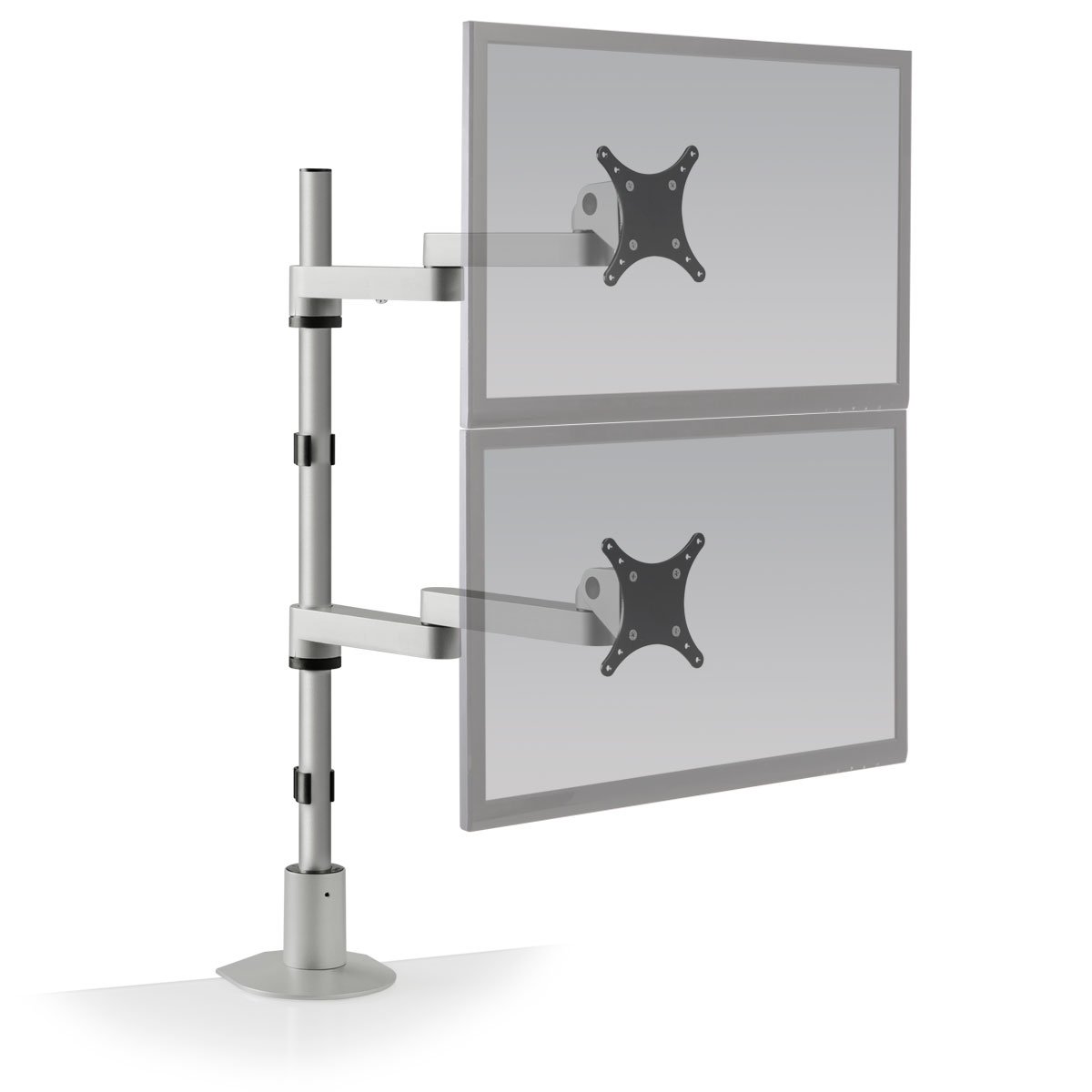

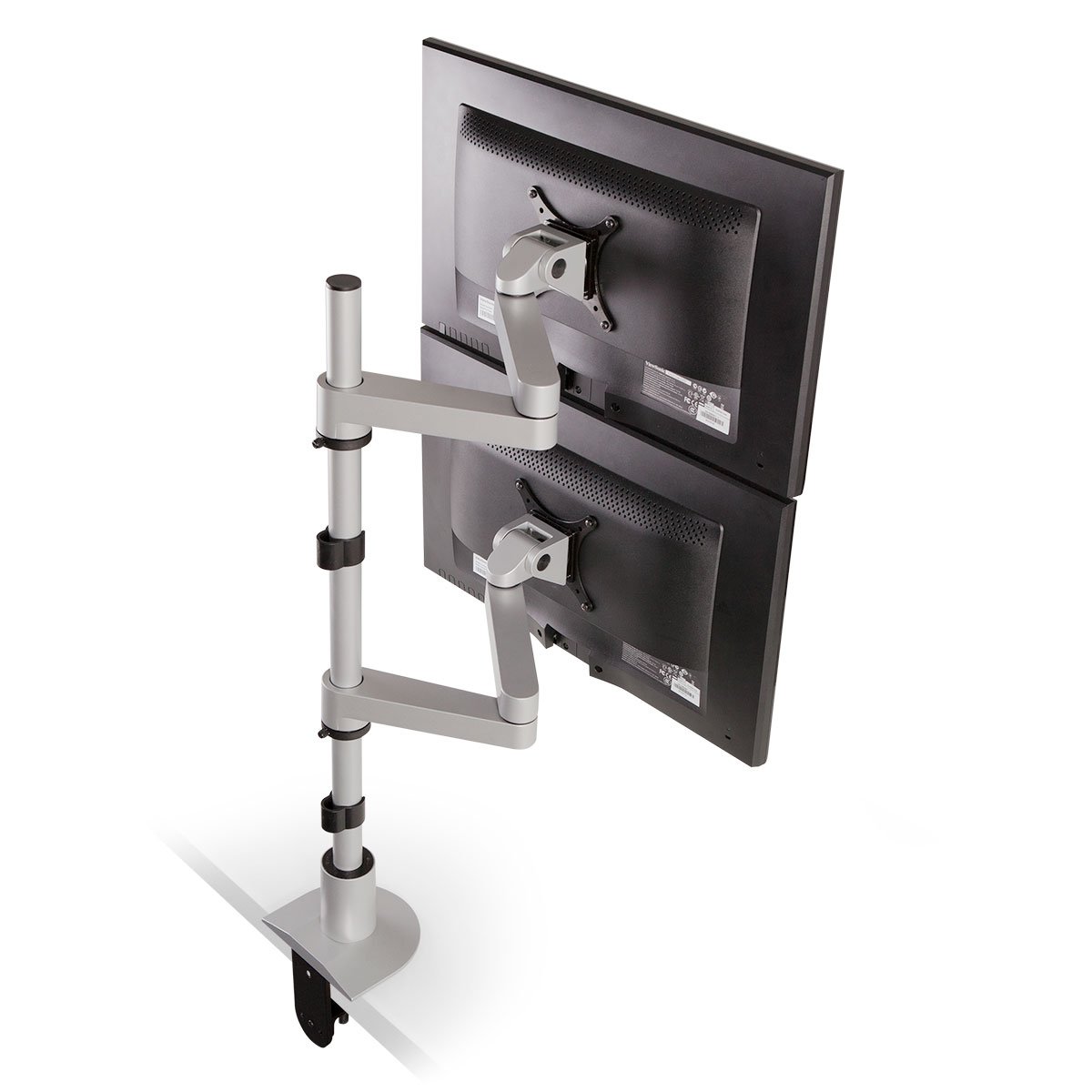

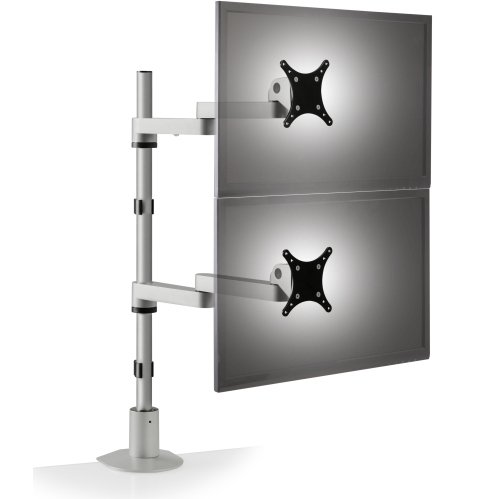

Comparable to our 9112-D model, Innovative 9130-D-28 dual monitor stand offers extended reach of 16". Monitor folds back to fit within 3" of the standard 28" usable part of the pole (length 29.2" before mount), whose outer diameter is 1-3/16". This mount's foldable arms are adjustable vertically along the pole and support 33 lbs per monitor. Each monitor is independently adjustable .

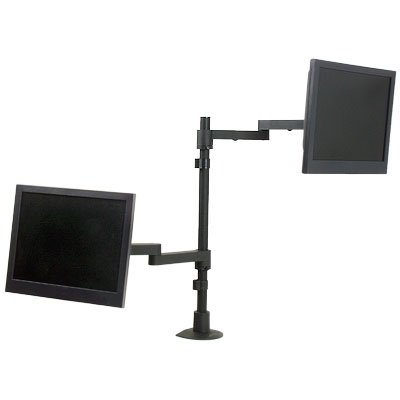

Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to be tucked under the forearm extensions. Save valuable desk space with 9130-D-28 long reach monitor pole mount. This articulating monitor mount suspends two monitors above desk. Each monitor arm extends 16″ and allows for independent pivot and tilt.


Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

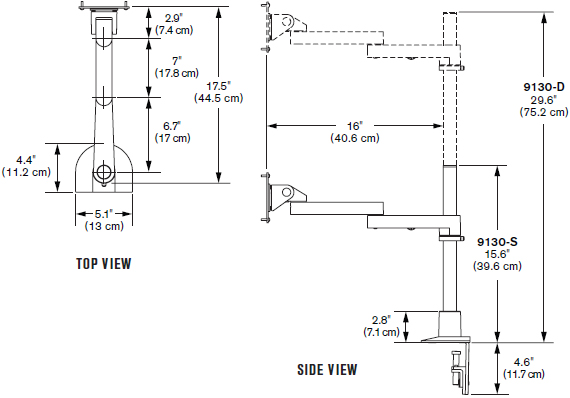

Technical Drawing

Technical Drawing for Innovative 9130-D-28 Long Reach Dual Monitor Mount - 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 27"
Extension Range 17.5" (44.5 cm)
Pivot Landscape / Portrait
Rotation Three rotation joints
Pole Height 28" (71.12 cm)
Monitor Tilt 200 degrees
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm adapter included
Weight Capacity Up to 33 lbs (15 kg) per monitor
Warranty 10 years


  • FLEXmount with 6 mounting options is available for Dual LCD monitor stand

  • Standard 28" pole included. Call for custom size options

  • Dual flat panel mount’s foldable arms are adjustable vertically up and down along the pole

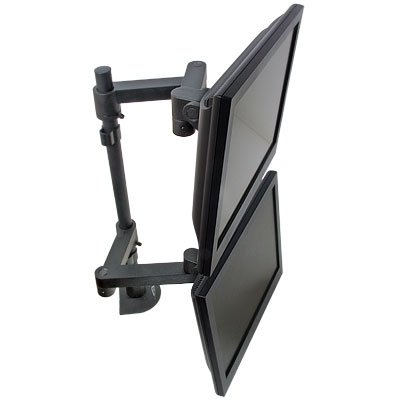

  • The arms can fold up to fit in about 3" of space and extend out 16" from the mount

  • Users can position the LCD arm with the touch of a finger

  • Arm rotates 360° at three joints, the tilt mechanism can tilt over 200°

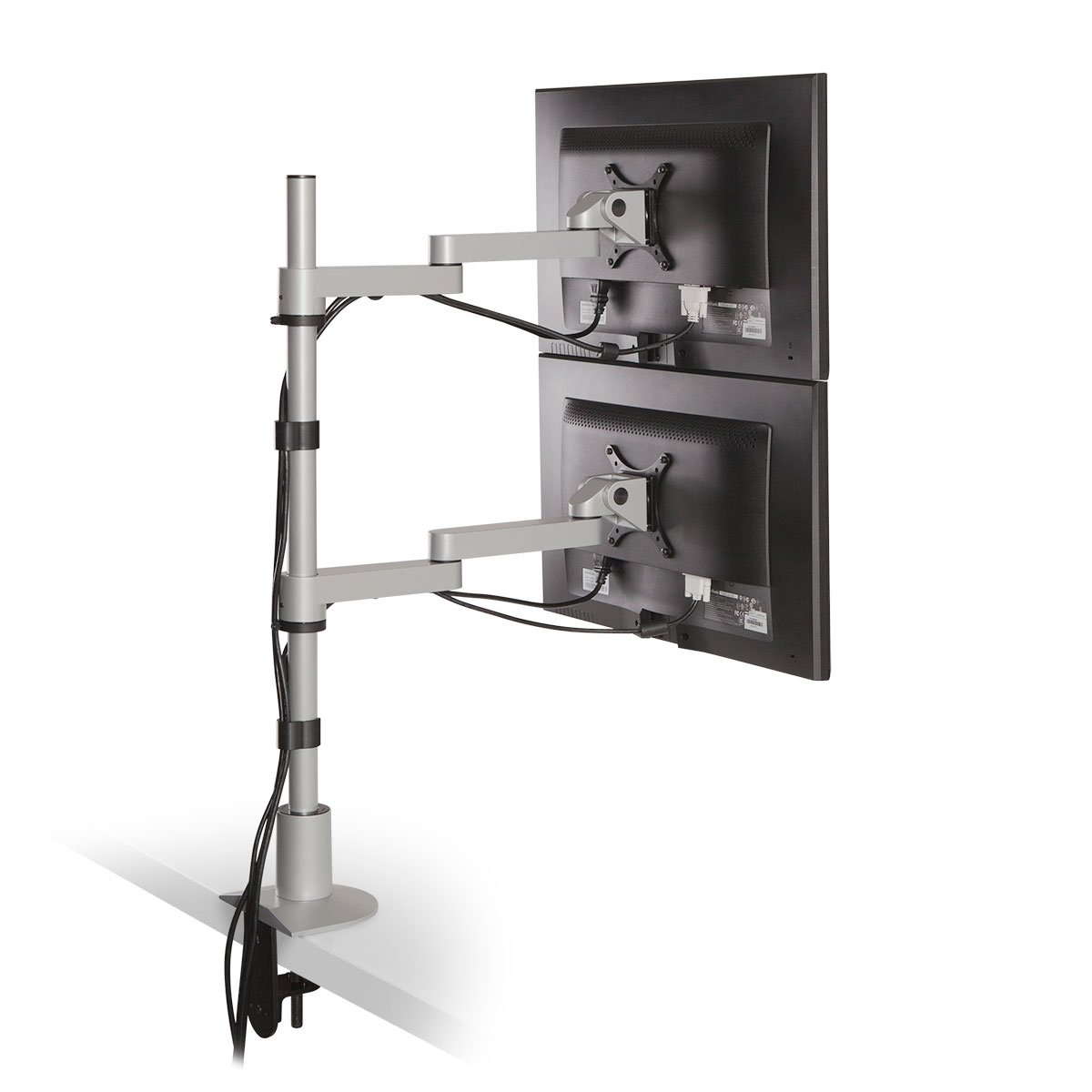

  • Cable management allows the cables to be hidden in the arm

  • Accessory products are available for holding keyboards or notebook computers

  • Each monitor on the dual monitor stand can be adjusted independently

  • The dual flat panel pole mount is VESA-monitor compatible - 100mm VESA adapter included. Please call for non-VESA options

  • LCD monitor stand can be combined with all Innovative mount options (sold separately)

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details

Model 9130-D-28
Manufacturer Innovative LCD Arms
Part Number 9130-D-28
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Color 104 - Vista Black, 124 - Silver
Horizontal Range 16"
Pole Length 28"
Tilt 200 degree degree
Rotation 360 degree
Mounting Pattern VESA 100mm
Monitor Weight Up to 33 lbs (15 kg) per monitor
Extension 17.5" (44.5 cm)
Pivot Landscape / Portrait
Warranty 10 years
Maximum Monitor Size 27"
Monitor Placement Stacked One Over the Other
