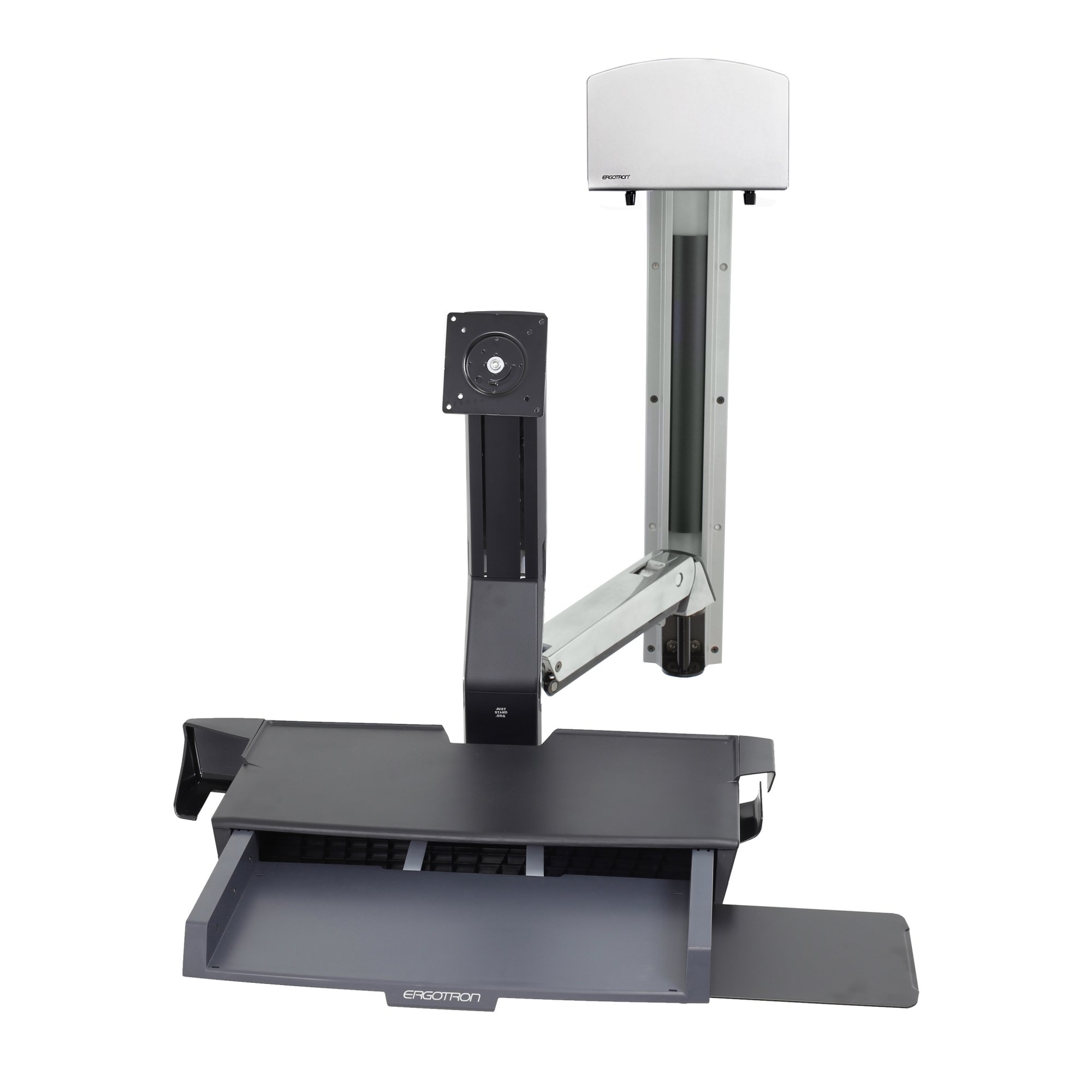

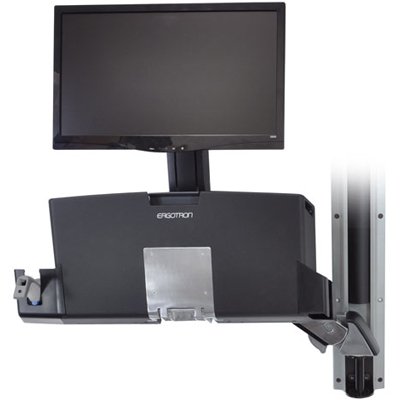

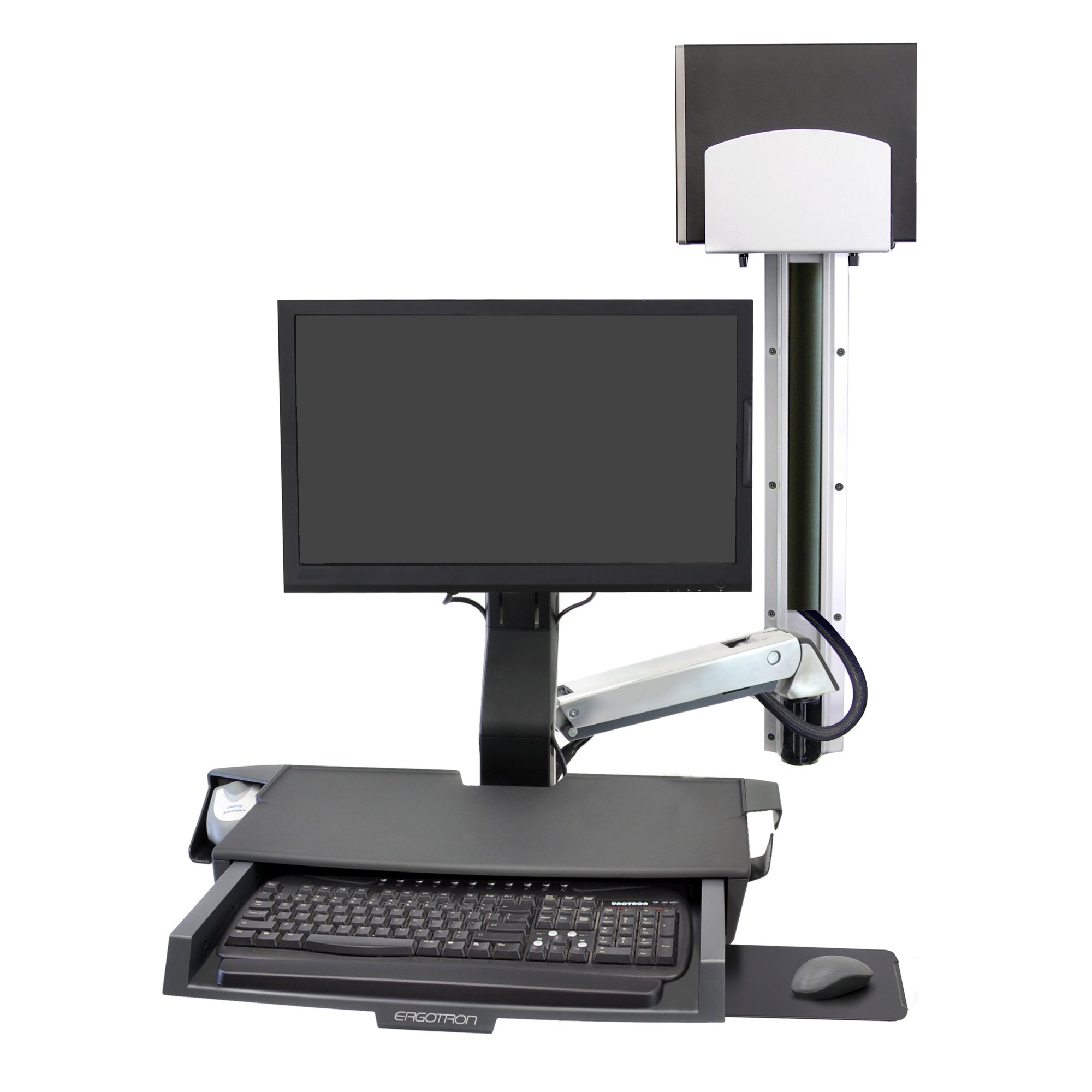

Ergotron 45-270-026 StyleView® Sit-Stand Combo System, Worksurface

5 out of 5 (based on 1 review)
Product ID: 16735
Highlights
  • A Complete Wall mount Sit-Stand Workstation with Medium CPU Holder
  • Moves the monitor, keyboard, mouse and barcode scanner in one single move
  • Work sitting or standing: 25" of height adjustment
  • 43" horizontal extension: Extends the monitor and keyboard 43" from the wall
  • Weight Capacity: Mounts monitors from 6-18 lbs; CPUs up to 40 lbs
  • CPU Size Range: 3-3/8" to 8" wide
  • Up to 24" monitor size; Can be configured to hold a laptop instead of a monitor

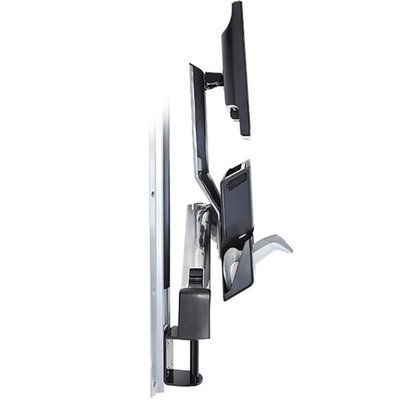

  • Sit-stand folds back out of the way; when in storage position, the depth is 8" from the wall
Recommended Accessories
List Price: $1,595.00
Our Price: $862.00
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

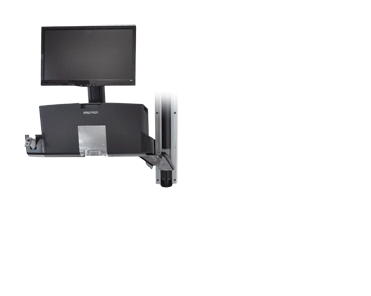

Animation of Ergotron 45-270-026 StyleView Sit-Stand Combo System, Worksurface

Description

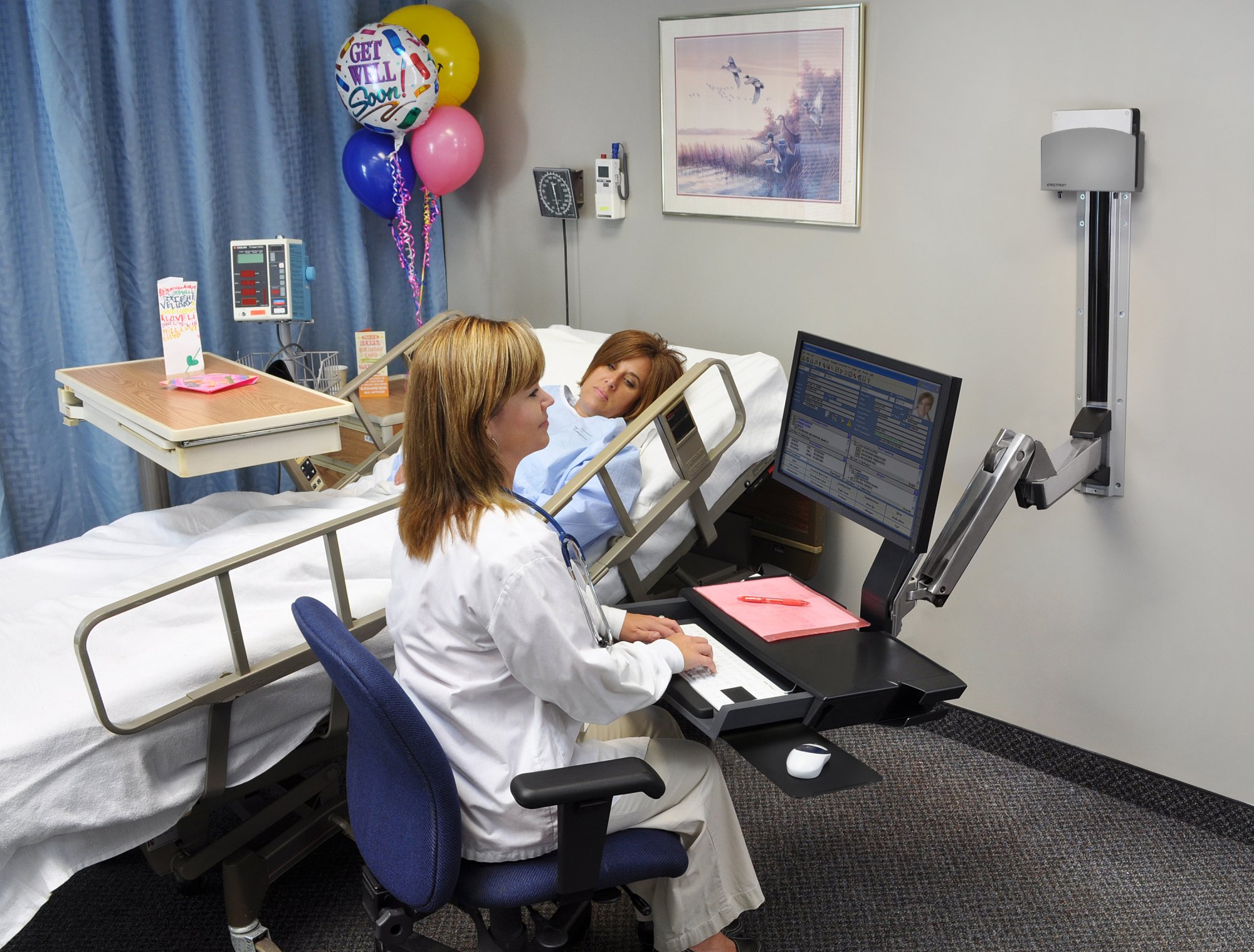

Ergotron 45-270-026 is designed for healthcare environment in mind. This complete workstation with an Arm to hold the monitor, keyboard tray, barcode scanner, mouse tray and a worksurface, comes with a medium CPU holder. The high level of vertical and side to side adjustability allows the workstation to be used sitting or standing. The combo system is mounted on a wall track and moves in one single motion.

It comes with medium silver CPU holder. This complete system provides easy re-positioning of your entire workstation - move your display, keyboard, mouse and barcode scanner in a single motion.

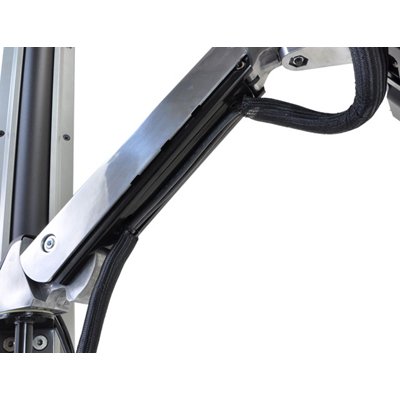

Durable polished aluminum construction. Also features a worksurface with pull-out keyboard tray, which facilitates caregiver workflow. Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

Technical Drawing

Technical drawing for Ergotron 45-270-026 StyleView Sit-Stand Combo System, Worksurface (polished aluminum)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 32 lbs

14.5 kg

25"

63.5 cm

30° 360° 90° MIS-D

Product Information

Part Number 45-270-026
Description StyleView Sit-Stand Combo System with Worksurface and Medium CPU Holder (polished aluminum)
Includes
  • Combo Arm

  • 34" Wall Track with (2) black track covers

  • Medium Silver CPU Holder

  • CPU spacer

  • (2) 10" cable channels

  • CPU and Arm track mount bracket kits

  • Wall Track fasteners for concrete and wood

  • CPU direct wall mount kit

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner and mouse holders

  • Integrated keyboard tray

  • Slide-out mouse tray

  • Handle

  • VESA monitor mounting kit

  • Cable ties

Exterior Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg)
Lift Range LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
Tilt Monitor up/down tilt = +25°/-5°
CF Technology Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Mouse and Barcode Scanner Holder Integrated mouse and barcode scanner holder provide easy access

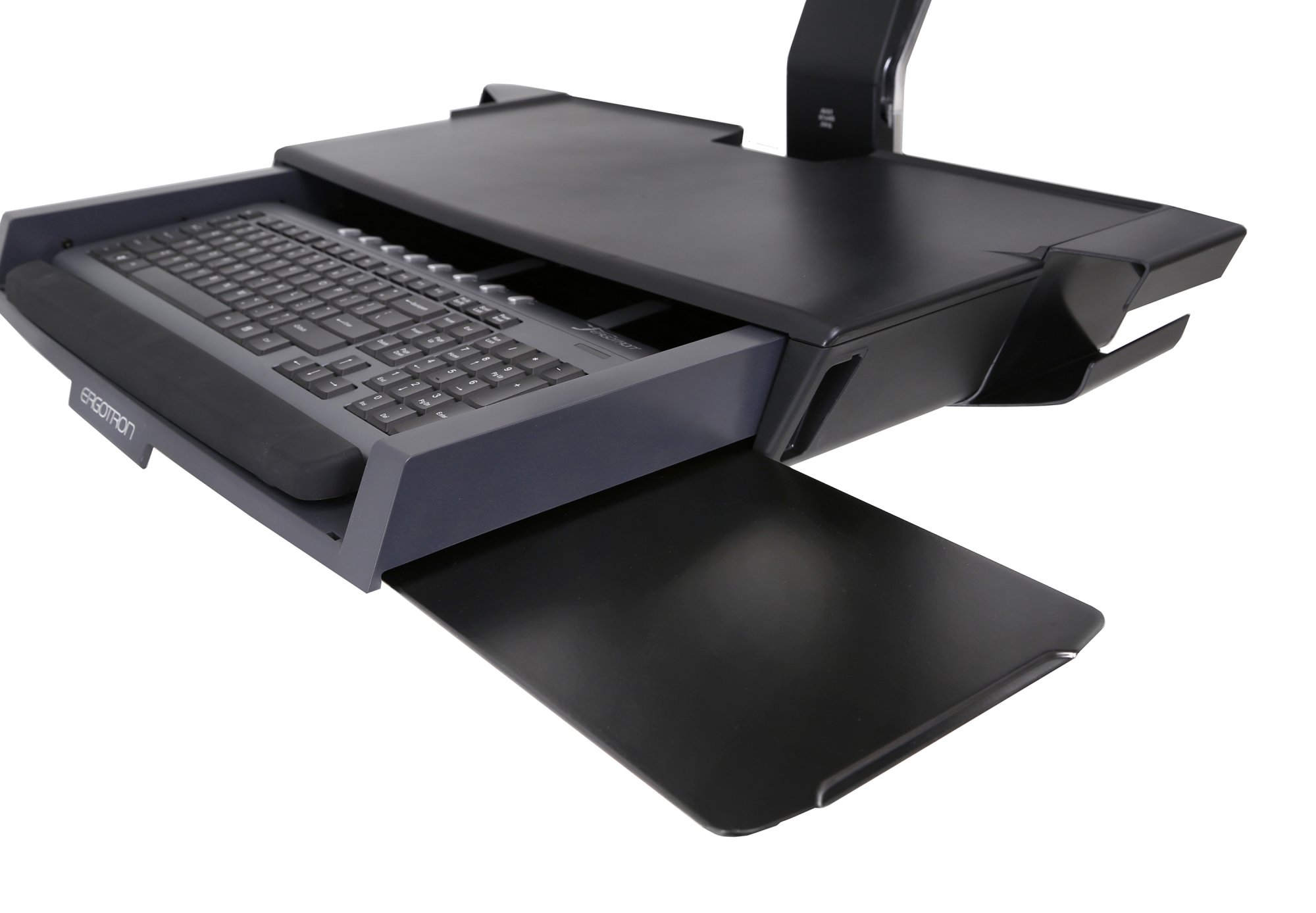

Worksurface/Keyboard Tray Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
Keyboard Tray Back-tilt keyboard tray adjustable from 0° to -10°
CPU Size Range 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder Includes fasteners for locking the holder’s width
Extender Optional Extender (45-261-026) increases range of motion for even greater reach
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Product Weight 41 lbs (19 kg)
Shipping Dimensions 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight 51 lbs (23 kg)
Warranty Five (5) years

Benefits

  • Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)

  • Handle-contact surfaces and Wrist Rest are treated with Agion Antimicrobial for product protection

  • Flexible, open-architecture design is scalable for future computer equipment

  • Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) single-motion lift adjustment

  • Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users

  • Easy-to-clean features promote superior infection control

  • Barcode scanner holder provides easy access to hand-held scanner

  • Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)

  • Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface

  • Maintains the relative position of screen and keyboard throughout full range of motion

  • Clean, concealed and neat routing of cables through the expansive cable management system

Model 45-270-026
Manufacturer Ergotron
Part Number 45-270-026
UPC 698833018165
Color Polished Aluminum/Black
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg)
Lift (64 cm) 25 in
Tilt Up +25 degree/ Down -5 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Weight 51 lbs (23 kg)
Shipping Dimensions 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Warranty Five (5) years
Pan 360 degree
Rotation 90 degree
Worksurface Dimensions 22.75"W x 10.6"D (57.8 x 26.9 cm)
Keyboard Tray Dimensions 18.6"W x 9"D (47.2 x 22.8 cm)
CPU Dimension 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder.
Monitor Size Up to 24"
Weight 41 lbs (19 kg)
Company President happy after installation of Ergotron 45-270-026, Jun 29, 2015
by Donna N.F, Colorado
The President of our company wanted the ability to sit or stand to complete his work. This unit provides the necessary depth for him to modify his station to meet his needs. His original issue was lack of ergonomic mobility. This unit provides that mobility.
1 of 1 voted this review as helpful Was this review helpful to you?
