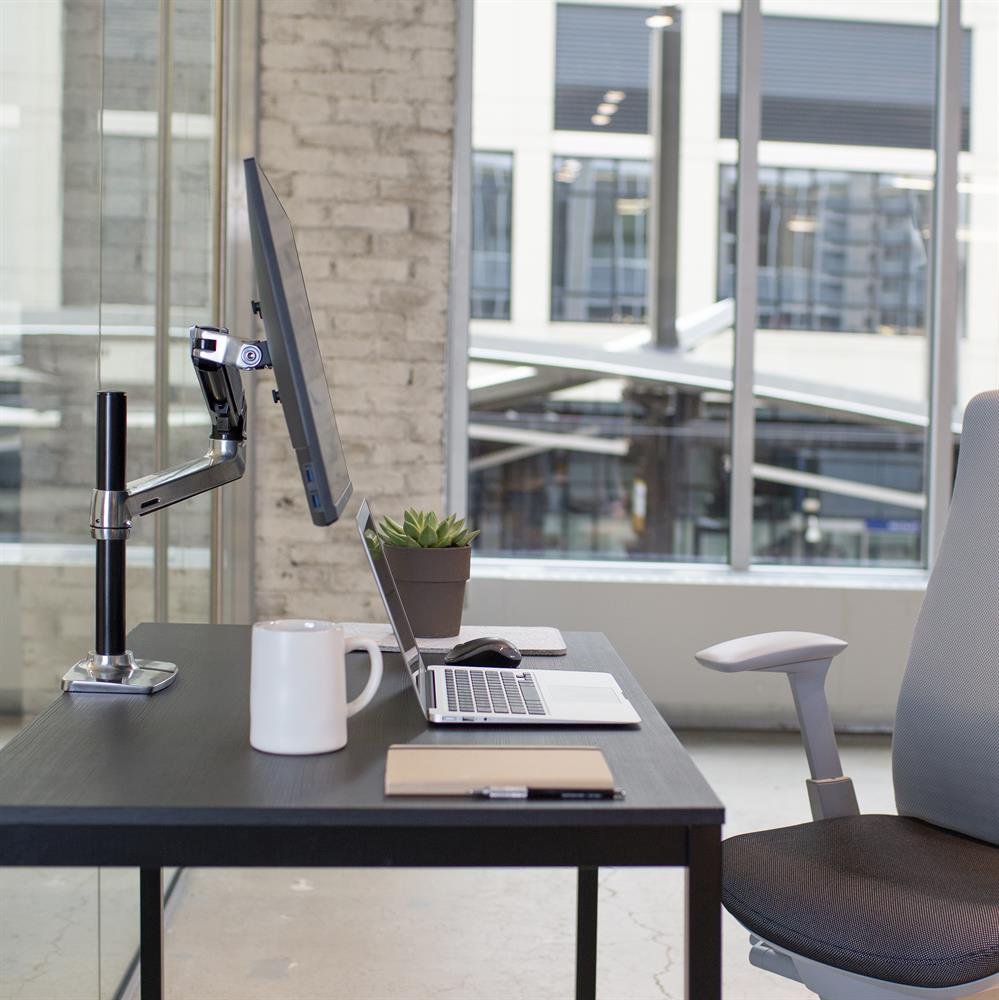

Ergotron 45-295-026 Monitor Arm at work!
Extension of Ergotron 45-295-026 Monitor Arm
Technical drawing of Ergotron 45-295-026 Desk Mount Monitor Arm
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Monitor installed on Ergotron 45-295-026 LX Arm
VESA plate of Ergotron 45-295-026 Monitor Arm
Desk clamp of Ergotron 45-295-026 Monitor Arm
Desk clamp and Grommet mount of Ergotron 45-295-026 Monitor Arm
Ergotron 45-295-026 Monitor Arm at work!
Extension of Ergotron 45-295-026 Monitor Arm
Technical drawing of Ergotron 45-295-026 Desk Mount Monitor Arm
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")
Ergotron 45-295-026 LX Desk Mount Monitor Arm, Tall Pole (13.25")

Highlights

  • Desk mount monitor arm
  • 13" height adjustability: Vertical lift meets needs of most adults
  • 25" horizontal extension: Extends the display to get out of way when not in use
  • Monitor weight Capacity: 7-25 lbs
  • 34" screen size: Holds a monitor with screen size up to 34"
  • Retractability: Can tuck under shelves and cabinets and get out of the way when not in use
  • Height Range: If the arm is placed at the bottom of the pole, the bottom of the monitor will hit the top of the desk
    If the arm is raised to the highest point on the pole, the center of the monitor will be 19.5" from the top of the desk.
  • Please see, if 13" height adjustability is not enough,
Animation of Ergotron 45-295-026 LX Arm with Tall Pole
Ergotron LX Desk Mount Folding Arm

Description

Ergotron 45-295-026 can mount a monitor onto a desk that is up to 34" in screen size and weighs from 5 to 25 lbs. With the flexibility of this arm, the monitor can be extended 25" horizontally and moved out of the way, when not in use. It can also be adjusted 13" vertically. This arm comes with both clamp mount as well as Grommet mount options. For monitors heavier than 20 lbs, the vertical adjustability will be reduced to 8.5" from 13".

Durable steel and polished aluminum construction. Tested to perform 10 times the expected life-cycle of other competitive brands at roughly half the price. Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

Technical Drawing

Technical Drawing of Ergotron LX Desk Mount Arm with Tall Pole

Technical Specifications

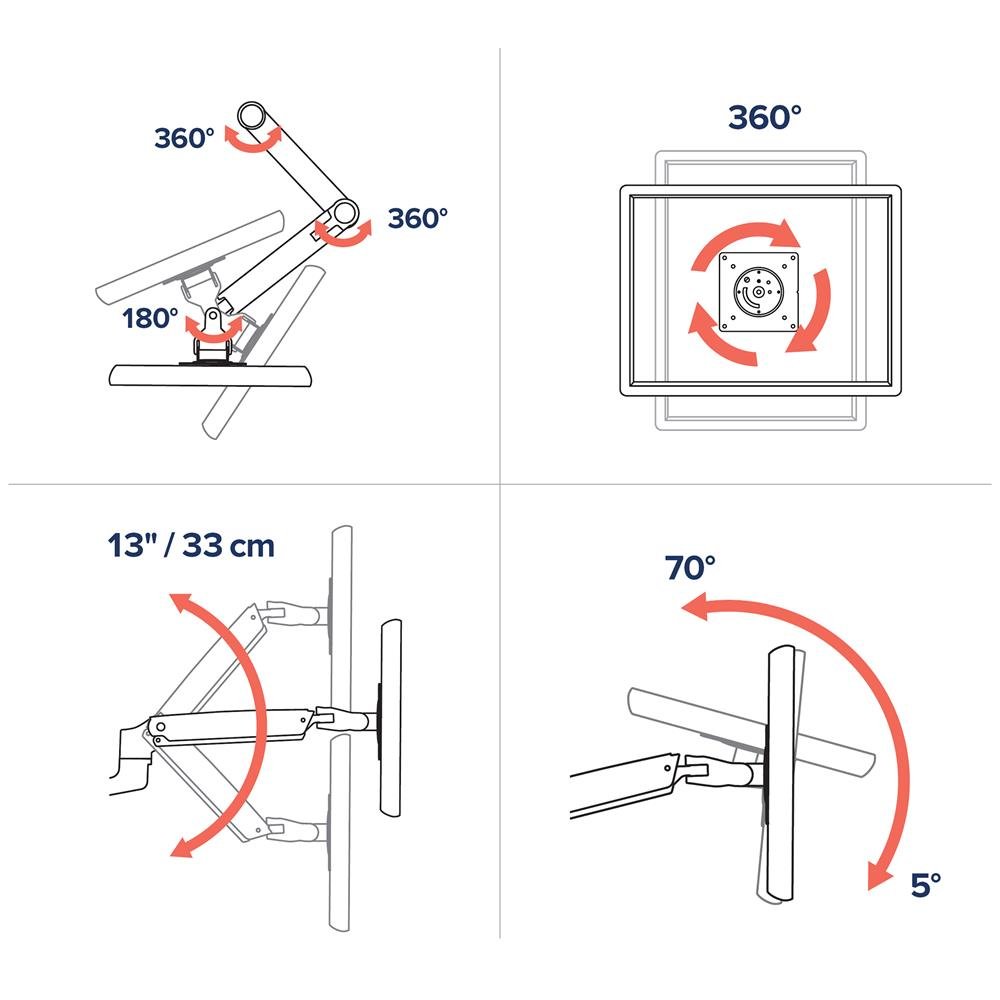

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 34"

7 - 25 lbs

3.2 - 11.3 kg

13"

33 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-295-026
Description LX Desk Mount LCD Monitor Arm, Tall Pole (polished aluminum)
Includes
  • LX arm
  • Tall pole
  • Extension
  • Desk clamp and grommet mount bases
Pole Length 13.25" (34 cm)
Pole Diameter Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 13.25".
LX Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features and Benefits
  • Steel and polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
Mounting Options Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Complies With all international environmental regulations related to its design, manufacture and packaging. Read more about our Environmentally Responsible Process
Shipping Dimensions 23"H x 11.25"W x 7.25"D (59 x 29 x 18 cm)
Shipping Weight 11 lbs (5 kg)
Warranty Ten (10) years

Benefits

  • The LX Desk Mount Arm provides ergonomic comfort
  • By adjusting the display according to the user`s needs, this arm reduces shoulder, neck, back and eye stress.
  • The cable management feature clubs the cables under the arm and out of sight and way of the user.
  • Includes taller pole for greater range of vertical positioning. Position your LCD high above your worksurface for added clearance and increased visibility within your workflow
  • Upgrade LCD monitors and TVs with improved ergonomic adjustment
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Extends LCD up to 25" (64 cm); push your display out of the way when not in use
  • 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Model 45-295-026
Manufacturer Ergotron
Part Number 45-295-026
UPC 698833020625
Color Polished Aluminum
Monitor Size Up to 34"
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg)
Lift (33 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Pole Length 13.25" (34 cm)
Mounting Options Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick.
Pole Diameter Diameter is 1-3/8". Grip is adjustable on the pole. It can be as low as 2" and as high as 5.9".
Shipping Dimensions 23"H x 11.25"W x 7.25"D (59 x 29 x 18 cm)
Shipping Weight 11 lbs (5 kg)
Warranty Ten (10) years
Monitor Arm Types 1 Monitor
