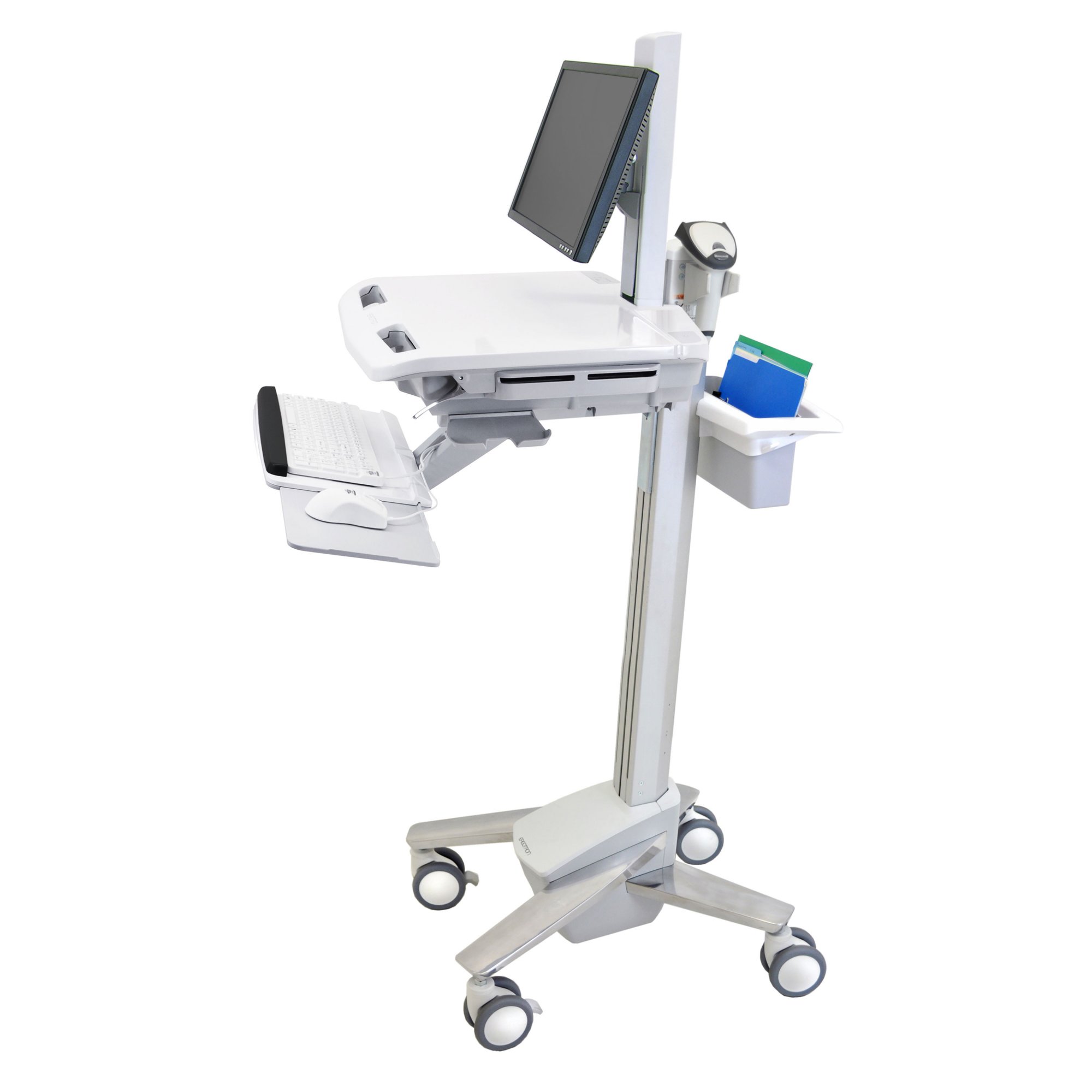

Ergotron SV41-6300-0 StyleView Cart with LCD Pivot

Product ID 17048

Description

Ergotron SV41-6300-0, previously sold as SV41-41021, innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray.

Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love.

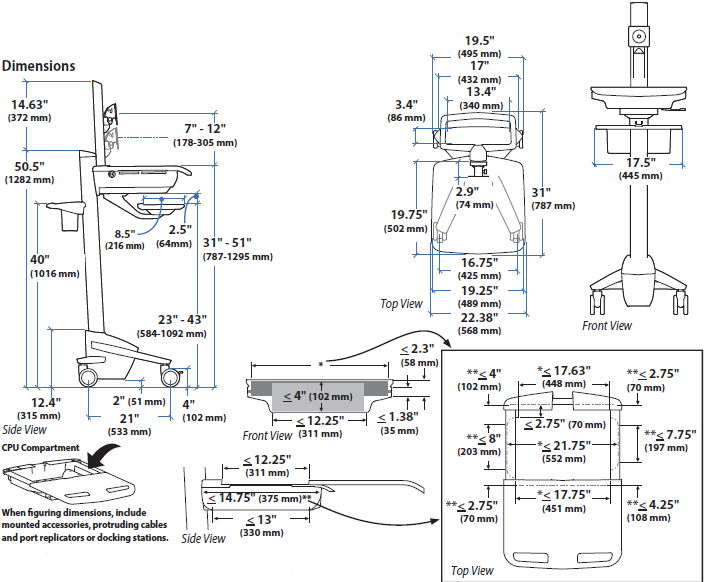

Technical Drawing

Technical Drawing for Ergotron SV41-6300-0 StyleView Cart with LCD Pivot

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 35 lbs

15.9 kg

25"

63.5 cm

25° 24° 90° MIS-D

Product Information

Part Numbers SV41-6300-0
Description StyleView LCD Cart, non-powered, pivot (white, grey and polished aluminum)
Includes
  • LCD pivot

  • Worksurface

  • CPU lock

  • Secure CPU compartment

  • Four-port USB hub

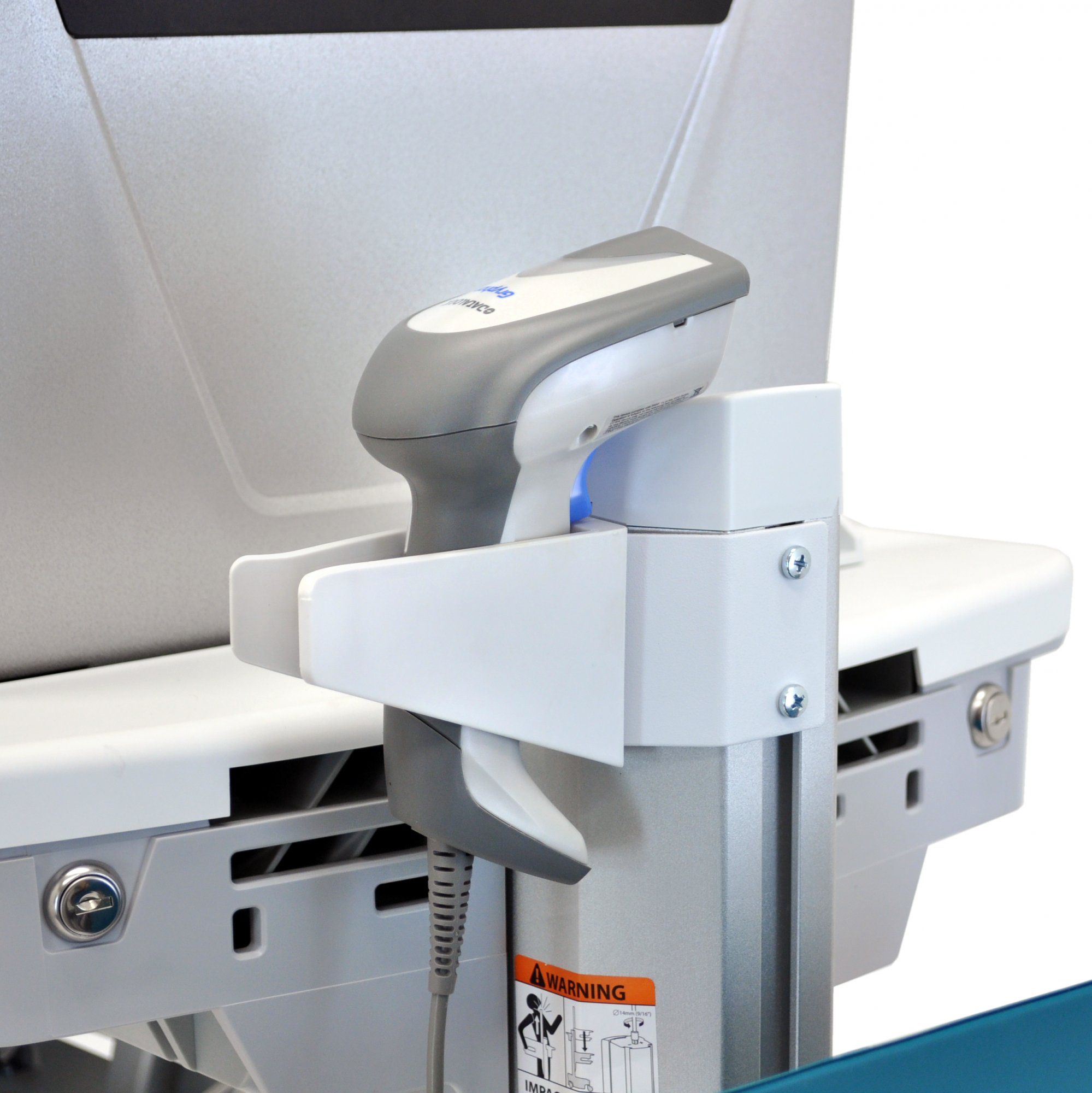

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

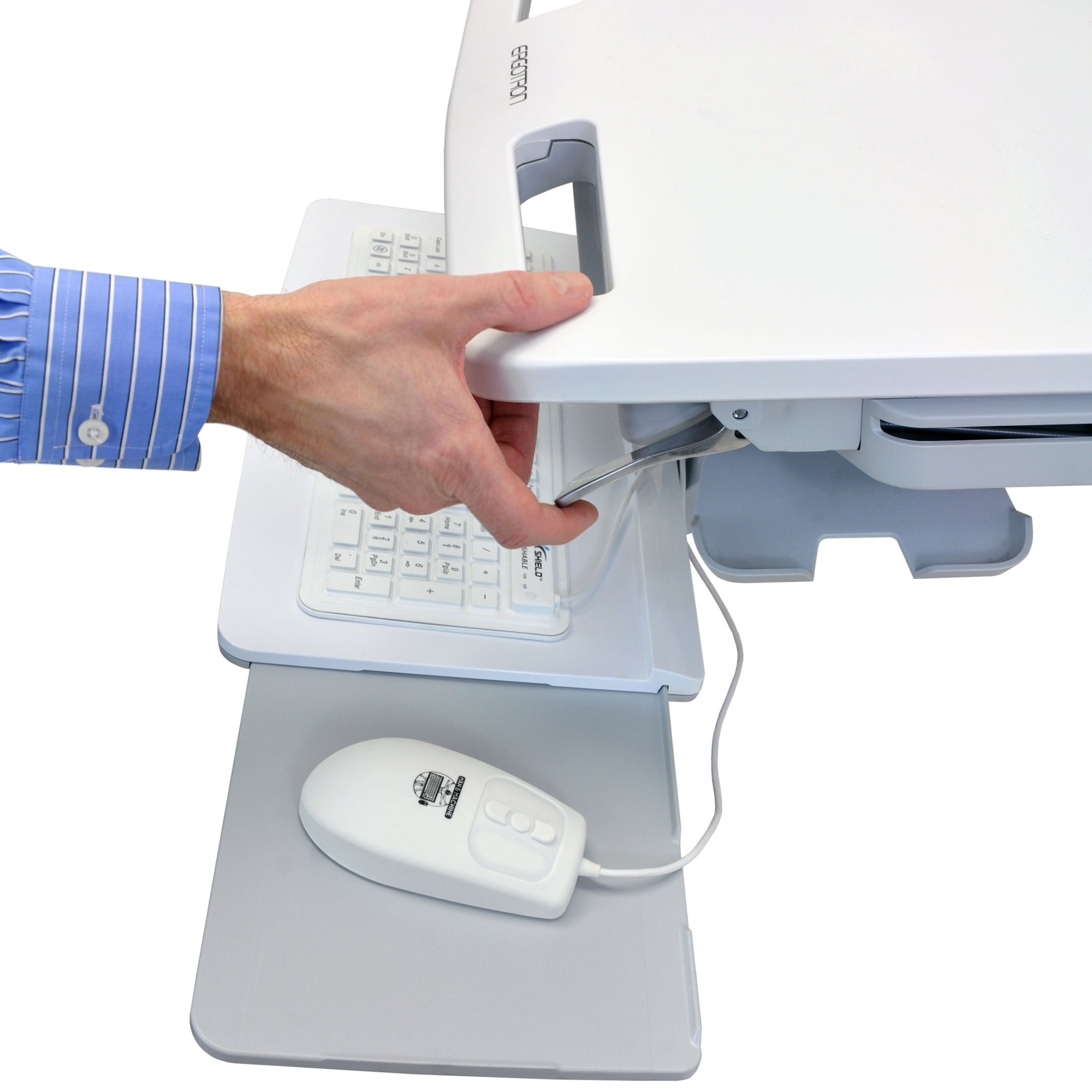

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

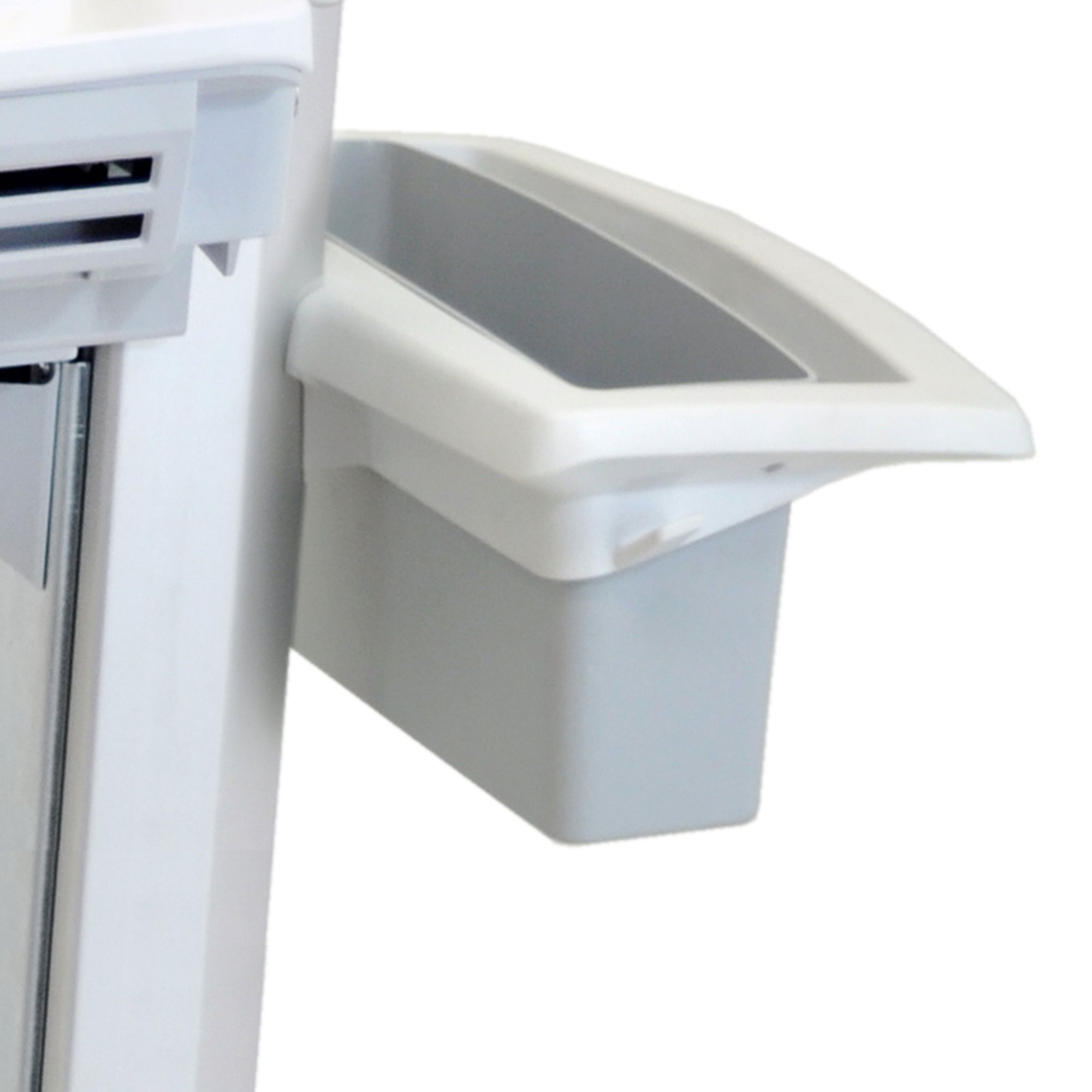

  • Storage basket

  • Cable storage

  • Four casters (two locking)

Total Maximum Load on Height Adjustment Assembly 35 lbs (15.9 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)
Note
  • Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers - contact Ergotron for details

  • If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)

LCD and Worksurface LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
Portrait Screen Orientation Portrait screen orientation may be incompatible with widescreen displays > 19"
True Ergonomics
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

  • Actual cart weight is just 59 lbs (26.8 kg), making system relocation easy

Safe
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large, smooth worksurface; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • CPU lock provided inside the storage compartment for additional security

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • Covered by Global Service Program - 24/7 coverage

All the Details Covered
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights is located conveniently on worksurface

  • Rear basket keeps task-related items where they can be quickly accessed

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

  • Four-port USB hub

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)

  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 86 lbs (39.1 kg); actual cart weight = 59 lbs (26.8 kg)
Warranty Five (5) years for mechanical components, one (1) year for electrical components

Benefits

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Surfaces are treated with antimicrobial for product protection

  • Keyboard pans fully side-to-side for closer access while interacting with clients

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment

Product Options/Accessories

Model SV41-6300-0
Manufacturer Ergotron
Part Number SV41-6300-0
UPC 698833022599
Weight lb(s)
Color White, Grey and Polished Aluminum
Screen Size Up to 24 in
Weight Capacity 35 lbs
Lift (63.5 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
VESA VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight 86 lbs (39.1 kg); actual cart weight = 59 lbs (26.8 kg)
Warranty Five (5) years for mechanical components, one (1) year for electrical components
Product Type LCD Monitor
Power Type Non-powered
Cart Type LCD Medical Cart; Monitor has limited adjustment on fixed pole
Display Type Single Monitor Cart
Lift Technology Constant Force
Price $1833.79
