Peerless DST940 Dual Display Ceiling Mount System - 2x1 Video Wall
One ADD extension column and one ceiling plate (purchase separately) are needed. Package Contents: 2 x PLCM-2 mounts, 2 x EXT006 poles, adapter plate, dual cross support, two adapter bracket sets and assembly hardware.
Description

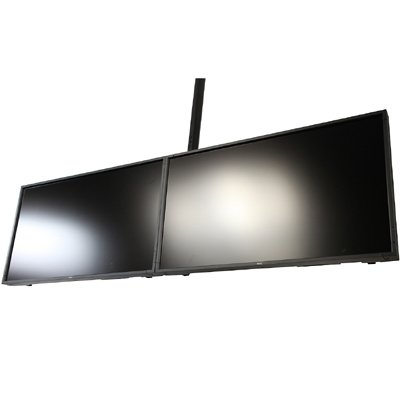

Two separate displays sitting side-by-side can only mean one thing: a win-win situation. Peerless DST940 will mount two displays on a single horizontal plane. Behind the displays, a long plate spans both and the displays are attached with easy-glide brackets to ensure secured placement and ease of adjustability. Installation and adjustment has never been easier, because both displays slide horizontally and tilt up to 20 degrees to ensure the message is placed at its ideal viewing angle. This makes this mounting solution perfect for restaurant menu signage, airport flight information displays or entertainment and department store applications.

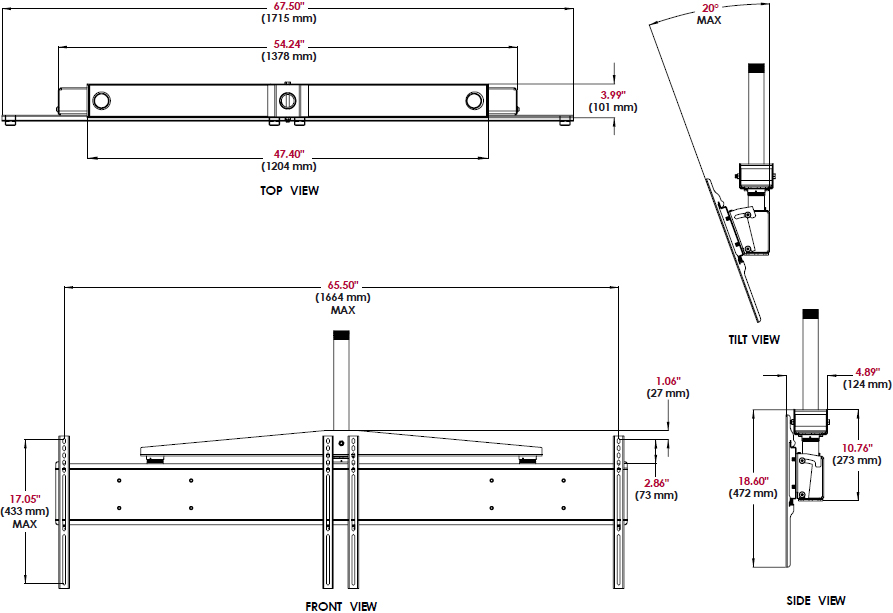

Technical Drawing
Features

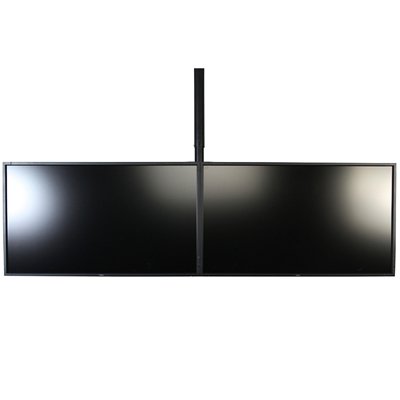

- Single adapter plate keeps the face of both displays on the same plane

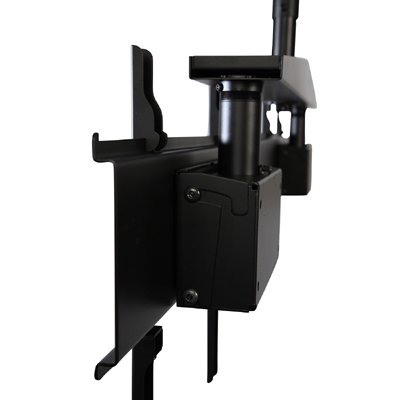

- Easy glide bracket design ensures displays are securely attached to the adapter plate
- Universal display adapters quickly hook onto adapter plate for fast installation
- Horizontal adjustment allows displays to easily slide together for a seamless appearance

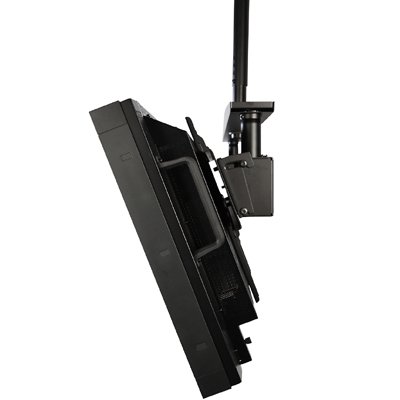

- Tilt ranges from 0 to 20°
Technical Specifications
|
Minimum to Maximum Screen Size |
37" to 46" |
|
Mounting Pattern |
1664 x 433mm (65.5 x 17.05") |
|
Product Weight |
52lb (23.5kg) |
|
Weight Capacity |
150lb (68kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Security Features |
Security Hardware |
|
Tilt |
0 to 20° |
|
Product Dimensions (W x H x D) |
67.5 x 18.6 x 4.89" (1714 x 472 x 124mm) |
|
Shipping Dimensions (W x H x D) |
68.5" x 17.12" x 4.37" (1740 x 435 x 111mm) |
|
Shipping Weight |
57lb (26kg) |
| Units in Package | 1 |
Literature (Please open the following documents for more technical information)
|
Product Sheet - Peerless DST-940 Dual Display Ceiling Mount System |
|
|
Installation Instructions - Peerless DST 940 Side by Side Monitor Ceiling Mount System |
|
- pdfProduct Options/Accessories
| Model | DST940 |
| Manufacturer | Peerless Mounts |
| Part Number | DST940 |
| UPC | 735029265054 |
| Color | Black |
| Monitor Size | 37" to 46" |
| Weight Capacity | 150 lb (68 kg) |
| Dimensions (W x H x D) | 67.5" x 18.6" x 4.89" (1714 x 472 x 124mm) |
| Weight | 52 lb (23.5 kg) |
| Shipping Dimensions | 68.5" x 17.12" x 4.37" (1740 x 435 x 111mm) |
| Shipping Weight | 57 lb (25.8 kg) |
| Tilt | From 0 to 20 degree |
| Warranty | Limited 5 year |
| Mounting Pattern | 1664 x 433mm (65.5 x 17.05") |
| Mounting Options | Ceiling |
